Product Introduction

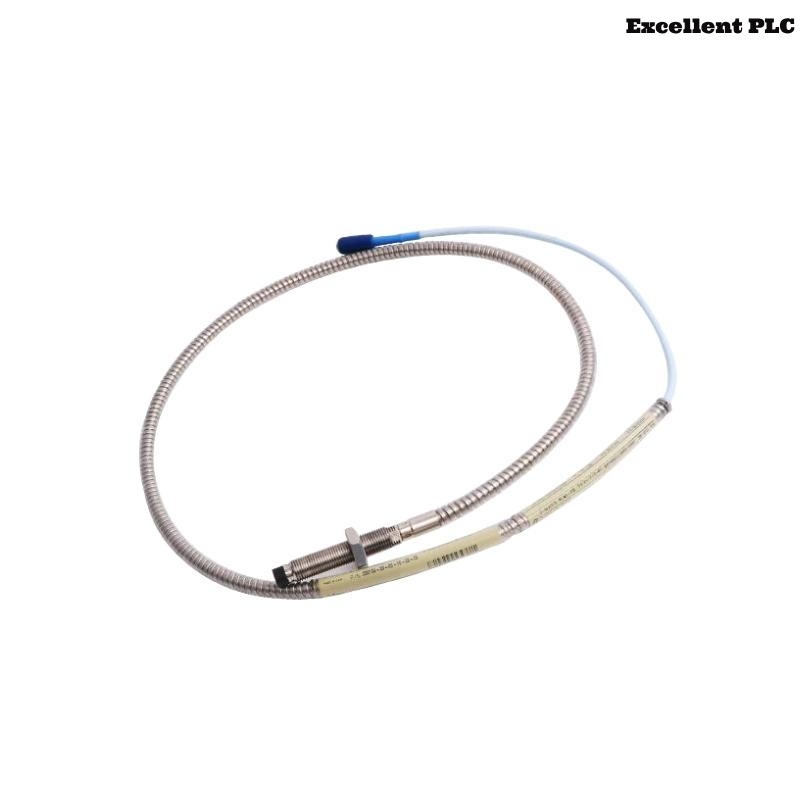

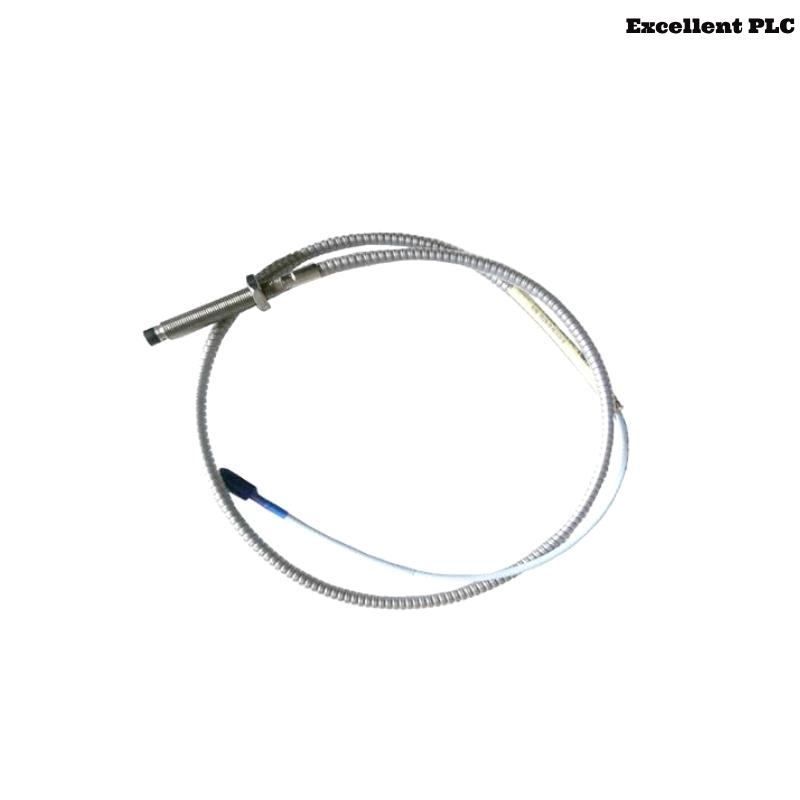

The Bently Nevada 330101-00-13-05-02-00 is part of the 3300 XL 8 mm Proximity Transducer System. This system is engineered for the precise monitoring of rotating machinery, providing real-time, non-contact measurements of shaft displacement and vibration. The model number 330101-00-13-05-02-00 includes the 8 mm proximity probe, which is a critical component for tracking machinery behavior in industrial settings.
The 3300 XL system is widely regarded for its rugged design and high performance, providing unparalleled monitoring accuracy and long-term reliability. The 8 mm probe tip is designed for use in applications with tight installation spaces or for measuring shafts that are relatively small in diameter. The probe is highly resistant to electrical interference, and the robust design ensures it can operate in harsh industrial environments with a wide range of temperature and vibration conditions.
This proximity probe can be integrated into a variety of industries, including power generation, oil and gas, chemical processing, and manufacturing, making it a versatile solution for vibration and shaft position monitoring.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-13-05-02-00 |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 0.5 meter |
| Proximitor Sensor | 3300 XL Proximitor (-24 Vdc operation) |
| Calibration Target | AISI 4140 steel per API 670 standard |
| Sensing Principle | Eddy Current (non-contact displacement sensing) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.127 mm (±5 mils) or better |
| Frequency Response | DC to 10 kHz typical |
| Operating Temp (Probe) | -35°C to +177°C |
| Operating Temp (Sensor) | -35°C to +65°C |
| Storage Temperature | -51°C to +177°C |
| Humidity Tolerance | 100% condensing (non-submersible) |
| Vibration Tolerance | 50 g peak, 10–2000 Hz |
| Shock Resistance | 5000 g, 1 ms half-sine pulse |
| Weight | 0.162 kg |
| Material (Probe Housing) | AISI 303 Stainless Steel |
| Connector Type | MIL-C-39012 compliant miniature coaxial |
| Cable Type | Teflon-insulated coaxial (Unarmored) |
Applications
The Bently Nevada 330101-00-13-05-02-00 3300 XL 8 mm Proximity Probe is designed for use in a variety of critical industrial applications, where precision shaft monitoring is essential to ensure smooth operation and prevent catastrophic failures.
-
Gas & Steam Turbines: Measures shaft vibration and axial thrust position, ensuring the safe operation of turbines.
-
Centrifugal Compressors: Monitors shaft displacement to detect early imbalance, bearing wear, or rotor instability.
-
Pumps: Provides real-time shaft displacement data to avoid misalignment or cavitation issues.
-
Electric Motors: Detects mechanical issues before they cause failure, ensuring the longevity and efficiency of motor systems.
-
Gearboxes: Tracks radial and axial displacement, helping detect early signs of wear or failure.
-
Industrial Fans & Blowers: Detects shaft wobble and other mechanical issues early in operation.
Product Advantages
-
High Precision Monitoring: Offers reliable, accurate shaft position and vibration measurements, ensuring early detection of mechanical issues.
-
Durability in Harsh Environments: Designed to withstand high temperatures, vibrations, and harsh industrial conditions.
-
Noise Immunity: Coaxial design helps reduce electrical noise interference, ensuring stable and accurate readings.
-
Wide Temperature Range: Operates in a wide range of environmental conditions, from extreme cold to high heat.
-
Ease of Integration: Fully compatible with the 3300 XL series Proximitor sensor, making it easy to integrate into existing systems.
-
Long-Term Reliability: Proven in a variety of industries, with millions of units deployed globally in industrial plants.
Frequently Asked Questions (FAQ)
-
What is the significance of the “8 mm” probe?
The 8 mm probe tip is designed for smaller shaft diameters and applications with limited installation space. -
Can this probe be used in all types of machinery?
It is ideal for rotating machinery that requires precise shaft position and vibration measurements, such as turbines, compressors, and pumps. -
What is the maximum cable length supported by the system?
The total system length, including the probe and extension cables, can reach up to 17 ft (5.18 m). For longer installations, custom extensions may be available. -
How does the probe maintain accuracy in harsh environments?
The proximity probe is designed to resist electrical noise and can operate in extreme temperatures and vibration conditions. -
Is the Bently Nevada 3300 XL system suitable for use in explosive environments?
While the probe itself is not intrinsically safe, it can be used with appropriate barriers or enclosures for use in hazardous areas. -
Can the 3300 XL 8 mm probe be used for axial measurement?
Yes, it is capable of measuring both radial and axial displacement, making it highly versatile for a wide range of applications. -
How is the probe calibrated?
The probe is calibrated using a standard AISI 4140 steel target to ensure accurate measurements that comply with API 670 standards. -
What type of maintenance is required for this probe?
Regular inspection of the probe, cable, and sensor should be conducted during scheduled shutdowns to ensure continued reliability. -
Can this probe be used with older Bently Nevada systems?
Yes, it is backward-compatible with many older systems in the 3300 series, but it is always recommended to verify electrical compatibility. -
Is there a warranty for the Bently Nevada 3300 XL system?
Yes, Bently Nevada typically provides a warranty, but the exact terms should be confirmed at the time of purchase.
Related Models from the Same Series or Function Category
| Model Number | Description | Cable Length | Probe Tip | Thread Size | Application Notes |
|---|---|---|---|---|---|
| 330101-00-12-10-02-00 | 3300 XL 8 mm Probe with 12 ft cable | 12 ft | 8 mm | 3/8-24 UNF | Standard proximity probe with longer cable |
| 330104-00-12-10-02-00 | 3300 XL 11 mm Probe with 12 ft cable | 12 ft | 11 mm | 3/8-24 UNF | For larger shaft diameters |
| 330106-05-30-10-02-00 | 3300 XL 8 mm Armored Probe, 5 m cable | 5 m | 8 mm | M10x1 | Ruggedized version for harsh environments |
| 330130-040-00-00 | 3300 XL Extension Cable, 40 ft | 40 ft | — | — | For long-distance probe connections |
| 330180-91-05 | 3300 XL Proximitor Sensor, DIN Mount, 5 m | N/A | — | — | Compact DIN-rail mount Proximitor |
| 330105-02-12-10-02-00 | Reverse Mount 8 mm Probe, 12 ft cable | 12 ft | 8 mm | M10x1 | Used in reverse-thread applications |
Popular Bently Nevada Models (High Demand)
| Model Number | Description | Function | Key Feature |
|---|---|---|---|
| 3500/42M | Proximitor Monitor Module (4-Channel) | Shaft vibration and position | Real-time monitoring in 3500 rack systems |
| 3500/22M | Transient Data Interface (TDI) | Communication and data logging | Ethernet & serial connectivity |
| 3500/05 | Rack for 3500 Series Modules | System integration | Modular mounting system |
| 3500/32M | 4-Channel Relay Module | Alarm and control output | Used in trip, shutdown, and control systems |
| 1900/65A | Compact Vibration Monitor | Standalone machinery protection | Budget-friendly, reliable monitoring |
| 3300/14 | 2-Channel Vibration Monitor | Radial vibration measurement | Legacy series, widely installed globally |
