Product Overview

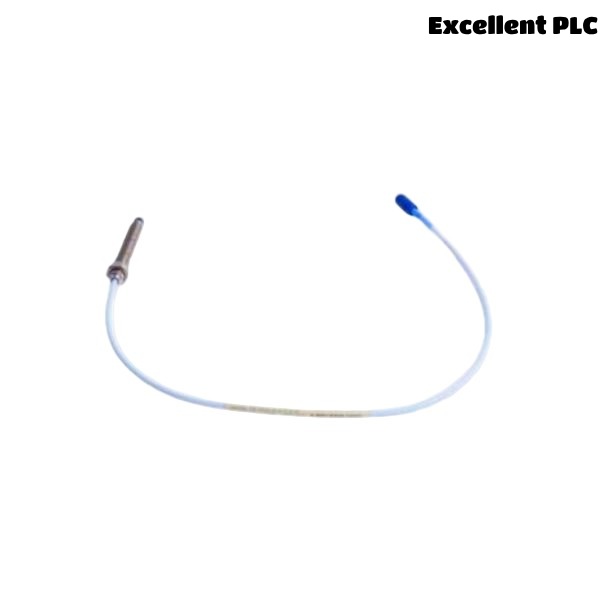

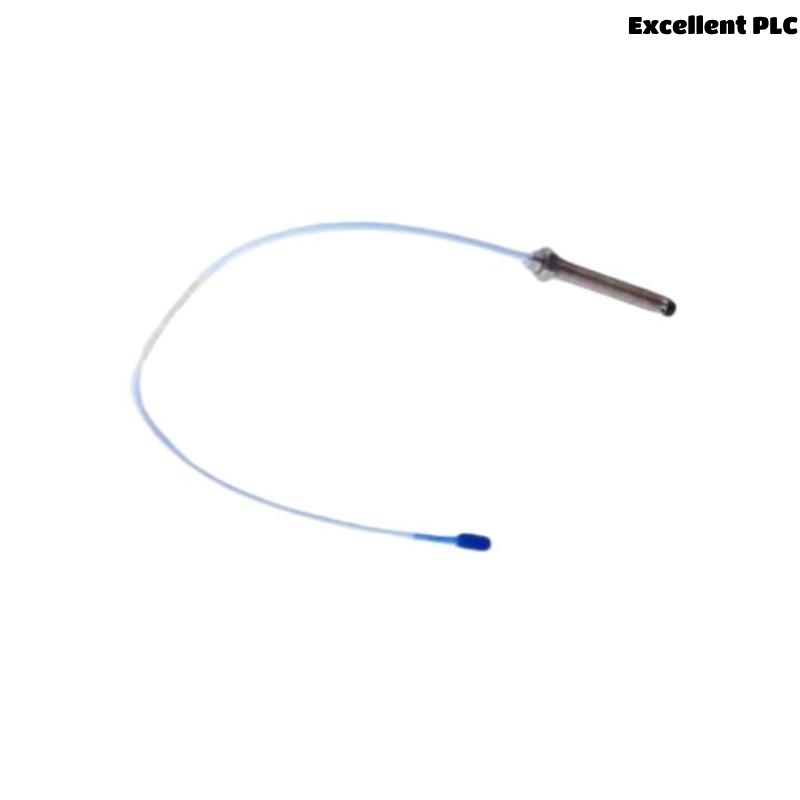

The Bently Nevada 330101-00-14-10-10-02-05 is a high-performance proximity probe that belongs to the 3300 XL 8 mm Proximity Transducer System. This system, comprising a probe, extension cable, and Proximitor® Sensor, is designed to provide accurate and reliable measurements of shaft vibration, axial thrust, and position in rotating machinery.
This specific configuration features a 14 ft (4.3 m) system length, composed of a 10 ft (3.0 m) probe and a 4 ft (1.2 m) extension cable, which provides flexibility for mounting and routing in constrained industrial environments. Its robust construction, EMI resistance, and adherence to API 670 standards make it ideal for mission-critical applications across oil and gas, power generation, and heavy industry.
Key Features
-
8 mm tip diameter for precision shaft vibration measurement
-
System configuration: 10 ft probe and 4 ft extension cable
-
Rugged stainless-steel probe body with PEEK tip
-
Excellent linearity and accuracy for machinery diagnostics
-
Fully compatible with Bently Nevada 3300 XL Proximitor sensors
-
High resistance to EMI/RFI interference
-
Suitable for harsh industrial environments, including oil-lubricated and high-temperature zones
-
API 670 compliant performance characteristics
-
IP67 environmental protection rating
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8 mm |
| Probe Length | 10 ft (3.0 m) |
| Extension Cable Length | 4 ft (1.2 m) |
| Total System Length | 14 ft (4.3 m) |
| Thread Size | 3/8-24 UNF (standard mounting) |
| Connector Type | Coaxial (miniature, gold-plated contacts) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linearity | ±0.25% full-scale typical |
| Measurement Range | 2 mm (80 mils) nominal |
| Frequency Response | DC to 10 kHz |
| Insulation Resistance | >10 GΩ |
| Operating Temperature | -35°C to +177°C (Probe and Cable) |
| Environmental Protection | IP67 |
| Compliance Standards | API 670, CE, RoHS, ATEX/IECEx (select variants) |
| Materials | Probe: AISI 303 SS; Tip: PEEK; Cable jacket: Polyurethane |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
Product Advantages
-
Precision Monitoring: Detects minute changes in shaft vibration and displacement critical to preventive maintenance.
-
EMI/RFI Immunity: Operates reliably near frequency converters, switchgear, and other high-noise devices.
-
API 670 Compliance: Meets the rigorous reliability and repeatability requirements of global industrial standards.
-
Robust Design: Withstands harsh mechanical environments, elevated temperatures, and chemical exposure.
-
Plug-and-Play Integration: Fully compatible with existing Bently Nevada 3300 XL monitoring platforms.
-
Custom Length Flexibility: Optimized for installations requiring mid-range probe and cable configurations.
-
Reduced Downtime: Supports proactive maintenance, enabling early fault detection and reducing repair costs.
Industry Applications
-
Steam and Gas Turbines – Axial thrust and shaft vibration monitoring
-
Centrifugal and Reciprocating Compressors – Rotor position detection
-
Electric Motors and Generators – Radial vibration and misalignment analysis
-
Pumps and Gearboxes – Machine health diagnostics
-
Oil & Gas Production – Equipment condition monitoring in hazardous zones
-
Power Plants – Predictive maintenance in turbine halls
-
Heavy Industry – Rotating machinery vibration assessment in refineries, mills, and plants
Frequently Asked Questions (FAQ)
-
What is the meaning of the part number 330101-00-14-10-10-02-05?
This part number defines a system with a 14 ft total length, composed of a 10 ft probe and a 4 ft extension cable, along with a connector configuration and specific thread type. -
Can this probe be used with any Proximitor Sensor?
It must be used with Bently Nevada 3300 XL series Proximitor Sensors for correct sensitivity and calibration. -
Is the probe suitable for hazardous areas?
Certain configurations are available with ATEX/IECEx certifications for use in explosive environments. -
What mounting options are available?
The probe includes a 3/8-24 UNF thread for standard mounting brackets or holders. -
Can the probe operate at high temperatures?
Yes, it supports up to 177°C, making it suitable for turbines and other high-heat environments. -
What is the accuracy of the probe?
It offers ±0.25% non-linearity over the linear measurement range. -
Can the system length be changed on-site?
No. The system must retain the factory-specified length to maintain calibration. -
What is the minimum measurable displacement?
The system can accurately detect movements as small as microns, with a typical sensitivity of 7.87 mV/μm. -
Is the probe resistant to oil and chemical exposure?
Yes, the polyurethane jacket and stainless-steel body offer excellent resistance to lubricants and industrial fluids. -
What kind of diagnostic system is it compatible with?
It integrates seamlessly with Bently Nevada 3500 and other condition monitoring platforms.
Related Models in the 3300 XL 8 mm Series
| Model | Description |
|---|---|
| 330101-00-14-10-02-05 | 14 ft total system: 10 ft extension, 4 ft probe |
| 330101-00-14-10-00-02-05 | 14 ft total system: 10 ft probe, 4 ft extension (reverse) |
| 330104-00-12-10-02-00 | Standard probe with 12 ft probe length |
| 330130-045-00-00 | 45 ft Extension Cable for 3300 XL systems |
| 330180-91-00 | Proximitor Sensor for 3300 XL 8 mm probes |
| 330105-02-12-10-02-00 | High-temperature 3300 XL 8 mm proximity probe |
Popular Bently Nevada Models (Same Brand)
| Model | Description |
|---|---|
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Dynamic Vibration Monitor |
| 3500/15-05-05-00 | AC Power Supply Module for 3500 racks |
| 330104-00-03-05-02-00 | 3300 XL 8 mm Probe with 3 ft probe and 5 ft extension |
| 330180-90-00 | Proximitor Sensor, standard for XL system |
| 330130-040-00-00 | 40 ft 3300 XL Extension Cable |
