Description

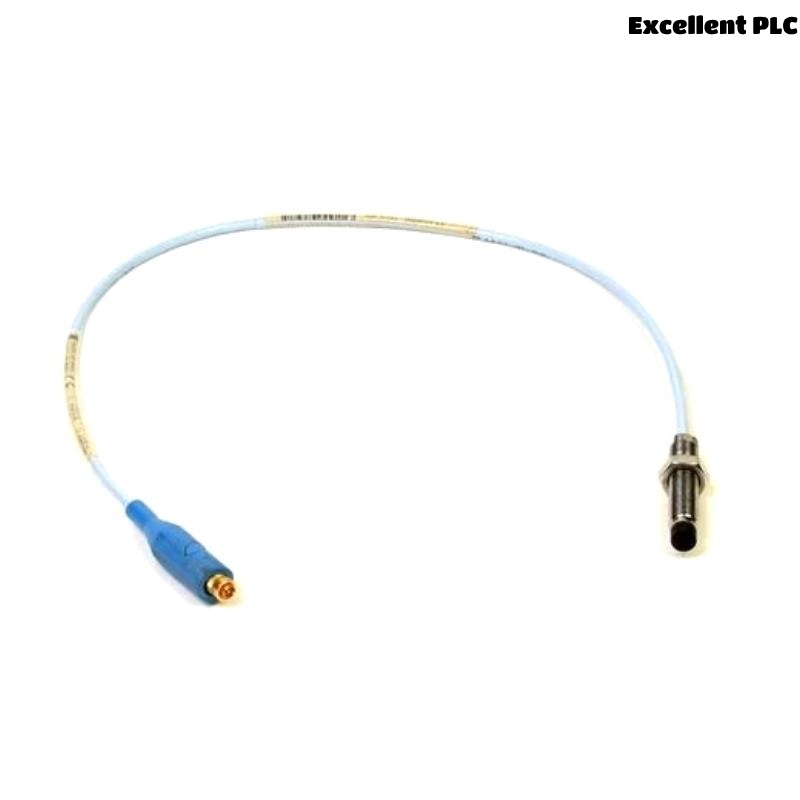

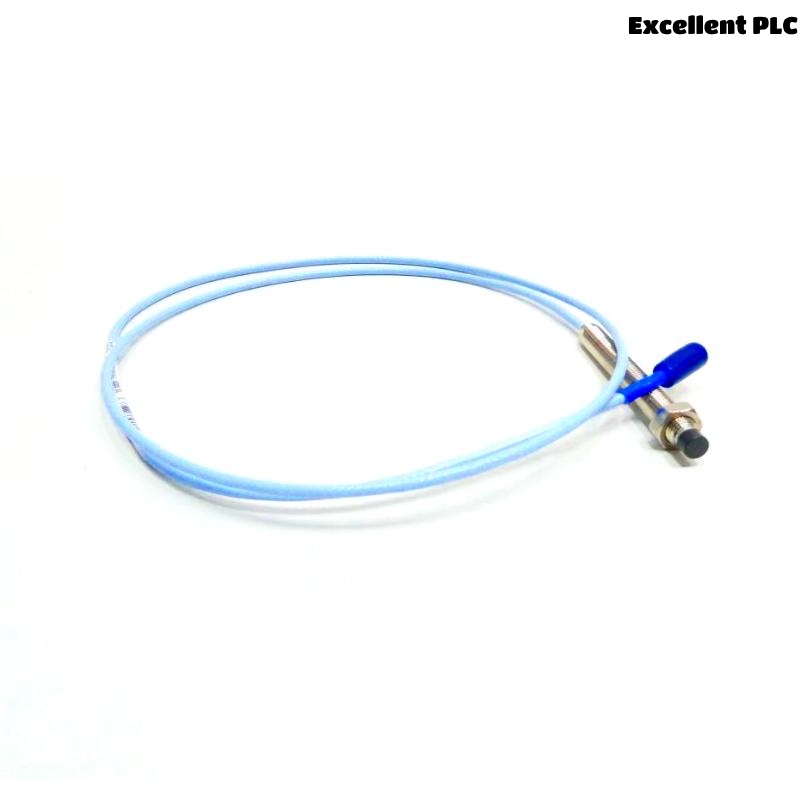

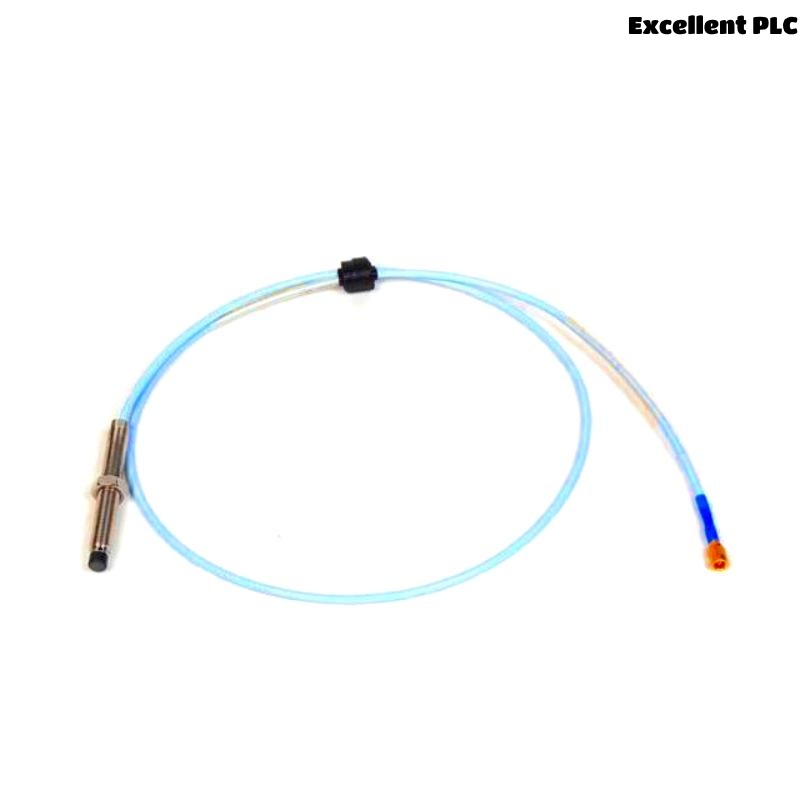

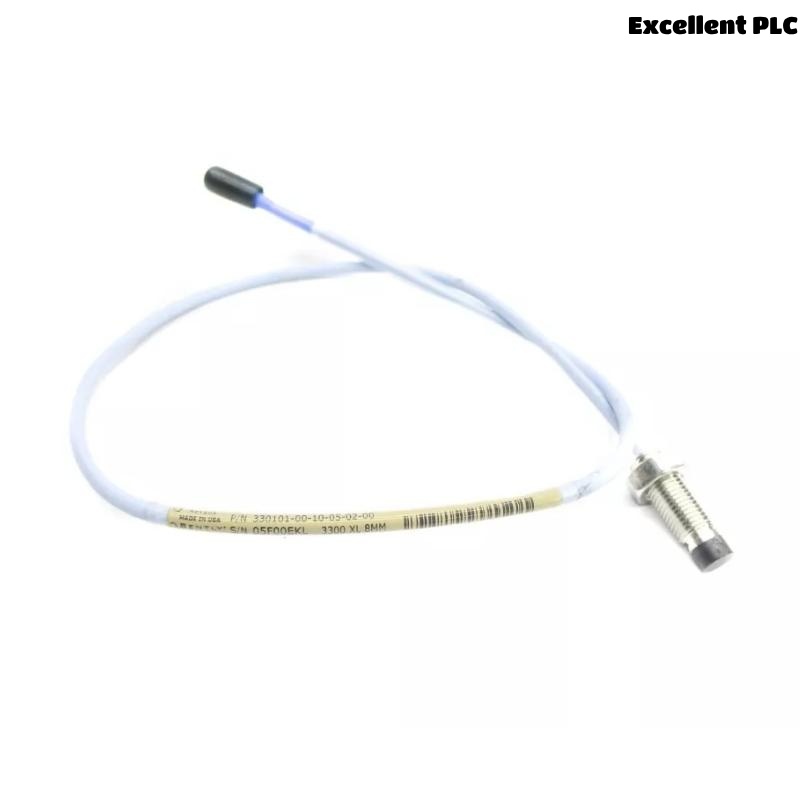

The Bently Nevada 330101-00-14-15-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor designed to measure shaft vibration and position in rotating machinery. It outputs a voltage proportional to the gap between the probe tip and the observed surface, supporting both static and dynamic measurements. This probe is widely used in critical fluid-film bearing equipment and meets API 670 standards for reliability and performance.
Applications
-
Vibration monitoring of turbines, compressors, pumps
-
Shaft position measurement in fluid-film bearings
-
Keyphasor reference and overspeed detection
-
Industrial process machinery condition monitoring
Advantages
-
Fully API 670 compliant for mechanical configuration and performance
-
Interchangeable components, no bench calibration required
-
High resistance to EMI/RFI for installation flexibility
-
Robust construction with patented TipLoc and CableLoc designs
-
Available extended temperature range options up to 260°C (500°F)
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | Eddy-current proximity probe |
| Probe Diameter | 8 mm |
| Total Length | 1.5 meters |
| Weight | 0.484 kg |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | 0–10 kHz (+0, -3 dB) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Operating Temperature Range | -52°C to +177°C (probe) |
| Material | PPS tip, stainless steel body |
| Connector | Miniature coaxial ClickLoc |
| Pull Strength | 330 N (75 lbf) |
FAQ
Q1: What is the primary use of the 330101-00-14-15-02-05 probe?
A1: It is used for measuring shaft vibration and position in rotating machinery.
Q2: Does this probe comply with API 670?
A2: Yes, it fully complies with API 670 standards.
Q3: Is the probe tip material robust for industrial environments?
A3: Yes, it uses PPS and stainless steel for durability.
Q4: Can I use this probe in high-EMI environments?
A4: Yes, it is designed to resist EMI and RFI interference.
Q5: Are the components of the system interchangeable?
A5: Yes, probes, cables, and sensors are fully interchangeable.
Q6: Does it require calibration for specific materials?
A6: Standard calibration is for AISI 4140 steel; other materials require recalibration.
Q7: What is the minimum recommended shaft diameter?
A7: At least 50.8 mm (2 inches), ideally 76.2 mm (3 inches).
Q8: How much force can the cable withstand?
A8: Up to 330 N (75 lbf) pull strength at the probe body.
Q9: What is the maximum temperature the probe can handle?
A9: Standard up to 177°C, extended range up to 260°C with ETR version.
Q10: What is the frequency response of the system?
A10: 0–10 kHz with up to 305 meters of field wiring.
Related Models (Same Series)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-05-02-05 | Standard 8mm probe, 0.8m length | 0.8 m | 0.260 kg |
| 330101-00-10-05-02-05 | Standard 8mm probe, 1.0m length | 1.0 m | 0.300 kg |
| 330101-00-20-05-02-05 | Standard 8mm probe, 2.0m length | 2.0 m | 0.550 kg |
| 330101-00-30-05-02-05 | Standard 8mm probe, 3.0m length | 3.0 m | 0.800 kg |
| 330191-00-15-05-02-05 | ETR (high-temp) 8mm probe, 1.5m length | 1.5 m | 0.484 kg |
| 330192-00-15-05-02-05 | ETR armored 8mm probe, 1.5m length | 1.5 m | 0.500 kg |
