Product Description

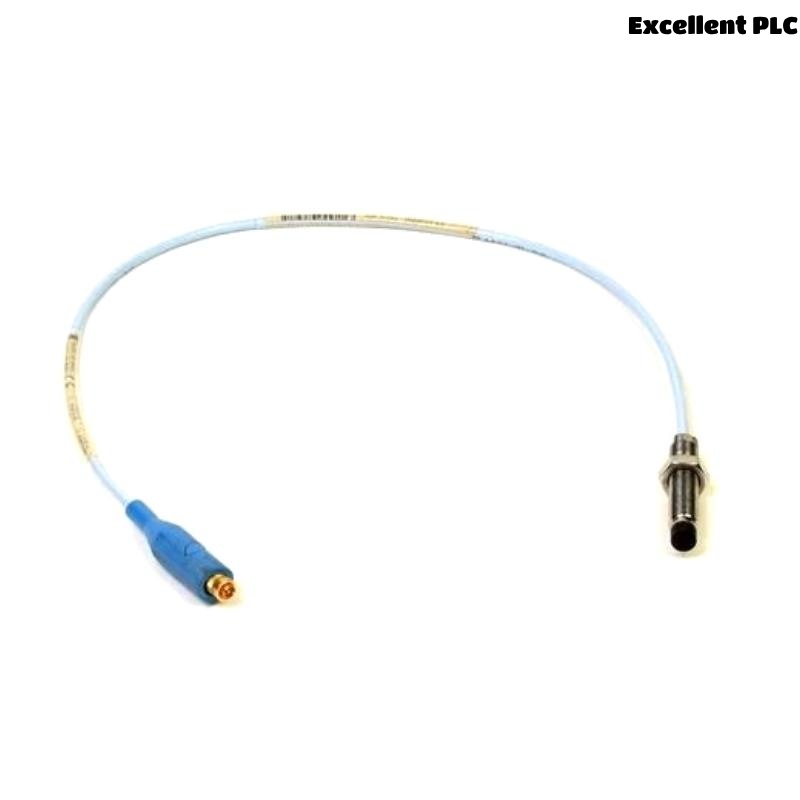

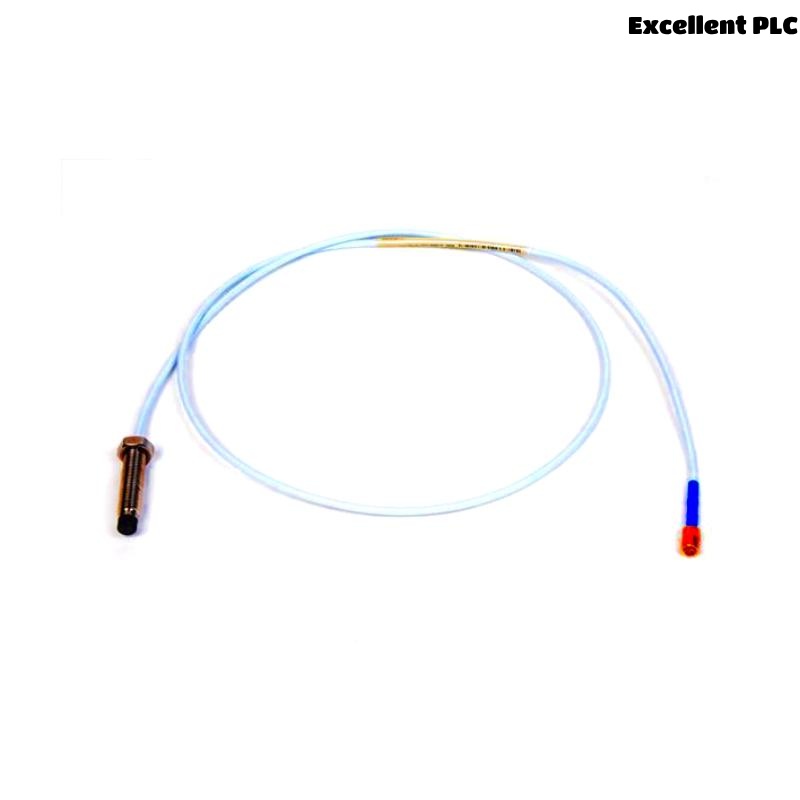

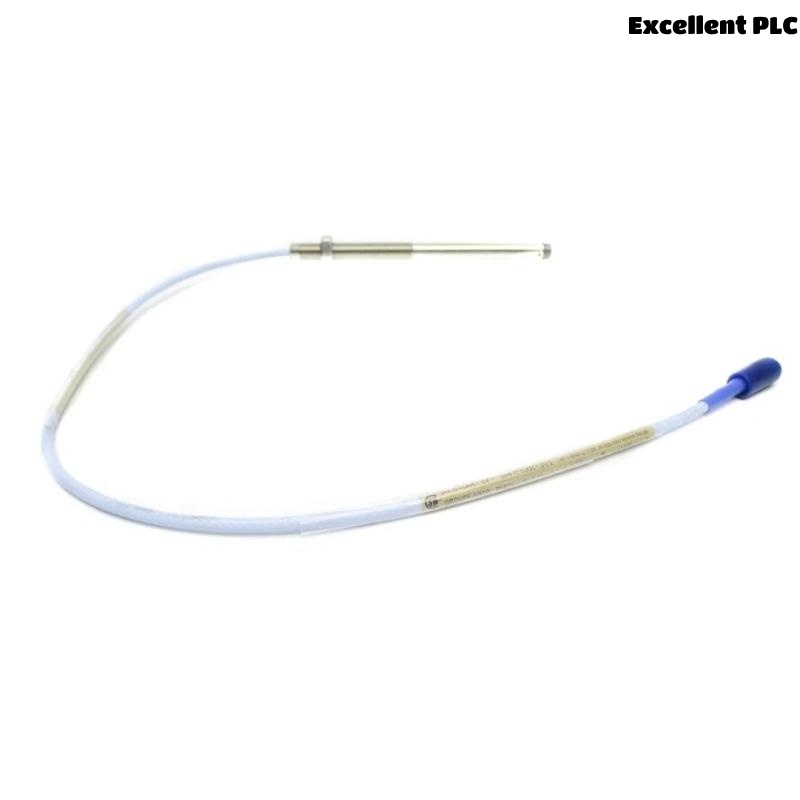

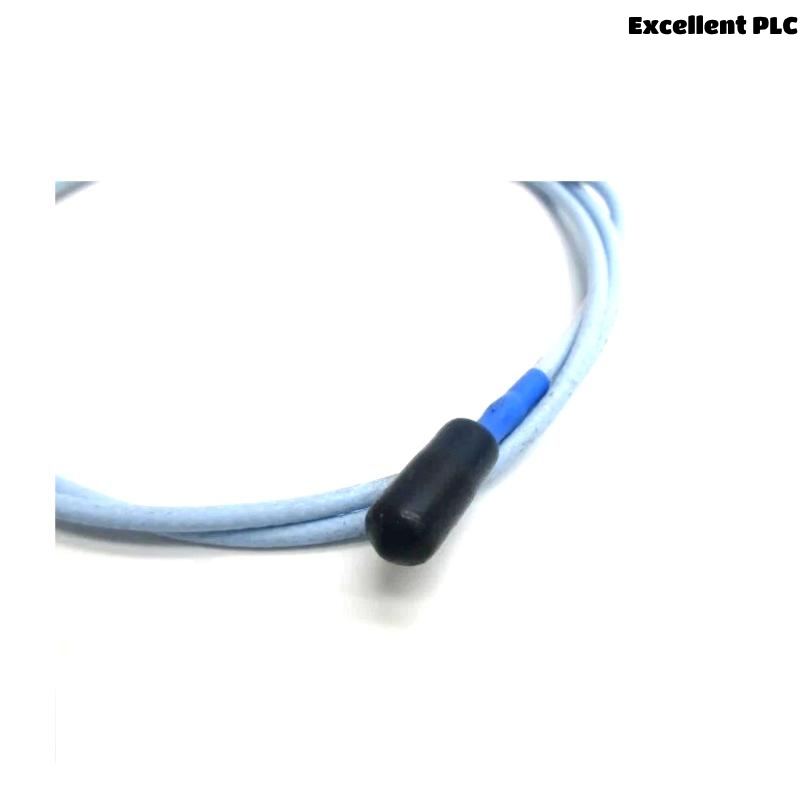

The Bently Nevada 330101-00-15-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It measures both static (position) and dynamic (vibration) data on rotating machinery. The system is ideal for fluid-film bearing machines and provides API 670-compliant accuracy, reliability, and robustness. Components are fully interchangeable and backward-compatible.
Technical Specifications
Parameter | Specification |
---|---|
Probe Tip Material | PPS (Polyphenylene sulfide) |
Probe Case Material | Stainless steel 303/304 |
Total Length | 1.0 meter |
Weight | 0.323 kg |
Cable Type | FEP insulated 75Ω coaxial |
Frequency Response | 0 to 10 kHz (+0, -3 dB) |
Linear Range | 2 mm (80 mils) |
Recommended Gap | 1.27 mm (50 mils) |
Operating Temp (Probe) | -52°C to +177°C (standard) |
Storage Temp (Probe) | -52°C to +177°C |
Humidity | <3% ASF change @ 93% RH |
Pressure Sealing | Viton O-ring seal |
Compliance | API 670, SIL 2/3, CE, FCC, RoHS |
Applications
-
Vibration and position monitoring of turbines, compressors, pumps, and motors.
-
Keyphasor and speed measurements.
-
Condition monitoring in hazardous and high-density installations.
Advantages
-
API 670 compliance.
-
Fully interchangeable components for easy maintenance.
-
High EMI/RFI immunity, CE-certified.
-
Rugged construction for industrial environments.
-
Backward compatibility with non-XL 3300 systems.
-
Optional FluidLoc cable prevents oil ingress.
FAQ
Q1: What is the primary use of this probe?
A1: It is designed to measure vibration and position on rotating machinery.
Q2: Is the probe compliant with API 670?
A2: Yes, it fully meets API 670 requirements.
Q3: Can I use it in hazardous areas?
A3: Yes, it has CSA, ATEX, IECEx approvals for hazardous areas.
Q4: Is the cable included with the probe?
A4: Yes, it includes a 1.0-meter FEP-insulated cable.
Q5: Are components interchangeable?
A5: Yes, components are fully interchangeable with 3300 series.
Q6: Does it support high temperature?
A6: Standard probe operates up to +177°C. ETR version available for higher temperatures.
Q7: What is the linear measurement range?
A7: The linear range is 2 mm (80 mils).
Q8: How is EMI/RFI handled?
A8: The probe has enhanced shielding and is CE-compliant.
Q9: Does it come with an armored cable?
A9: This model uses standard cable; armored options are available.
Q10: What is the minimum shaft size for use?
A10: Recommended for shafts 76.2 mm (3 inches) or larger.
Recommended Related Models
Model Number | Description |
---|---|
330101-00-10-10-02-05 | 1.0m, 8mm probe, standard cable |
330102-00-15-10-02-05 | 1.5m, 8mm probe with armor |
330103-00-10-10-02-05 | 1.0m, 8mm probe, metric thread |
330104-00-15-10-02-05 | 1.5m, 8mm probe, metric thread, armored |
330105-02-12-10-02-05 | Reverse mount, 1.0m |
330106-05-30-10-02-05 | Reverse mount, metric, 3.0m |
