Product Description

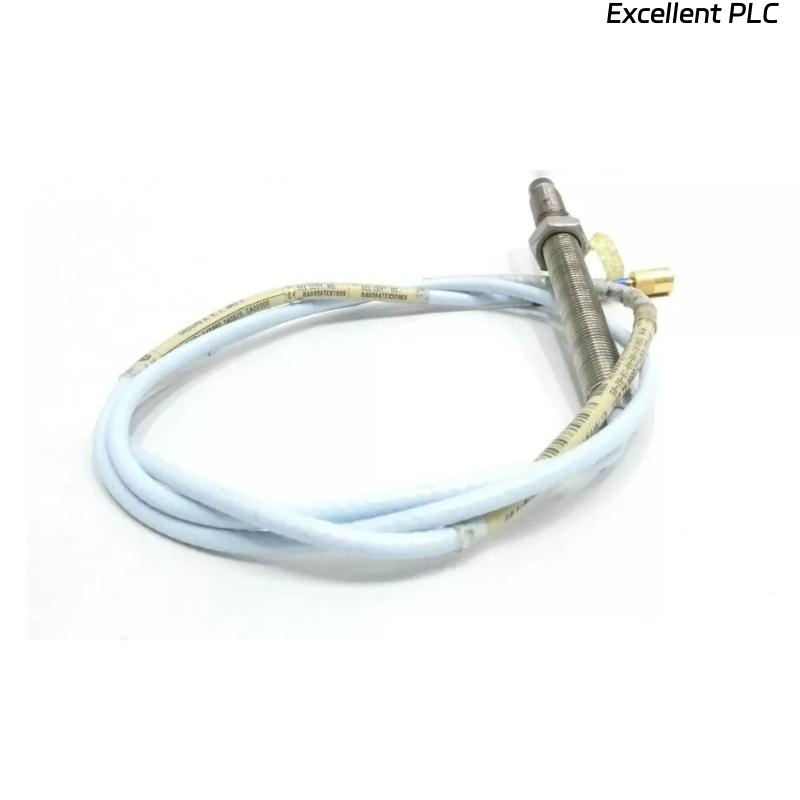

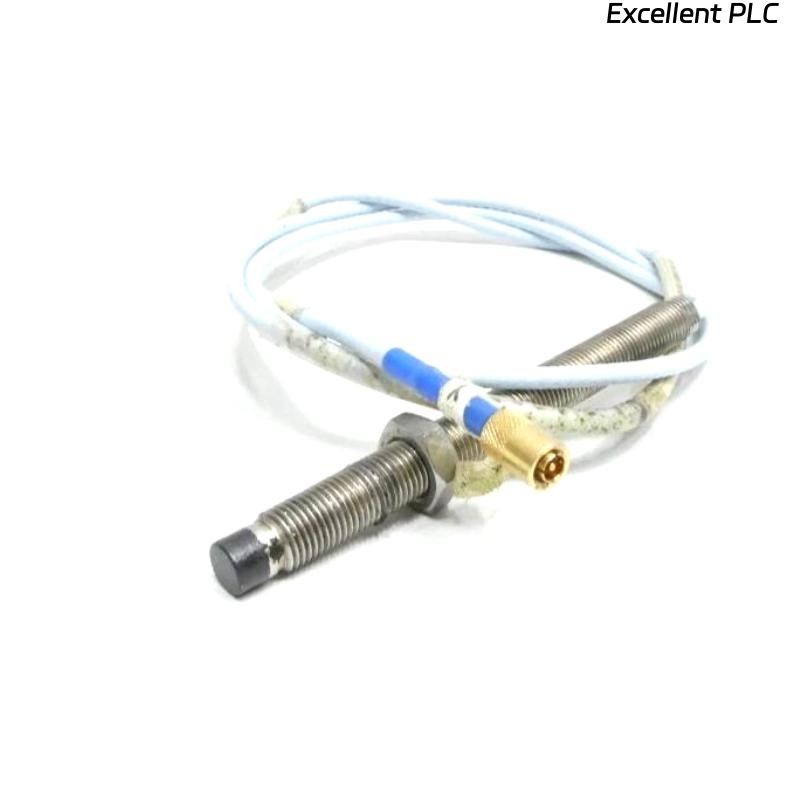

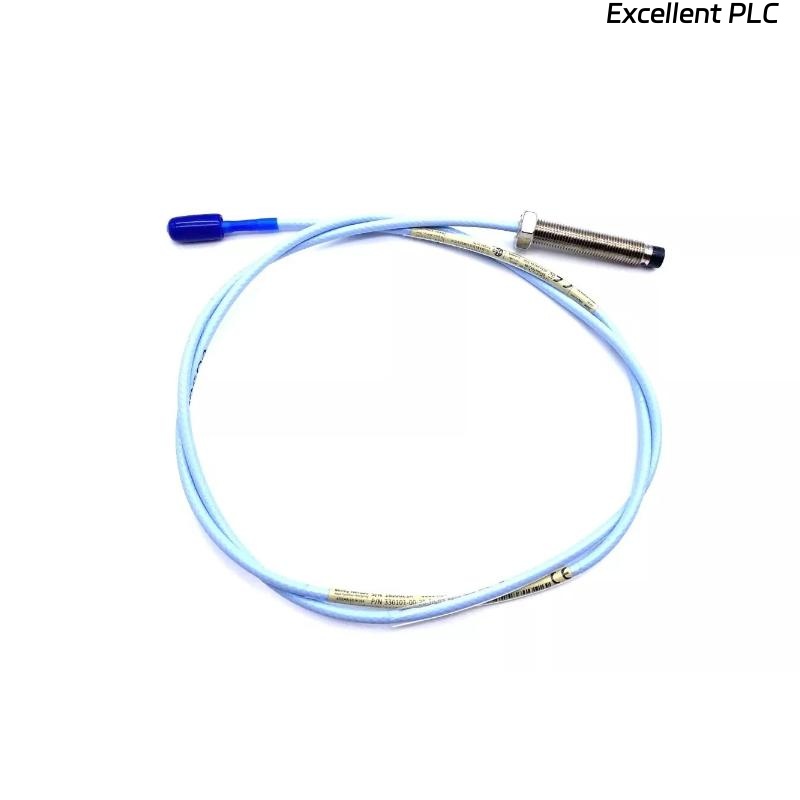

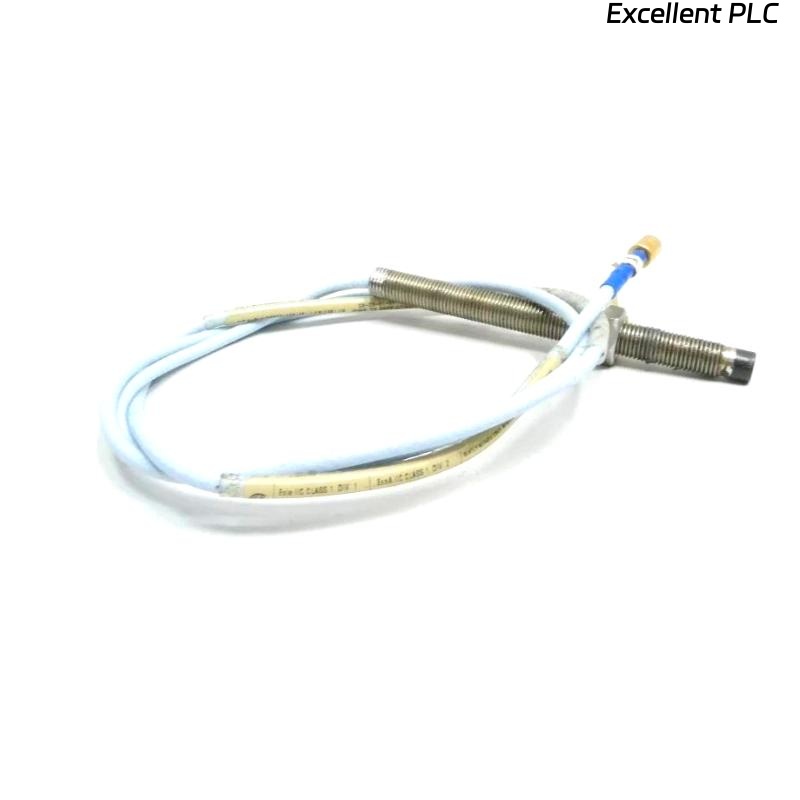

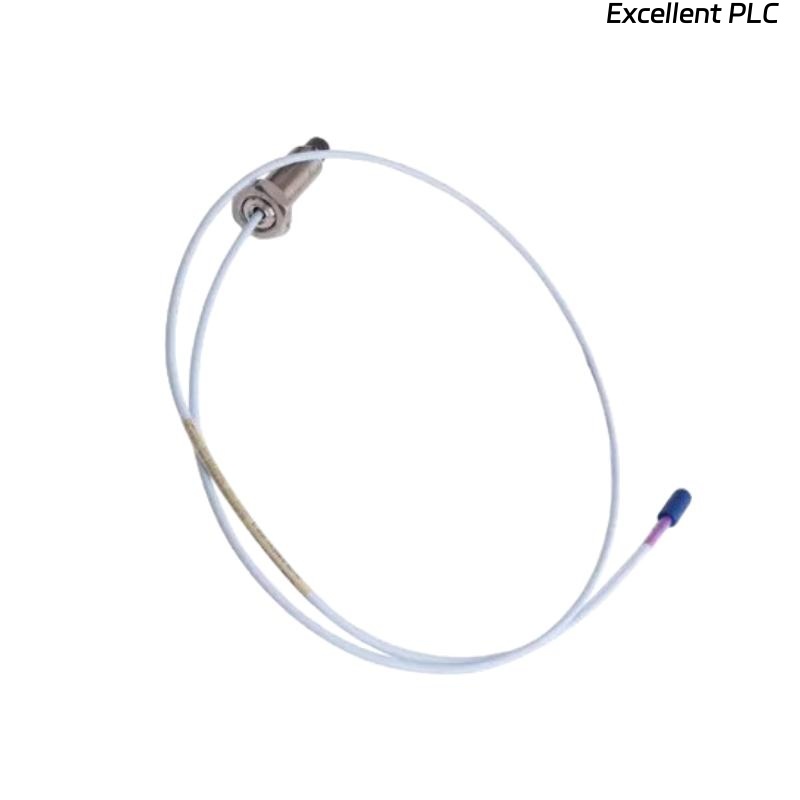

The Bently Nevada 330101-00-16-50-02-00 3300 XL 8mm Proximity Probe is designed for high-precision vibration and position monitoring in rotating machinery. As part of the 3300 XL system, it provides a reliable, linear voltage output proportional to the distance between the probe tip and the monitored conductive surface. Its robust construction ensures long-term stability and accuracy under harsh industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8mm Proximity Probe |
| Measurement Range | ±0.25 mm to ±2.54 mm (system-dependent) |
| Linearity | ±1% full scale typical |
| Temperature Range | -40°C to 121°C (-40°F to 250°F) |
| Total Length | 5.0 meters |
| Weight | 1.615 kg |
| Compliance | API 670 4th Edition |
| Connector Type | Integral 4-pin |
| Cable Type | Shielded twisted pair |
| Material | Stainless steel probe tip, durable flexible cable |
Applications
-
High-speed turbines and compressors
-
Pumps and motors in industrial plants
-
Critical rotating equipment requiring vibration and position monitoring
-
Machinery health and condition monitoring systems
-
Compliance with API 670 vibration monitoring standards
Advantages
-
High measurement accuracy and linearity
-
Durable 8mm probe design for physical robustness
-
Interchangeable with other 3300 XL components without recalibration
-
Stable performance in extreme temperature conditions
-
Minimal maintenance due to rugged construction
FAQ
1. What is the measurement range of this probe?
The 8mm proximity probe typically supports ±0.25 mm to ±2.54 mm depending on the system configuration.
2. Can it operate in high-temperature environments?
Yes, it is rated to operate from -40°C to 121°C (-40°F to 250°F).
3. Is calibration required after installation?
No, components are designed to be interchangeable without individual calibration.
4. What types of machinery is this probe suitable for?
It is ideal for turbines, compressors, pumps, motors, and other critical rotating equipment.
5. How is the probe connected to the system?
It uses an integral 4-pin connector with a shielded twisted pair cable.
6. Does the probe comply with industrial standards?
Yes, it fully complies with API 670 4th Edition requirements.
7. What is the expected lifespan of the probe?
With proper installation and handling, it offers long-term stable performance typical of Bently Nevada 3300 XL probes.
8. Is the probe compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL system.
9. Can it measure both vibration and shaft position?
Yes, it provides data for both static position and dynamic vibration monitoring.
10. What materials are used in the probe?
The probe tip is stainless steel, and the cable is a durable, flexible material suitable for industrial environments.
Related Models (Same Series / Related)
| Model Number | Type | Measurement Range | Length | Weight |
|---|---|---|---|---|
| 330101-00-16-50-01-00 | 8mm Proximity Probe | ±0.25–2.54 mm | 5 m | 1.615 kg |
| 330104-00-06-50-01-00 | 8mm Proximity Probe | ±0.25–2.54 mm | 5 m | 1.6 kg |
| 330101-00-16-50-02-01 | 8mm Proximity Probe | ±0.25–2.54 mm | 3 m | 1.2 kg |
| 330104-00-06-10-11-00 | 8mm Proximity Probe | ±0.25–2.54 mm | 5 m | 1.615 kg |
| 330104-00-06-50-02-00 | 8mm Proximity Probe | ±0.25–2.54 mm | 5 m | 1.615 kg |
| 330104-00-06-50-03-00 | 8mm Proximity Probe | ±0.25–2.54 mm | 3 m | 1.2 kg |
