Product Description

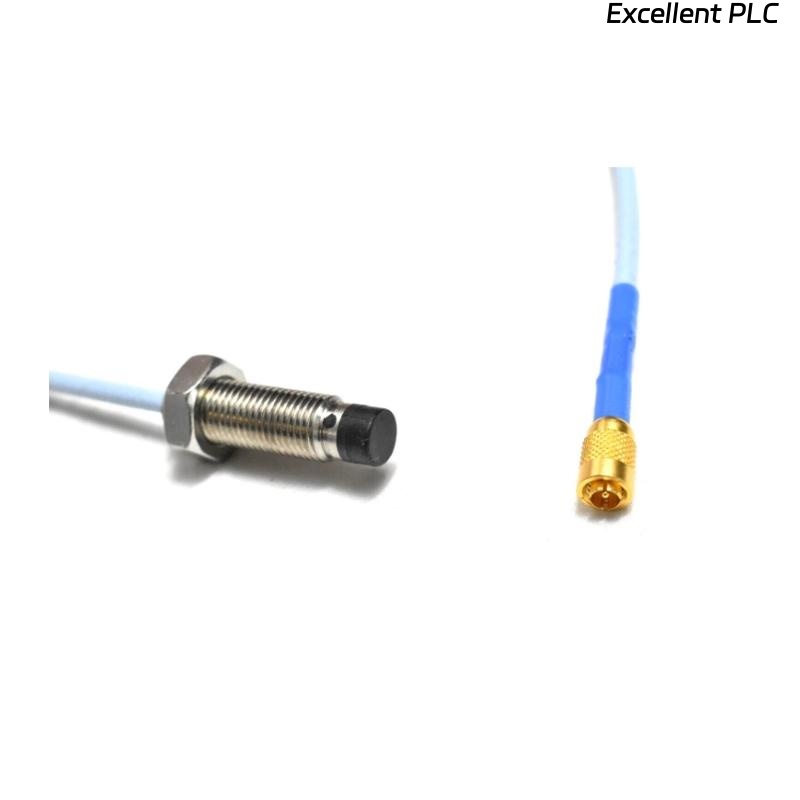

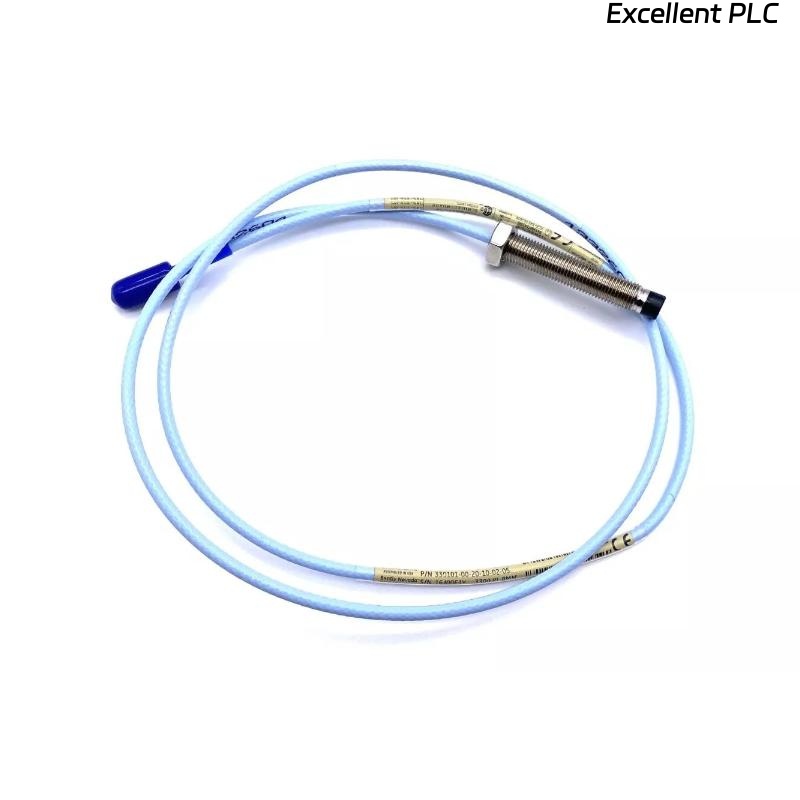

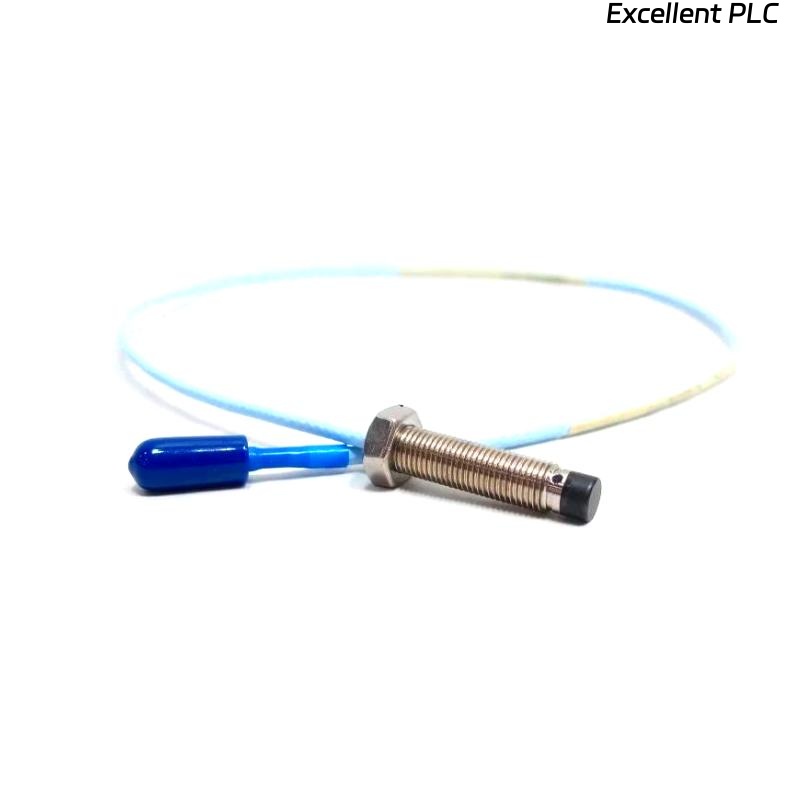

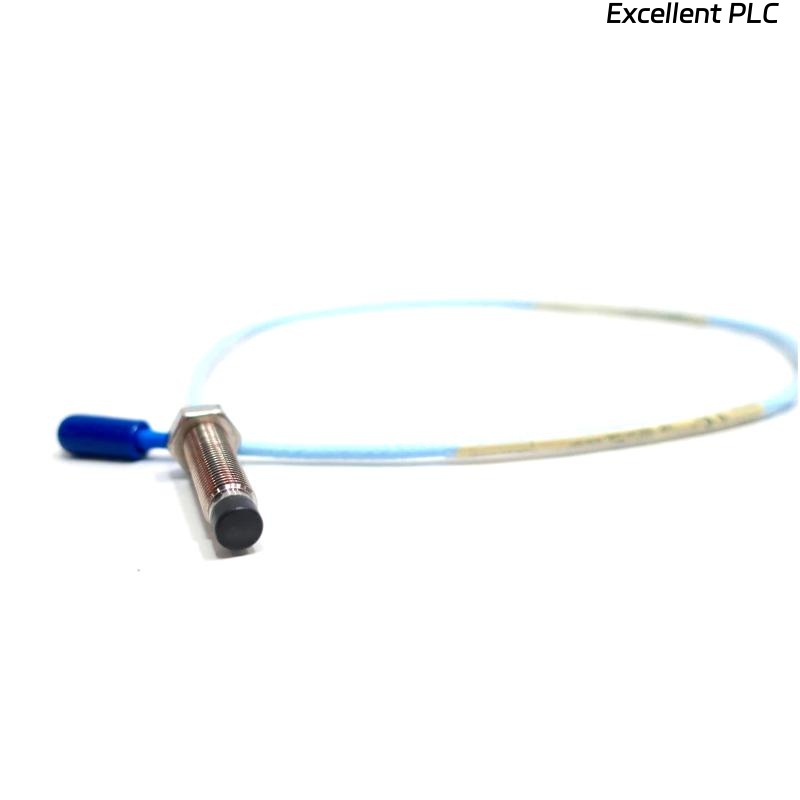

The Bently Nevada 330101-00-17-10-02-05 is a high-precision 8mm proximity probe designed for industrial vibration and position measurement. It is widely used in fluid-film bearing machinery, ensuring accurate monitoring of rotor dynamics and enabling proactive maintenance. Its rugged design ensures reliability in harsh operating environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Probe Body Diameter | 9.66 mm (0.38 in) |
| Cable Type | 75Ω coaxial, OD 3.68 mm (0.145 in) |
| Connector Type | Miniature male coaxial ClickLoc, OD 7.24 mm (0.285 in) |
| Case Thread | 7/16 inch or M10 hex |
| Wrench Flats | 5/16 inch (3/8-24 threads), 8 mm (M10 threads) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Shipping Weight | 2.0 kg |
| Power Supply | -17.5 to -26 Vdc (without barriers), -23 to -26 Vdc (with barriers) |
| Load Resistance | 10 kΩ |
| Target Material | AISI 4140 Steel |
| Gap Setting | 1.27 mm (50 mils) |
| Approvals | CSA, ATEX, IECEx |
Applications
-
Monitoring rotor vibration in turbines, compressors, and pumps
-
Early detection of misalignment, imbalance, and bearing wear
-
Use in high-speed rotating machinery in power plants, oil & gas, and industrial manufacturing
-
Critical machinery protection in safety-critical systems
Advantages
-
Rugged Construction: Larger probe diameter and reinforced PPS tip ensure durability.
-
Precision Measurement: Provides highly accurate proximity and vibration monitoring.
-
Interchangeable Components: Compatible with 3300 XL and standard 3300 series systems.
-
Easy Installation: ClickLoc connectors require only finger-tight torque, eliminating specialized tools.
-
Wide Electrical Range: Supports various industrial power supply configurations.
Frequently Asked Questions (FAQ)
1. What is the maximum operating temperature for this probe?
The 3300 XL 8mm probe is designed to operate reliably in temperatures up to 121°C (250°F).
2. Can this probe measure both displacement and vibration?
Yes, it provides precise measurements for shaft displacement and vibration analysis.
3. Is the probe compatible with standard 3300 series monitors?
Yes, it is fully compatible with 3300 series monitors, both XL and standard.
4. What materials can the probe detect?
It is optimized for ferromagnetic materials such as AISI 4140 steel.
5. How long is the probe cable?
The standard configuration comes with a 1.0-meter cable, which can be extended with approved coaxial extensions.
6. What type of connector does it use?
A miniature male coaxial ClickLoc connector is used, ensuring secure and corrosion-resistant connections.
7. Is it suitable for hazardous locations?
Yes, it carries CSA, ATEX, and IECEx approvals for use in hazardous environments.
8. How robust is the probe against mechanical stress?
The probe has reinforced PPS plastic tip and a thicker body, providing strong mechanical resilience.
9. Can the probe operate with signal barriers?
Yes, it operates with or without signal barriers, adjusting power supply requirements accordingly.
10. What is the recommended gap setting?
A standard gap of 1.27 mm (50 mils) is recommended for optimal measurement accuracy.
Related 3300 XL or Similar Models
| Model | Tip Diameter | Total Length | Weight | Notes |
|---|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm | 1.0 m | 0.32 kg | Standard XL probe |
| 330104-00-06-50-01-00 | 8 mm | 1.5 m | 0.40 kg | Extended cable version |
| 330101-00-17-10-01-05 | 8 mm | 1.0 m | 0.32 kg | Alternate connector option |
| 330101-00-17-05-02-05 | 5 mm | 1.0 m | 0.28 kg | 5 mm probe for small gaps |
| 330101-00-17-10-03-05 | 8 mm | 2.0 m | 0.45 kg | Long cable version |
| 330104-00-06-30-11-00 | 8 mm | 1.2 m | 0.33 kg | Special industrial grade |
Popular Bently Nevada Models
| Model | Tip Diameter | Total Length | Weight | Notes |
|---|---|---|---|---|
| 3300 XL 8 mm Standard | 8 mm | 1.0 m | 0.32 kg | Widely used in turbines |
| 3300 XL 5 mm Probe | 5 mm | 1.0 m | 0.28 kg | For smaller gaps |
| 3300 XL 8 mm High Temp | 8 mm | 1.0 m | 0.33 kg | High temperature operation |
| 3300 XL Proximitor Sensor | N/A | N/A | 0.35 kg | Core sensor unit |
| 3300 XL 8 mm Shielded Cable | 8 mm | 1.0 m | 0.32 kg | Enhanced EMI protection |
| 3300 XL 8 mm Extended Cable | 8 mm | 2.0 m | 0.45 kg | Long-distance measurement |
