Product Introduction

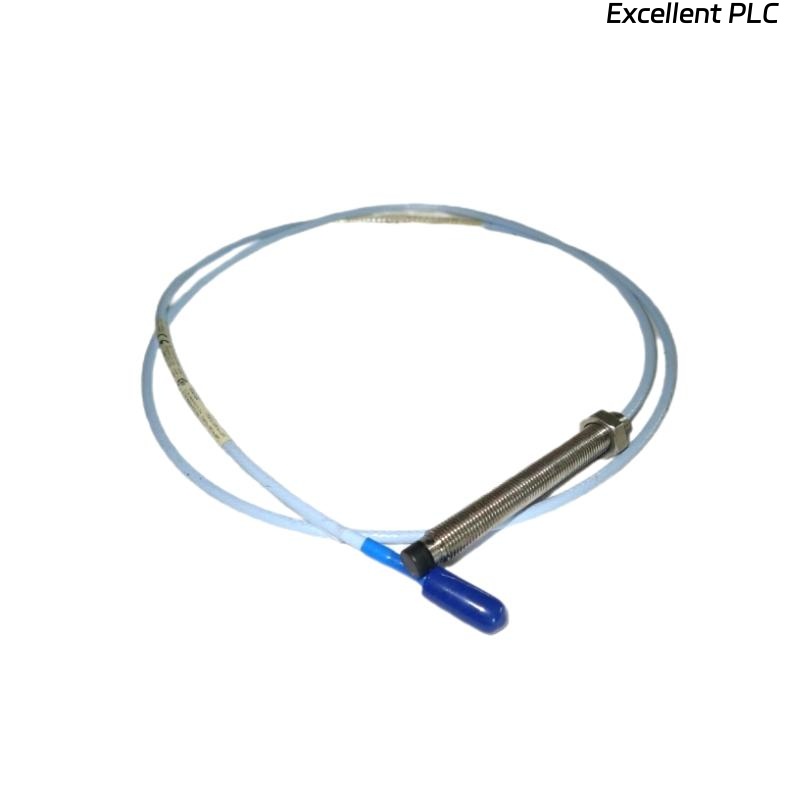

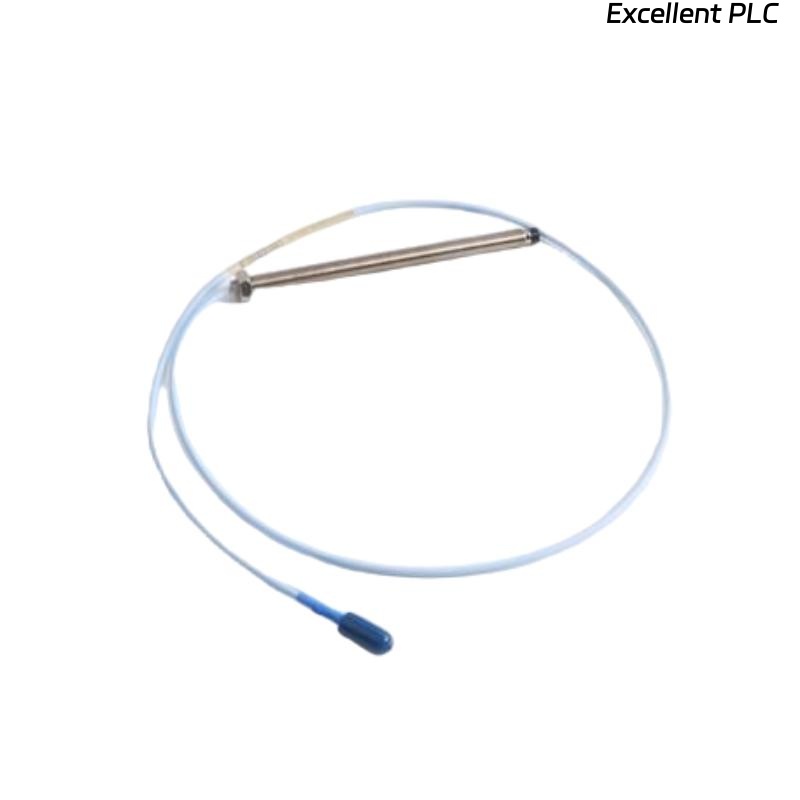

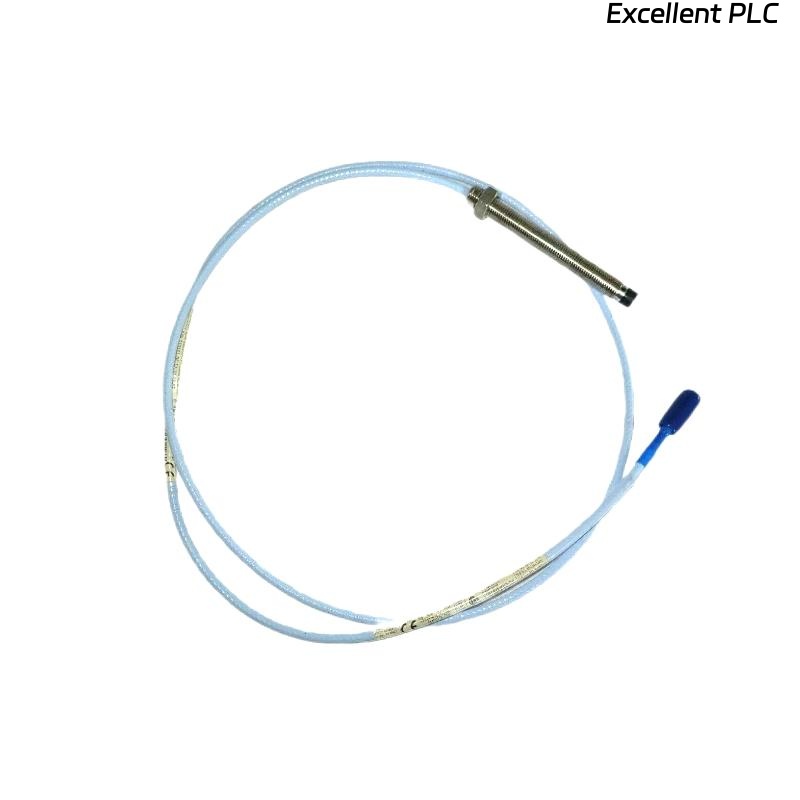

The Bently Nevada 330101-00-20-10-02 is an integral component of the renowned 3300 XL series, designed specifically for non-contact vibration and shaft position measurements in rotating machinery. These probes utilize advanced eddy current technology to provide precise, real-time data on shaft movement, ensuring optimal performance and early detection of potential issues in critical assets such as turbines, compressors, pumps, and motors.
The 3300 XL 8mm Proximity Probe offers superior stability under varying environmental conditions and is engineered to withstand harsh industrial environments including high temperatures, humidity, and electromagnetic interference. This makes it a preferred choice for industries such as oil and gas, power generation, and heavy manufacturing where machinery reliability is paramount.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 330101-00-20-10-02 |
| Series | 3300 XL |
| Measurement Principle | Eddy Current Non-Contact |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Thread Size | M10 x 1 |
| Linear Range | 2 mm (80 mils) |
| Output Signal | -200 mV/mil (-7.87 mV/μm) |
| Frequency Response | 0 to 10 kHz |
| Temperature Range | -35 °C to +177 °C (-31 °F to +350 °F) |
| Weight | 0.323 kg |
| Compatible Drivers | 3300 XL Proximitor® Sensor |
Applications
The Bently Nevada 330101-00-20-10-02 Proximity Probe is widely applied in industries that require continuous condition monitoring and predictive maintenance for critical rotating machinery:
-
Turbomachinery Monitoring: Steam turbines, gas turbines, hydro turbines.
-
Compressors and Pumps: Detection of shaft displacement and vibration to prevent failure.
-
Motors and Generators: Ensuring alignment and balancing for smooth operation.
-
Gearboxes: Monitoring gear mesh and shaft position for reliability.
-
Oil & Gas Sector: Monitoring in refineries and offshore platforms.
-
Power Generation Plants: Protection of generators and turbines.
Product Advantages
-
High Measurement Accuracy: Provides precise vibration and shaft position data for early fault detection.
-
Robust Design: Resistant to temperature extremes and contaminants, ensuring long-term durability.
-
Global Standard Compliance: Fully compatible with API 670 standards for machinery protection.
-
Electromagnetic Immunity: Stable performance even in environments with high electrical noise.
-
Ease of Integration: Seamlessly connects with Bently Nevada 3300 and 3500 monitoring systems.
-
Extended Linear Range: Capable of accurate readings across wide displacement ranges.
FAQ
1. What type of sensor technology is used in the 330101-00-20-10-02 probe?
It uses eddy current technology for non-contact vibration and displacement measurement.
2. Can this probe operate in high-temperature environments?
Yes, it supports temperatures up to +177 °C, making it suitable for turbines and other hot zones.
3. What is the standard sensitivity of the probe?
The probe has a sensitivity of -200 mV/mil (-7.87 mV/μm).
4. Does the probe require a specific driver for operation?
Yes, it is designed to work with the Bently Nevada 3300 XL Proximitor® Sensor.
5. What is the frequency response range of the probe?
The probe supports a frequency range of 0 to 10 kHz.
6. Is the probe resistant to electromagnetic interference?
Yes, it is engineered to provide stable output even in high EMI environments.
7. How does this probe comply with industry standards?
It meets API 670 standards for machinery protection systems.
8. Can the cable length be customized?
Yes, standard length is 1 m, but custom lengths like 5 m, 7 m, and 9 m are available.
9. What is the linear range of the probe?
It provides a linear range of approximately 2 mm (80 mils).
10. Can it be used in hazardous locations?
Yes, certified versions are available for hazardous area installations, depending on configuration.
Related Models (Same Series or Similar Function)
| Model Number | Description |
|---|---|
| 330101-00-20-05-02 | 3300 XL 8 mm Proximity Probe, short length |
| 330102-00-20-05-02 | 3300 XL 11 mm Proximity Probe |
| 330103-00-10-05-02 | 3300 XL Reverse Mount Probe |
| 330130-040-00 | 3300 XL Extension Cable |
| 330104-00-20-05-02 | 3300 XL 5 mm Proximity Probe |
| 330178-XX-XX | 3300 XL Armor Cable for harsh environments |
