Product Overview

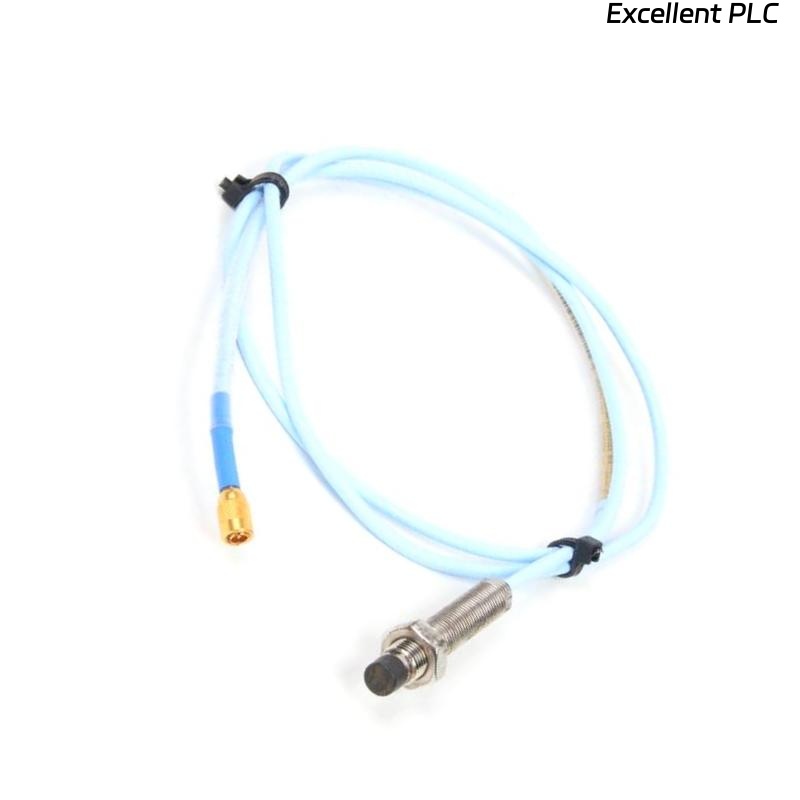

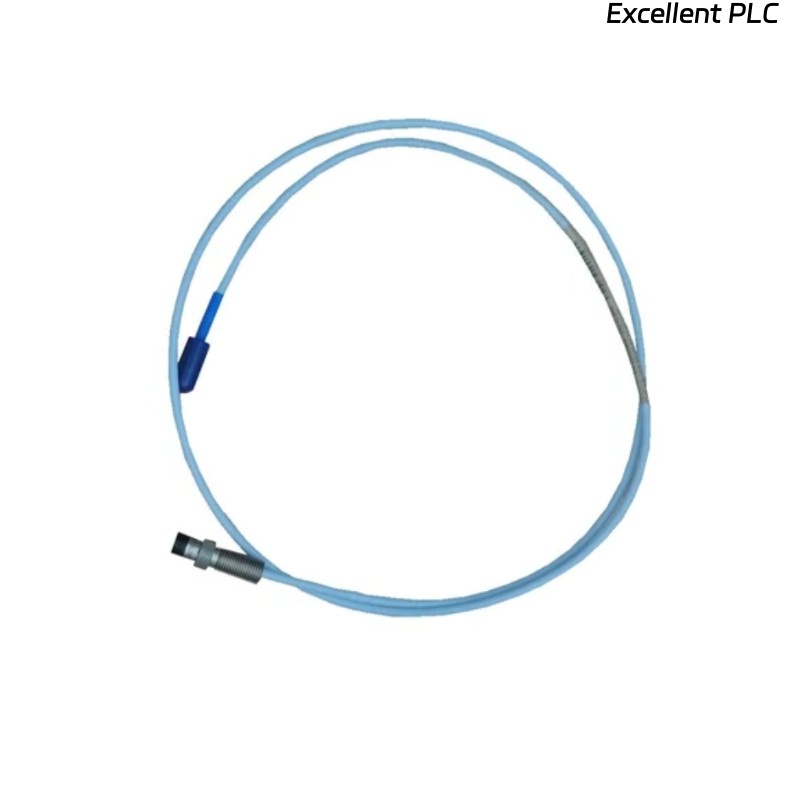

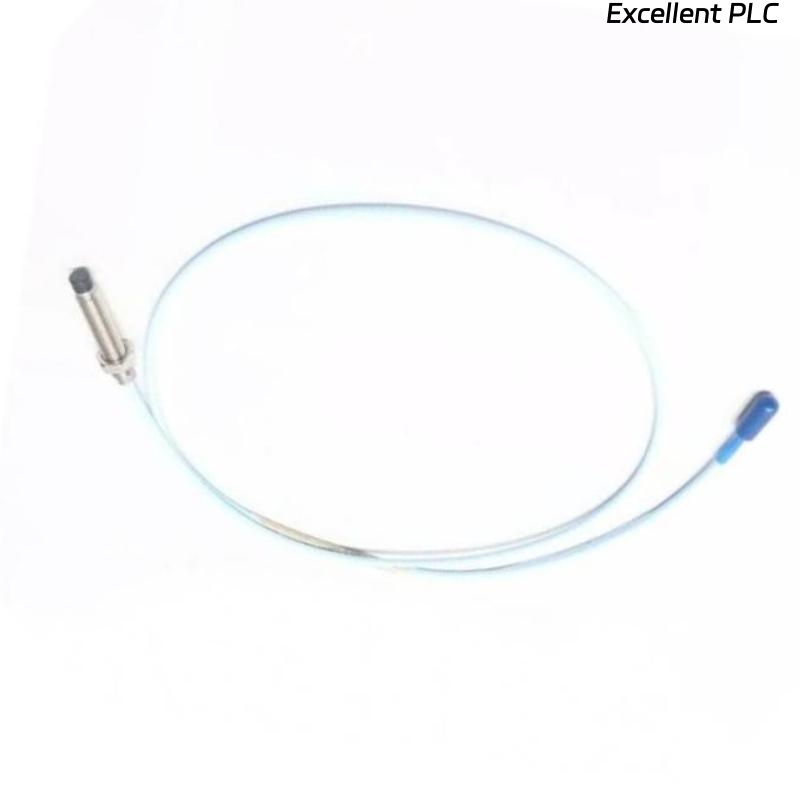

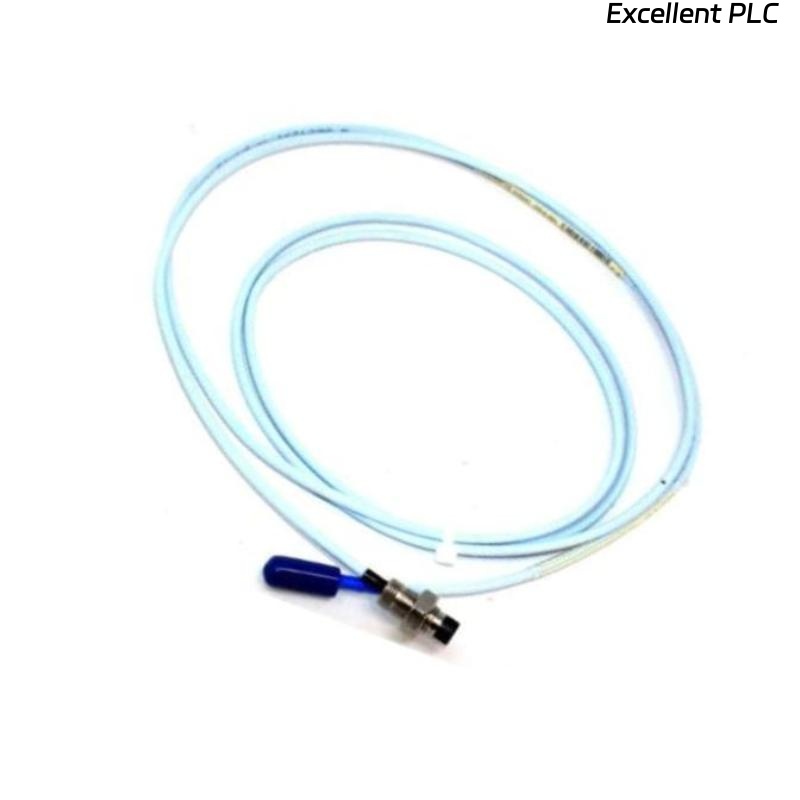

The Bently Nevada 330101-00-20-10-11-CN 3300 XL 8 mm Proximity Probe is designed for non-contact measurement of shaft vibration and position in rotating machinery. When paired with a 3300 XL Proximitor Sensor and extension cable, it provides highly accurate displacement measurements.
Key Features
-
Non-contact measurement of shaft vibration and position
-
8 mm tip diameter probe for standard machine monitoring applications
-
Part of the 3300 XL series, ensuring compatibility and reliability
-
Stable performance across wide temperature ranges
-
High linearity with precise sensitivity calibration
-
Meets API 670 standards for machine protection systems
-
Durable construction suitable for harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330101-00-20-10-11-CN |
| Product Type | Proximity Probe |
| Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8 mm |
| Probe Length | 20 mm |
| Thread Size | M10 × 1.0 |
| Tip Material | Polyphenylene sulfide (PPS), non-conductive |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) |
| Frequency Response | DC to 10 kHz |
| Operating Gap | 2.0 mm ± 0.25 mm |
| Cable Length | 10 ft (3 m) |
| Connector Type | Mini-coaxial connector |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -40 °C to +177 °C |
| Humidity | 95% RH, non-condensing |
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Compliance | API 670, CE, ATEX, CSA |
Industry Applications
-
Oil & Gas – Turbomachinery condition monitoring and protection
-
Power Generation – Turbines, compressors, and generators
-
Petrochemical & Refining – Pumps, compressors, and rotating assets
-
Steel & Mining – Equipment reliability monitoring
-
Water & Wastewater – Pump and motor protection
Advantages
-
Provides high accuracy vibration and position measurement
-
API 670 compliance ensures suitability for critical machinery
-
Rugged and reliable construction for long service life
-
Compatible with standard 3300 XL Proximitor Sensors
-
Flexible integration into machine protection systems
Frequently Asked Questions (FAQ)
Q1: What does the 330101-00-20-10-11-CN probe measure?
It measures shaft vibration and position when paired with a Proximitor sensor.
Q2: What is the tip diameter of this probe?
8 mm.
Q3: What is the probe length?
20 mm.
Q4: What is the thread size of this probe?
M10 × 1.0.
Q5: What is the sensitivity of this probe?
7.87 mV/μm (200 mV/mil).
Q6: What is the linear range?
2 mm (80 mils).
Q7: What is the operating temperature range?
-35 °C to +177 °C.
Q8: What is the cable length for this model?
10 ft (3 m).
Q9: Is this probe compliant with API 670?
Yes, it meets API 670 standards.
Q10: What does the “-CN” designation mean?
It indicates a China-specific configuration or manufacturing origin.
Related Modules
| Model Number | Description |
|---|---|
| 330101-00-20-10-11-CN | 3300 XL 8 mm Proximity Probe |
| 330100-90-50 | 3300 XL Proximitor Sensor |
| 330130-045-01-05 | 3300 XL Extension Cable |
| 3500/40M | Vibration Monitor |
| 3500/42M | Proximitor/Seismic Monitor |
