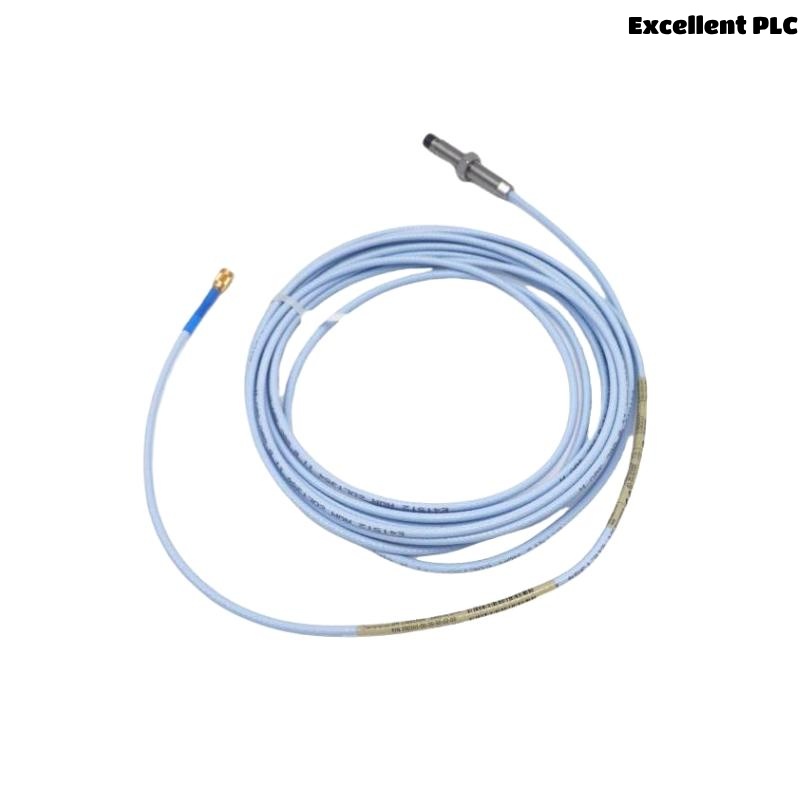

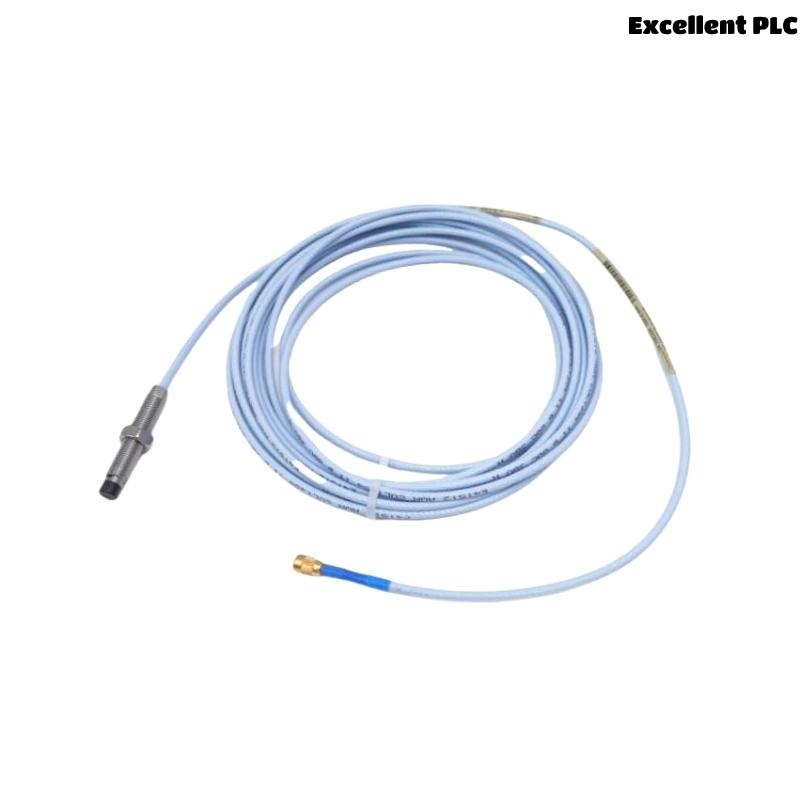

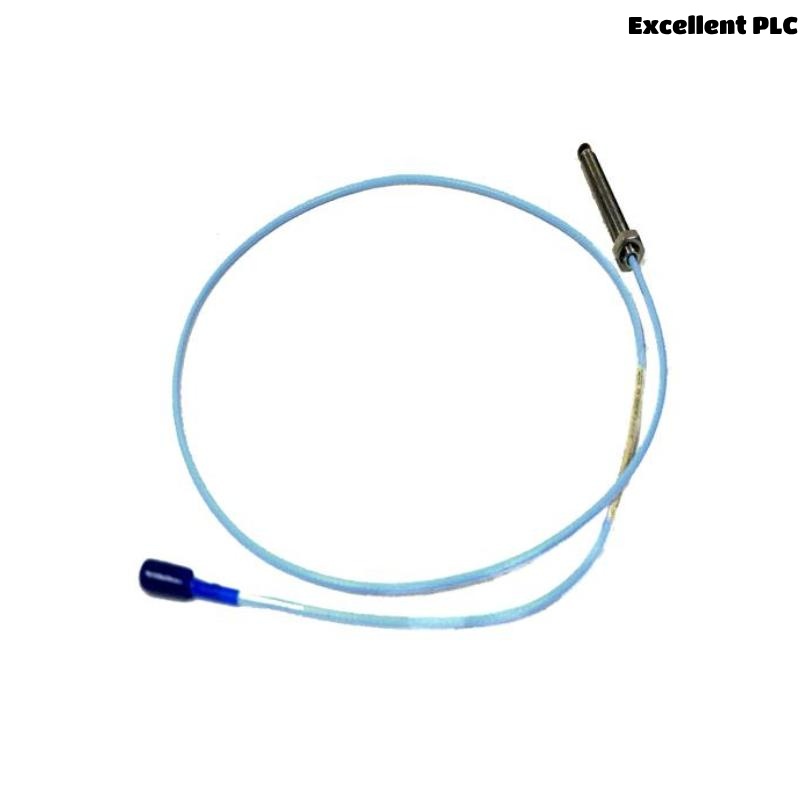

Bently Nevada 330101-00-20-15-02-05 3300 XL 8mm Proximity Probes

Product Introduction

The Bently Nevada 330101-00-20-15-02-05 is part of the 3300 XL 8mm Proximity Transducer System, one of the most widely recognized and trusted systems in the field of industrial vibration monitoring and machine protection. Manufactured by Bently Nevada, a division of Baker Hughes, this probe delivers high-precision non-contact displacement measurements and shaft vibration monitoring for critical rotating machinery.

Designed for use in combination with matching extension cables and Proximitor sensors, this 8mm proximity probe adheres to API 670 compliance and is tailored for rugged environments including turbines, compressors, pumps, and gearboxes. Its robust mechanical design, enhanced environmental protection, and long-lasting durability make it the gold standard in proximity sensing technology.

Product Specifications

Product Applications

The 330101-00-20-15-02-05 proximity probe is widely applied in machinery condition monitoring and protection systems for:

• Steam and Gas Turbines
  Continuous monitoring of rotor shaft position and vibration.

• Centrifugal Compressors
  Shaft dynamic movement and radial displacement detection.

• Pumps
  Identifying bearing wear, misalignment, or shaft imbalance.

• Electric Motors & Generators
  Ensuring alignment, stability, and bearing integrity.

• Gearboxes and Industrial Fans
  Detecting gear mesh issues, unbalance, or looseness in rotating assemblies.

• Critical Machinery in Oil & Gas, Power, and Petrochemical Plants
  Integrated into machinery protection systems (e.g., API 670-compliant setups).

This probe is designed to ensure reliable operation in mission-critical rotating machinery, minimizing downtime and preventing catastrophic equipment failure.

Product Advantages

• API 670 Compliance
  Fully meets the stringent requirements for shaft vibration and position monitoring in critical rotating equipment.

• Wide Operating Temperature
  Handles extreme temperatures (-51°C to +177°C), ideal for high-demand applications.

• ClickLoc Connector
  Ensures secure and simple connections with a positive locking mechanism.

• Flexible Armor Protection
  Stainless steel armor enhances durability and resists physical damage during installation or operation.

• Enhanced Sealing
  Epoxy-sealed construction provides IP68-level moisture and dust resistance.

• System Compatibility
  Engineered to work seamlessly with 3300 XL Proximitor and extension cables for accurate signal transmission.

• High Accuracy and Linearity
  ±5% accuracy ensures confidence in critical displacement measurements.

• Easy Installation
  Threaded body with locknuts simplifies mounting and depth adjustment.

• Reduced Downtime
  Helps in predictive maintenance and early fault detection.

• Long Service Life
  Industrial-grade construction ensures years of trouble-free performance in harsh environments.

Frequently Asked Questions (FAQ)

1. What system is this probe compatible with?
   It is compatible with the 3300 XL Proximitor Sensor and Extension Cable.

2. What is the diameter of the probe tip?
   The probe tip diameter is 8 mm.

3. What is the length of this particular probe model?
   This probe is 1.5 meters in length.

4. Is this probe compliant with API 670 standards?
   Yes, it is fully API 670 compliant for use in critical rotating machinery.

5. What material is used in the probe housing?
   The probe housing is made of AISI 303 Stainless Steel.

6. Can it operate in high-temperature environments?
   Yes, it supports temperatures from -51°C to +177°C.

7. What is the purpose of the ClickLoc connector?
   It provides a secure, vibration-resistant connection with quick installation.

8. What is the linear range of this probe?
   It has a linear range of 2 mm (80 mils).

9. How do I install the probe in the field?
   The probe is threaded (3/8-24 UNF) for insertion into mounting brackets or probe holders, with locknuts for positioning.

10. Can this probe be used for both radial and axial measurements?
    Yes, depending on installation orientation, it can monitor either radial shaft vibration or axial position.
