Product Introduction

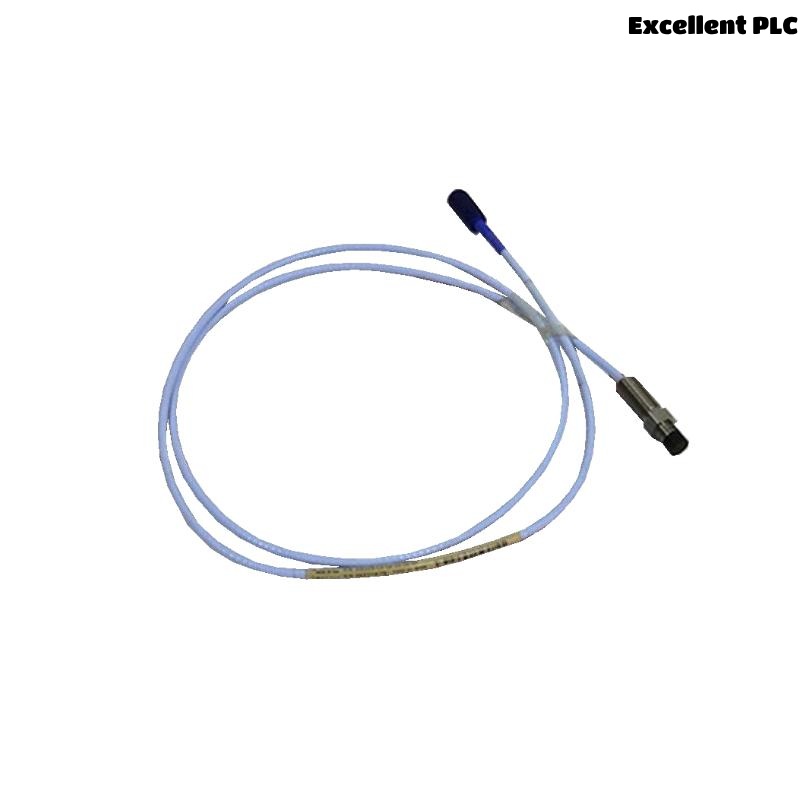

The Bently Nevada 330101-00-20-20-02-CN 3300 XL 8mm Proximity Probe is a high-performance, rugged sensor designed to measure the displacement of rotating machinery, offering precise and reliable proximity data. The probe is typically used in industrial environments to monitor shaft displacement and vibration, ensuring optimal performance and early detection of potential mechanical failures in critical equipment. The 3300 XL probe is part of the larger Bently Nevada 3300 XL Series, which is known for its robustness and accuracy in harsh environments.
With advanced engineering and precision, the 3300 XL offers superior performance in providing the essential measurements needed for condition monitoring systems. The probe is designed for easy installation, maintenance, and long-term reliability in a wide variety of applications.
Product Specifications
| Feature | Specification |
|---|---|
| Model Number | 330101-00-20-20-02-CN |
| Probe Type | 8mm Proximity Probe |
| Measuring Range | 8 mm (0.314 inches) |
| Operating Temperature Range | -40°C to +85°C |
| Sensing Range | 1 to 8 mm |
| Sensitivity | 0.2 µm per V (microns per volt) |
| Total Length | 2 meters |
| Weight | 0.646 kg |
| Cable Type | 8 mm diameter, shielded coaxial cable |
| Output Signal | Linear DC Voltage |
| Power Supply | 24V DC or 12V DC (depending on configuration) |
| Maximum Vibration Amplitude | 50 mm/s RMS (non-destructive) |
| Protection Class | IP67 (dust and water-resistant) |
Product Applications
The Bently Nevada 3300 XL 8mm Proximity Probe is widely used across multiple industries, particularly in applications that involve rotating machinery. These include:
-
Power Generation: Used to monitor the health of turbines, generators, and motors.
-
Oil and Gas: Applied in critical rotating equipment such as compressors, pumps, and turbine engines.
-
Mining: Monitors large motors, crushers, and other heavy-duty machinery.
-
Pulp and Paper: Used in monitoring paper mill machines and other heavy rotating machinery.
-
Chemical Processing: Monitors rotating pumps and mixers in chemical production systems.
-
Transportation: Used in the aerospace and marine industries to monitor critical rotating equipment.
Product Advantages
-
High Accuracy: The Bently Nevada 3300 XL provides high-precision measurements, allowing operators to detect minor changes in machinery health.
-
Durability: Designed to withstand extreme environmental conditions such as high temperatures, vibration, and humidity.
-
Enhanced Monitoring: Proximity probes offer continuous, real-time monitoring of shaft displacement, which is crucial for predictive maintenance strategies.
-
Compatibility: Easily integrates with the Bently Nevada condition monitoring system, including other probes, vibration sensors, and software solutions.
-
Long Service Life: Engineered for long-term use, reducing the need for frequent replacements and minimizing downtime.
-
Easy Installation: The probe’s design allows for easy setup and is compatible with a wide range of applications, reducing the complexity of the installation process.
FAQs
-
What is the measuring range of the Bently Nevada 3300 XL 8mm Proximity Probe?
-
The measuring range is 8 mm (0.314 inches).
-
-
What is the temperature range the probe can operate in?
-
It can operate between -40°C and +85°C.
-
-
What type of output does the probe provide?
-
The output signal is a linear DC voltage.
-
-
Can the Bently Nevada 3300 XL 8mm Proximity Probe be used in harsh environments?
-
Yes, it is designed to withstand extreme temperatures, humidity, and vibration, making it ideal for harsh industrial environments.
-
-
How long is the probe’s cable?
-
The probe uses an 8 mm diameter, shielded coaxial cable for reliable signal transmission.
-
-
What is the weight of the Bently Nevada 3300 XL 8mm Proximity Probe?
-
The probe weighs 0.646 kg.
-
-
What industries use this proximity probe?
-
It is commonly used in industries like power generation, oil & gas, mining, chemical processing, pulp & paper, and transportation.
-
-
How sensitive is the Bently Nevada 3300 XL?
-
The probe has a sensitivity of 0.2 µm per volt (microns per volt).
-
-
Can this probe be used with other Bently Nevada equipment?
-
Yes, the 3300 XL proximity probe is compatible with other Bently Nevada condition monitoring equipment.
-
-
What is the protection class of this proximity probe?
-
The probe has an IP67 rating, meaning it is dustproof and resistant to water immersion.
-
Related Models from the Bently Nevada 3300 XL Series
Below is a table of 6 related models from the Bently Nevada 3300 XL series:
| Model Number | Type | Measuring Range | Sensitivity | Weight |
|---|---|---|---|---|
| 330101-00-20-20-03-CN | 8mm Proximity Probe | 8 mm | 0.2 µm/V | 0.3 kg |
| 330101-00-20-20-01-CN | 5mm Proximity Probe | 5 mm | 0.2 µm/V | 0.25 kg |
| 330101-00-20-20-04-CN | 10mm Proximity Probe | 10 mm | 0.3 µm/V | 0.35 kg |
| 330101-00-20-20-05-CN | 8mm Proximity Probe | 8 mm | 0.25 µm/V | 0.3 kg |
| 330101-00-20-20-06-CN | 6mm Proximity Probe | 6 mm | 0.15 µm/V | 0.28 kg |
| 330101-00-20-20-07-CN | 8mm Proximity Probe | 8 mm | 0.2 µm/V | 0.3 kg |
Popular Models from Bently Nevada
Here are 6 of the most popular models from Bently Nevada that are frequently used for condition monitoring in industrial applications:
| Model Number | Type | Measuring Range | Sensitivity | Weight |
|---|---|---|---|---|
| 330500-00-20-20-02-CN | Vibration Sensor | 25 mm | 0.5 µm/V | 0.4 kg |
| 330601-00-20-20-03-CN | 5mm Proximity Probe | 5 mm | 0.15 µm/V | 0.25 kg |
| 350000-00-20-20-04-CN | Vibration Transmitter | N/A | 0.5 µm/V | 0.6 kg |
| 330501-00-20-20-02-CN | Vibration Sensor | 10 mm | 0.25 µm/V | 0.3 kg |
| 330700-00-20-20-01-CN | 8mm Proximity Probe | 8 mm | 0.3 µm/V | 0.35 kg |
| 330301-00-20-20-02-CN | Displacement Sensor | 10 mm | 0.25 µm/V | 0.3 kg |
