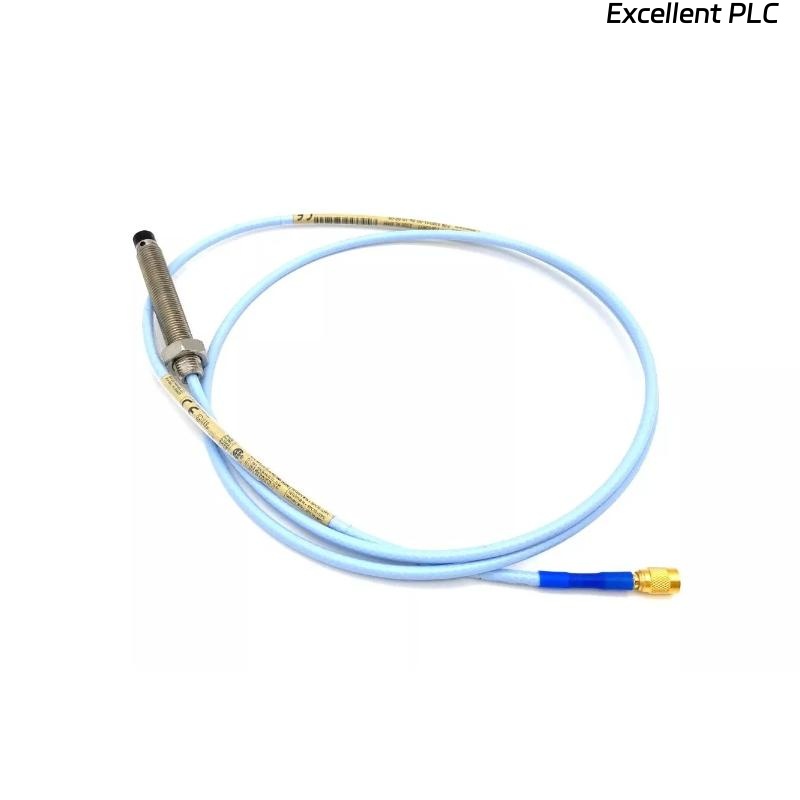

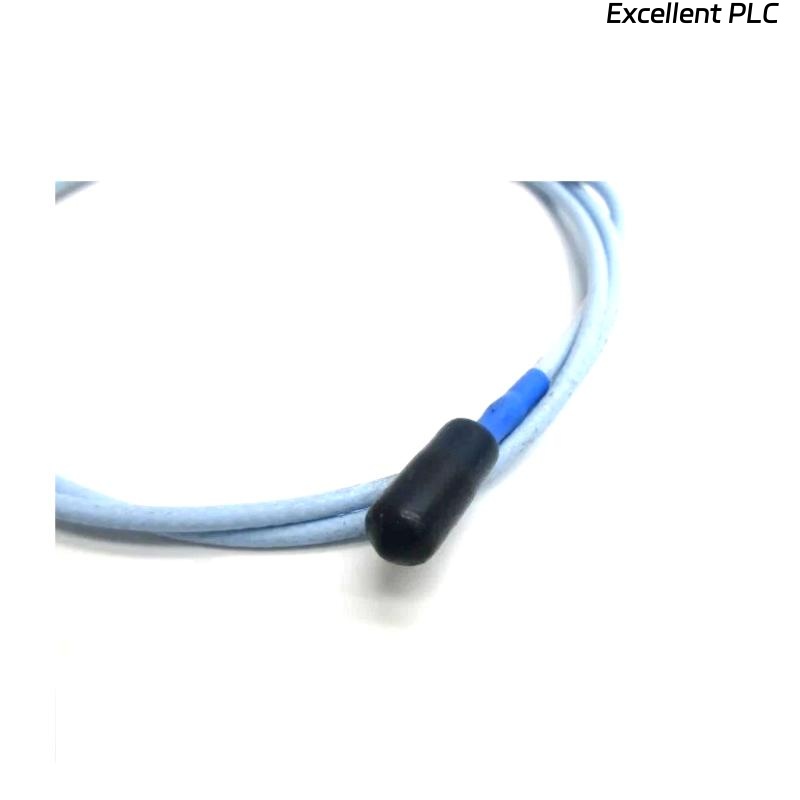

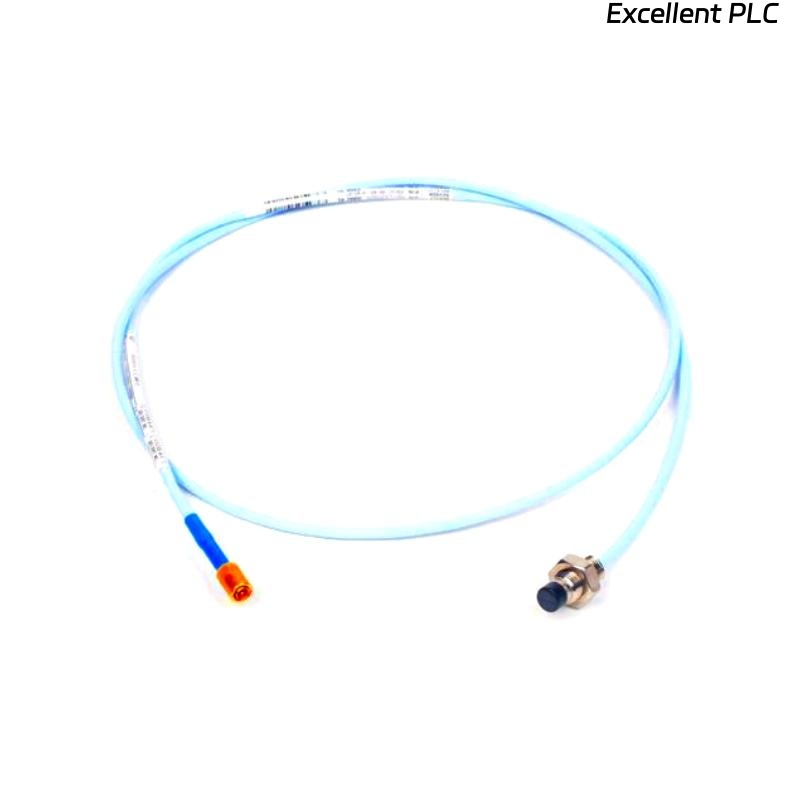

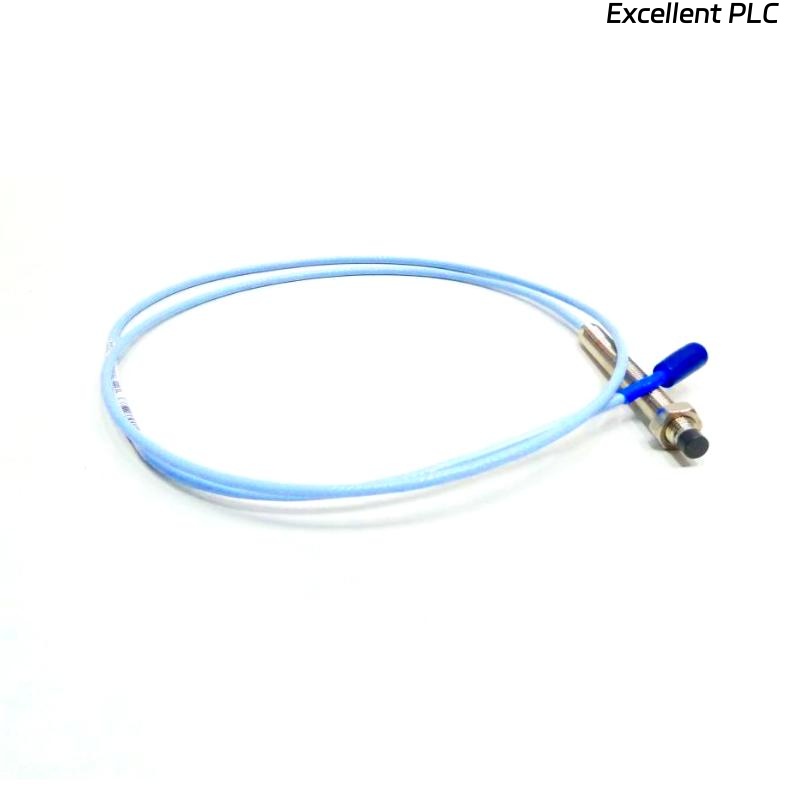

Bently Nevada 330101-00-20-20-11-00 3300 XL 8mm Proximity Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330101-00-20-20-11-00 3300 XL 8mm Proximity Probe is a high-performance eddy-current sensor designed for precise shaft vibration and position measurements in rotating machinery. It forms part of the 3300 XL Proximity Transducer System, offering API 670-compliant performance with superior linearity, temperature stability, and interchangeability.

---

Technical Specifications

---

Product Applications

• Turbomachinery Monitoring: Shaft vibration and axial position measurements.

• Condition Monitoring Systems: Integration with 3300 XL Proximitor Sensors for critical machinery protection.

• Oil & Gas Industry: Monitoring compressors, pumps, and turbines.

• Power Generation: Steam and gas turbine vibration analysis.

• Industrial Equipment: High-speed rotating equipment requiring API 670 compliance.

---

Product Advantages

• High Accuracy: Exceptional linearity and repeatability across operating conditions.

• Temperature Stability: Wide operating range ensures reliable measurements in harsh environments.

• Full Interchangeability: Compatible across 3300 XL probes, extension cables, and Proximitor sensors.

• Rugged Design: Stainless steel body and sealed FluidLoc cable for durability.

• API 670 Compliance: Meets stringent industry standards for machinery protection.

• Reliable Connections: ClickLoc connectors prevent accidental disconnections during operation.

---

FAQ

Q1: What is the measurement range of the 330101-00-20-20-11-00 probe?
A1: It typically provides a linear measurement range of up to 80 mils (2 mm) when used with a 3300 XL Proximitor Sensor.

Q2: Can this probe operate in high-temperature environments?
A2: Yes, it supports an operating temperature range from -51 °C to +177 °C.

Q3: Is the probe interchangeable with other 3300 XL series components?
A3: Yes, it is fully interchangeable with other 3300 XL probes, extension cables, and Proximitor sensors.

Q4: What is the typical scale factor of this probe?
A4: When paired with the Proximitor Sensor, it provides a scale factor of 200 mV/mil (7.87 mV/μm).

Q5: What type of connector does it use?
A5: It uses a miniature coaxial ClickLoc connector with connector protector.

Q6: What industries most commonly use this probe?
A6: It is widely used in oil & gas, power generation, and other heavy industrial sectors requiring reliable vibration monitoring.

Q7: Does this probe meet API standards?
A7: Yes, it is designed to meet API 670 requirements for machinery protection systems.

Q8: What is the weight of the probe assembly?
A8: The total weight is approximately 0.646 kg.

Q9: What type of cable is provided with this probe?
A9: It features a 2.0 m FluidLoc cable, resistant to oil and industrial contaminants.

Q10: Can the probe be used for both static and dynamic measurements?
A10: Yes, it can measure both static shaft position and dynamic vibration signals with high accuracy.

---
