Product Introduction

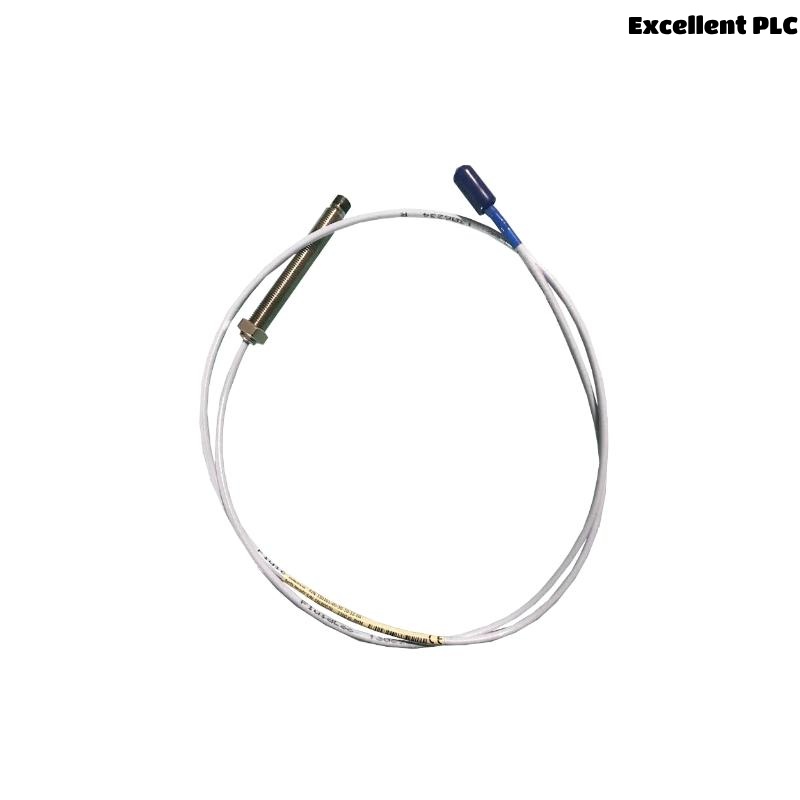

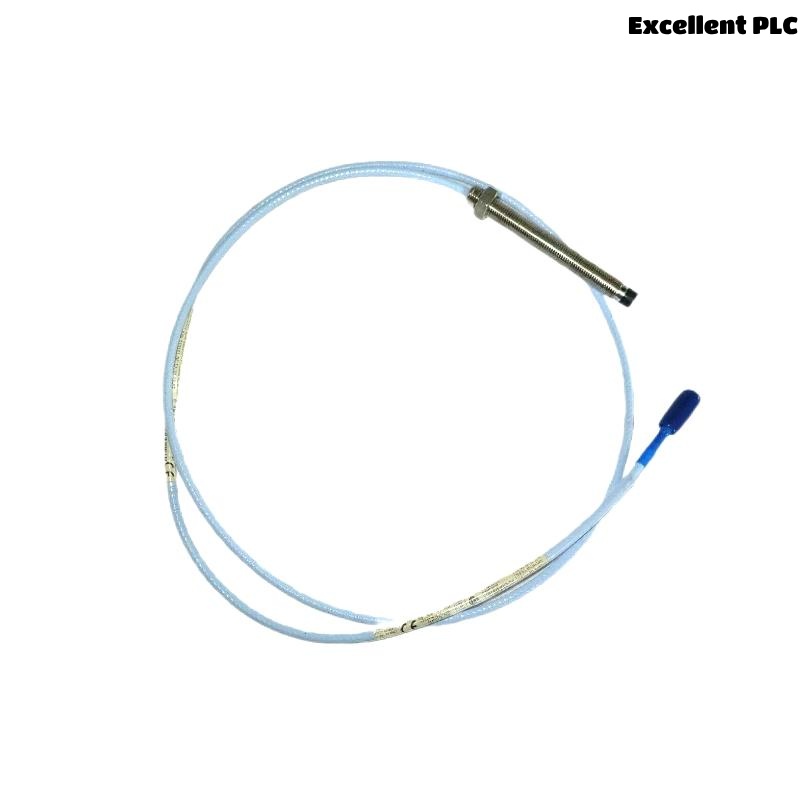

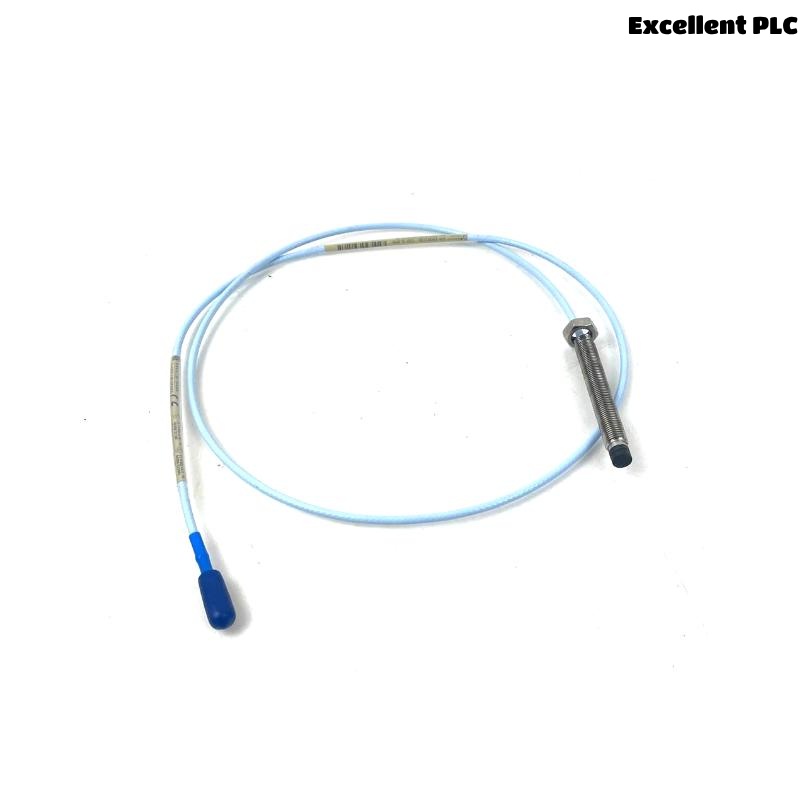

The Bently Nevada 330101-00-20-50-02-CN 3300 XL 8mm Proximity Probes are high-precision, industrial-grade sensors used for monitoring the vibration, displacement, and alignment of rotating machinery. Part of the 3300 XL series, these probes are designed for critical machinery monitoring applications in various industrial sectors.
The 3300 XL probes are widely recognized for their superior reliability, high accuracy, and long operational life. They are primarily used in monitoring systems that measure the health of machinery, offering real-time diagnostic data on machines such as motors, turbines, pumps, and compressors.
These proximity probes offer an 8mm diameter tip, which provides precise measurements and allows for easy integration into machinery monitoring systems. They are commonly paired with Bently Nevada’s 3300 XL series eddy current proximity probe systems to offer optimal performance in industrial environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330101-00-20-50-02-CN |
| Series | 3300 XL |
| Probe Diameter | 8mm |
| Measuring Range | ±0.5 inches (±12.7 mm) |
| Temperature Range | -40°C to +120°C (depending on installation conditions) |
| Sensitivity | 1.0 to 50 mils per volt (dependent on probe and system) |
| Probe Tip Material | Inconel |
| Mounting | 2-wire or 3-wire mount, axial mount |
| Cable Length | Customizable from 3 to 25 feet (varies by application) |
| Voltage Output | 4-20mA or 0-10V (depending on system configuration) |
| Connector Type | 6-pin plug or screw terminal connection |
| Compatibility | Works with 3300 XL series eddy current systems |
| Shock Rating | 200g for 11ms pulse duration |
| Weight | 1.615 kg |
| Total Length | 5 meters |
Product Applications
The Bently Nevada 330101-00-20-50-02-CN 3300 XL 8mm Proximity Probes are essential components in machinery monitoring systems for various industries. Their applications include:
-
Power Generation: Used in monitoring turbines, generators, and other critical equipment to ensure optimal performance and prevent failures.
-
Oil & Gas: Ideal for the monitoring of pumps, compressors, and gas turbines, ensuring early detection of mechanical issues.
-
Petrochemical & Chemical Plants: Proximity probes are used in reactors, compressors, and other rotating machinery to monitor health and predict maintenance needs.
-
Manufacturing & Heavy Industry: Detects misalignments, vibration, and other mechanical faults in equipment such as motors, shafts, and gears.
-
Pulp & Paper Mills: Monitors the condition of key equipment like paper machines, pumps, and other rotating machinery.
-
Mining & Metals: Ideal for high-speed rotating machinery like crushers, conveyors, and other heavy-duty machines in mining applications.
Product Advantages
-
High Accuracy and Reliability
The 3300 XL proximity probes provide highly accurate readings and are built for long-term use, making them a reliable choice for mission-critical applications. -
Durability in Harsh Environments
These probes are engineered to withstand extreme temperatures and vibrations, ensuring that they perform consistently even in challenging industrial conditions. -
Flexible Installation Options
The 3300 XL probes can be easily integrated into various machinery types using either 2-wire or 3-wire configurations, with the ability to customize the cable length to fit specific needs. -
Versatile Measurement Range
With a wide measuring range of up to ±0.5 inches (±12.7 mm), these probes are highly effective for both small and large machinery applications. -
Superior Corrosion Resistance
The probe tip is made of Inconel, a material known for its excellent corrosion resistance, ensuring the probe’s longevity even in harsh environments. -
Real-Time Monitoring
When connected to the appropriate system, these probes provide continuous monitoring of machine health, enabling early detection of potential failures.
Frequently Asked Questions (FAQ)
-
What is the function of the Bently Nevada 3300 XL 8mm Proximity Probe?
This probe is used for non-contact measurement of displacement, vibration, and alignment of rotating machinery, ensuring that machinery operates within safe parameters. -
What is the measurement range of the 3300 XL proximity probe?
The probe has a measurement range of ±0.5 inches (±12.7 mm), which allows for precise monitoring of machinery displacement. -
Can this probe be used in high-temperature environments?
Yes, the Bently Nevada 3300 XL probes can operate in temperatures ranging from -40°C to +120°C, making them suitable for most industrial environments. -
What material is used in the probe tip?
The probe tip is made from Inconel, which is highly resistant to corrosion and ensures durability in harsh environments. -
What type of connector does the probe use?
The 3300 XL 8mm proximity probe can use either a 6-pin plug or screw terminal connection, depending on the installation requirements. -
How long is the cable that comes with the probe?
The probe comes with a customizable cable length, which can be selected between 3 to 25 feet, depending on the installation needs. -
Is this probe compatible with other Bently Nevada systems?
Yes, the 3300 XL proximity probe is designed to work with the Bently Nevada 3300 XL series eddy current systems. -
How does the probe transmit data?
The probe transmits data through either a 4-20mA or 0-10V output, depending on how the system is configured. -
What types of machinery can the Bently Nevada 3300 XL probes be used on?
These probes are designed for use on rotating machinery such as turbines, pumps, compressors, motors, and other critical industrial equipment. -
Can the Bently Nevada 3300 XL probes detect both vibration and displacement?
Yes, these probes are capable of detecting both vibration and displacement, making them versatile for a wide range of machinery health monitoring applications.
Related Models (Same Series or Similar Functionality)
| Model | Description | Application |
|---|---|---|
| 330101-00-20-50-02 | 3300 XL 5mm Proximity Probe | Ideal for small machinery monitoring |
| 330103-00-20-50-02 | 3300 XL 10mm Proximity Probe | Suitable for larger machines or long shafts |
| 330104-00-20-50-02 | 3300 XL 5mm High-Temperature Proximity Probe | Designed for high-temperature environments |
| 330108-00-20-50-02 | 3300 XL 8mm Extended Range Proximity Probe | Extended range for specific applications |
| 330500-00-10-00-02 | 3300 XL Accelerometer for vibration measurement | Vibration analysis for rotating machinery |
| 330510-00-20-10-02 | 3300 XL Signal Conditioning Module | Used with proximity probes for signal conditioning |
Popular Bently Nevada Models (Same Brand, Other Applications)
| Model | Description | Primary Use |
|---|---|---|
| 3500/22M | 3500 Monitoring System for vibration and position | Heavy machinery and critical asset monitoring |
| 3300 XL 5mm Probe | 5mm proximity probe for vibration and displacement | Small machinery and pumps |
| 3500/53 | 3500 Machinery Protection Monitoring System | Pumps, motors, turbines, compressors |
| 3300/01 | Standard Proximity Probe for rotating machinery | General-purpose machinery monitoring |
| 3500/42 | 3500 Machine Condition Monitoring for pumps | Pumps and compressors |
| 3300 XL 10mm Probe | 10mm proximity probe for large equipment | Large machines and turbines |
