Product Introduction

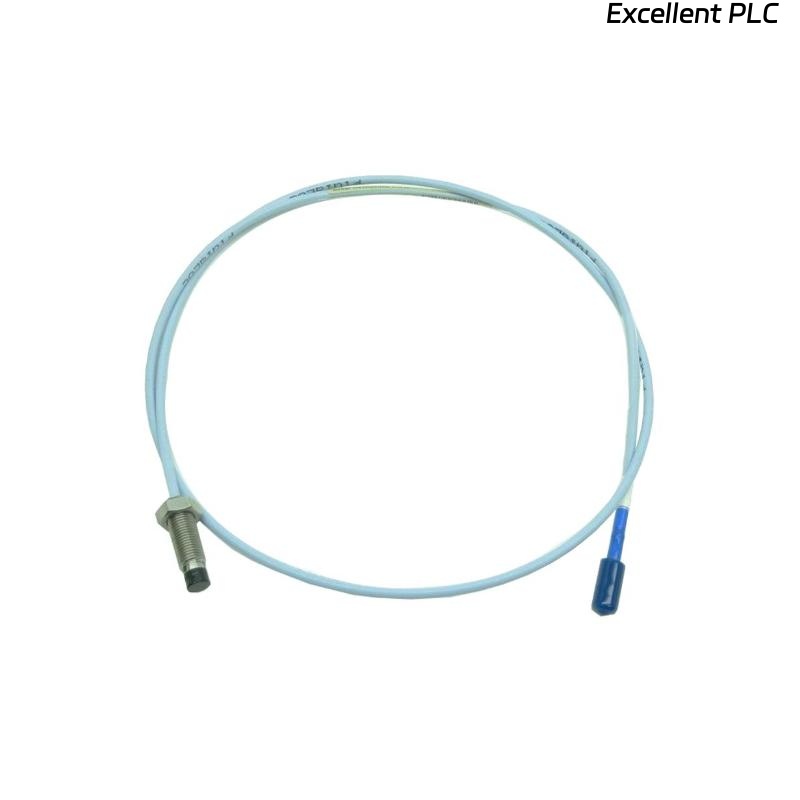

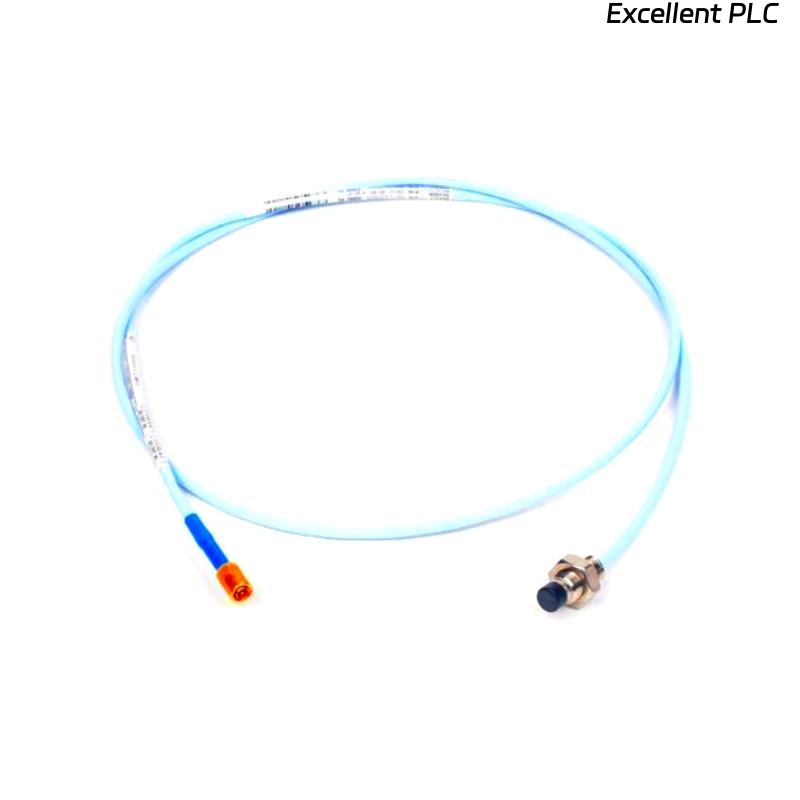

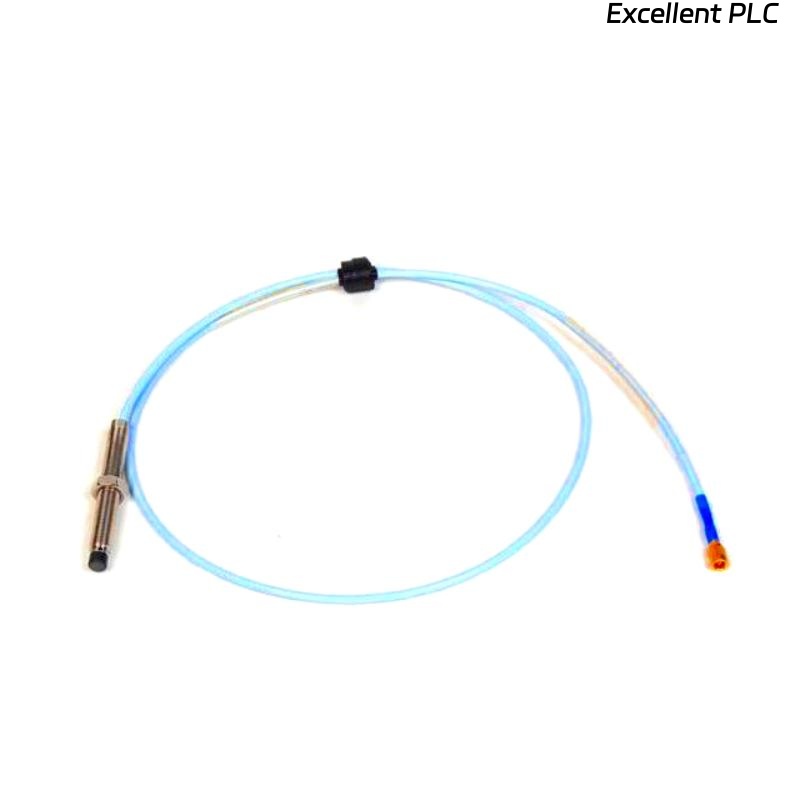

The Bently Nevada 330101-00-20-90-02-00 is an 8mm proximity probe designed for the 3300 XL Proximity Transducer System. It provides precise, reliable monitoring of machinery vibration and shaft position in equipment with fluid-film bearings. The probe features a rugged PPS plastic tip, robust case design, and high-performance miniature coaxial ClickLoc connector, making it suitable for demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-00-20-90-02-00 |
| Probe Type | 3300 XL 8mm Proximity Probe |
| Thread | 3/8-24 UNF |
| Armor | Unarmored |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 2.0 inches |
| Total Length | 9.0 meters |
| Weight | 2.907 kg |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Agency Approval | ATEX/IECEx and NEPSI |
| Operating Environment | Industrial hazardous and non-hazardous areas |
Applications
-
Shaft vibration and position monitoring in turbines, compressors, and generators
-
Protection and condition monitoring in rotating machinery with fluid-film bearings
-
Critical industrial equipment requiring precise shaft displacement measurement
-
High-temperature and hazardous area machinery installations
Advantages
-
Rugged Design: Thick encapsulation of probe coil ensures mechanical durability
-
High Compatibility: Interchangeable with non-XL 3300 series 5mm and 8mm components
-
Reliable Connection: ClickLoc connector simplifies installation and maintenance
-
Hazardous Area Rated: Certified for ATEX/IECEx and Chinese NEPSI zones
-
Extended Cable Length: 9 meters supports flexible installation in large machinery setups
FAQ
1. What is the sensing range of the 3300 XL 8mm probe?
The probe is designed for standard 8mm targets; the operating range depends on installation geometry but typically supports 0.38–2.5 mm gap measurement.
2. Can this probe be used in high-temperature environments?
Yes, it can operate in temperatures from -51°C to +177°C (-60°F to +351°F).
3. Is the probe armored for mechanical protection?
No, this model is unarmored; care must be taken in exposed installations.
4. Are the connectors compatible with previous 3300 series systems?
Yes, the ClickLoc connectors are backward compatible with older 3300 XL components.
5. What type of cable does the probe use?
The probe uses standard coaxial cable suitable for industrial signal transmission.
6. How robust is the probe tip?
The 8mm PPS plastic tip is mechanically reinforced for harsh environments, making it more durable than the 5mm version.
7. Is the probe suitable for hazardous area installations?
Yes, it is certified for ATEX, IECEx, and NEPSI hazardous locations.
8. What is the installation procedure?
Install the probe using the 3/8-24 UNF thread; tighten the ClickLoc connector until it clicks.
9. Can the cable length be customized?
Standard length is 9 meters; custom lengths require special order consideration.
10. What machinery types are ideal for this probe?
Ideal for turbines, compressors, generators, and other rotating equipment with fluid-film bearings.
