🔧 Product Overview

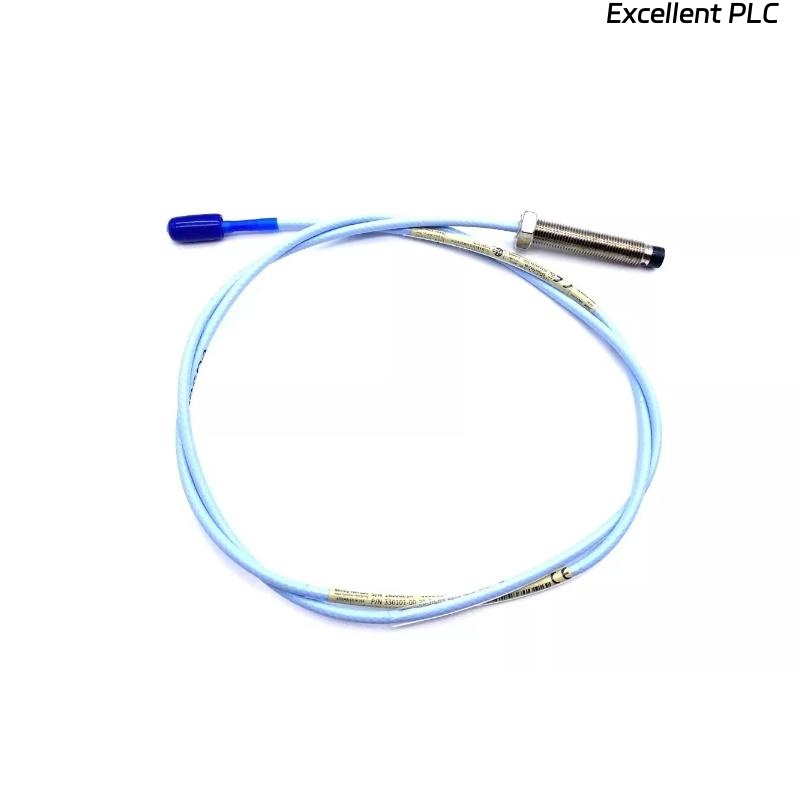

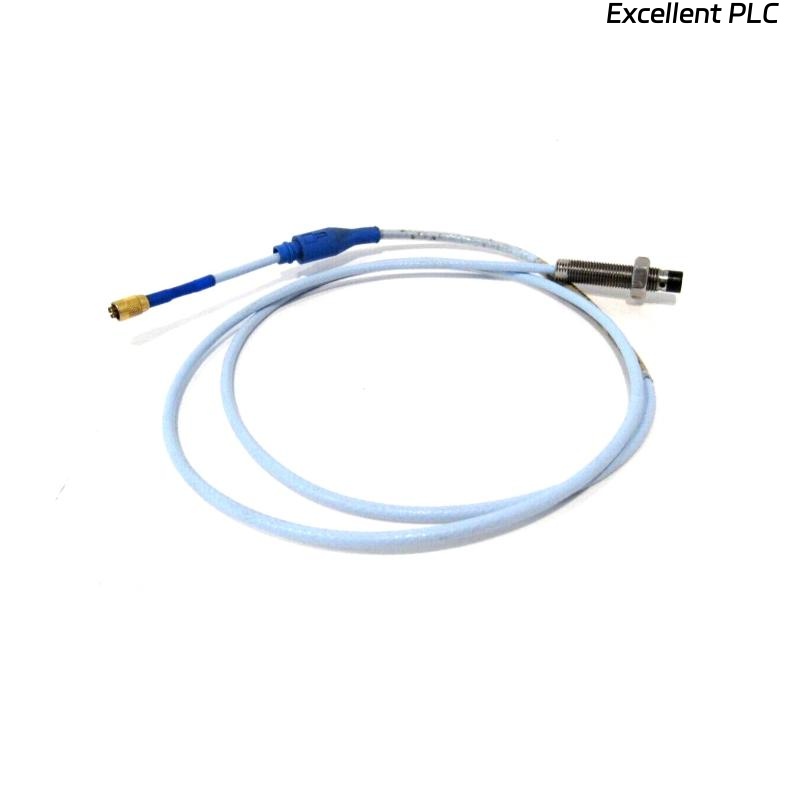

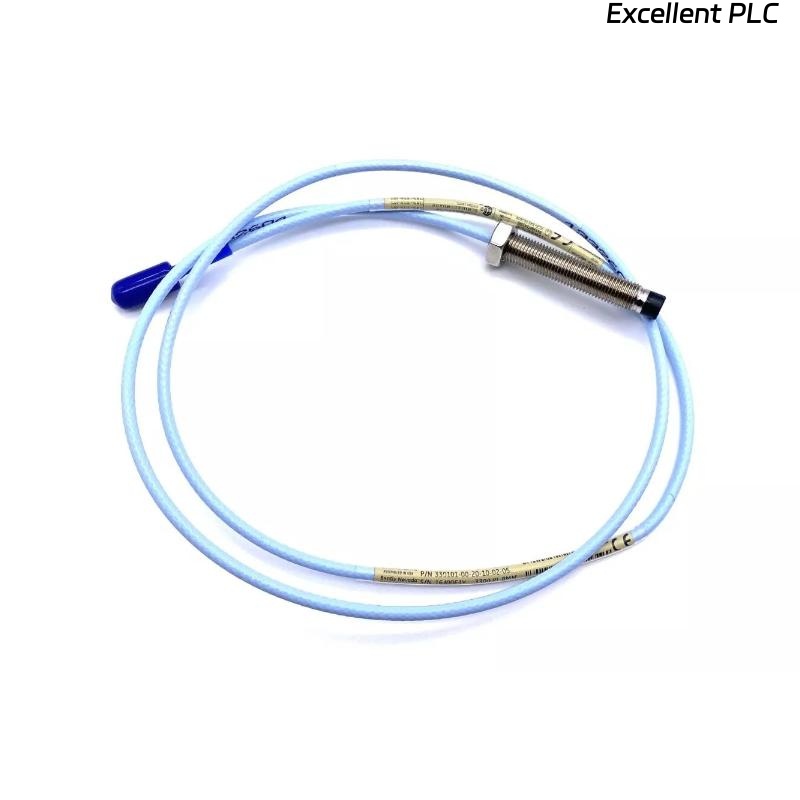

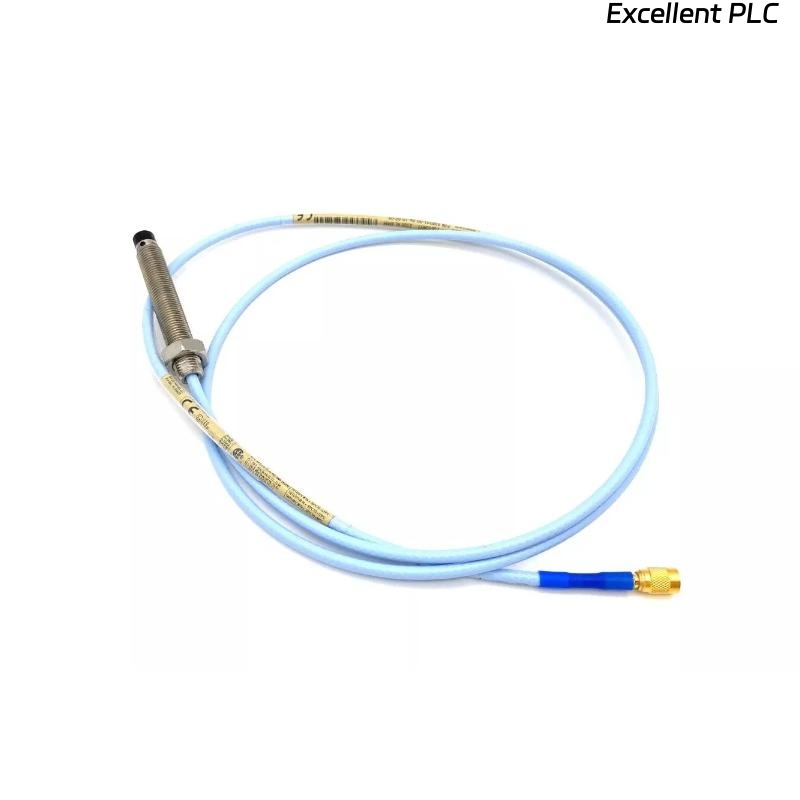

The Bently Nevada 330101-00-20-90-12-00 3300 XL 8 mm Proximity Probe is a high-precision industrial sensor designed for measuring vibration and displacement in rotating machinery. With robust construction and advanced signal stability, it ensures reliable monitoring in harsh operating environments.
Key features include an 8 mm probe diameter, miniature coaxial connector, and compatibility with 3300 XL systems, offering repeatable and accurate measurements for critical machinery applications.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Diameter | 8 mm (0.31 in) |
| Cable Type | 75Ω coaxial, 3.68 mm (0.145 in) OD |
| Connector | Miniature male coaxial ClickLoc |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Maximum Altitude | 2000 meters |
| Power Supply | -24 Vdc |
| Load Resistance | 10 kΩ |
| Calibration Target | AISI 4140 steel |
| Gap Setting | 1.27 mm (50 mils) |
| Total Length | 9.0 meters |
| Weight | 2.907 kg |
⚙️ Applications
-
High-speed turbines, generators, and compressors
-
Rotating machinery monitoring and diagnostics
-
Industrial vibration analysis for predictive maintenance
-
Integration into 3300 XL monitoring systems
-
High-temperature and high-vibration environments
⭐ Product Advantages
-
High accuracy with stable signal output
-
Durable design suitable for extreme industrial conditions
-
Compact 8 mm probe for tight installation spaces
-
Interchangeable within 3300 XL series components
-
Long cable length (9 m) allows flexible installation
-
Easy calibration and maintenance
❓ Frequently Asked Questions (FAQ)
1. What is the probe diameter?
The probe diameter is 8 mm (0.31 in), designed for compact installation.
2. What type of cable does it use?
It uses a 75Ω coaxial cable with 3.68 mm outer diameter.
3. What is the operating temperature range?
The probe operates between -51°C and +177°C (-60°F to +351°F).
4. What connector type does it have?
It features a miniature male coaxial ClickLoc connector.
5. What is the total cable length and weight?
Total length is 9.0 meters, and the weight is 2.907 kg.
6. Is it compatible with other 3300 XL components?
Yes, it is fully compatible with other 3300 XL series probes.
7. Can it be used in high-vibration environments?
Yes, it is designed to withstand high vibration and harsh industrial conditions.
8. What is the calibration target material?
Calibration is performed using AISI 4140 steel.
9. What is the recommended gap setting?
The recommended gap is 1.27 mm (50 mils).
10. Can it be used for predictive maintenance?
Yes, it is ideal for vibration monitoring and predictive maintenance applications.
