Product Overview

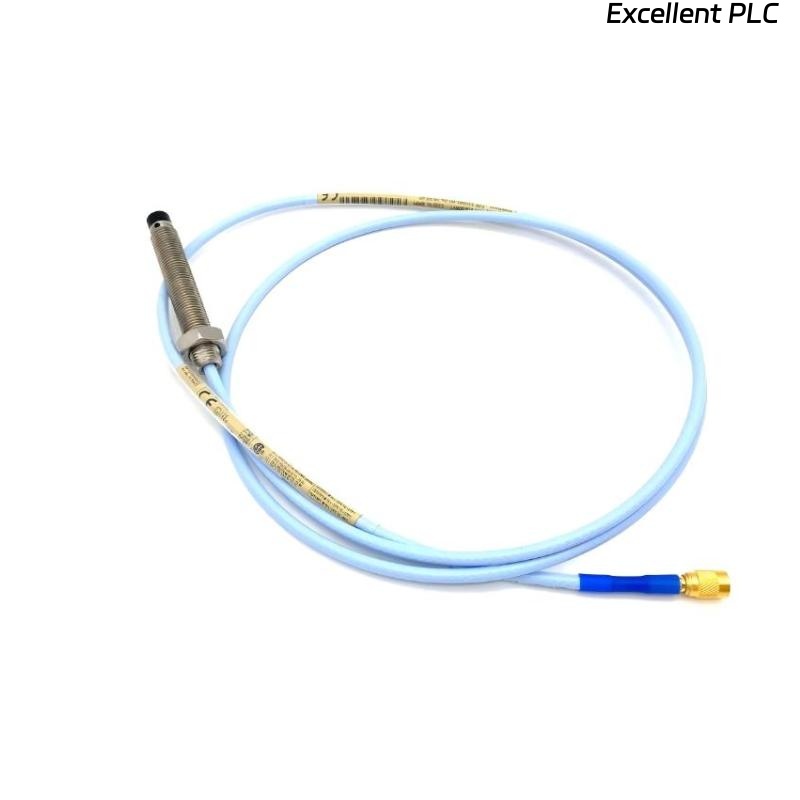

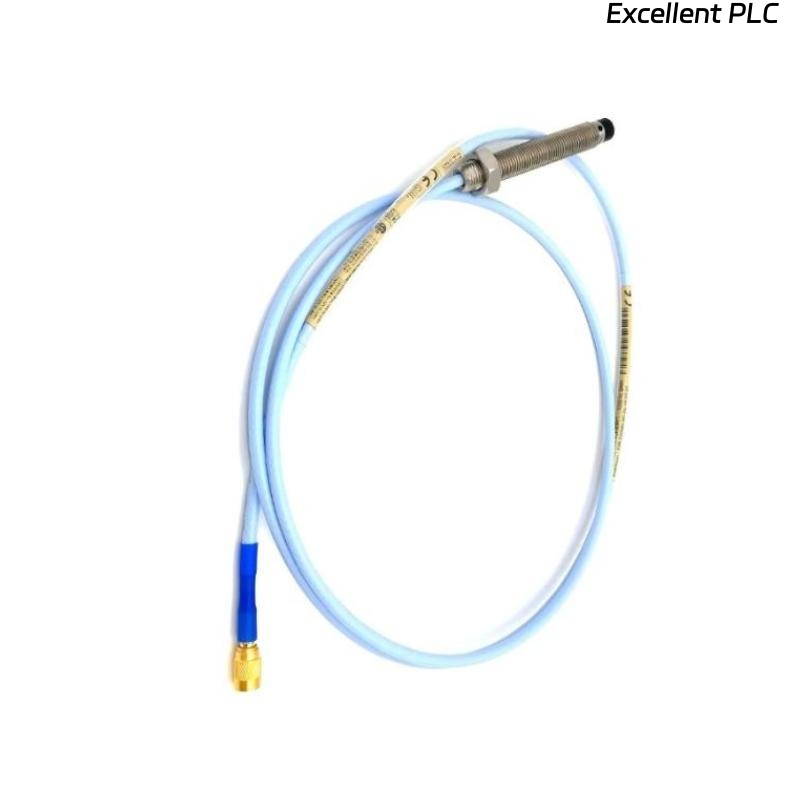

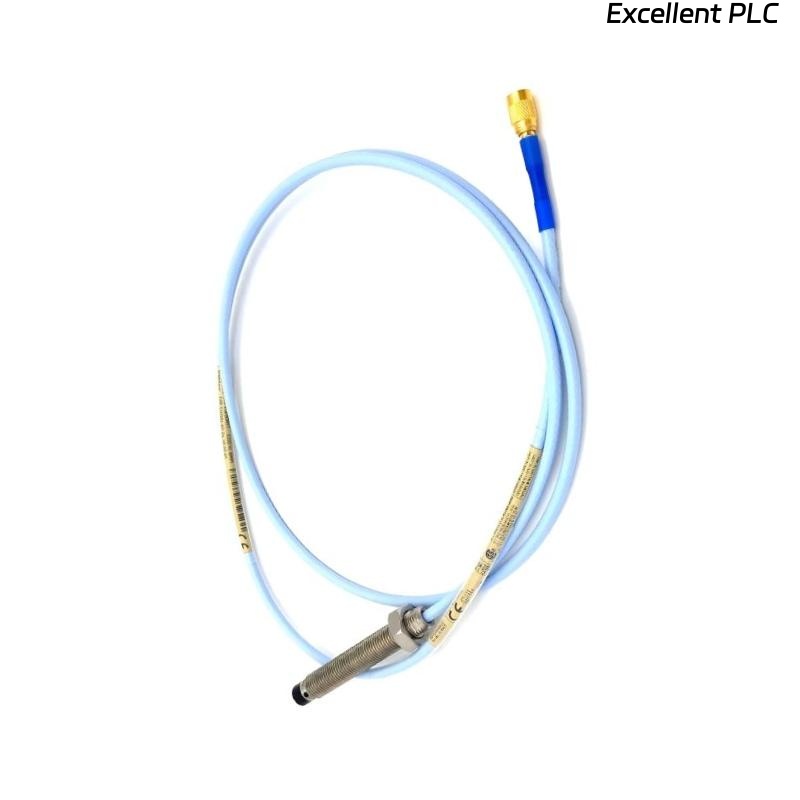

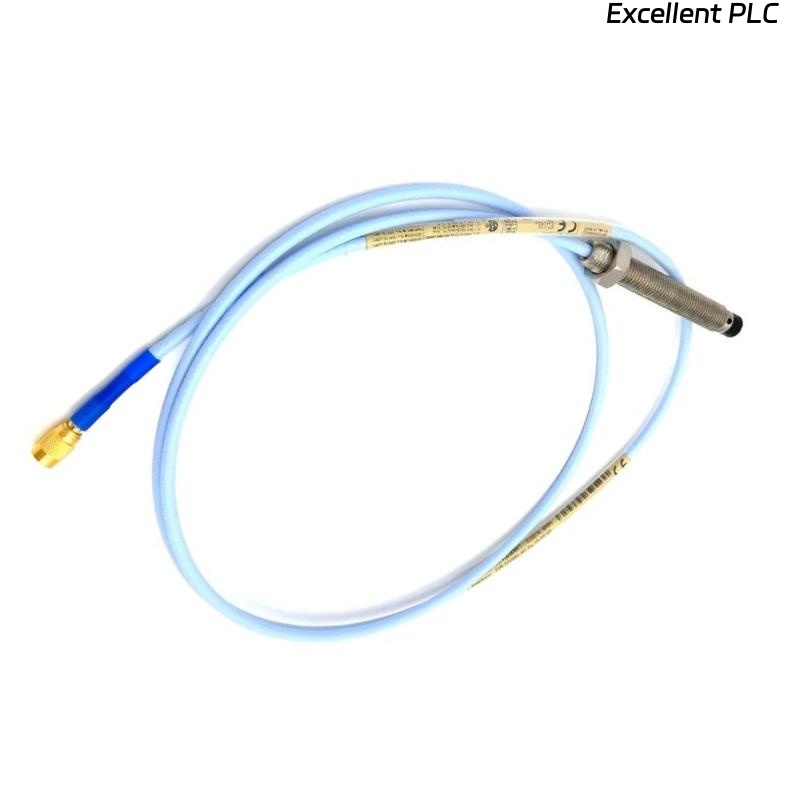

The Bently Nevada 330101-00-24-10-12-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor used for vibration and shaft position monitoring in critical rotating machinery. Part of the 3300 XL 8 mm Proximity Transducer System, it works in conjunction with an extension cable and a 3300 XL Proximitor® Sensor to deliver accurate real-time data for machinery protection and condition monitoring.
Key Features
-
8 mm probe tip for high durability and signal accuracy
-
Modular design compatible with 3300 XL extension cables and Proximitor® sensors
-
Interchangeable with non-XL 3300 series 5 mm and 8 mm probes
-
Gold-plated ClickLoc connectors for secure, tool-free installation
-
Enhanced RFI/EMI resistance for CE-compliant installations
-
TipLoc and CableLoc technology for mechanical stability
-
Suitable for both vibration and static position measurements
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330101-00-24-10-12-05 |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Compatibility | 3300 XL Proximitor® Sensor and extension cable |
| Measurement Range | Typically ±2 mm (80 mils), system dependent |
| Operating Temperature | -35 °C to +177 °C |
| Humidity | 100% condensing, hermetically sealed |
| Cable Type | 75 Ω triaxial coaxial |
| Connector Type | Gold-plated ClickLoc |
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Mounting | Threaded installation into probe housing |
| Indicators | Requires Proximitor® sensor for signal processing |
Industry Applications
-
Oil & Gas – Monitoring turbines, compressors, and pumps
-
Power Generation – Shaft position and vibration monitoring of steam and gas turbines
-
Chemical & Petrochemical – Reliable machinery condition monitoring
-
Water & Wastewater – Protection for large pumps and motors
-
Heavy Industry – Condition monitoring for critical rotating equipment
Advantages
-
Provides accurate and repeatable vibration and position measurements
-
Modular system allows quick component replacement and reduced downtime
-
Durable construction ensures long-term performance
-
Tool-free ClickLoc connectors simplify installation
-
Advanced EMI/RFI protection ensures compliance and signal integrity
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330101-00-24-10-12-05 probe?
It measures vibration and shaft position in rotating machinery.
Q2: What is the probe tip size?
The probe has an 8 mm tip diameter.
Q3: What additional components are needed for operation?
It requires a 3300 XL extension cable and a Proximitor® Sensor.
Q4: Is it compatible with older 3300 series probes?
Yes, it is compatible with non-XL 3300 5 mm and 8 mm probes.
Q5: How is the probe installed?
It is threaded into a probe housing and connected via ClickLoc connectors.
Q6: What is the operating temperature range?
-35 °C to +177 °C.
Q7: Can it withstand high humidity?
Yes, it is rated for 100% condensing humidity.
Q8: What material is the probe made of?
The probe body is stainless steel.
Q9: What are the probe dimensions?
Total Length: 1.0 meter.
Q10: What is the probe weight?
0.323 kg.
