Product Introduction

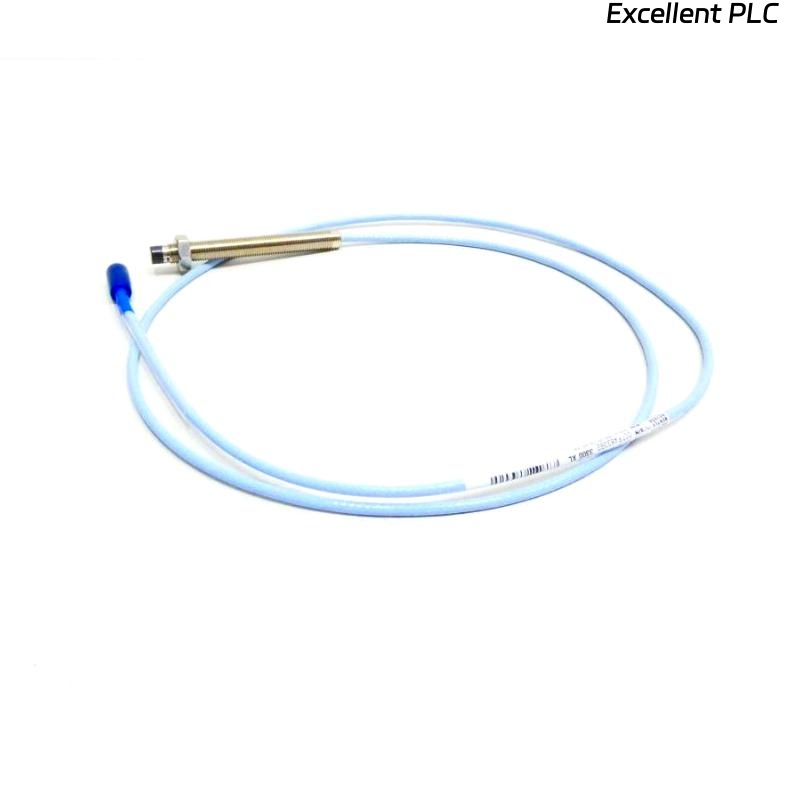

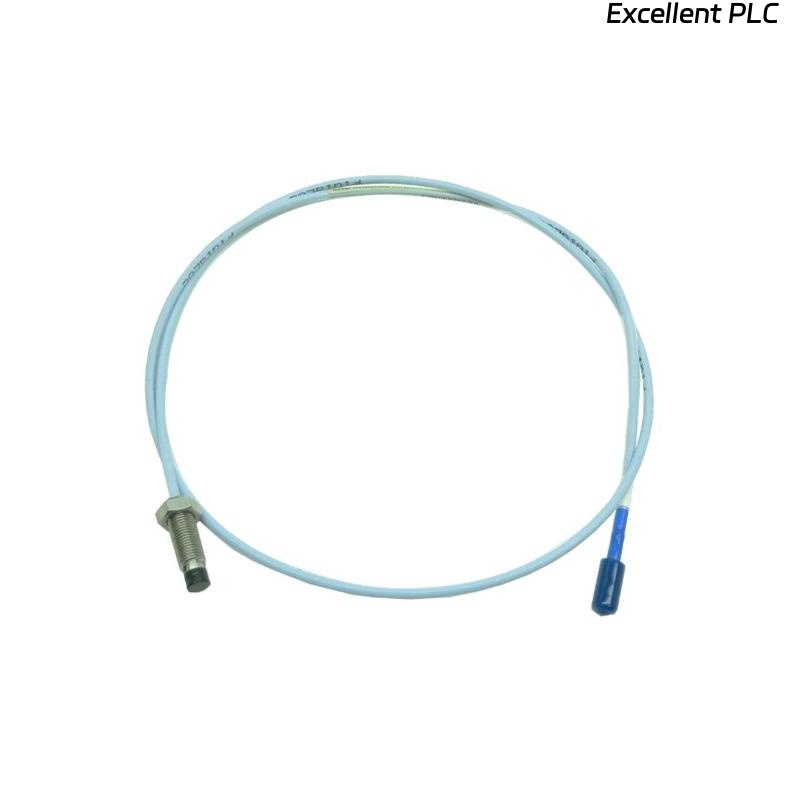

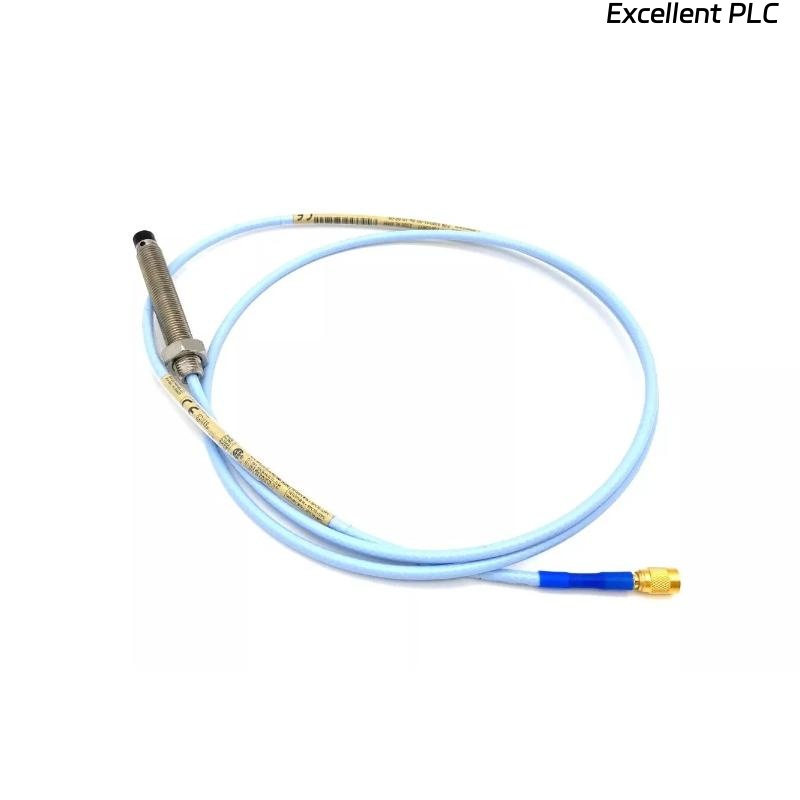

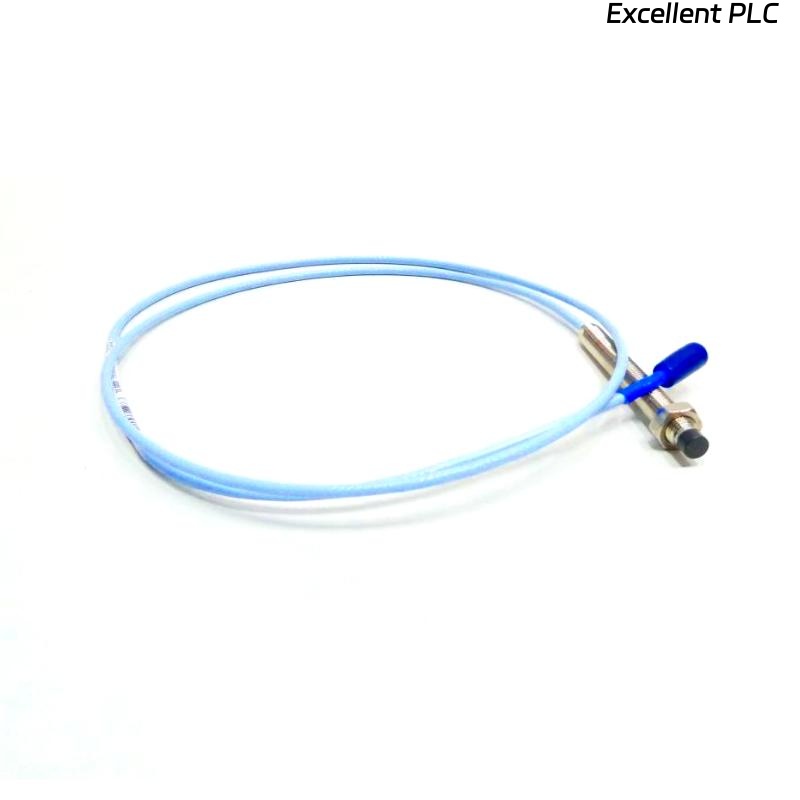

The Bently Nevada 330101-00-24-10-12-CN 3300 XL 8mm Proximity Probe is designed for precise shaft vibration and position measurement in rotating machinery. As part of the 3300 XL series, it provides reliable eddy-current sensing with high linearity, superior temperature stability, and compliance with API 670 requirements. It ensures accurate monitoring for critical equipment such as turbines, compressors, and pumps.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330101-00-24-10-12-CN |
| Probe Type | 3300 XL 8mm Proximity Probe |
| Thread Size | 3/8-24 UNF |
| Case Length | 2.4 in (60.96 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc with FluidLoc cable |
| Unthreaded Length | 0 in |
| Measurement Range | -2 to -19 mm (typical linear range) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +180 °C |
| Weight | 0.323 kg |
| Approvals | CN (local compliance and hazardous area approvals) |
| Interchangeability | Fully interchangeable with 3300 XL 8mm system components (cables, sensors) |
Applications
-
Monitoring shaft vibration in turbines, compressors, motors, and pumps.
-
Position measurement of fluid-film bearing machinery.
-
Protection of critical rotating equipment through early fault detection.
-
Integration with Bently Nevada monitoring systems for API 670 compliant solutions.
Advantages
-
High accuracy and linearity over the full measurement range.
-
Robust mechanical design with improved durability compared to 5mm probes.
-
Full component interchangeability across the 3300 XL 8mm system.
-
Excellent immunity to temperature variations and electromagnetic interference.
-
Compliance with international machinery protection standards.
-
ClickLoc connector ensures secure, vibration-resistant connections.
FAQ
Q1: What is the primary function of the 330101-00-24-10-12-CN probe?
A1: It measures shaft vibration and position using eddy-current sensing, providing both dynamic and static data for rotating machinery.
Q2: What is the benefit of the 8mm probe compared to the 5mm version?
A2: The 8mm probe offers greater robustness, longer service life, and better physical durability in harsh industrial environments.
Q3: Can this probe be directly interchanged with other 3300 XL 8mm probes?
A3: Yes, all probes, extension cables, and sensors within the 3300 XL 8mm family are fully interchangeable without recalibration.
Q4: Does the probe comply with API 670 standards?
A4: Yes, it is fully compliant with API 670 requirements for machinery protection, linearity, and environmental performance.
Q5: What type of connector is used in this model?
A5: It uses a miniature coaxial ClickLoc connector with FluidLoc cable, designed for secure and fluid-resistant connections.
Q6: What is the linear measurement range of this probe?
A6: The probe provides a linear measurement range of approximately -2 to -19 mm.
Q7: In what environments can the probe operate?
A7: It operates in temperatures from -35 °C to +180 °C and is designed for use in industrial and hazardous areas.
Q8: What is the total cable length for this probe configuration?
A8: The probe comes with a 1.0 meter (3.3 ft) integral cable.
Q9: What is the approximate weight of this probe?
A9: The total weight of this probe is 0.323 kg.
Q10: What machinery types are best suited for this probe?
A10: It is ideal for turbines, compressors, pumps, and motors with fluid-film bearings requiring high-accuracy vibration monitoring.
Related Models in the Same Series
| Model Number | Case Length | Cable Length | Connector Type | Weight |
|---|---|---|---|---|
| 330101-00-12-20-12-CN | 2.0 in | 2.0 m | Miniature coaxial ClickLoc | 0.340 kg |
| 330101-00-22-10-12-CN | 2.2 in | 1.0 m | Miniature coaxial ClickLoc | 0.325 kg |
| 330101-00-30-10-12-00 | 3.0 in | 1.0 m | Miniature coaxial ClickLoc | 0.330 kg |
| 330101-00-14-32-10-02-05 | 1.4 in | 3.2 m | Miniature coaxial ClickLoc | 0.355 kg |
| 330101-00-20-05-10-12-00 | 2.0 in | 0.5 m | Miniature coaxial ClickLoc | 0.310 kg |
| 330101-00-25-15-12-00 | 2.5 in | 1.5 m | Miniature coaxial ClickLoc | 0.335 kg |
