Product Overview

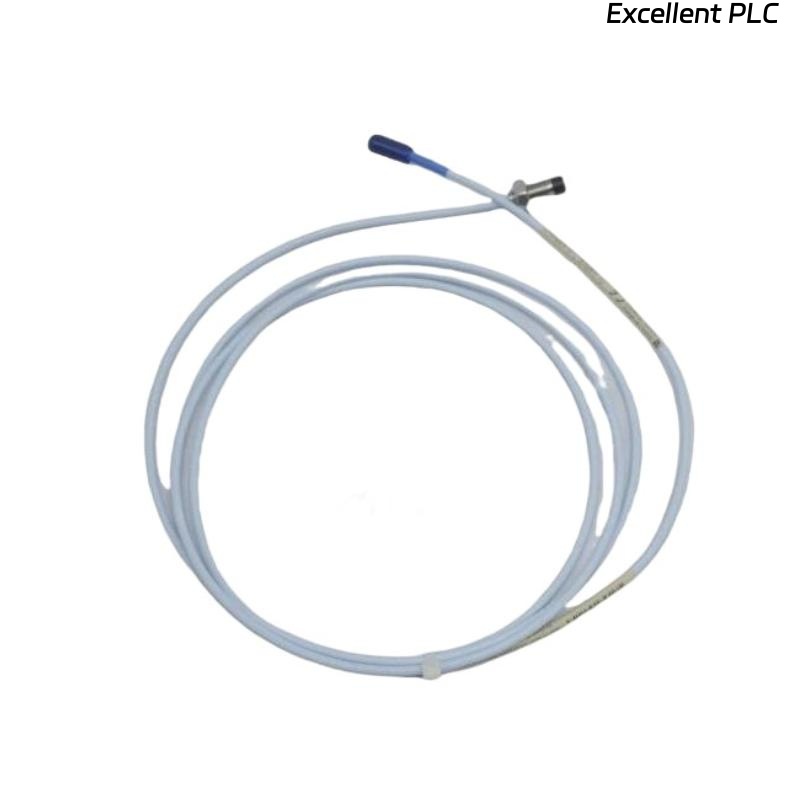

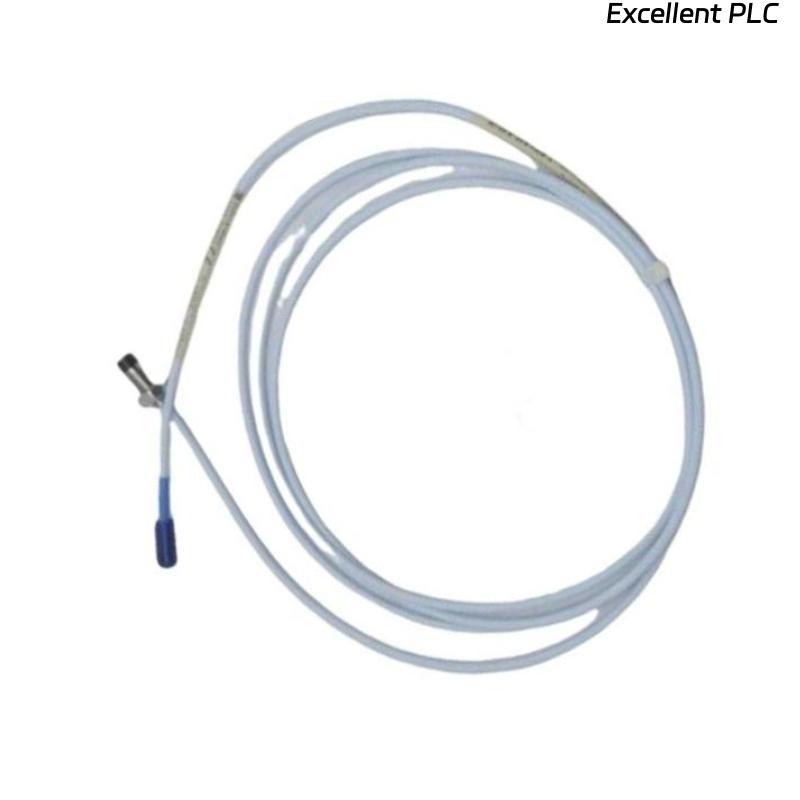

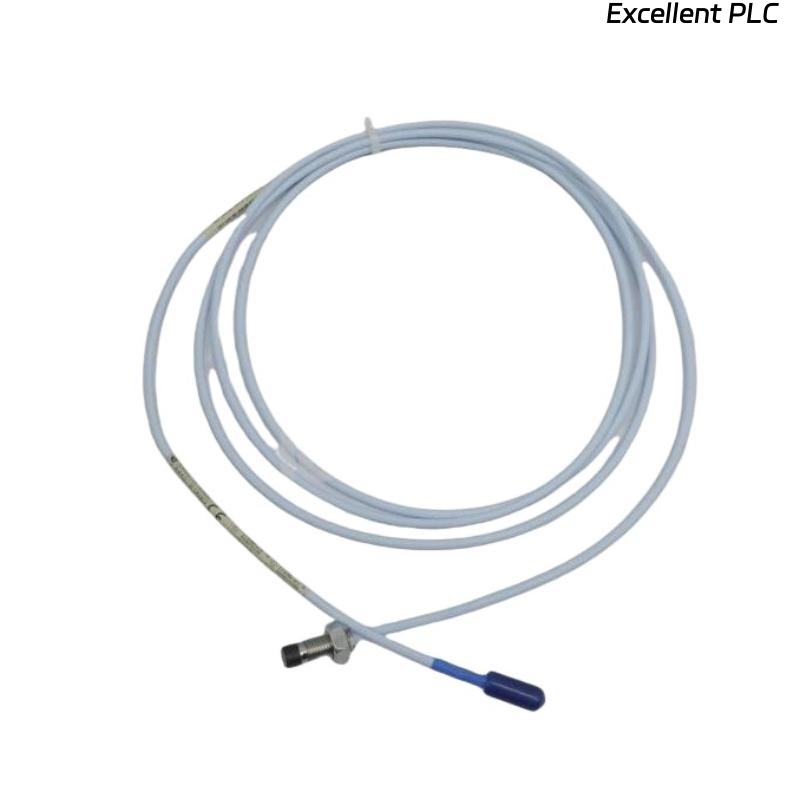

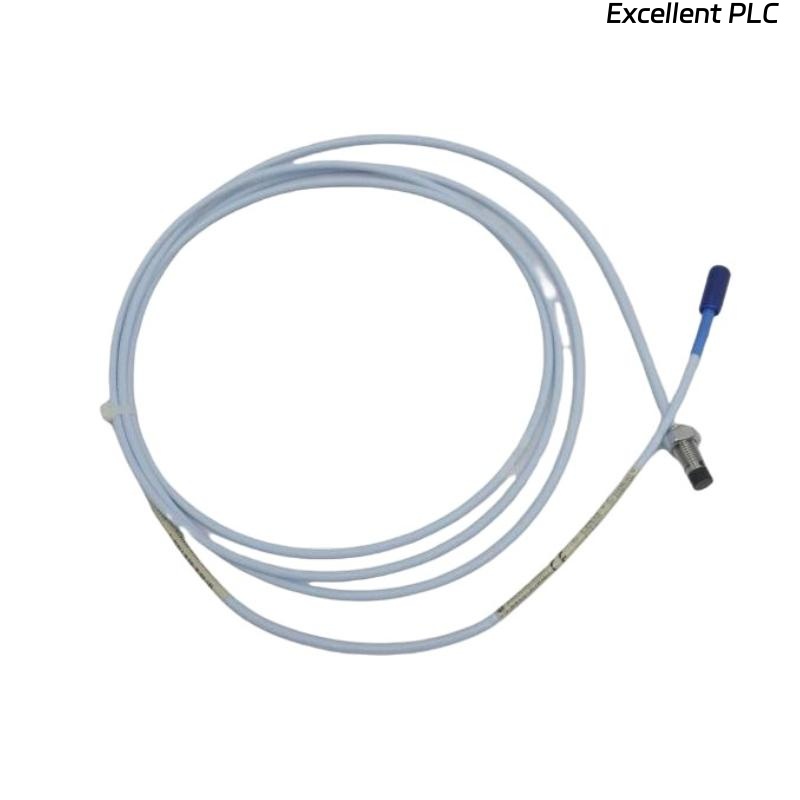

The Bently Nevada 330101-00-24-20-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor specifically designed for machinery protection and condition monitoring. As part of the 3300 XL 8 mm Proximity Transducer System, it works in combination with an extension cable and a Proximitor® sensor to deliver accurate measurements of vibration and shaft position in rotating machinery.
Key Features
-
8 mm probe tip for enhanced durability and signal quality
-
Modular design compatible with 3300 XL extension cables and Proximitor® sensors
-
Interchangeable with non-XL 3300 series 5 mm and 8 mm probes
-
Gold-plated ClickLoc connectors for secure, tool-free installation
-
Enhanced immunity to RFI/EMI for CE-compliant installations
-
Rugged design with TipLoc and CableLoc technologies for long-term reliability
-
Suitable for both static (position) and dynamic (vibration) measurements
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330101-00-24-20-02-05 |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF (standard for this model) |
| System Compatibility | 3300 XL Proximitor® Sensor and extension cable |
| Measurement Range | System dependent, typically ±2 mm (80 mils) |
| Operating Temperature | -35 °C to +177 °C (probe only) |
| Humidity | 100% condensing, sealed design |
| Cable Type | 75 Ω triaxial coaxial (FluidLoc option available) |
| Connector Type | Gold-plated ClickLoc |
| Dimensions | Total Length: 2.0 meters |
| Weight | 0.646 kg |
| Mounting | Threaded installation into probe housing |
| Indicators | Requires Proximitor® sensor for signal processing |
Industry Applications
-
Oil & Gas – Monitoring vibration in compressors, pumps, and turbines
-
Power Generation – Shaft position and vibration monitoring in steam and gas turbines
-
Petrochemical & Chemical Plants – Equipment condition monitoring in harsh process environments
-
Water & Wastewater – Protection of large rotating pumps and motors
-
Manufacturing & Heavy Industry – Monitoring high-value rotating equipment for predictive maintenance
Advantages
-
Provides highly accurate vibration and position measurements
-
Interchangeable modular design reduces downtime during maintenance
-
Enhanced environmental durability ensures long-term operation
-
Simplifies installation with secure, tool-free connectors
-
Meets industry compliance standards with superior RFI/EMI immunity
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330101-00-24-20-02-05 probe?
It measures shaft vibration and position by detecting changes in the distance to a conductive surface.
Q2: What size is the probe tip?
The probe has an 8 mm tip.
Q3: What other components are required for operation?
It requires a compatible extension cable and a 3300 XL Proximitor® Sensor.
Q4: Can it be used with older 3300 series systems?
Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q5: How is it installed?
It is mounted into a threaded probe housing and connected with ClickLoc connectors.
Q6: What is the operating temperature range?
The probe operates between -35 °C and +177 °C.
Q7: Does it resist electromagnetic interference?
Yes, it has improved EMI/RFI immunity for CE-compliant installations.
Q8: What industries commonly use this probe?
It is widely used in oil & gas, power generation, chemical, and heavy industrial applications.
Q9: What are the probe dimensions?
Total Length: 2.0 meters.
Q10: What is the probe weight?
Approximately 0.646 kg.
