Product Overview

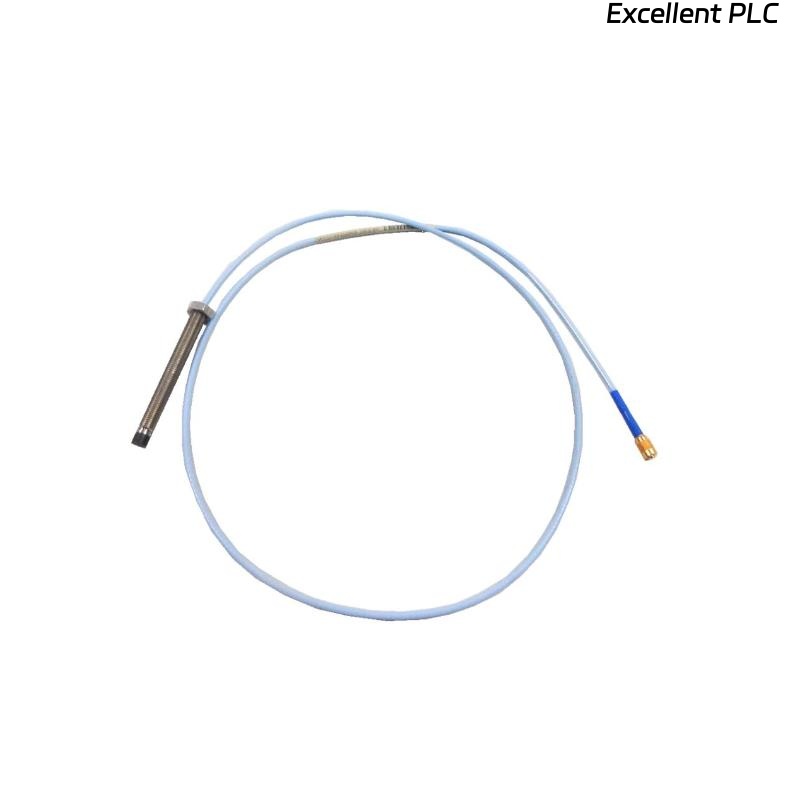

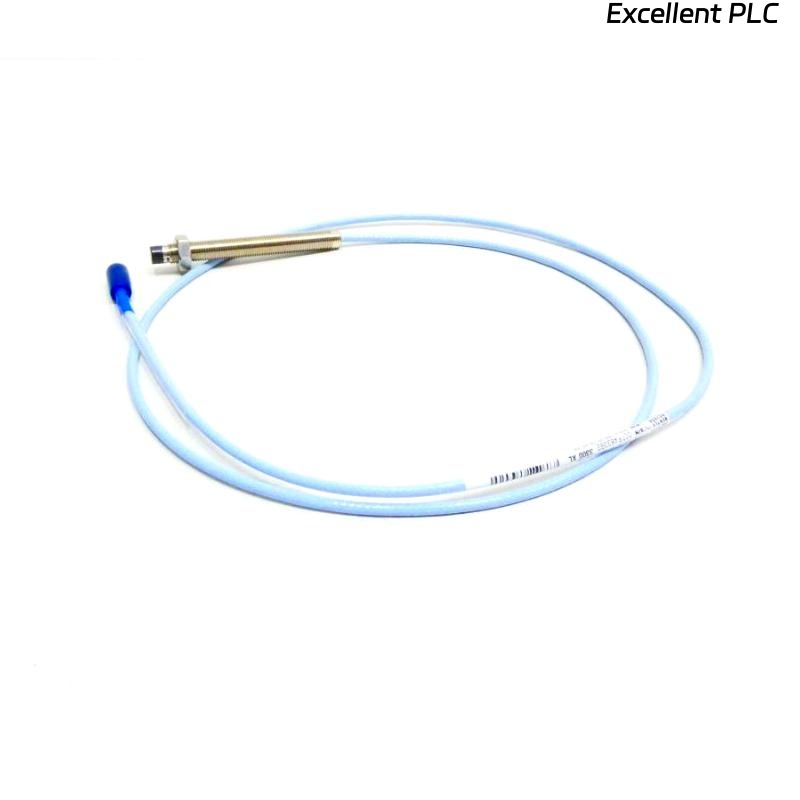

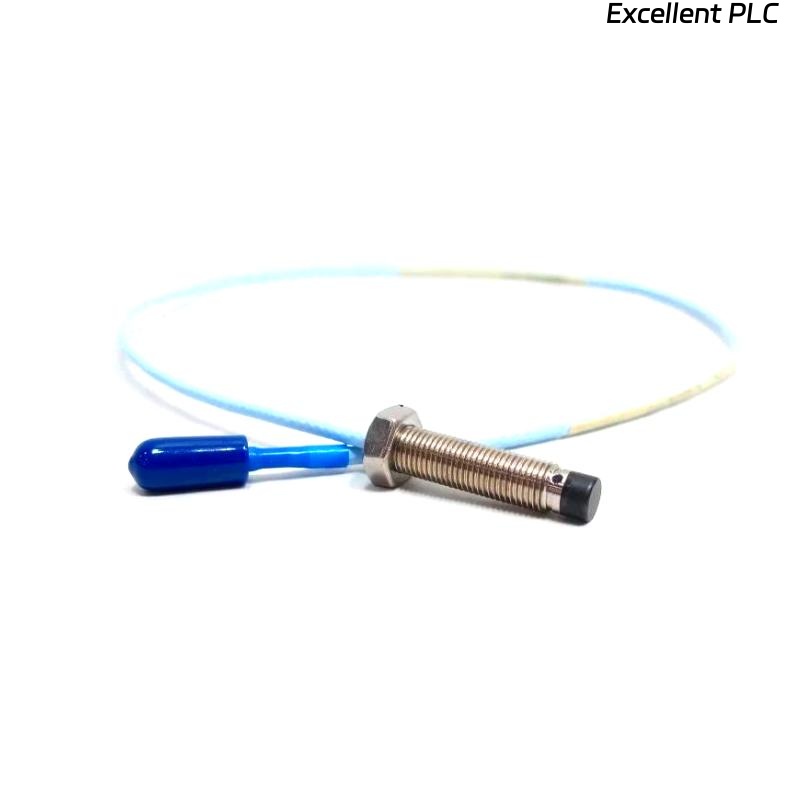

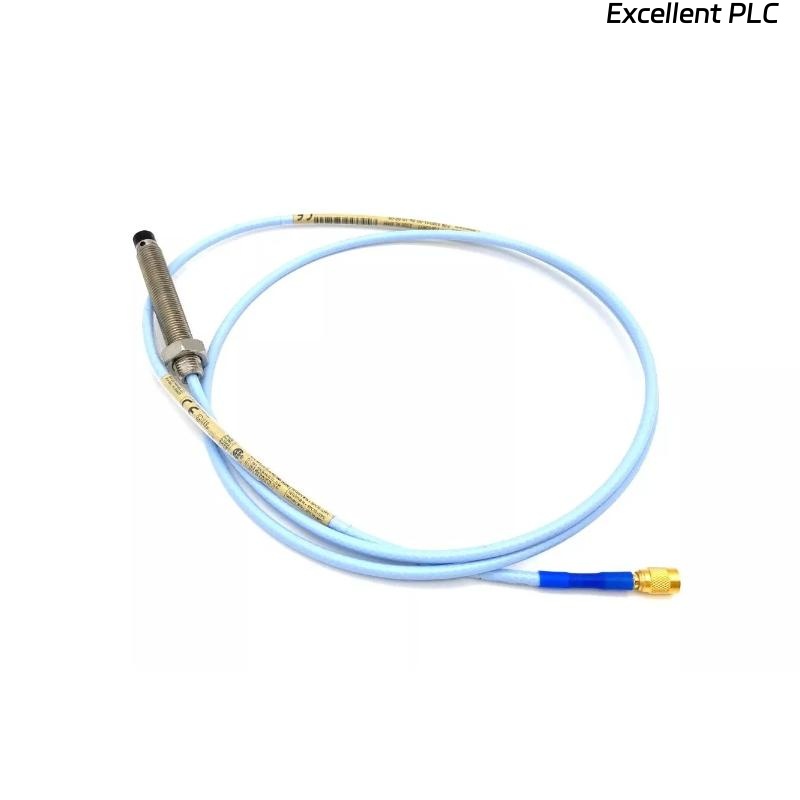

The Bently Nevada 330101-00-24-50-02-05 3300 XL 8mm Proximity Probe is designed for precise measurement of shaft vibration and position in fluid-film bearing machinery. It is part of the 3300 XL transducer system, meeting API 670 standards for accuracy, linearity, and reliability. This probe features rugged construction, high pull strength, and interchangeable compatibility with other 3300 XL components, making it suitable for critical industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-24-50-02-05 |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Length | 2.4 in (61 mm) |
| Total Length | 5.0 m |
| Weight | 1.615 kg |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | Standard coaxial with robust insulation |
| Temperature Range | -35 °C to +177 °C |
| Certifications | CSA, ATEX, IECEx (hazardous environments) |
| System Compatibility | 3300 XL extension cables and Proximitor sensors |
Applications
-
Vibration monitoring of rotating equipment such as turbines, compressors, and pumps
-
Shaft position measurement in fluid-film bearing machines
-
Condition monitoring for predictive maintenance programs
-
Machinery protection systems requiring API 670 compliance
-
Industrial environments including power generation, petrochemical, and refining sectors
Advantages
-
High Accuracy: Ensures precise dynamic and static measurements in critical equipment.
-
Robust Design: Features TipLoc bonding and CableLoc technology for durability.
-
Hazardous Area Certified: CSA, ATEX, and IECEx approvals for safe use in explosive environments.
-
Interchangeability: Fully compatible with all 3300 XL system components without recalibration.
-
Environmental Protection: Optional FluidLoc prevents oil or contaminants from leaking through the cable.
-
Long Service Life: Built for continuous operation in harsh industrial applications.
FAQ
Q1: What is the primary function of the 330101-00-24-50-02-05 probe?
A1: It measures shaft vibration and position in rotating machinery equipped with fluid-film bearings.
Q2: Does this probe comply with API 670 standards?
A2: Yes, it fully complies with API 670 requirements for performance, linear range, and accuracy.
Q3: Can it be used in hazardous areas?
A3: Yes, it is certified by CSA, ATEX, and IECEx, making it suitable for hazardous environments.
Q4: What type of connector does it use?
A4: It features a miniature coaxial ClickLoc connector for secure and tool-free locking.
Q5: How strong is the cable attachment?
A5: The CableLoc system provides a pull strength of up to 330 N (75 lbf).
Q6: Is the probe interchangeable with other 3300 XL probes?
A6: Yes, all 3300 XL probes, extension cables, and Proximitor sensors are fully interchangeable.
Q7: What is the total cable length for this model?
A7: The probe includes a total length of 5.0 meters.
Q8: What environmental protection features are available?
A8: The probe can include FluidLoc technology to prevent leakage of oil or contaminants.
Q9: What is the operating temperature range?
A9: The probe operates reliably between -35 °C and +177 °C.
Q10: What industries typically use this probe?
A10: It is widely used in power generation, oil and gas, petrochemical, and refining industries.
Related Models (Same Series / Similar)
| Model Number | Probe Tip | Case Length | Total Length | Weight |
|---|---|---|---|---|
| 330101-00-12-10-02-05 | 8 mm | 1.2 in | 1.0 m | 0.45 kg |
| 330101-00-15-05-02-05 | 8 mm | 1.5 in | 5.0 m | 1.50 kg |
| 330101-00-20-10-02-05 | 8 mm | 2.0 in | 10.0 m | 2.95 kg |
| 330101-00-25-05-02-05 | 8 mm | 2.5 in | 5.0 m | 1.60 kg |
| 330104-00-05-10-02-00 | 8 mm | 0.5 in | 10.0 m | 2.85 kg |
| 330104-00-09-90-02-00 | 8 mm | 0.9 in | 9.0 m | 2.55 kg |
