Product Overview

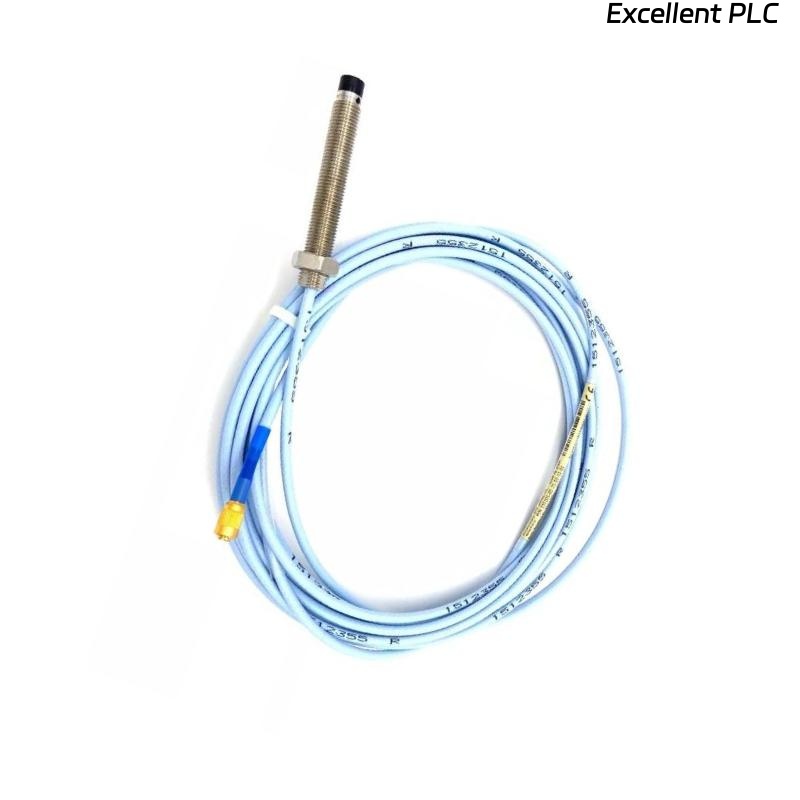

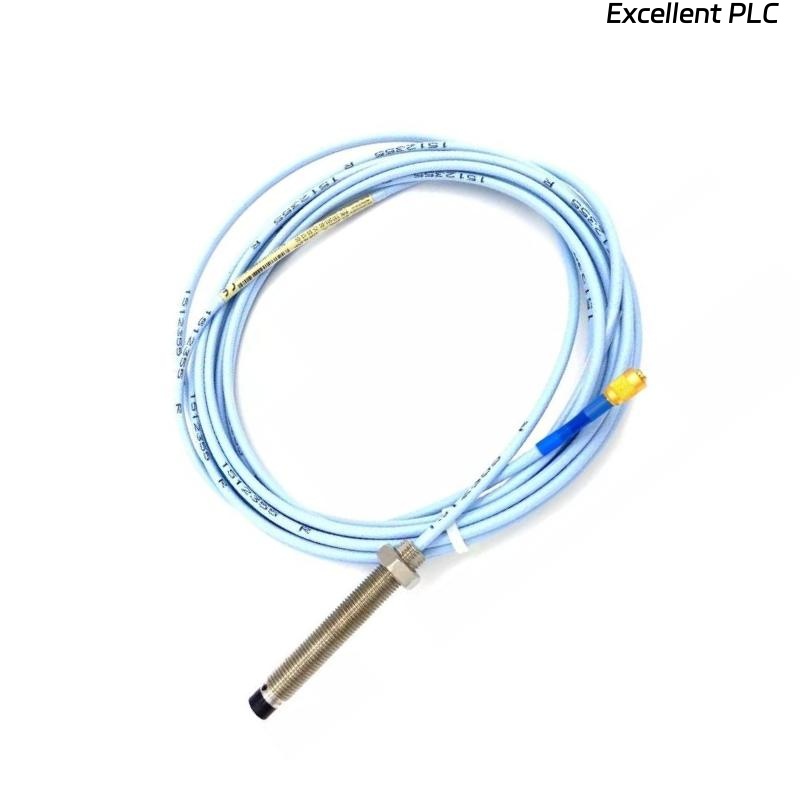

The Bently Nevada 330101-00-25-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor designed for machinery protection and condition monitoring in critical rotating equipment. As part of the 3300 XL 8 mm Proximity Transducer System, it operates together with an extension cable and a Proximitor® sensor to deliver accurate and reliable measurements of shaft vibration, position, and speed.
Key Features
-
8 mm probe tip offering durability and stable signal quality
-
Fully compatible with 3300 XL extension cables and Proximitor® sensors
-
Backward compatibility with non-XL 3300 series 5 mm and 8 mm components
-
Gold-plated ClickLoc connectors for corrosion resistance and tool-free installation
-
Superior RFI/EMI immunity for compliance with CE standards
-
Built-in TipLoc and CableLoc technology for mechanical reliability
-
Suitable for both static (position) and dynamic (vibration) measurements
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 330101-00-25-05-02-00 |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| System Compatibility | 3300 XL Proximitor® Sensor and extension cable |
| Measurement Range | Typically ±2 mm (80 mils), system dependent |
| Operating Temperature | -35 °C to +177 °C |
| Humidity | 100% condensing, hermetically sealed |
| Cable Type | 75 Ω triaxial coaxial |
| Connector Type | Gold-plated ClickLoc |
| Dimensions | Total Length : 0.5 meter |
| Weight | 0.161 kg |
| Mounting | Threaded installation into probe housing |
| Indicators | Requires Proximitor® sensor for signal processing |
Industry Applications
-
Oil & Gas – Condition monitoring of compressors, turbines, and pumps
-
Power Generation – Shaft position and vibration monitoring for steam and gas turbines
-
Chemical & Petrochemical – Equipment reliability assurance in processing plants
-
Water & Wastewater – Monitoring of large rotating pumps and motors
-
Heavy Industry & Manufacturing – Predictive maintenance for high-value machinery
Advantages
-
Provides accurate and repeatable vibration and position measurements
-
Robust design ensures long-term performance in harsh environments
-
Modular system simplifies maintenance and reduces downtime
-
Quick and secure installation with ClickLoc connectors
-
CE-compliant with advanced electromagnetic interference immunity
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330101-00-25-05-02-00 probe?
It measures shaft vibration and position by detecting changes in the distance to a conductive surface.
Q2: What is the probe tip size?
The probe has an 8 mm tip.
Q3: What additional components are required for operation?
It requires a 3300 XL extension cable and a Proximitor® sensor.
Q4: Is it backward compatible with older systems?
Yes, it is compatible with non-XL 3300 5 mm and 8 mm components.
Q5: How is it installed?
It is threaded into a probe housing and connected via ClickLoc connectors.
Q6: What is the operating temperature range?
The probe operates from -35 °C to +177 °C.
Q7: Does it resist electromagnetic interference?
Yes, it is designed with improved EMI/RFI immunity to meet CE requirements.
Q8: In which industries is this probe commonly used?
It is widely applied in oil & gas, power generation, chemical, and heavy industrial sectors.
Q9: What are the probe dimensions?
Total Length : 0.5 meter.
Q10: What is the weight of the probe?
Approximately 0.161 kg.
