Product Introduction:

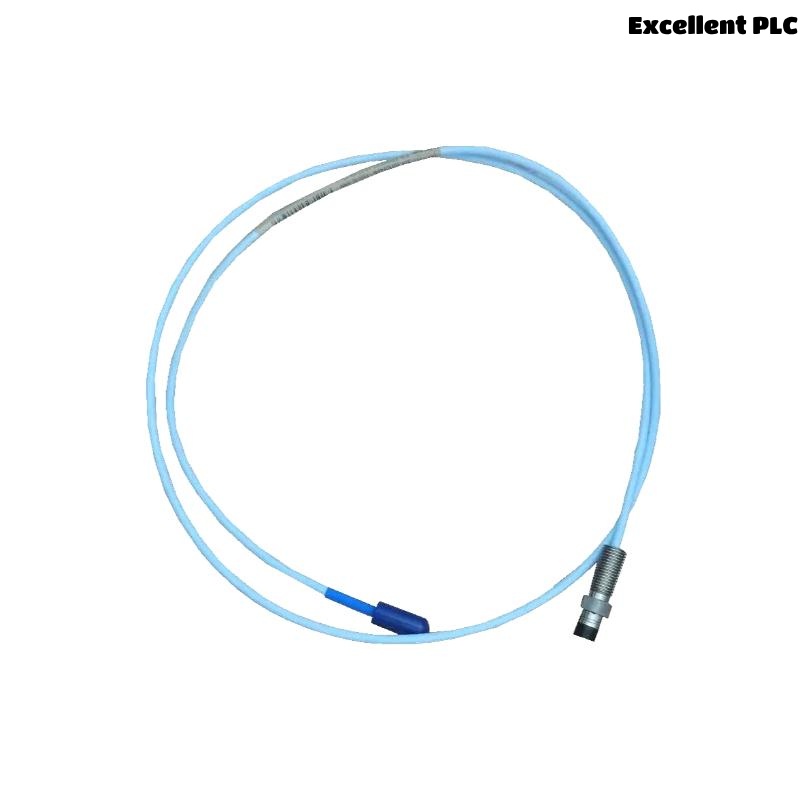

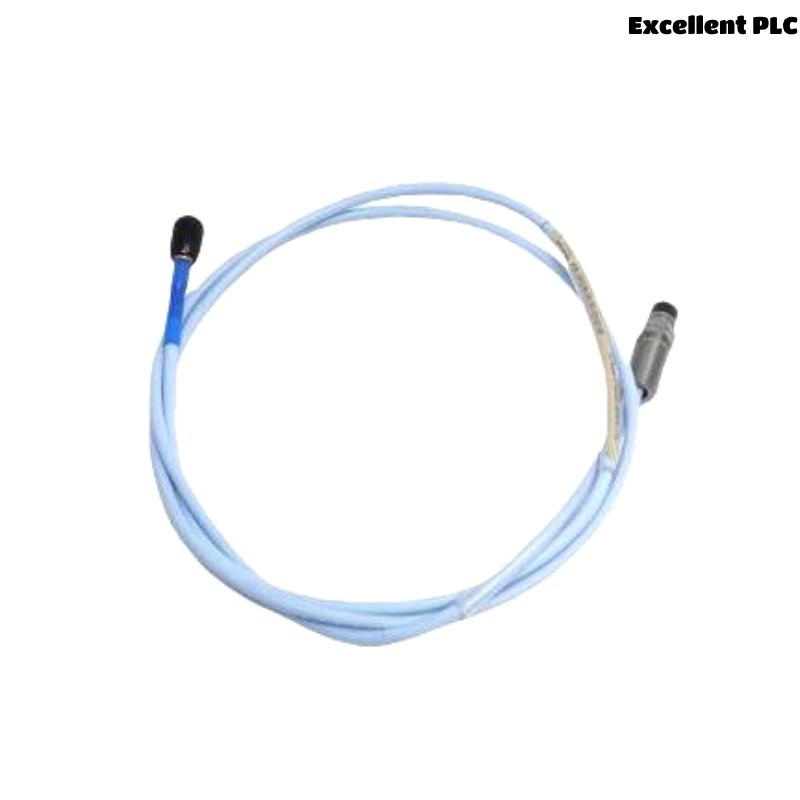

The Bently Nevada 330101-00-27-10-02-05 3300 XL 8mm Proximity Probe is a key component of the 3300 XL series, designed for high-precision vibration and displacement measurement in rotating machinery. This probe plays a critical role in predictive maintenance systems by providing real-time data on the condition of mechanical components, helping to prevent equipment failures before they occur. It measures the proximity of rotating machine parts such as shafts or rotors, allowing operators to monitor displacement, vibration, and alignment.
This probe is particularly useful in harsh industrial environments where machinery reliability is crucial. Its robust design ensures that it can operate effectively across a wide range of temperatures and vibration levels, making it suitable for applications in industries such as power generation, oil and gas, manufacturing, and heavy industry.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8mm |
| Probe Material | Stainless Steel |
| Measuring Range | 0-25 mm (depending on the setup) |
| Operating Temperature | -40°C to +120°C |
| Weight | 0.323 kg |
| Total Length | 1 meter |
| Output Signal | 4-20mA / 0-10V |
| Vibration Sensitivity | 0.25 µm |
| Electrical Connection | Bently Nevada 3300 series standard |
| Mounting Type | Threaded, Mounting Bracket Included |
| Compatibility | Works with Bently Nevada 3300 series systems |
| Certifications | CE, UL, ATEX, IECEx (depending on model) |
Product Applications:
The 3300 XL 8mm Proximity Probe is used to measure the relative displacement or vibration of rotating machinery parts. This capability is essential for early fault detection and condition monitoring. The probe is ideal for applications in industries where continuous operation of critical machinery is a must.
-
Turbines: The probe helps in detecting axial displacement of turbine shafts, which is critical to prevent catastrophic failures.
-
Compressors: It is used to monitor rotor-stator clearance in compressors, helping to prevent misalignment or damage.
-
Pumps: The probe helps in monitoring the movement of pump shafts, ensuring proper alignment and operation.
-
Motors: It ensures motor shafts are within acceptable displacement limits to avoid malfunction.
-
Industrial Fans: It assists in monitoring the displacement of fan shafts and detects any potential misalignments.
Product Advantages:
-
High Precision and Sensitivity: With a sensitivity of 0.25 µm, the 3300 XL probe offers highly accurate measurements, which helps in detecting issues in machinery at an early stage.
-
Durability: Made from high-quality stainless steel, the probe is highly resistant to wear and corrosion, ensuring long-term durability even in harsh environments.
-
Wide Temperature Range: Capable of operating in temperatures between -40°C and +120°C, the probe is suitable for a broad spectrum of industrial applications.
-
Ease of Integration: The probe is compatible with Bently Nevada’s 3300 series monitoring systems, making it easy to integrate into existing condition monitoring setups.
-
Cost-Effective: By providing real-time displacement measurements, the probe helps to minimize the risk of sudden equipment failure, reducing the need for emergency repairs and expensive downtime.
FAQ (Frequently Asked Questions):
-
What is the main function of the Bently Nevada 3300 XL 8mm Proximity Probe?
-
The probe measures the proximity or displacement of rotating machine components to monitor their health and prevent unexpected failures.
-
-
How does the proximity probe detect machinery issues?
-
By measuring displacement and vibration, the probe can detect issues like misalignment, wear, or imbalance that could lead to equipment failure.
-
-
What is the temperature range of the 3300 XL 8mm Proximity Probe?
-
The probe can operate in environments ranging from -40°C to +120°C, making it suitable for a variety of industrial conditions.
-
-
Can this probe be used with other brands of monitoring systems?
-
The probe is primarily designed for use with Bently Nevada’s 3300 series systems, although it may be compatible with other systems that support the same output signals.
-
-
What types of output signals does the 3300 XL probe provide?
-
The probe provides a 4-20mA or 0-10V output signal, depending on the configuration.
-
-
Is the 3300 XL 8mm probe resistant to harsh environmental conditions?
-
Yes, the probe is made from stainless steel, which is resistant to corrosion and wear, allowing it to perform in challenging environments.
-
-
How accurate is the Bently Nevada 3300 XL 8mm Proximity Probe?
-
The probe has a high sensitivity of 0.25 µm, ensuring precise displacement and vibration measurements.
-
-
What industries typically use this proximity probe?
-
It is widely used in industries like power generation, oil and gas, manufacturing, and heavy machinery.
-
-
What is the weight of the 3300 XL 8mm Proximity Probe?
-
The probe weighs approximately 150g.
-
-
Can the Bently Nevada 3300 XL 8mm Proximity Probe detect early signs of failure?
-
Yes, the high precision of the probe allows for early detection of misalignments, vibrations, and other issues that can lead to equipment failure.
-
Related Models (Same Series):
| Model | Description |
|---|---|
| 3300 XL 5mm Proximity Probe | A more compact version with a 5mm tip, ideal for smaller machinery. |
| 3300 XL 12mm Proximity Probe | A larger probe for use in equipment with higher vibration levels. |
| 3300 XL 16mm Proximity Probe | Designed for larger machines and high-vibration environments. |
| 3300 XL 25mm Proximity Probe | Suitable for industrial equipment requiring longer-range proximity measurements. |
| 3300 XL Velocity Transducer | Measures velocity instead of proximity for monitoring different machine behaviors. |
| 3300 XL Temperature Transducer | Provides additional temperature monitoring alongside displacement readings. |
