Product Introduction

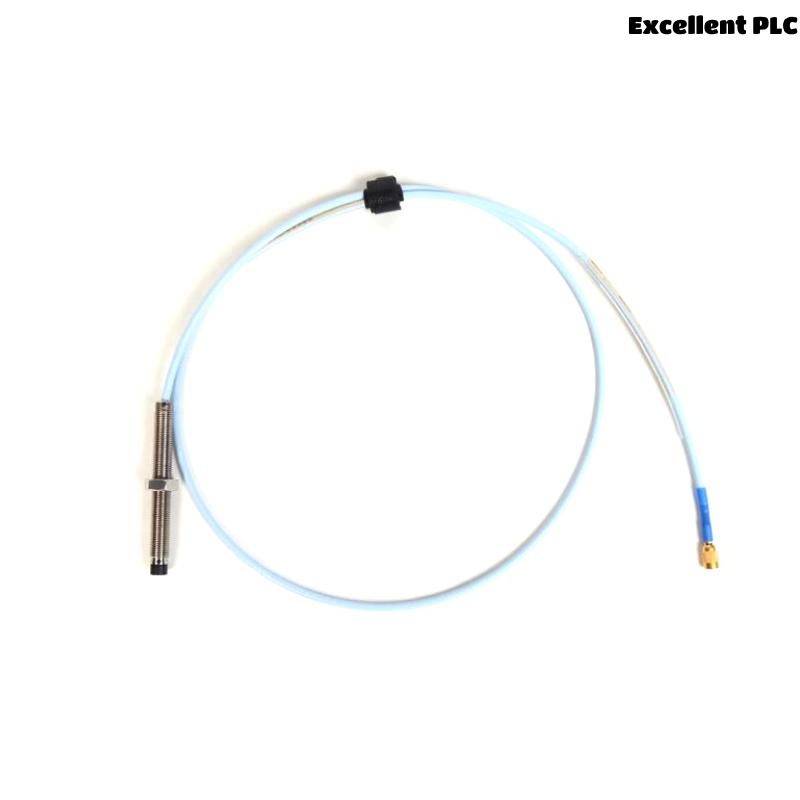

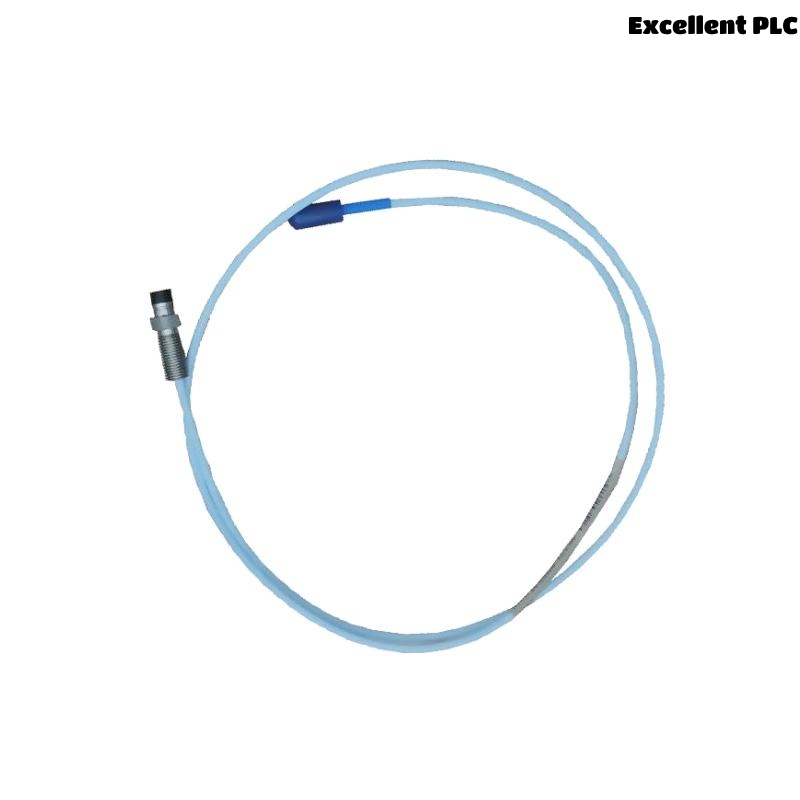

The Bently Nevada 330101-00-30-05-02-00 is part of the renowned 3300 XL 8 mm Proximity Probe series, developed by Bently Nevada, a trusted name in industrial condition monitoring and vibration detection. These probes are designed for highly accurate, continuous measurement of shaft position and vibration in rotating machinery such as turbines, compressors, pumps, motors, and generators.
The 3300 XL 8 mm system includes the proximity probe, extension cable, and Proximitor® sensor. The model 330101-00-30-05-02-00 specifically represents a probe with an 8 mm tip and various configurable lengths, capable of reliably measuring static and dynamic signals related to machinery health.
Engineered to withstand extreme environments, these probes deliver precise measurements even in high-vibration, high-temperature, and contaminated settings. They are widely used in power plants, oil & gas installations, and various critical process industries, where equipment reliability is paramount.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | 330101-00-30-05-02-00 |
| Series | 3300 XL 8 mm Proximity Probe System |
| Tip Diameter | 8 mm |
| Tip Material | Polyphenylene sulfide (PPS) |
| Thread Size | 3/8-24 UNF-2A |
| Mounting Type | Threaded |
| Linear Range | 2 mm (80 mils) nominal |
| System Accuracy | ±0.07 VDC over linear range |
| Output Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Operating Frequency Range | DC to 10 kHz (-3 dB) |
| Minimum Bend Radius of Cable | 25 mm |
| Operating Temperature Range | Probe: -35°C to +177°C |
| Total Length | 0.5 meter |
| Proximitor Sensor Supply Voltage | -24 VDC |
| Proximitor Sensor Temperature Range | -35°C to +85°C |
| Insulation Resistance | > 10 MΩ |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Environmental Protection | IP65 |
| Weight | 0.161 kg |
Product Applications
The 3300 XL 8 mm Proximity Probes, particularly the model 330101-00-30-05-02-00, are deployed across a wide range of industries where machine health monitoring is critical. Common applications include:
-
Power Generation
Turbine and generator vibration and shaft position monitoring. -
Oil & Gas
Compressors, pumps, and critical rotating equipment in upstream and downstream facilities. -
Petrochemical & Chemical
Reactor drive systems, high-speed centrifugal compressors, and critical mixers. -
Metals & Mining
Gearboxes, large rotating kilns, crushers, and other heavy equipment. -
Marine & Offshore
Diesel engines, rotating thrusters, and turbine-driven generators. -
Pulp & Paper
High-speed rotating equipment such as paper machine rolls and drying cylinders. -
Water Treatment & Infrastructure
High-speed pumping equipment in municipal and industrial water treatment plants.
Product Advantages
-
High Accuracy and Reliability
Delivers precise vibration and shaft position measurements critical for protecting rotating equipment. -
Wide Operating Range
Maintains performance in temperatures up to +177°C and in extreme industrial conditions. -
Mechanical Robustness
Rugged design with proven mechanical stability in harsh environments. -
EMC Compliance
Meets strict EMC standards for industrial environments. -
IP65 Environmental Protection
Suitable for outdoor and industrial use where moisture, dust, and vibration are present. -
Flexible Configurations
Cable lengths and probe lengths can be configured to meet specific installation requirements. -
Backward Compatibility
Compatible with older 3300 and newer Bently Nevada Proximitor systems, protecting user investment. -
Ease of Installation
Threaded design and standard connectors simplify installation and maintenance. -
Proven Industry Standard
Globally recognized and used in thousands of critical industrial installations. -
Long Lifecycle and Low Maintenance
Extended service life and minimal maintenance requirements contribute to lower cost of ownership.
Frequently Asked Questions (FAQ)
1. What does the 330101-00-30-05-02-00 model number mean?
It refers to a specific configuration of the 3300 XL 8 mm Proximity Probe, including tip style, thread size, and cable length.
2. What is the typical use of this proximity probe?
It is used for vibration monitoring and shaft position measurement in rotating machinery.
3. Is this probe compatible with older 3300 systems?
Yes, the 3300 XL 8 mm probes are designed for backward compatibility with earlier Bently Nevada systems.
4. What environments can this probe operate in?
It operates from -35°C to +177°C and is IP65-rated for industrial environments.
5. What is the linear range of this probe?
The nominal linear range is 2 mm (80 mils).
6. What type of output signal does this probe provide?
It provides a voltage signal proportional to the distance between the probe tip and the target surface (typically 200 mV/mil).
7. Is there a standard cable length?
Cable length is configurable. A common example is 5 meters, but custom lengths are available.
8. Can it be used on high-speed machines?
Yes, it has an operating frequency range up to 10 kHz, suitable for most high-speed rotating equipment.
9. Is the system suitable for hazardous areas?
Versions are available that meet hazardous area certifications. Please consult Bently Nevada documentation for specifics.
10. What is the service life of the probe?
Typical service life exceeds 5–10 years depending on application environment and maintenance.
