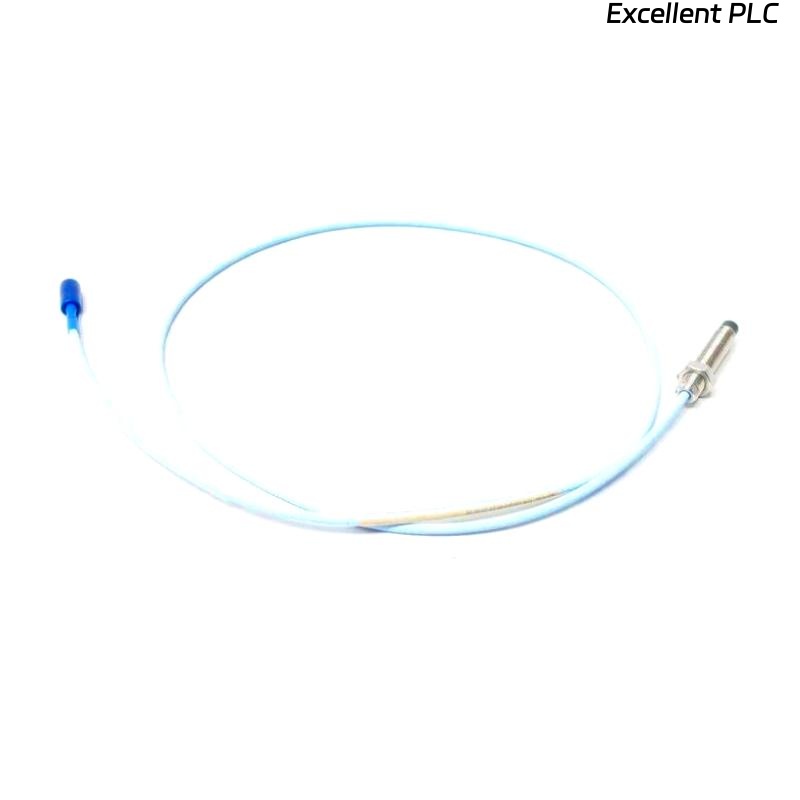

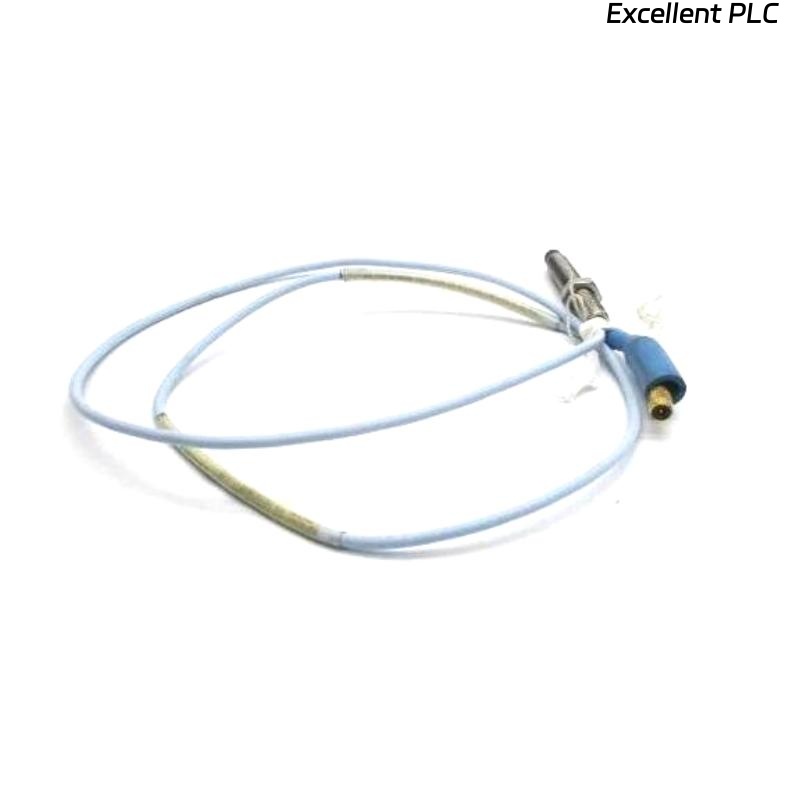

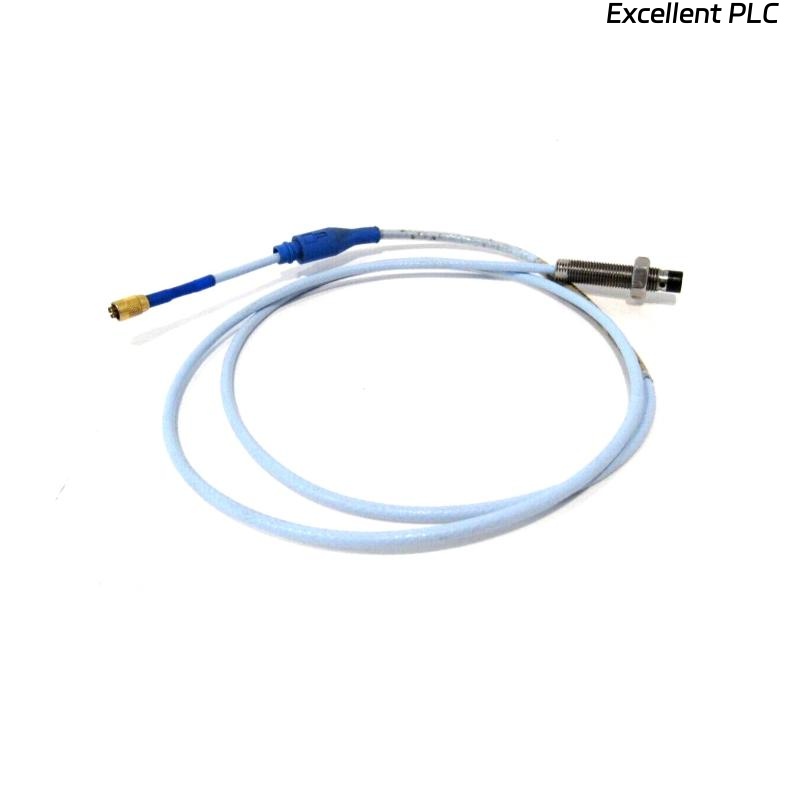

Bently Nevada 330101-00-30-20-05 3300 XL 8mm Proximity Probe

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330101-00-30-20-05 3300 XL 8mm Proximity Probe is designed for high-precision vibration and position monitoring in industrial machinery. Featuring an 8mm diameter probe, it offers a rugged design with a PPS molded tip for enhanced durability and reliable long-term performance. The probe is compatible with the 3300 XL Proximity System, delivering accurate measurements for both dynamic (vibration) and static (position) applications.

---

Technical Specifications

---

Applications

The 3300 XL 8mm Proximity Probe is widely used in:

• Turbines

• Compressors

• Motors

• Keyphasor speed and reference measurements

• Fluid-film bearing monitoring

Its robust design ensures accurate data collection even in high-vibration and high-temperature environments.

---

Advantages

• High-precision measurement with low noise

• Rugged PPS molded tip ensures long service life

• Easy installation with standard 3/8-24 UNF threads

• Compatible with 3300 XL Proximitor sensors

• Stable performance under wide temperature ranges

• Supports both static and dynamic monitoring

---

FAQ

1. What is the probe’s operating temperature range?

• The probe operates reliably from -40°C to +120°C.

2. What type of output does the probe provide?

• It outputs a voltage proportional to the distance between the probe tip and the monitored surface.

3. Can this probe measure both vibration and position?

• Yes, it supports dynamic (vibration) and static (position) measurements.

4. What is the probe diameter?

• The probe has an 8 mm diameter tip.

5. How long is the probe cable?

• The standard cable length is 2.0 meters.

6. What type of connector does the probe use?

• It uses a miniature coaxial ClickLoc connector.

7. Is this probe API 670 compliant?

• Yes, it meets API 670 standards for accuracy and stability.

8. What is the typical linear measurement range?

• ±0.25 mm, depending on installation and target material.

9. What materials are used for the probe tip?

• The tip is made from durable PPS (polyphenylene sulfide) material.

10. How heavy is the probe?

• The total weight is 0.646 kg.

---
