Product Introduction

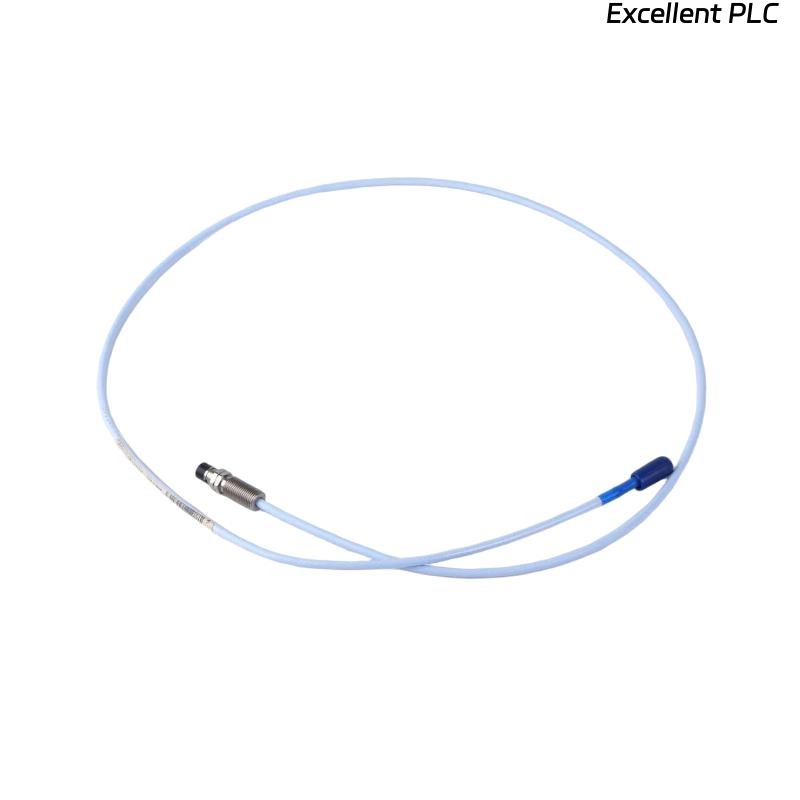

The Bently Nevada 330101-00-32-05-01-05 3300 XL 8mm Proximity Probe is a precision eddy current sensor engineered for non-contact measurement of shaft vibration, radial displacement, and axial position in rotating machinery. As part of the well-established 3300 XL series, this probe delivers stable electrical output, high sensitivity, and dependable long-term performance under demanding industrial operating conditions.
Designed to operate within a calibrated proximity system, the probe generates a high-frequency electromagnetic field at its tip. When positioned near a conductive shaft surface, variations in the probe gap modify the field characteristics, producing a proportional electrical response. This signal is processed through a compatible Proximitor® sensor and monitoring module to provide accurate real-time vibration and position data.
With a total length of 0.5 meter, this configuration is particularly suitable for installations where compact routing is required or where monitoring modules are positioned close to the measurement point. Its rugged construction and stable electrical characteristics make it ideal for critical equipment such as turbines, compressors, pumps, motors, and generators.
The 330101-00-32-05-01-05 probe plays a vital role in machinery protection systems by enabling early detection of imbalance, misalignment, shaft eccentricity, and mechanical instability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 XL 8mm Proximity Probe |
| Model | 330101-00-32-05-01-05 |
| Manufacturer | Bently Nevada |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current (Non-Contact Displacement) |
| Total Length | 0.5 meter |
| System Type | 3300 XL Proximity System |
| Output Interface | Requires Compatible Proximitor Sensor |
| Cable Type | Shielded Coaxial Cable |
| Connector Configuration | Factory-Assembled Coaxial Connector |
| Target Requirement | Electrically Conductive Metal Surface |
| Dynamic Response | High-Frequency Vibration Detection |
| Environmental Protection | Industrial Sealed Probe Design |
| Installation Method | Threaded Mount |
| Operating Temperature Range | -35°C to +177°C (probe tip typical) |
| Dimensions | Standard 8 mm probe configuration |
| Weight | 0.162 kg |
Applications
• Used for radial shaft vibration monitoring in steam and gas turbines
• Applied in axial position measurement systems for thrust monitoring
• Integrated into centrifugal compressor protection systems
• Installed in electric motor and generator bearing monitoring setups
• Supports shaft eccentricity and dynamic displacement analysis
• Forms a core component of API-compliant machinery protection systems
• Suitable for compact installations requiring short total system length configurations
Advantages
• Provides high-resolution non-contact displacement measurement, eliminating mechanical wear
• Ensures excellent linearity within calibrated gap range
• Designed for stable temperature performance, minimizing output drift
• Shielded cable construction improves electromagnetic noise immunity
• Compatible with proven 3300 XL monitoring architecture
• Compact 0.5 meter configuration allows flexible installation in confined spaces
• Delivers reliable performance in high-speed and high-vibration machinery
• Enhances predictive maintenance programs through accurate vibration trend data
