Product Introduction

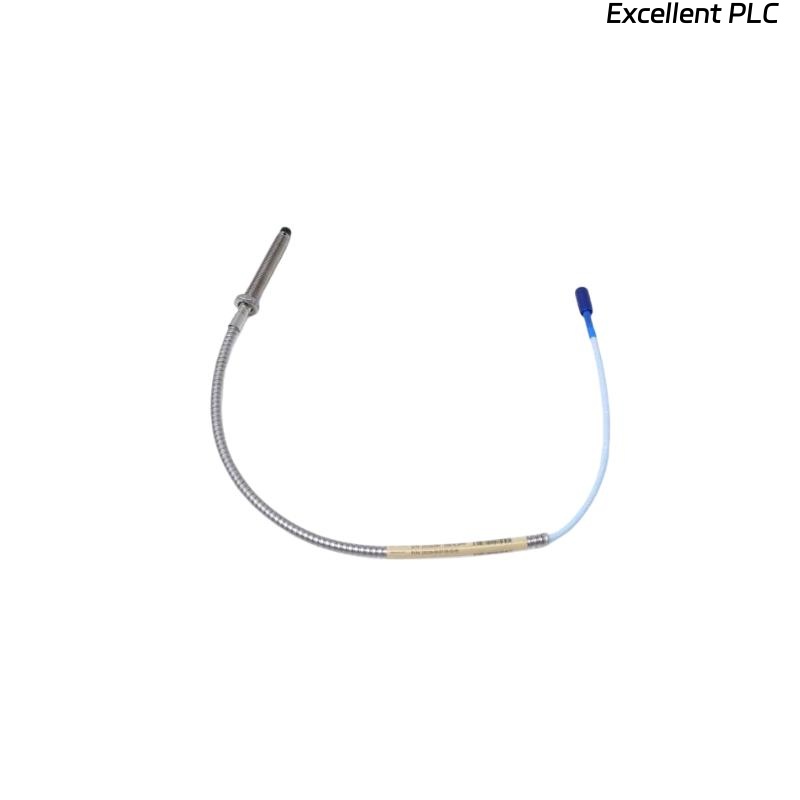

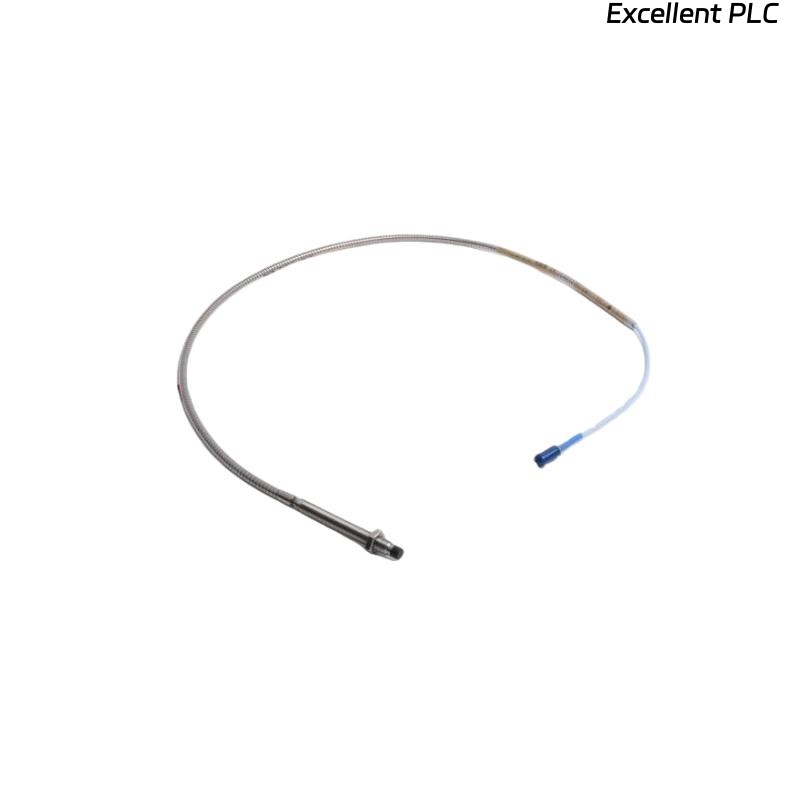

The Bently Nevada 330101-00-32-10-02-00 3300 XL 8mm Proximity Probe is a high-performance, precision monitoring device designed to measure small displacements in rotating machinery. As part of the 3300 XL series, this probe is known for its exceptional durability, accuracy, and reliability in critical industrial applications. Bently Nevada’s 3300 XL probes are widely trusted for their ability to detect early signs of mechanical issues such as misalignment, imbalance, or wear, ensuring the continued smooth operation of machinery.
This specific model, with an 8mm measuring range, is designed to provide real-time data on shaft displacement. It features a total length of 1.0 meter and a weight of 0.323 kg, making it ideal for installation in tight spaces while maintaining high measurement accuracy. The probe uses a 4-20 mA output signal, which can be easily integrated into existing monitoring systems, ensuring seamless operation within your facility.
The IP65 protection rating ensures that the probe is resistant to dust, moisture, and other environmental contaminants, while the wide operating temperature range of -40°C to +85°C guarantees that it will perform effectively in even the most challenging environments. Whether in power plants, oil rigs, manufacturing facilities, or aerospace applications, the 3300 XL 8mm proximity probe ensures reliable and accurate displacement monitoring for optimal machinery health.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 330101-00-32-10-02-00 |
| Series | 3300 XL |
| Measuring Range | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Output Signal | 4-20 mA |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Stainless Steel |
| Mounting Type | Threaded Mounting |
| Frequency Range | Up to 10 kHz |
| Protection Rating | IP65 |
| Accuracy | ±0.05 mm |
| Vibration Range | ±2 g to ±20 g |
| Connector Type | Standard M12 |
| Compliance | CE, UL, CSA certified |
Product Applications
The Bently Nevada 330101-00-32-10-02-00 3300 XL 8mm Proximity Probe is used extensively in industries that require precise measurement and monitoring of rotating machinery. Its high accuracy and durability make it suitable for applications in various sectors where continuous performance is critical. Here are some of its most common uses:
-
Power Generation: In power plants, the probe is used to monitor turbines, generators, and motors. Detecting small displacements in critical machinery early can prevent costly downtime and repairs, allowing for more efficient plant operation.
-
Oil & Gas: The probe plays a key role in monitoring compressors, pumps, and motors within oil and gas production facilities. By ensuring these vital components are operating smoothly, it minimizes the risk of system failure, reducing unplanned shutdowns.
-
Manufacturing: In the manufacturing industry, the probe is ideal for machinery such as compressors, conveyors, and mixers. Monitoring the health of this equipment helps identify potential issues before they lead to failure, optimizing production efficiency and reducing maintenance costs.
-
Chemical & Petrochemical: The 3300 XL proximity probe is commonly used in chemical plants to monitor reactors, pumps, and other high-risk equipment. By detecting faults early, the probe helps ensure the uninterrupted operation of critical systems, reducing the likelihood of hazardous situations.
-
Water Treatment: In water treatment plants, the probe is used to monitor large pumps and turbines. It provides essential data for predictive maintenance, reducing the risk of mechanical failure and ensuring continuous service.
-
Aerospace: Aerospace manufacturers rely on the 3300 XL 8mm proximity probe to monitor engines, actuators, and other key components. Its high precision and reliability help ensure the safe and efficient operation of aerospace equipment, which is critical for mission success.
Product Advantages
-
High Accuracy: With a measurement accuracy of ±0.05 mm, the 3300 XL 8mm proximity probe provides highly reliable displacement data. This precision is essential for detecting small but potentially damaging mechanical issues such as misalignment or imbalance.
-
Robust Design: The stainless steel housing and IP65 protection rating ensure the probe is resistant to dust, moisture, and other harsh environmental conditions. It is built to withstand challenging industrial environments, ensuring long-lasting performance.
-
Compact and Lightweight: With a total length of 1.0 meter and a weight of 0.323 kg, the probe is easy to install and integrate into existing machinery setups. Its compact design makes it ideal for tight spaces where traditional sensors may not fit.
-
Wide Temperature Range: The probe operates effectively in a wide temperature range from -40°C to +85°C, making it versatile for use in both hot and cold environments. This feature adds to its reliability and longevity in demanding industrial settings.
-
Seamless Integration: The 4-20 mA output signal ensures easy integration with existing machinery monitoring systems, providing continuous real-time data for operators to make informed maintenance decisions.
-
Early Fault Detection: By monitoring small displacements and vibrations, the probe helps detect early signs of mechanical issues that could lead to catastrophic failures. This early fault detection leads to lower maintenance costs and less unplanned downtime.
-
Cost-Effective Solution: The 3300 XL probe helps reduce operational costs by providing real-time data, which allows for timely maintenance interventions. This prevents equipment failure and extends the lifespan of expensive machinery, resulting in a higher return on investment.
Frequently Asked Questions (FAQ)
1. What is the measuring range of the Bently Nevada 3300 XL 8mm proximity probe?
The measuring range of the 3300 XL 8mm proximity probe is 8 mm, which allows for precise detection of small displacements in rotating machinery.
2. How long is the 3300 XL 8mm proximity probe?
The 3300 XL 8mm proximity probe has a total length of 1.0 meter, making it suitable for installations with limited space.
3. What is the weight of the 3300 XL 8mm proximity probe?
The probe weighs 0.323 kg, ensuring it is lightweight and easy to handle during installation.
4. What is the accuracy of the 3300 XL 8mm proximity probe?
The accuracy of the probe is ±0.05 mm, providing precise and reliable measurements for early fault detection.
5. Can the 3300 XL 8mm proximity probe be used in extreme environmental conditions?
Yes, the probe is designed with an IP65 protection rating, which makes it resistant to dust and moisture. It also operates effectively in temperatures ranging from -40°C to +85°C.
6. What is the output signal of the 3300 XL 8mm proximity probe?
The probe provides a 4-20 mA output signal, which is compatible with most industrial monitoring systems.
7. What industries use the 3300 XL 8mm proximity probe?
The probe is widely used in industries such as power generation, oil & gas, manufacturing, chemical processing, water treatment, and aerospace.
8. How is the 3300 XL 8mm proximity probe mounted?
The probe is designed for threaded mounting, making it easy to install on rotating machinery.
9. What is the frequency range of the 3300 XL 8mm proximity probe?
The probe can measure frequencies of up to 10 kHz, making it versatile for a wide range of industrial applications.
10. How does the 3300 XL 8mm proximity probe help with predictive maintenance?
The probe provides real-time data on displacement and vibrations, enabling operators to detect early signs of mechanical issues and perform maintenance before costly breakdowns occur.
