Product Introduction

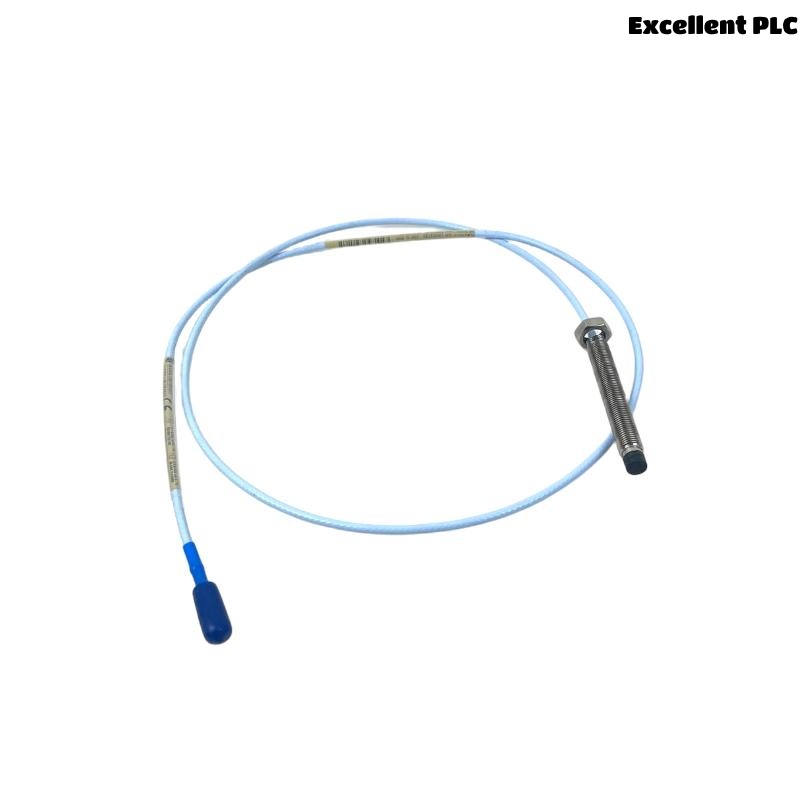

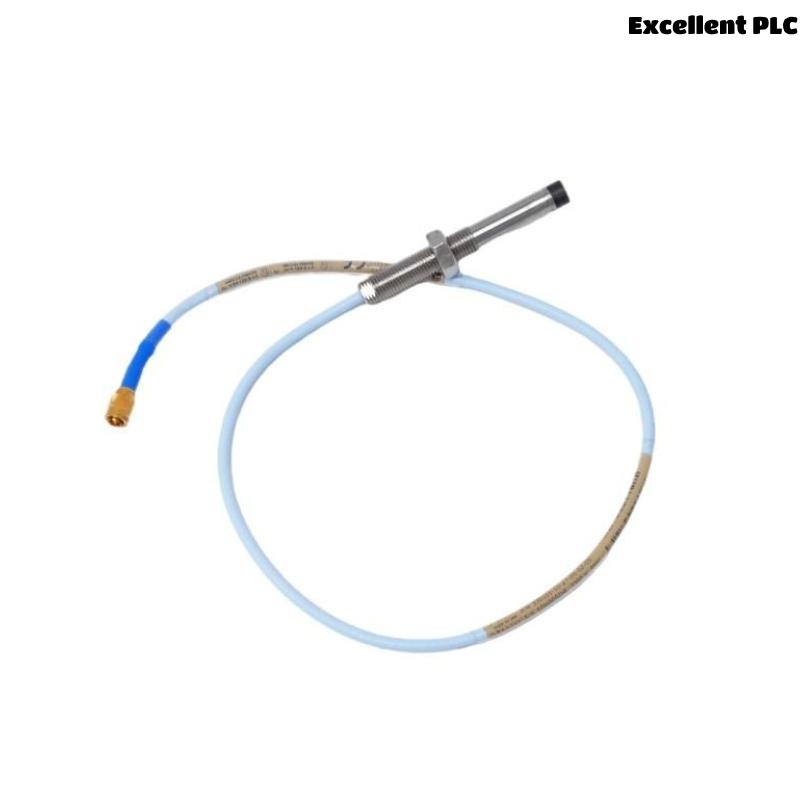

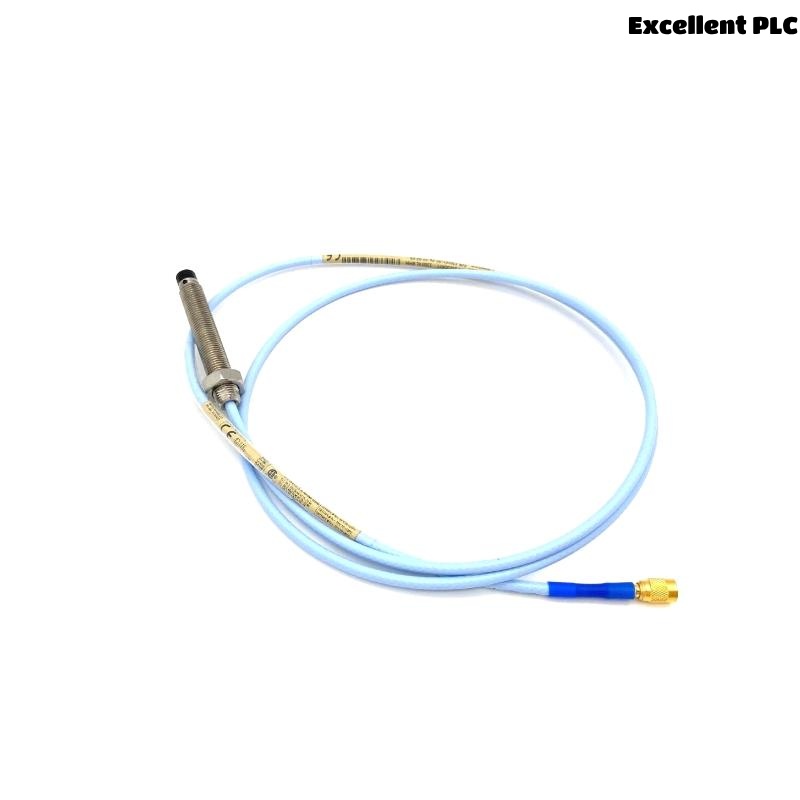

The Bently Nevada 330101-00-34-10-02-05 3300 XL 8mm Proximity Probe is part of the highly reliable 3300 XL Series—an industry-leading proximity sensing system designed to deliver precise, accurate vibration and position measurements for rotating machinery. This model, configured with an 8 mm tip and optimized for industrial environments, offers exceptional stability and performance in both static and dynamic measurements.
With proven design heritage and extensive field application in industries such as power generation, petrochemical, and manufacturing, the 3300 XL 8mm series is one of the most trusted and deployed proximity transducer systems in the world. The model 330101-00-34-10-02-05 ensures long-term accuracy even in harsh conditions, offering an extended temperature range, enhanced vibration immunity, and resistance to electrical noise.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 330101-00-34-10-02-05 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Probe Tip Material | Polyphenylene Sulfide (PPS), glass reinforced |
| Body Thread Size | 3/8-24 UNF |
| Total Length | 1 meter |
| Extension Cable Type | Armor Protected (Optional) |
| System Power Consumption | 5.5 mA typical |
| Output Voltage Range | -24 VDC to +24 VDC |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linearity | ±0.25% of full-scale |
| Frequency Range (Dynamic) | 0 to 10 kHz (-3 dB) |
| Temperature Range (Operating) | -51 °C to +177 °C (-60 °F to +350 °F) |
| Vibration Limit | 50 g peak |
| Shock Limit | 5000 g peak |
| EMI/RFI Immunity | Excellent |
| Housing Material | Stainless Steel |
| Environmental Protection Rating | IP68 |
| Weight | 0.323 kg |
| Compliance Certifications | CE, ATEX, CSA, RoHS |
Applications
The Bently Nevada 330101-00-34-10-02-05 proximity probe is engineered for critical machinery monitoring applications across multiple industries:
-
Turbomachinery Vibration Monitoring
Installed in turbines, compressors, pumps, and motors to monitor shaft vibration and relative movement. -
Rotating Equipment Positioning
Tracks shaft position to detect misalignment, thrust wear, and thermal expansion. -
Condition Monitoring Systems
Integrated into condition-based maintenance systems to detect faults before failures occur. -
Oil & Gas
Used in refineries and offshore platforms for continuous vibration measurement. -
Power Generation
Applied in steam, gas, and hydro turbines for monitoring shaft dynamics and bearing conditions. -
Manufacturing & Pulp & Paper
Used on high-speed rollers, gearboxes, and spindles to optimize machine health.
Advantages
-
Proven Reliability
The 3300 XL series is the industry benchmark, known for decades of reliable service. -
Wide Temperature Range
Operates effectively in both cryogenic and high-temperature environments up to 177 °C. -
High Sensitivity and Linearity
Provides precise, linear output across a broad range of dynamic and static applications. -
Durable Construction
Rugged stainless steel housing with sealed design for superior resistance to harsh environments. -
Noise Immunity
Superior EMI/RFI immunity, ensuring signal integrity even in electrically noisy environments. -
Ease of Installation
Designed for compatibility with Bently Nevada drivers and monitors, with simple configuration. -
Extended Cable Options
Available with armored extension cables for harsh field installations. -
Low Power Consumption
Energy-efficient operation reduces heat load on electronic cabinets. -
Global Certifications
Certified for international use, including CE, ATEX, CSA, and RoHS compliance. -
Backed by GE-Baker Hughes Support
Comprehensive technical support and service from a global leader in condition monitoring.
FAQ
1. What is the standard output of the Bently Nevada 330101-00-34-10-02-05?
The probe provides 200 mV/mil (7.87 mV/μm) sensitivity.
2. Is this probe compatible with other Bently Nevada systems?
Yes, it is compatible with 3300 XL drivers and monitors as well as System 1 monitoring software.
3. What is the maximum operating temperature?
It operates up to +177 °C (+350 °F).
4. Can the probe withstand high vibration?
Yes, it handles up to 50 g vibration and 5000 g shock.
5. What is the environmental protection rating?
Rated IP68, providing complete protection against dust and water immersion.
6. Is the cable armored?
An armored extension cable is available as an option for demanding environments.
7. What certifications does it have?
Certified to CE, ATEX, CSA, and RoHS standards.
8. What is the linearity of the probe output?
Linearity is within ±0.25% of full scale.
9. How is it typically mounted?
Threaded body allows secure mounting into machinery housings using 3/8-24 UNF thread.
10. How heavy is the complete probe with cable?
0.323 kg.
Related Models (Same Series or Similar)
| Model Number | Description |
|---|---|
| 330101-00-12-10-02-05 | 3300 XL 8mm Probe, 12 in. length |
| 330101-00-25-10-02-05 | 3300 XL 8mm Probe, 25 in. length |
| 330101-00-50-10-02-05 | 3300 XL 8mm Probe, 50 in. length |
| 330104-00-12-10-02-05 | 3300 XL 11mm Probe, 12 in. length |
| 330130-040-00 | 3300 XL Extension Cable, 4 m |
| 330180-91-05 | 3300 XL Proximitor Sensor |
