Product Introduction

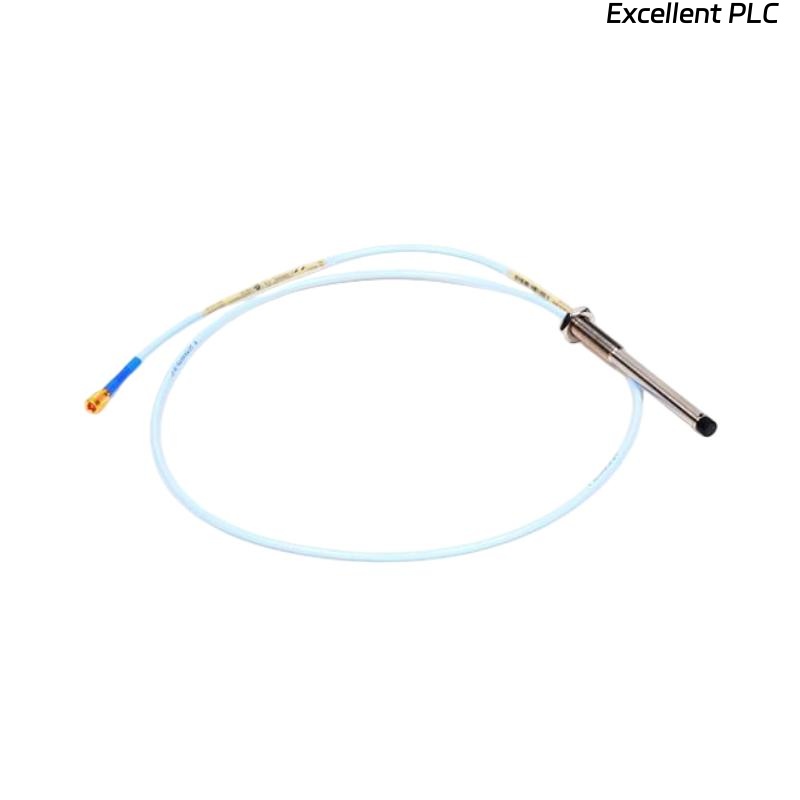

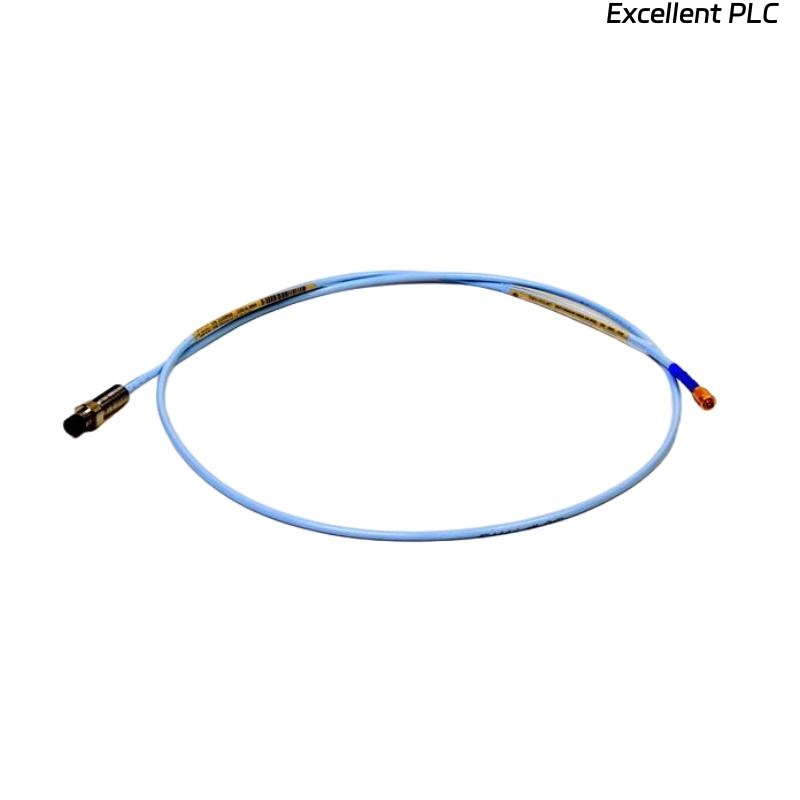

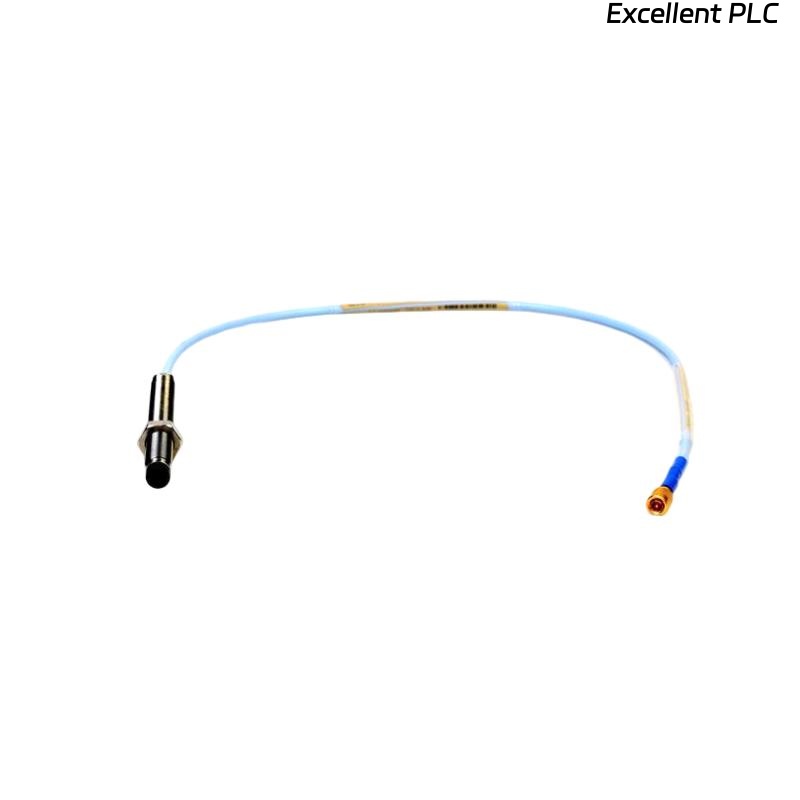

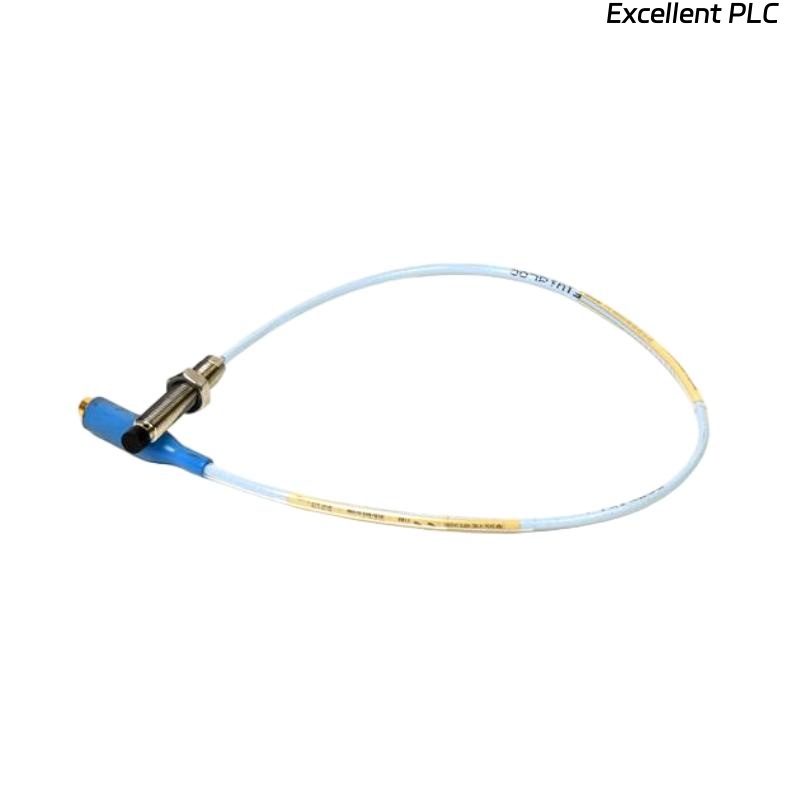

The Bently Nevada 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe is an advanced measurement tool used for monitoring the displacement and vibration of rotating machinery. This probe is designed for high-precision applications where machinery health monitoring is critical, such as in turbines, compressors, motors, and other rotating equipment.
As part of the renowned 3300 XL Series from Bently Nevada, this proximity probe is built for high-performance environments, offering accurate measurements in a variety of challenging conditions. It ensures the reliability of machinery by providing continuous, real-time data on the shaft’s condition. The 3300 XL probes are particularly valued for their ability to deliver reliable measurements even in extreme conditions, thus helping in the prevention of machine failures and reducing maintenance costs.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | 8 mm |
| Cable Length | Customizable |
| Operating Temperature | -40 to +85°C |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Probe Tip | 8 mm |
Applications
The Bently Nevada 330101-00-35-10-11-05 3300 XL 8 mm Proximity Probe is commonly used in industries where machinery reliability is a top priority. Some of its key applications include:
-
Shaft Vibration Monitoring: Monitoring the shaft’s movement to ensure early detection of issues like unbalanced rotors or bearing wear.
-
Rotor Position Monitoring: Measuring the position of rotors in relation to stationary parts like stators.
-
Bearing Condition Monitoring: Detecting potential bearing failures by continuously monitoring displacement and vibration.
-
Turbine and Compressor Monitoring: Essential for critical machinery like turbines and compressors, where precise measurement of vibrations and displacement can prevent catastrophic failures.
It is used in industries such as power generation, oil & gas, petrochemicals, and manufacturing.
Advantages
-
Precision Measurement: The probe offers high precision with an accuracy of ±0.001 mm, ensuring accurate monitoring of machinery.
-
Durability: Constructed from high-quality stainless steel, the probe is designed to endure extreme industrial environments and provide long-term reliability.
-
Flexibility: With customizable cable lengths, the probe can be easily adapted to a wide range of machinery configurations.
-
High Vibration Resistance: The probe is specifically engineered to perform reliably in high-vibration environments, ensuring stable data even in challenging conditions.
-
Minimal Signal Loss: The probe minimizes signal degradation, delivering consistent, accurate readings over time.
-
Ease of Integration: Compatible with Bently Nevada’s monitoring systems like the 3500 Series, making integration into existing machinery health systems seamless.
FAQ
1. What is the measurement range of the Bently Nevada 3300 XL 8 mm Proximity Probe?
The 3300 XL 8 mm Proximity Probe has a measurement range of 8 mm, making it suitable for monitoring small displacement changes in rotating machinery.
2. What type of output does the 3300 XL 8 mm Proximity Probe provide?
This probe outputs a 4-20 mA differential signal, which can be used for integration with various monitoring and control systems.
3. How accurate is the Bently Nevada 3300 XL 8 mm Proximity Probe?
It offers an accuracy of ±0.001 mm, which ensures highly precise and reliable measurements of machinery displacement and vibration.
4. Can the Bently Nevada 3300 XL 8 mm Proximity Probe operate in extreme temperatures?
Yes, it is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of industrial environments.
5. How does the 3300 XL 8 mm Proximity Probe perform in high-vibration environments?
The probe is specifically engineered to minimize signal degradation and maintain stability in high-vibration conditions, ensuring accurate and reliable measurements.
6. What materials is the 3300 XL 8 mm Proximity Probe made from?
The probe is constructed from stainless steel, ensuring its durability and resistance to wear in harsh industrial environments.
7. Can the 3300 XL 8 mm Proximity Probe be used for turbine and compressor monitoring?
Yes, this probe is ideal for monitoring turbines and compressors, providing accurate data to prevent potential failures in critical machinery.
8. What is the probe’s sensitivity to small displacements?
With an accuracy of ±0.001 mm, the probe can detect even the smallest displacements, ensuring precise monitoring of machinery health.
9. Is the Bently Nevada 3300 XL 8 mm Proximity Probe compatible with other Bently Nevada systems?
Yes, it is fully compatible with other Bently Nevada systems, such as the 3500 Series, allowing for seamless integration into existing machinery health monitoring systems.
10. What is the typical installation process for the 3300 XL 8 mm Proximity Probe?
The installation process involves mounting the probe to the machine housing and connecting it to the monitoring system. Customizable cable lengths allow for flexible installation depending on the equipment configuration.
