Product Introduction

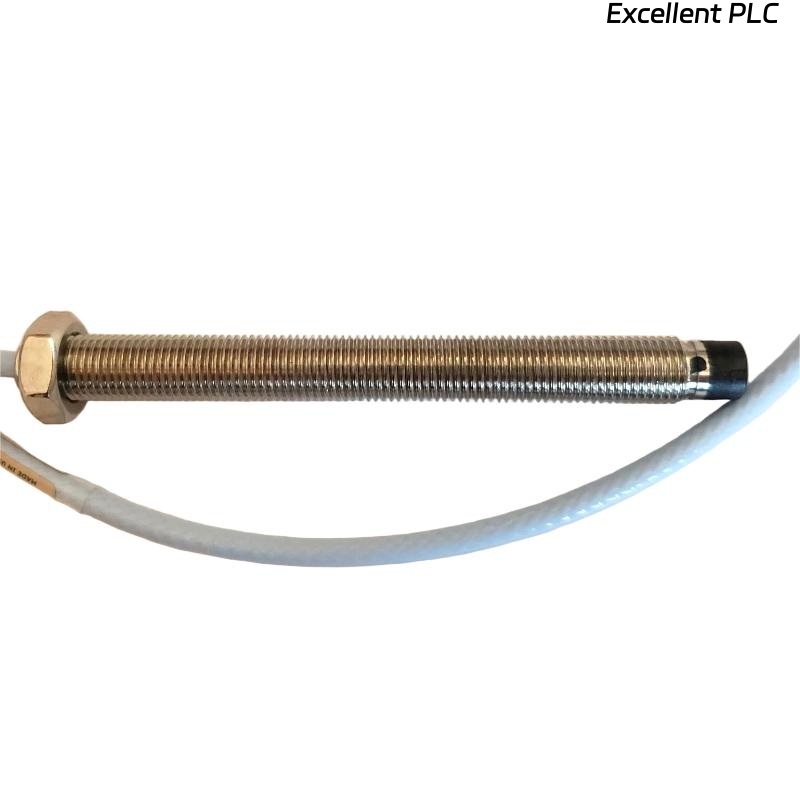

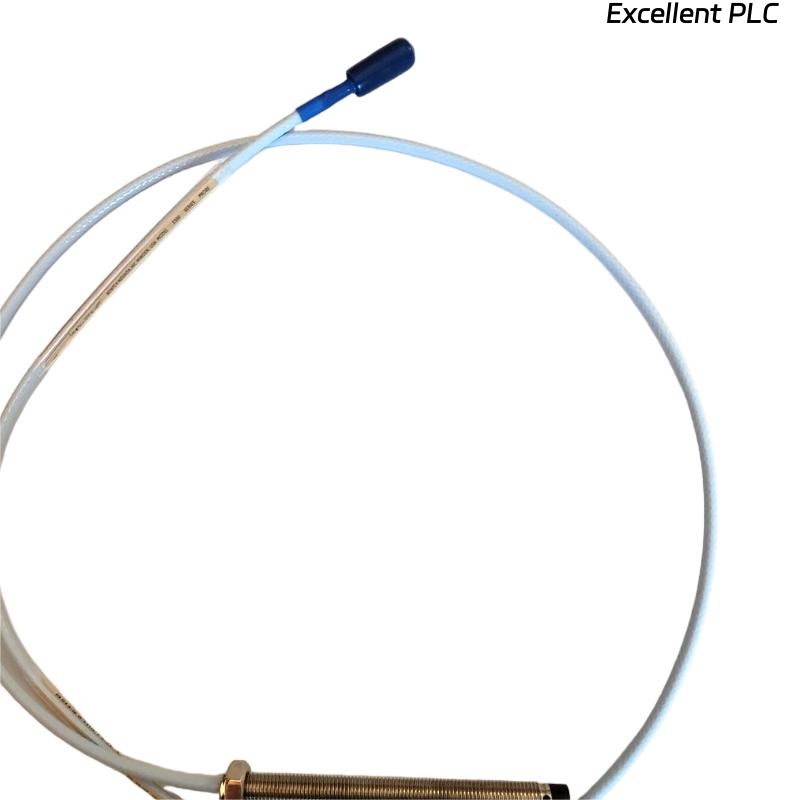

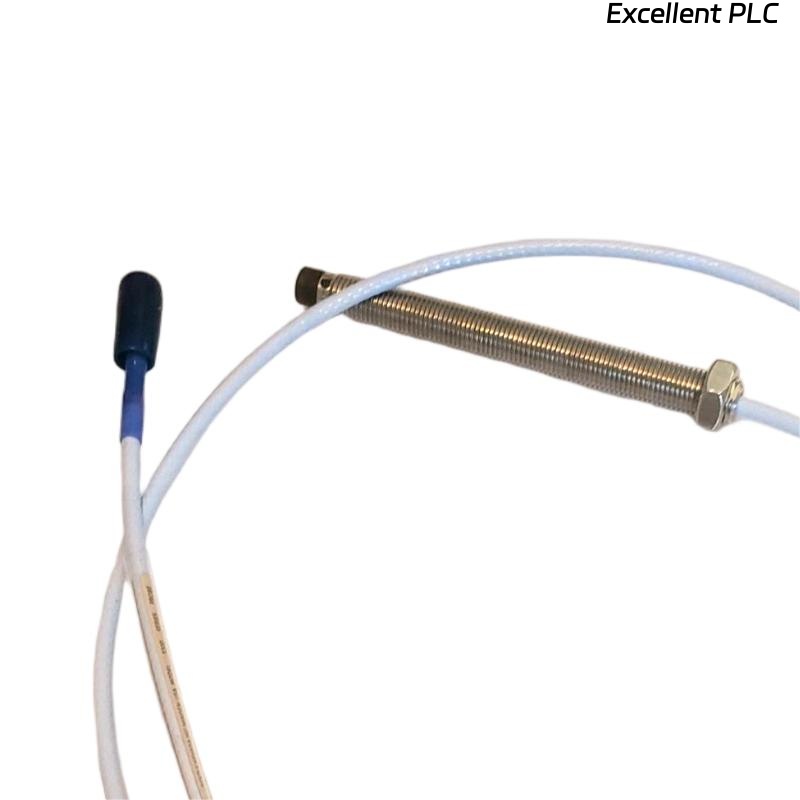

The Bently Nevada 330101-00-37-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance, precision measurement device designed for monitoring shaft displacement and vibration in rotating equipment. As part of the 3300 XL Series, this probe is built to withstand harsh industrial conditions while providing accurate and reliable data to ensure the optimal performance of machinery.
The 3300 XL 8 mm Proximity Probe is commonly used in industries such as power generation, oil & gas, and manufacturing, where machinery monitoring is crucial for minimizing downtime and maintaining operational efficiency.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | 8 mm |
| Cable Length | Customizable |
| Operating Temperature | -40 to +85°C |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Probe Tip | 8 mm |
Applications
The 3300 XL 8 mm Proximity Probe is used in the following applications:
-
Shaft Vibration Monitoring: Detecting imbalances or bearing issues by monitoring shaft vibrations.
-
Rotor Position Monitoring: Measuring rotor displacement in turbines and compressors.
-
Bearing Condition Monitoring: Detecting early signs of bearing wear or failure.
-
Turbine/Compressor Monitoring: Providing data for maintaining rotor health and operational stability in critical machinery.
It is particularly useful in industries such as power generation, oil & gas, and petrochemical, where reliability and precision are critical.
Advantages
-
High Accuracy: Offers precise measurements with an accuracy of ±0.001 mm.
-
Durability: Built with stainless steel to endure harsh environments.
-
Flexibility: Customizable cable lengths and installation options to fit various machinery configurations.
-
High Vibration Tolerance: Stable performance even in high-vibration environments.
-
Easy Integration: Fully compatible with other Bently Nevada monitoring systems, like the 3500 Series, for seamless integration.
-
Reliable Data: Provides real-time monitoring data to help prevent machine failure and extend equipment life.
FAQ
1. What is the measurement range of the 3300 XL 8 mm Proximity Probe?
The probe measures shaft displacement within an 8 mm range, ideal for accurate monitoring of machinery vibrations.
2. What type of output signal does the probe provide?
It provides a 4-20 mA differential signal for integration with other monitoring systems.
3. How accurate is the 3300 XL 8 mm Proximity Probe?
The probe has an accuracy of ±0.001 mm, ensuring precise measurements for machinery monitoring.
4. Can the probe function in extreme temperatures?
Yes, it operates within a temperature range of -40°C to +85°C, making it suitable for a variety of industrial environments.
5. How does the 3300 XL 8 mm Proximity Probe perform in high-vibration conditions?
It is designed to perform reliably in high-vibration environments, minimizing signal loss and ensuring stable data.
6. What material is the probe made of?
The probe is made of stainless steel, providing durability and resistance to wear and corrosion.
7. Is the probe suitable for monitoring turbines and compressors?
Yes, the probe is ideal for monitoring turbine and compressor shafts, ensuring accurate displacement and vibration measurements.
8. How sensitive is the 3300 XL 8 mm Proximity Probe to small displacements?
The probe is highly sensitive, with an accuracy of ±0.001 mm, enabling it to detect even minor changes in displacement.
9. Can the 3300 XL 8 mm Proximity Probe be integrated with other monitoring systems?
Yes, it is compatible with other Bently Nevada systems, including the 3500 Series, allowing for seamless integration into a comprehensive machinery health system.
10. What is the installation process for the 3300 XL 8 mm Proximity Probe?
The installation involves mounting the probe on the machine and connecting it to the monitoring system, with customizable cable lengths for various setups.
