Product Introduction

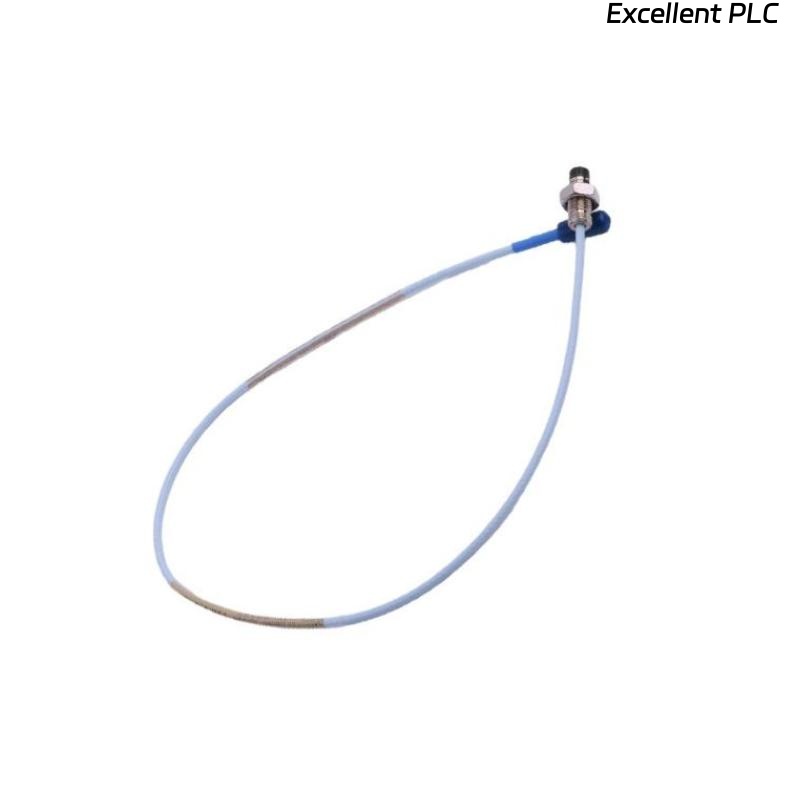

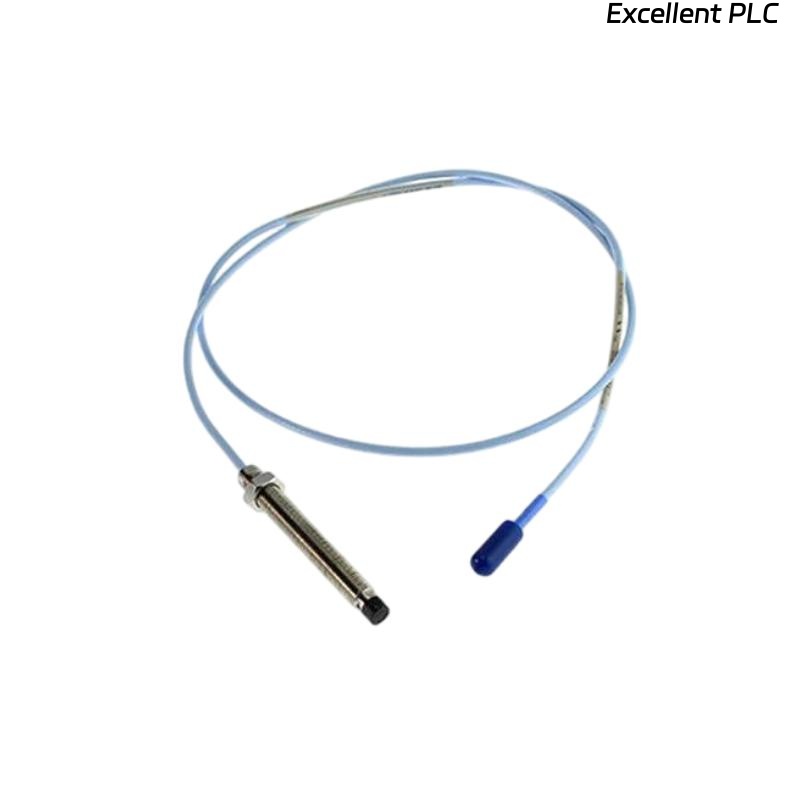

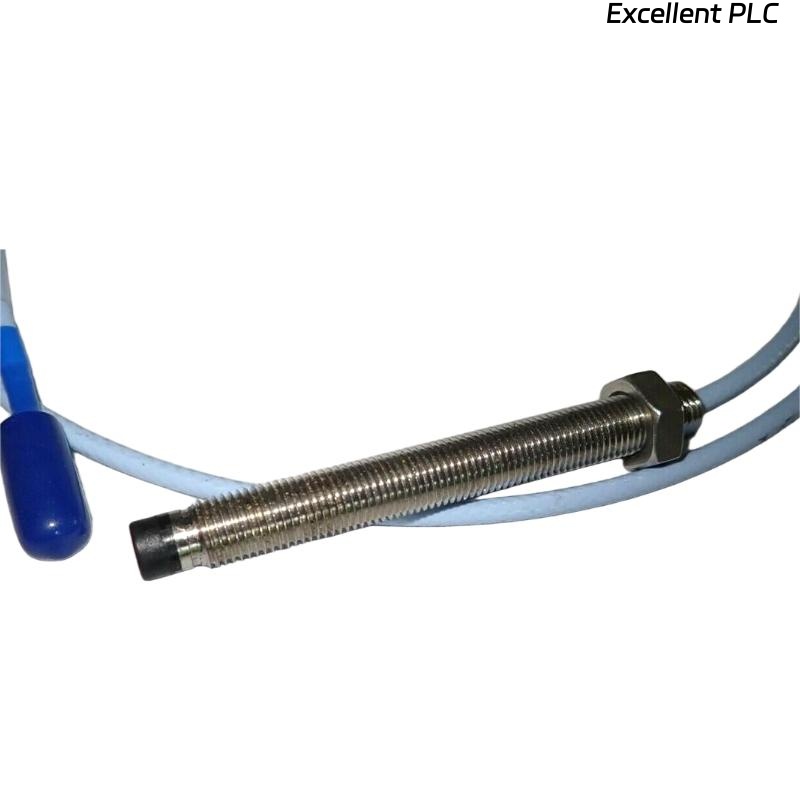

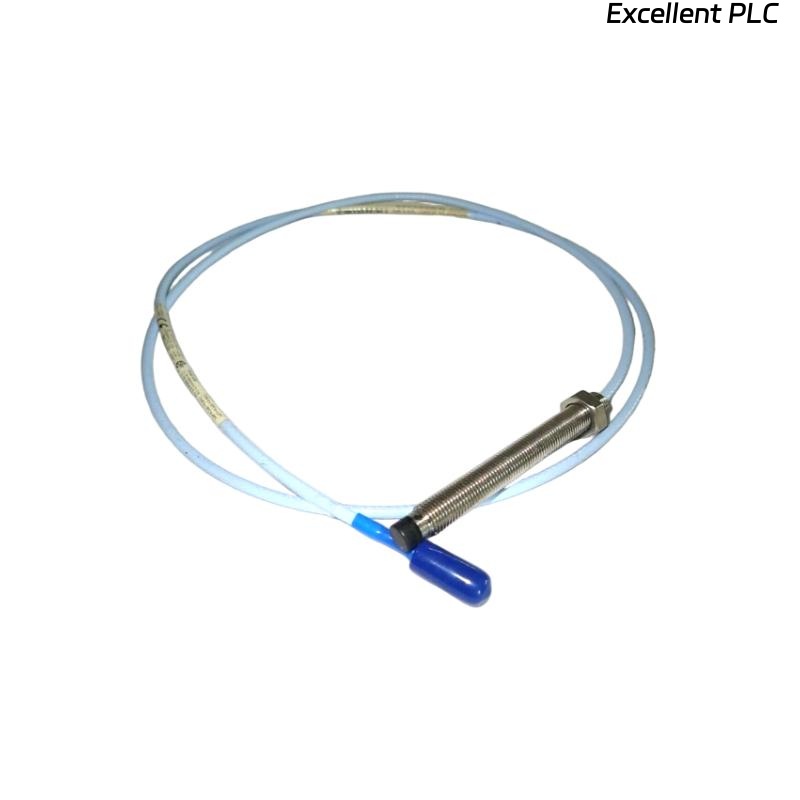

The Bently Nevada 330101-00-39-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for monitoring shaft vibration and position in rotating machinery. This probe is part of the 3300 XL Series, which is renowned for its durability and accuracy in harsh industrial environments. It is used in industries such as power generation, oil & gas, and manufacturing to ensure equipment reliability and prevent costly downtime.
With its rugged stainless steel construction, the 3300 XL 8 mm Proximity Probe provides precise measurements of displacement and vibration, helping operators maintain machinery health and extend the life of critical equipment.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | 8 mm |
| Cable Length | Customizable |
| Operating Temperature | -40 to +85°C |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Probe Tip | 8 mm |
Applications
The 3300 XL 8 mm Proximity Probe is typically used for the following applications:
-
Shaft Vibration Monitoring: Monitoring the movement of shafts to detect imbalances or signs of bearing wear.
-
Rotor Position Monitoring: Detecting changes in rotor position within turbines and compressors.
-
Bearing Condition Monitoring: Providing early detection of bearing failure or damage.
-
Turbine/Compressor Monitoring: Ensuring rotor health by accurately tracking vibrations and displacements in critical machinery.
This probe is essential for industries requiring continuous monitoring of machinery health to prevent costly repairs and downtime.
Advantages
-
High Accuracy: The probe offers an accuracy of ±0.001 mm, providing precise measurements for machinery monitoring.
-
Durability: Built with stainless steel, the probe can withstand harsh environments, ensuring long-term reliability.
-
Customizable: Cable lengths can be adjusted to fit different machinery configurations.
-
Vibration Resistance: The probe performs reliably in high-vibration settings, maintaining accuracy and signal integrity.
-
Easy Integration: It is fully compatible with other Bently Nevada systems, such as the 3500 Series, for comprehensive monitoring.
-
Real-time Monitoring: Provides immediate data to detect and address potential issues before they cause significant damage.
FAQ
1. What is the measurement range of the 3300 XL 8 mm Proximity Probe?
The probe measures up to 8 mm of displacement, providing accurate data for machinery health.
2. What type of output signal does the probe provide?
It offers a 4-20 mA differential output signal, which is compatible with various monitoring systems.
3. How accurate is the 3300 XL 8 mm Proximity Probe?
The probe has an accuracy of ±0.001 mm, ensuring highly precise monitoring of shaft displacement and vibration.
4. Can the 3300 XL 8 mm Proximity Probe function in extreme temperatures?
Yes, the probe operates in temperatures ranging from -40°C to +85°C, making it suitable for a wide range of industrial applications.
5. How does the 3300 XL 8 mm Proximity Probe perform in high-vibration environments?
The probe is specifically designed to handle high-vibration environments without compromising data accuracy or signal stability.
6. What material is the 3300 XL 8 mm Proximity Probe made from?
The probe is made from stainless steel, offering resistance to wear and corrosion in challenging industrial conditions.
7. Is the 3300 XL 8 mm Proximity Probe suitable for turbine monitoring?
Yes, this probe is ideal for monitoring turbines, compressors, and other critical machinery.
8. How sensitive is the 3300 XL 8 mm Proximity Probe to small displacements?
With an accuracy of ±0.001 mm, the probe is sensitive enough to detect even the smallest displacement changes.
9. Can the 3300 XL 8 mm Proximity Probe be integrated with other Bently Nevada systems?
Yes, it is fully compatible with other Bently Nevada monitoring systems, including the 3500 Series for seamless integration into existing machinery health systems.
10. What is the installation process for the 3300 XL 8 mm Proximity Probe?
The probe is mounted on the machine, and customizable cable lengths ensure easy installation for various machinery configurations.
