Product Introduction

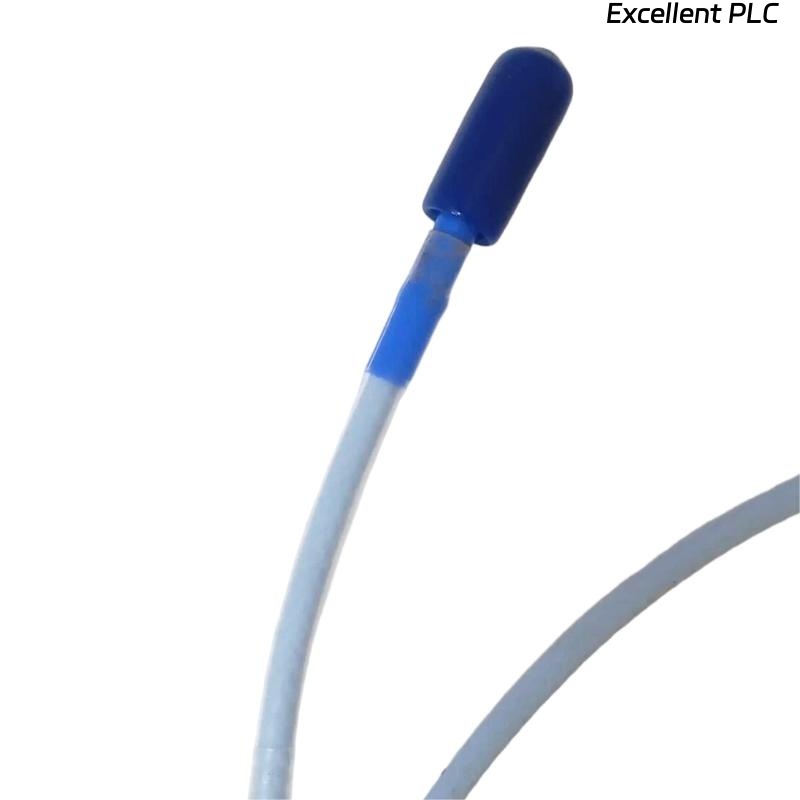

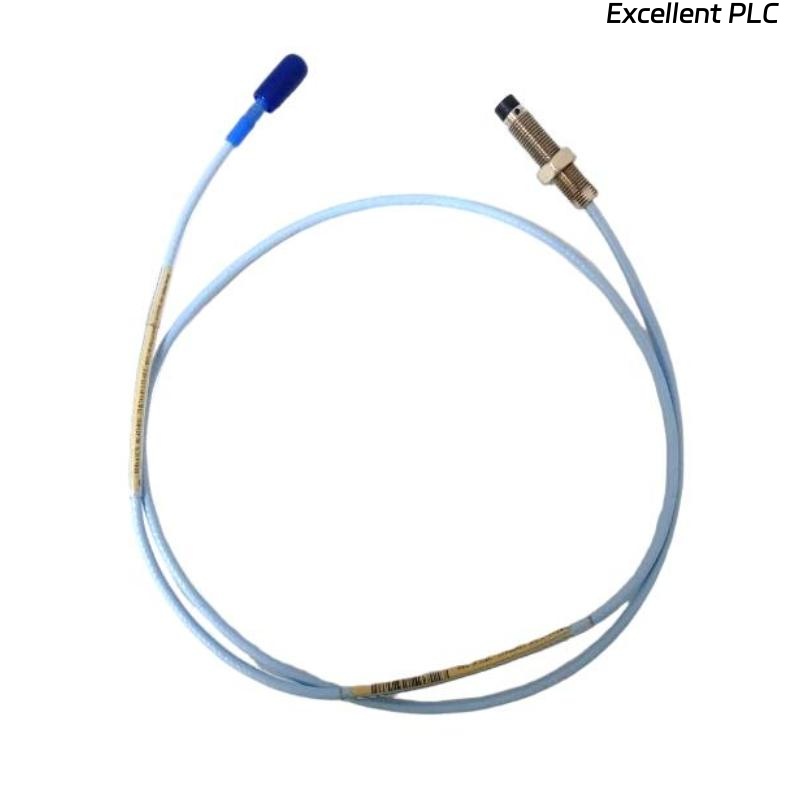

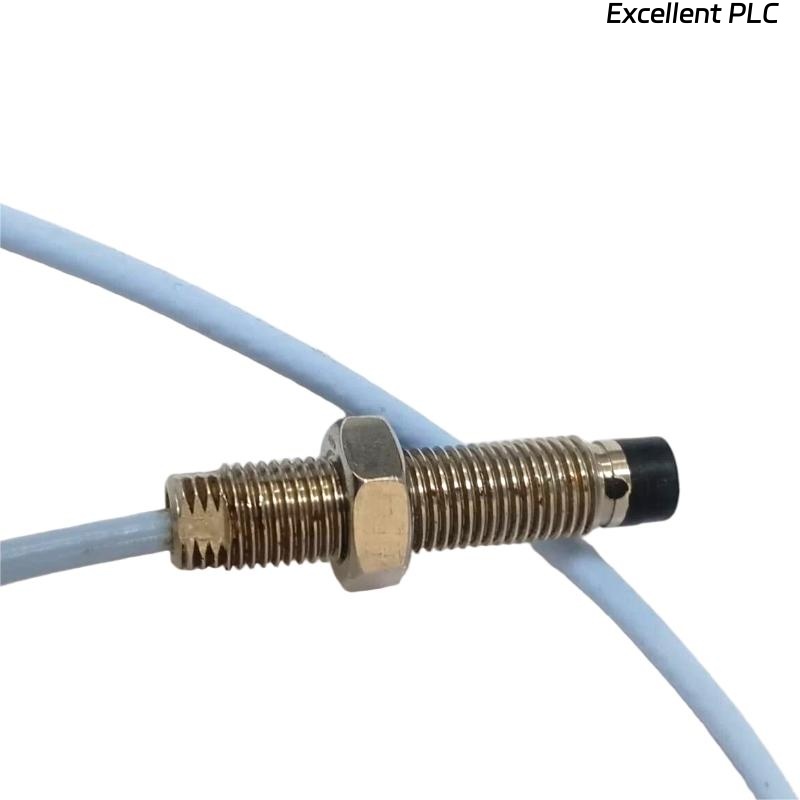

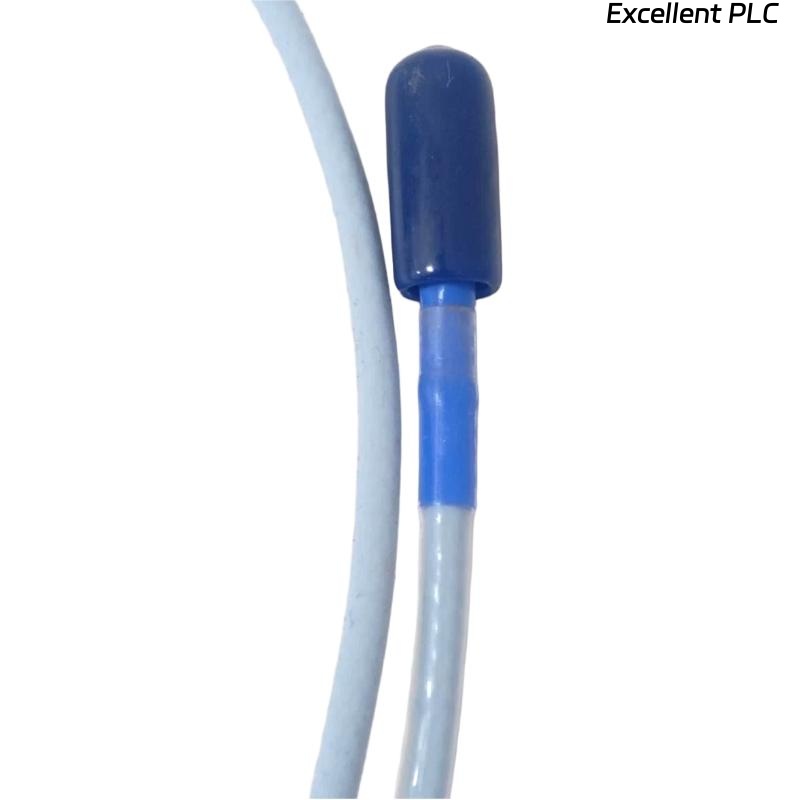

The Bently Nevada 330101-00-39-15-11-05 3300 XL 8 mm Proximity Probe is a high-precision sensor used for monitoring shaft displacement and vibration in rotating machinery. Part of the 3300 XL Series, it is engineered for demanding industrial applications, providing accurate, real-time data essential for machinery health monitoring.
With a robust construction of stainless steel, the probe is designed to perform reliably in high-vibration environments, ensuring long-term stability and durability in industries such as power generation, petrochemicals, and manufacturing. The 3300 XL 8 mm Proximity Probe helps detect early signs of wear or damage, allowing for predictive maintenance and preventing costly equipment failures.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.5 meter |
| Weight | 0.485 kg |
| Sensing Range | 8 mm |
| Cable Length | Customizable |
| Operating Temperature | -40 to +85°C |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Probe Tip | 8 mm |
Applications
The 3300 XL 8 mm Proximity Probe is designed for use in several critical machinery monitoring applications, such as:
-
Shaft Vibration Monitoring: Detects imbalances or bearing issues by tracking shaft displacement and vibrations.
-
Rotor Position Monitoring: Measures rotor movement in turbines, compressors, and other rotating equipment.
-
Bearing Condition Monitoring: Helps identify early-stage bearing failures or irregularities.
-
Turbine and Compressor Monitoring: Provides precise data on rotor behavior and operational performance, crucial for turbine and compressor maintenance.
This probe is commonly used in power generation, oil & gas, and petrochemical industries to enhance machinery reliability and prevent costly downtime.
Advantages
-
Precision: Offers an accuracy of ±0.001 mm, enabling detailed measurements for better machinery monitoring.
-
Durability: Made from high-grade stainless steel to withstand tough industrial conditions.
-
Flexibility: Customizable cable lengths and installation options suit a variety of machinery configurations.
-
Vibration Resistance: Engineered to work seamlessly in high-vibration environments.
-
Real-time Data: Provides continuous, accurate data to detect and address machinery issues before they escalate.
-
Easy Integration: Compatible with other Bently Nevada systems, like the 3500 Series, for integrated monitoring solutions.
FAQ
1. What is the measurement range of the 3300 XL 8 mm Proximity Probe?
The 3300 XL 8 mm Proximity Probe is designed to measure up to 8 mm of shaft displacement, making it ideal for precise vibration monitoring.
2. What type of output signal does the 3300 XL 8 mm Proximity Probe provide?
It provides a 4-20 mA differential signal for easy integration with various machinery monitoring systems.
3. How accurate is the 3300 XL 8 mm Proximity Probe?
The probe offers an accuracy of ±0.001 mm, ensuring that even the smallest changes in displacement are detected.
4. Can the 3300 XL 8 mm Proximity Probe operate in extreme temperatures?
Yes, the probe is designed to work in temperatures from -40°C to +85°C, making it suitable for a wide range of industrial environments.
5. How does the 3300 XL 8 mm Proximity Probe perform in high-vibration conditions?
It is specifically engineered to deliver stable and accurate measurements even in high-vibration environments.
6. What material is the 3300 XL 8 mm Proximity Probe made of?
The probe is constructed from durable stainless steel, which ensures longevity and resistance to wear.
7. Is the 3300 XL 8 mm Proximity Probe suitable for turbine monitoring?
Yes, it is ideal for monitoring turbines and compressors, providing valuable data for efficient operation and maintenance.
8. How sensitive is the 3300 XL 8 mm Proximity Probe to small displacements?
With an accuracy of ±0.001 mm, the probe is highly sensitive, capable of detecting very small displacements.
9. Can the 3300 XL 8 mm Proximity Probe be integrated with other Bently Nevada systems?
Yes, it seamlessly integrates with other Bently Nevada products, such as the 3500 Series, for comprehensive monitoring.
10. What is the installation process for the 3300 XL 8 mm Proximity Probe?
The installation involves mounting the probe to the machine and connecting it to the monitoring system. Customizable cable lengths allow for flexible installations.
