Product Introduction

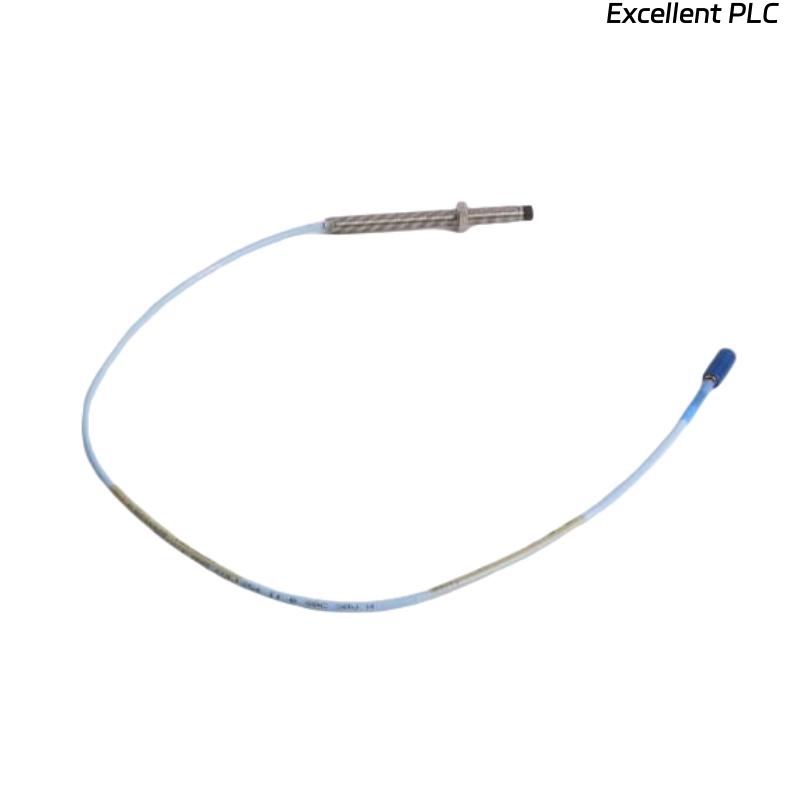

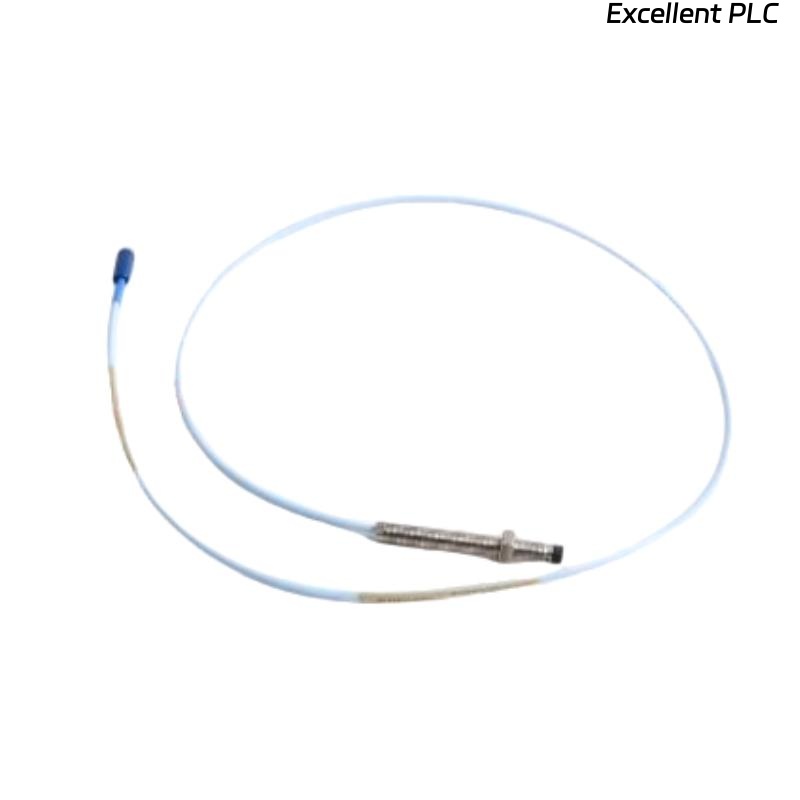

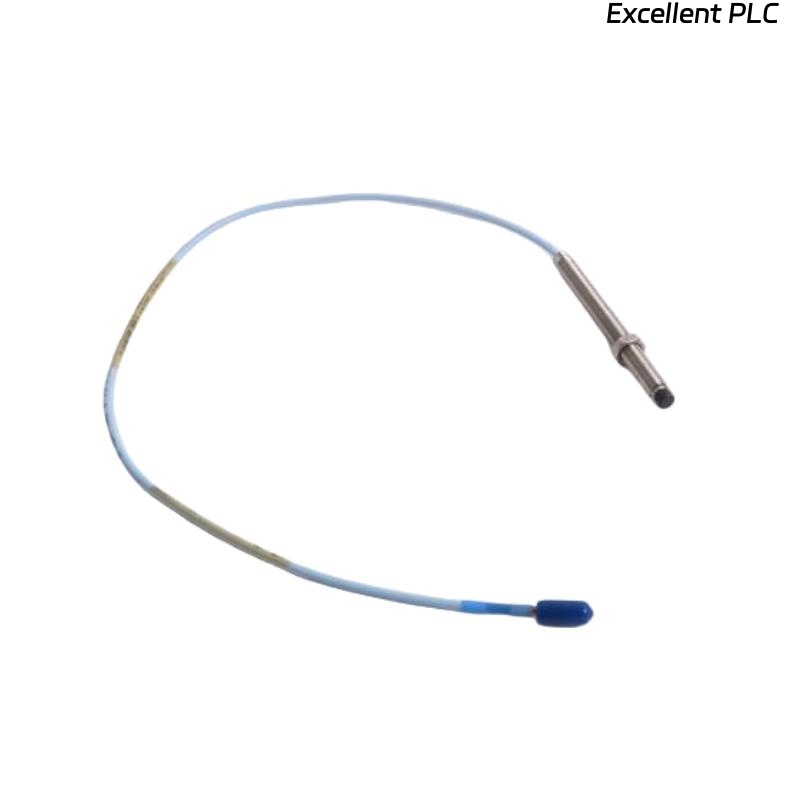

The Bently Nevada 330101-00-40-05-02 3300 XL 8mm Proximity Probe is a precision-engineered device designed to measure the displacement and vibration of rotating machinery shafts. As part of the widely recognized 3300 XL series, this probe offers exceptional performance, accuracy, and durability, making it a preferred choice in critical industrial applications.
The probe functions on the eddy current principle, which enables non-contact measurement of shaft position relative to the probe tip. It is specifically designed for use in harsh environments, maintaining reliable performance in the presence of oil, contaminants, and extreme temperatures.
Its robust construction, superior linearity, and compliance with API 670 standards make it ideal for machinery protection and condition monitoring systems in turbines, compressors, gearboxes, and other rotating assets.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330101-00-40-05-02 |
| Series | 3300 XL 8mm |
| Total Length | 0.5 m |
| Weight | 0.161 kg |
| Measurement Range | 2.0 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1.0 |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -50°C to +200°C |
| Insulation Resistance | >10 MΩ |
| Material | Stainless Steel housing with PEEK tip |
| Connector Type | ClickLoc™ secure connection |
| Ingress Protection | IP68 |
| Compliance | API 670 standard |
Applications
-
Turbomachinery: Monitoring shaft displacement in steam turbines, gas turbines, and hydro turbines.
-
Compressors and Pumps: Ensures precise vibration detection to prevent equipment failure.
-
Generators: Condition monitoring for critical power generation assets.
-
Gearboxes and Motors: Continuous measurement for improved operational reliability.
-
Industrial Process Equipment: Suitable for environments exposed to oil, chemicals, and moisture.
-
Machine Protection Systems: Integrated into protection systems to provide early warning of mechanical faults.
Product Advantages
-
High Measurement Accuracy: Ensures precise shaft position and vibration readings under all conditions.
-
Durable Design: Stainless steel and PEEK components provide resistance to corrosion and chemical attack.
-
Stable Performance: Maintains calibration accuracy in extreme temperatures and harsh industrial environments.
-
API 670 Compliance: Meets stringent industry standards for reliability and safety.
-
Secure Connectivity: ClickLoc™ connectors eliminate accidental disconnection and ensure robust signal integrity.
-
Full Compatibility: Seamlessly integrates with Bently Nevada Proximitor® sensors and extension cables for versatile setups.
FAQ
1. What is the sensitivity of the 330101-00-40-05-02 probe?
It has a sensitivity of 7.87 V/mm (200 mV/mil) ±5%.
2. What frequency response does this probe support?
The probe supports 0 to 10 kHz frequency response for accurate vibration analysis.
3. Does the probe comply with API 670 standards?
Yes, it is fully compliant with API 670 for machine protection systems.
4. What type of connection system does it use?
It uses the ClickLoc™ connector system, which provides secure and vibration-resistant connectivity.
5. Can this probe operate in high-temperature environments?
Yes, it can operate between -35°C and +180°C, and can be stored up to +200°C.
6. What is the linear measurement range of this probe?
The probe offers a linear range from 0.25 mm to 2.0 mm (10 to 80 mils).
7. Is the probe resistant to oil and contamination?
Yes, it is designed to perform reliably in oil-rich and contaminated industrial environments.
8. How does the probe measure shaft displacement?
It uses the eddy current principle to detect the distance between the probe tip and the rotating shaft surface.
9. Is the probe suitable for submerged applications?
Yes, its IP68 rating ensures protection against water ingress, making it suitable for submerged or oil-immersed installations.
10. Can the probe be customized for cable length?
Yes, custom cable lengths are available to suit specific installation requirements.
