Product Introduction:

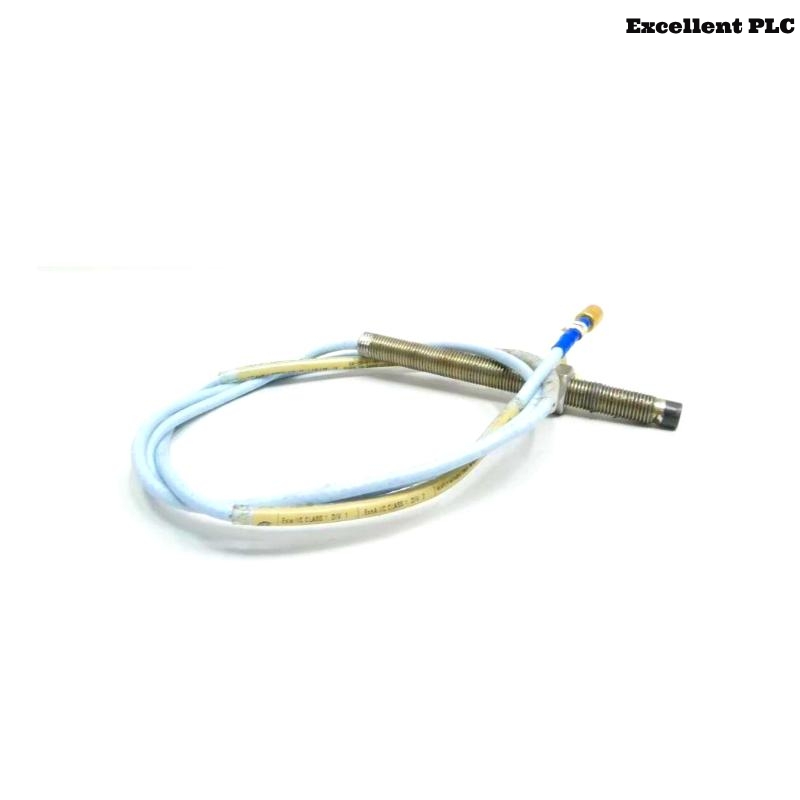

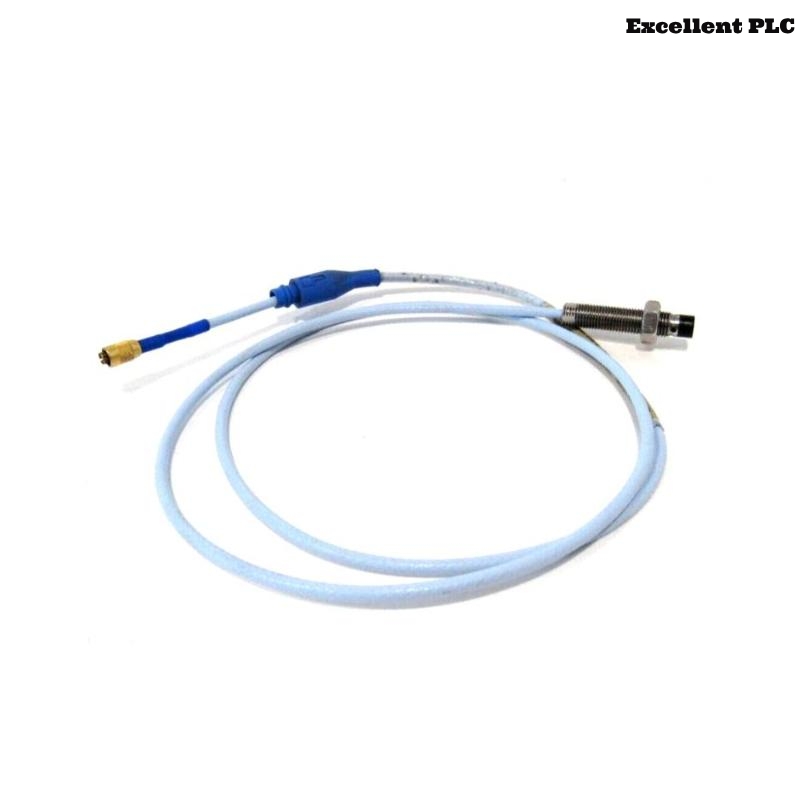

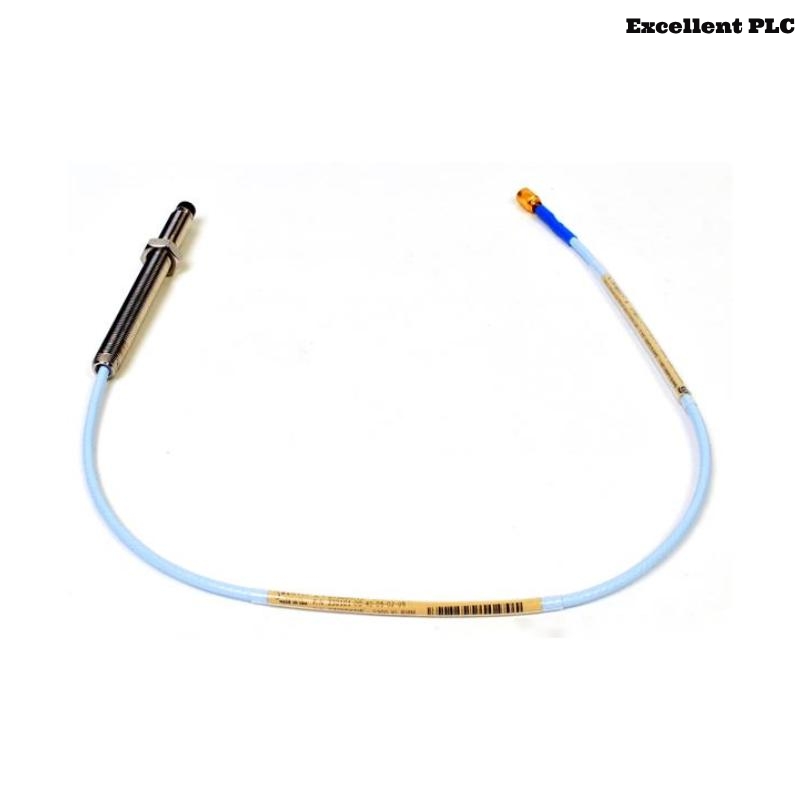

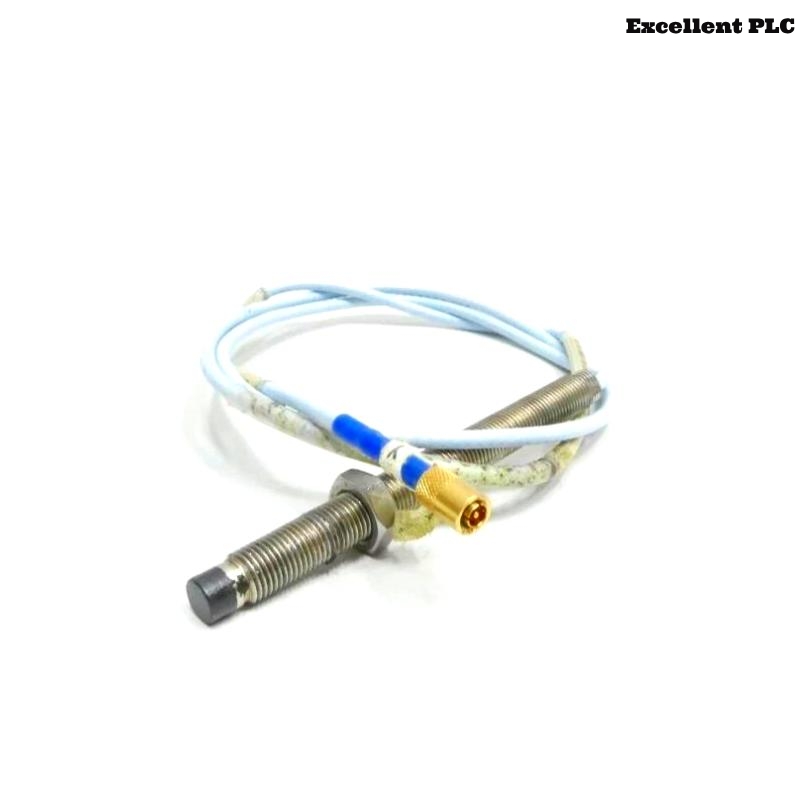

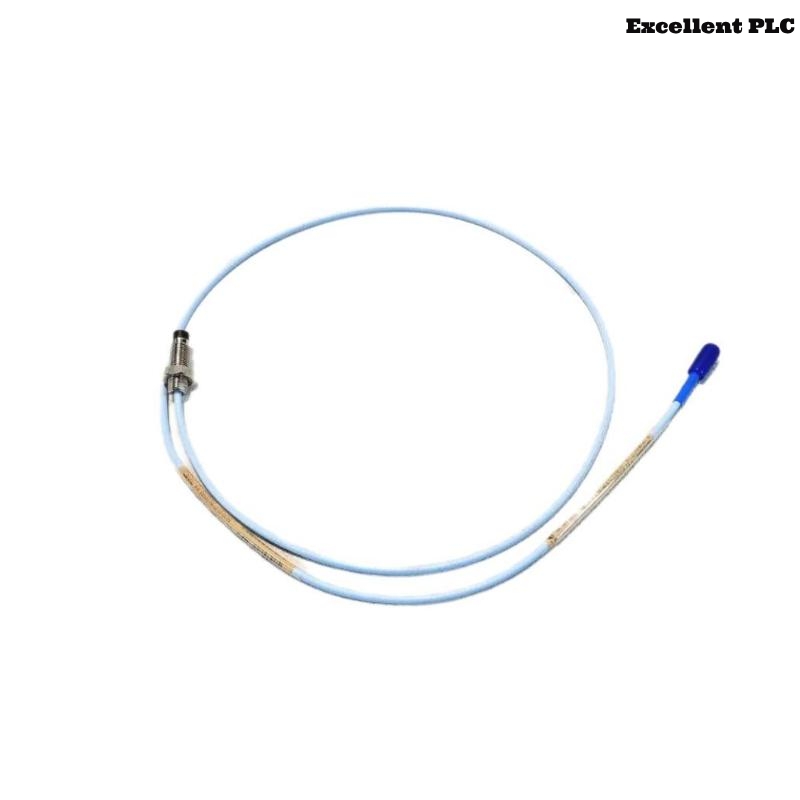

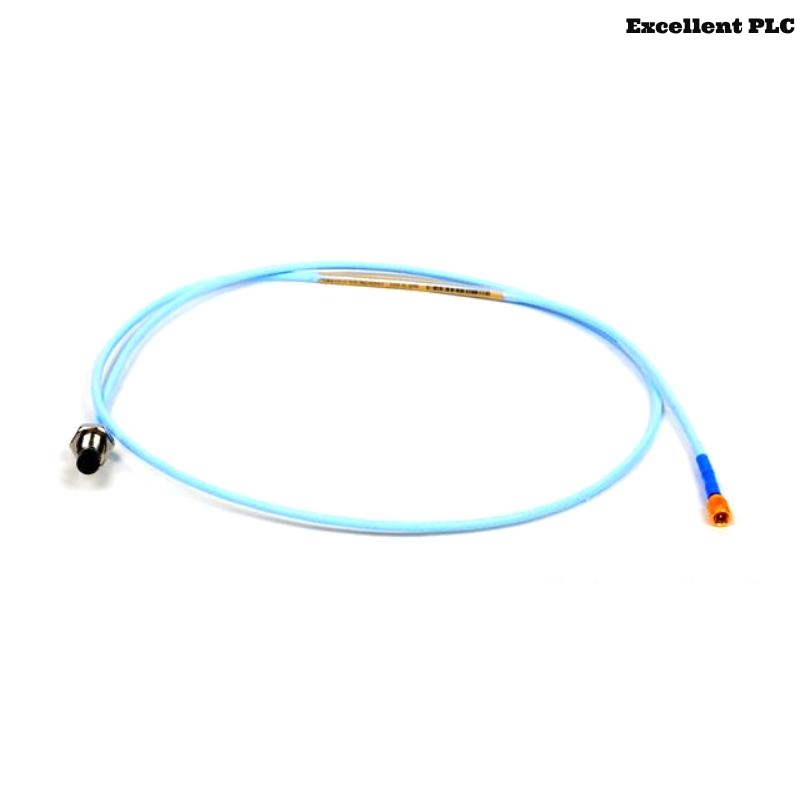

The Bently Nevada 330101-00-40-10-02-05 is a high-performance component of the 3300 XL 8mm Proximity Transducer System, widely recognized in the industrial world for its precision in measuring shaft vibration and position. Manufactured by Bently Nevada, a trusted brand under Baker Hughes, this proximity probe is part of an advanced non-contact measurement system using eddy current technology to monitor rotating machinery in real time.
This probe is typically paired with a matching extension cable and proximity sensor (proximitor) to complete the transducer system. The 330101-00-40-10-02-05 variant offers enhanced signal fidelity and robust construction for installation in harsh environments. It is designed with a 1.0 meter cable length and features a rugged stainless-steel casing for long-term durability in critical machinery monitoring applications.
Product Specifications:
| Parameter | Specification |
|---|---|
| Part Number | 330101-00-40-10-02-05 |
| System Compatibility | Bently Nevada 3300 XL 8mm Proximity Transducer System |
| Sensing Technology | Eddy Current |
| Sensing Range | 2 mm (80 mils) nominal |
| Linear Range | 0.5 mm to 2.0 mm (20 mils to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 meter |
| Connector Type | ClickLoc, Special Sealed Stainless-Steel Connector |
| Thread Size | 3/8-24 UNF-2A |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Material | Stainless Steel |
| Probe Body Style | Unarmored, Reverse Mount |
| Nominal System Output | 200 mV/mil (7.87 mV/µm) |
| Power Requirements | Supplied via proximitor (external driver) |
| Environmental Protection | IP65 (with proper sealing) |
| Weight | 0.323 kg |
Product Applications:
The Bently Nevada 330101-00-40-10-02-05 probe is widely deployed in industrial sectors where real-time monitoring of rotating machinery is critical. It ensures optimal performance, early fault detection, and preventive maintenance.
Key applications include:
-
Steam Turbines – Shaft vibration and position monitoring.
-
Gas Turbines – High-speed rotating component health monitoring.
-
Compressors – Bearing wear and rotor shaft movement detection.
-
Pumps – Mechanical seal and shaft alignment supervision.
-
Motors and Generators – Vibration and thermal expansion tracking.
-
Gearboxes – Detecting misalignment, imbalance, and looseness.
Product Advantages:
-
Proven Eddy Current Technology: Delivers reliable and accurate measurements for shaft vibration and displacement monitoring.
-
Enhanced Durability: Stainless-steel probe construction resists corrosion and mechanical wear in aggressive industrial settings.
-
ClickLoc Connector: Secure and user-friendly connection system minimizes risk of accidental disconnects.
-
Broad Operating Temperature: Wide temperature tolerance supports applications in both hot and cold environments.
-
Interchangeable Design: Compatible with other components in the 3300 XL series, enabling modular system expansion or maintenance.
-
High Accuracy and Stability: Minimal drift over time, reducing recalibration frequency.
-
Custom Length Availability: Probe and cable lengths are available in multiple standard configurations, including 1.0 meter as in this variant.
-
Non-contact Measurement: Eliminates mechanical wear and ensures long-term reliability without physical contact.
-
Industry Trusted: Backed by decades of Bently Nevada field experience in critical machinery protection.
Frequently Asked Questions (FAQ):
-
What is the primary function of the 330101-00-40-10-02-05 probe?
-
It measures shaft vibration and position using non-contact eddy current technology.
-
-
What kind of equipment is it typically used with?
-
Rotating machinery such as turbines, compressors, motors, and pumps.
-
-
Is this probe compatible with other Bently Nevada systems?
-
Yes, it is part of the 3300 XL system and compatible with matched proximitor and extension cables.
-
-
What is the sensing range of this probe?
-
The probe provides a linear sensing range of 0.5 mm to 2.0 mm.
-
-
What material is used for the probe housing?
-
Stainless steel, offering durability and resistance to harsh environments.
-
-
Does this model have a ClickLoc connector?
-
Yes, it features a secure ClickLoc connector to ensure tight and vibration-resistant connections.
-
-
What is the output signal of this probe system?
-
It provides a system output of 200 mV/mil or approximately 7.87 mV/μm.
-
-
What cable length does this specific model provide?
-
It includes a 1.0 meter integral cable.
-
-
Can this probe be used in hazardous environments?
-
It is commonly used in rugged and hazardous environments when paired with proper protective equipment and certifications.
-
-
Is the probe tip replaceable?
-
No, the probe tip is not user-replaceable. Full replacement is recommended in case of tip damage.
Related Models (Same Series or Function Group):
| Model | Cable Length | Probe Tip Size | Output | Mounting Style |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 20 inches | 8 mm | 200 mV/mil | Forward Mount |
| 330101-00-60-10-02-00 | 60 inches | 8 mm | 200 mV/mil | Reverse Mount |
| 330101-00-80-10-02-00 | 80 inches | 8 mm | 200 mV/mil | Forward Mount |
| 330104-00-05-10-02-00 | 5 meters | 8 mm | 200 mV/mil | Armored Cable |
| 330103-00-08-10-02-00 | 8 meters | 8 mm | 200 mV/mil | Unarmored Extension |
| 330105-02-12-10-02-00 | 12 meters | 5 mm (alternative) | 200 mV/mil | Reverse Mount |
Popular Models from Bently Nevada (Same Brand):
| Model | Type | Function | Key Features |
|---|---|---|---|
| 3300/55 | Dual Vibration Monitor | Monitor 2 channels independently | Configurable alarms, standard rack mount |
| 3500/22M | Transient Data Interface | High-speed data interface | Supports system communication |
| 3500/42M | Proximitor/Seismic Monitor | Vibration and position inputs | Accepts input from proximity probes |
| 3500/25 | Keyphasor Module | Shaft rotation speed detection | Provides timing signals |
| 330103-00-05-10-02-00 | Extension Cable (8mm system) | Signal transmission | Matches 3300 XL probe, 5m length |
| 7200-50 Series | Proximity Transducer System | Position & vibration monitoring | Legacy version of Bently proximity systems |
