Product Introduction

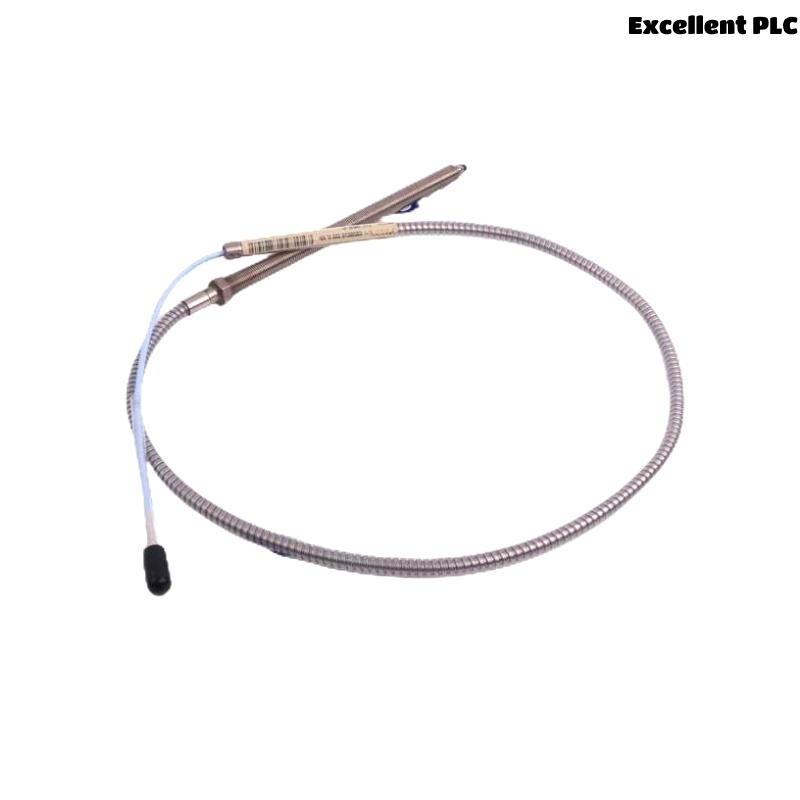

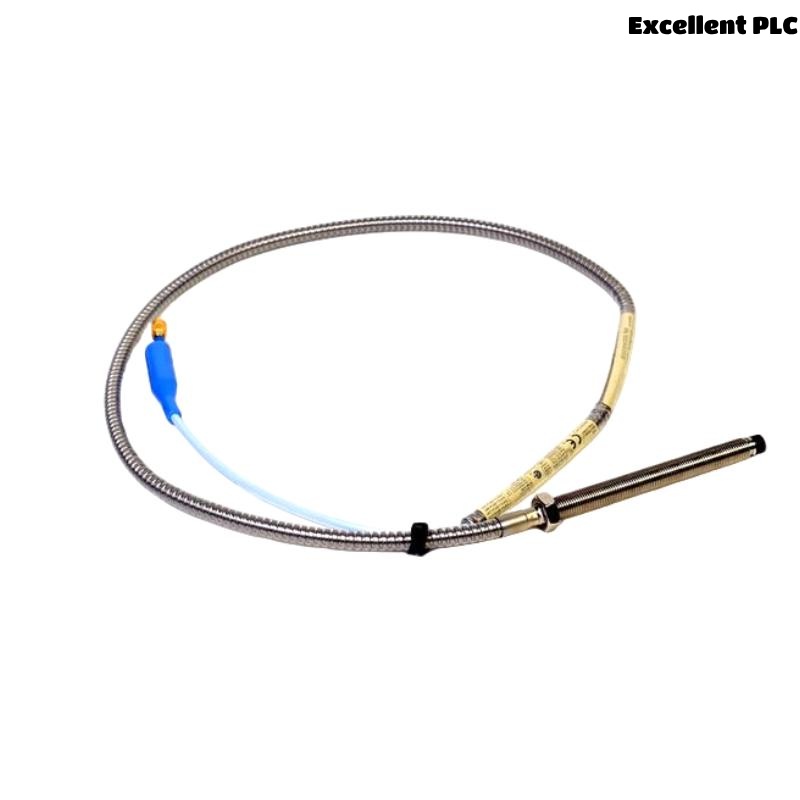

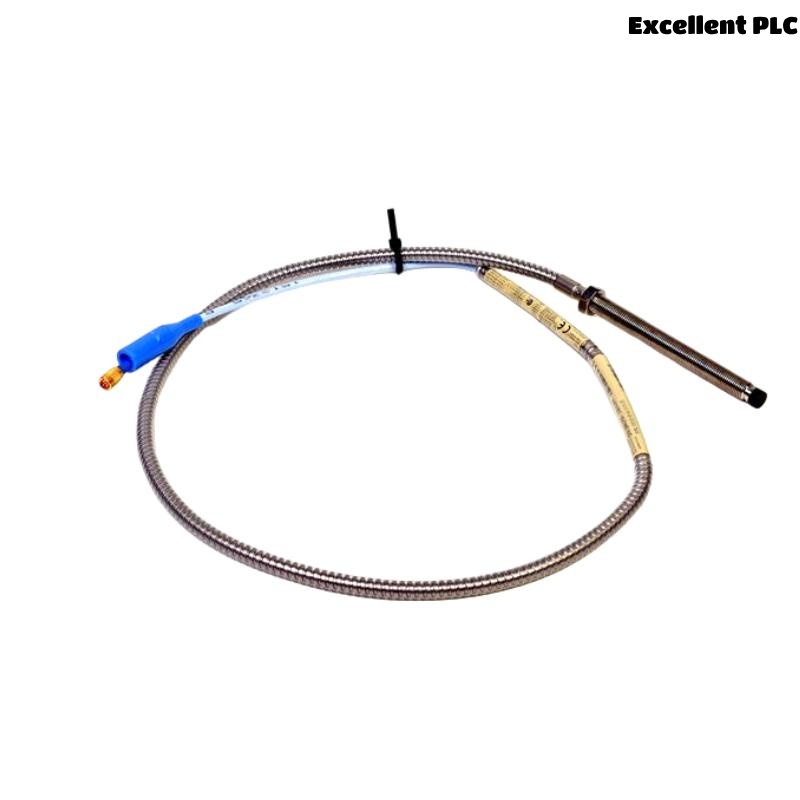

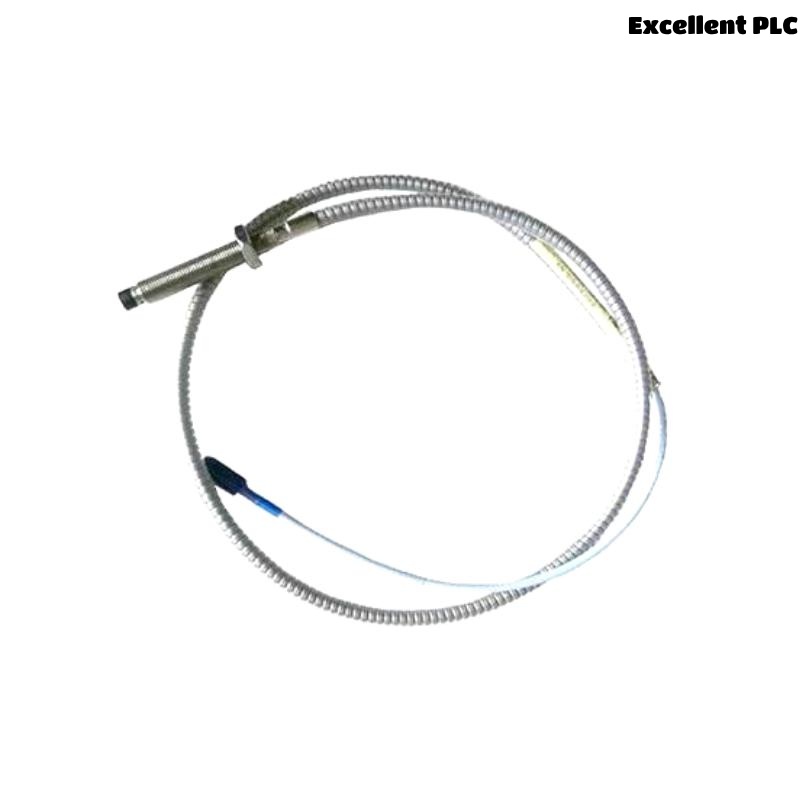

The Bently Nevada 330101-00-40-10-12-05 is part of the renowned 3300 XL series proximity probes, designed for precise shaft position and vibration monitoring in rotating machinery. Featuring an 8mm sensing distance, this proximity probe is engineered for high reliability and accuracy in demanding industrial environments. It converts the distance between the probe tip and a metallic target into an electrical signal, allowing continuous real-time condition monitoring of machinery components such as turbines, compressors, and motors.
Manufactured by Bently Nevada, a trusted leader in machinery condition monitoring, the 3300 XL series has earned a reputation for ruggedness and long-term stability. These probes are integral to early fault detection systems, helping prevent unexpected downtime and costly repairs.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 330101-00-40-10-12-05 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Sensing Distance | 8 mm |
| Total Length | 1 meter |
| Weight | 0.323 kg |
| Operating Temperature | -40°C to +120°C |
| Connector Type | MIL-C-26482 or equivalent |
| Output Signal | AC variable voltage proportional to gap |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Mounting Method | Threaded mounting (M12 x 1.5) |
Applications
-
Turbines: Monitoring shaft position and vibration to ensure balanced operation.
-
Compressors: Early detection of shaft displacement and misalignment.
-
Generators: Real-time position feedback for rotor dynamics analysis.
-
Pumps: Condition monitoring to avoid catastrophic failures.
-
Industrial Fans and Blowers: Shaft vibration measurement to maintain performance.
-
Hydroelectric Plants: Turbine and generator shaft monitoring.
-
Heavy Machinery: Used in various rotating equipment requiring precise shaft position monitoring.
Advantages
-
High Precision: The 8mm sensing distance allows accurate detection of shaft movement and vibration.
-
Robust Construction: Stainless steel housing and IP67 protection make it suitable for harsh industrial environments.
-
Wide Operating Temperature Range: Operates reliably from -40°C to +120°C.
-
Long Cable Options: Custom cable lengths available to accommodate diverse installation requirements.
-
Reliable Connector System: Standardized connectors ensure secure, vibration-resistant connections.
-
Proven Technology: Part of the industry-standard 3300 XL series with decades of operational success.
-
Simple Installation: Threaded mounting and standard sizing simplify replacement and integration.
-
Consistent Output Signal: Provides a stable AC voltage proportional to probe-to-target distance for reliable monitoring.
Frequently Asked Questions (FAQ)
-
What is the sensing distance of this proximity probe?
The sensing distance is 8 mm, designed for precise gap measurement. -
What types of machines are compatible with the 3300 XL probes?
They are compatible with rotating equipment like turbines, compressors, pumps, and generators. -
What is the typical total length supplied?
The standard total length is 1 meter, but custom lengths can be requested. -
What environmental conditions can this probe withstand?
It operates between -40°C and +120°C and has an IP67 rating for dust and water resistance. -
How is the probe mounted?
It uses a threaded M12 x 1.5 mount for secure attachment. -
What signal output does this probe provide?
It outputs an AC voltage signal proportional to the distance between probe and target. -
Is this probe compatible with all Bently Nevada 3300 XL monitoring systems?
Yes, it is designed specifically for the 3300 XL system platform. -
Can the probe be used in explosive environments?
Depending on the installation and certification, it can be used in hazardous areas with appropriate protective measures. -
How durable is the probe cable?
The cable is rugged and shielded to resist industrial wear and electromagnetic interference. -
What maintenance does this probe require?
Regular visual inspection and cleaning of the probe tip to ensure accurate readings are recommended.
Recommended Related Models (Same Series or Related Proximity Probes)
| Model Number | Sensing Distance | Probe Diameter | Cable Length | Weight (kg) | Notes |
|---|---|---|---|---|---|
| 330101-00-40-10-12-06 | 12 mm | 12.7 mm | 2 m | 0.32 | Longer sensing distance |
| 330101-00-40-10-12-04 | 4 mm | 12.7 mm | 2 m | 0.3 | Shorter sensing distance |
| 330106-00-40-10-12-05 | 8 mm | 8 mm | 2 m | 0.28 | Smaller probe diameter |
| 330120-00-40-10-12-05 | 10 mm | 12.7 mm | 3 m | 0.35 | Extended cable length |
| 330130-00-40-10-12-05 | 8 mm | 12.7 mm | 5 m | 0.4 | Long cable for remote mounting |
| 330140-00-40-10-12-05 | 15 mm | 12.7 mm | 2 m | 0.36 | Maximum sensing distance in series |
Popular Bently Nevada Models (Widely Used Proximity Probes and Monitoring Equipment)
| Model Number | Product Type | Sensing Distance | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|---|
| 330101-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 12.7 mm | 0.3 | Standard 3300 XL probe |
| 330103-00-40-10-12-01 | Proximity Probe | 12 mm | 150 x 12.7 mm | 0.32 | Extended sensing distance |
| 330141-00-40-10-12-01 | Proximity Probe | 20 mm | 150 x 12.7 mm | 0.38 | High sensing distance |
| 330200-00-00-00-00-01 | Vibration Transducer | N/A | 40 x 25 x 25 mm | 0.15 | Vibration measurement |
| 3500/05-00-00-00-00-00 | 3500 Series Monitor | N/A | 440 x 600 x 220 mm | 15 | Machinery protection system |
| 330106-00-40-10-12-01 | Proximity Probe | 8 mm | 150 x 8 mm | 0.28 | Smaller diameter probe |
