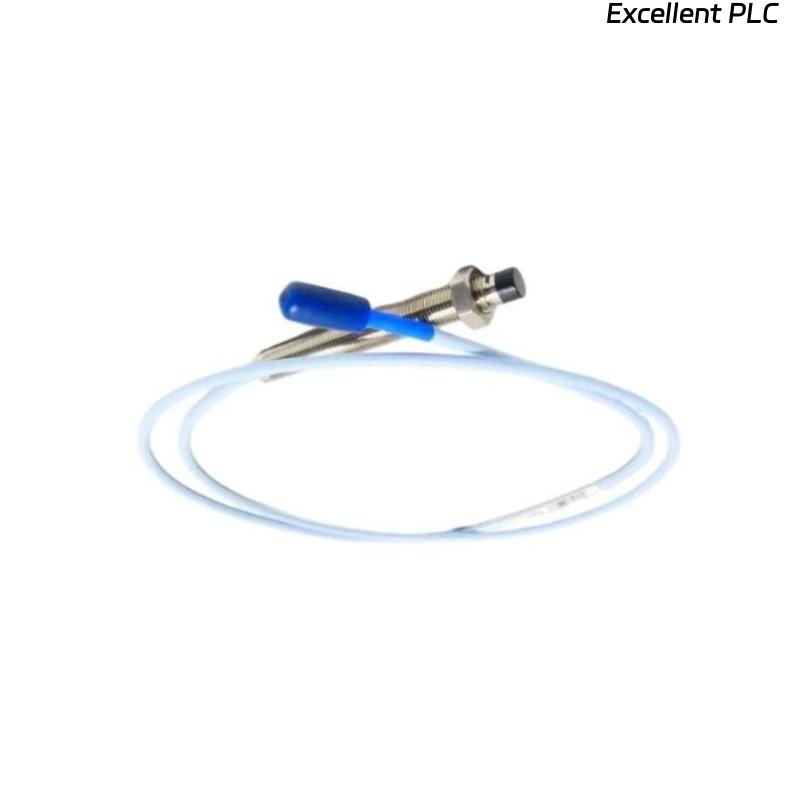

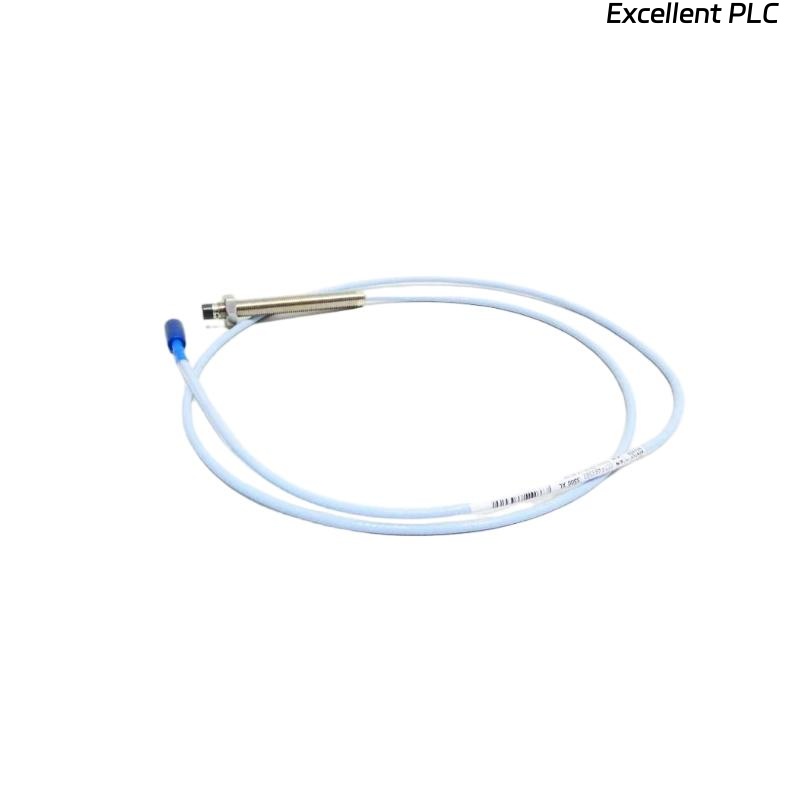

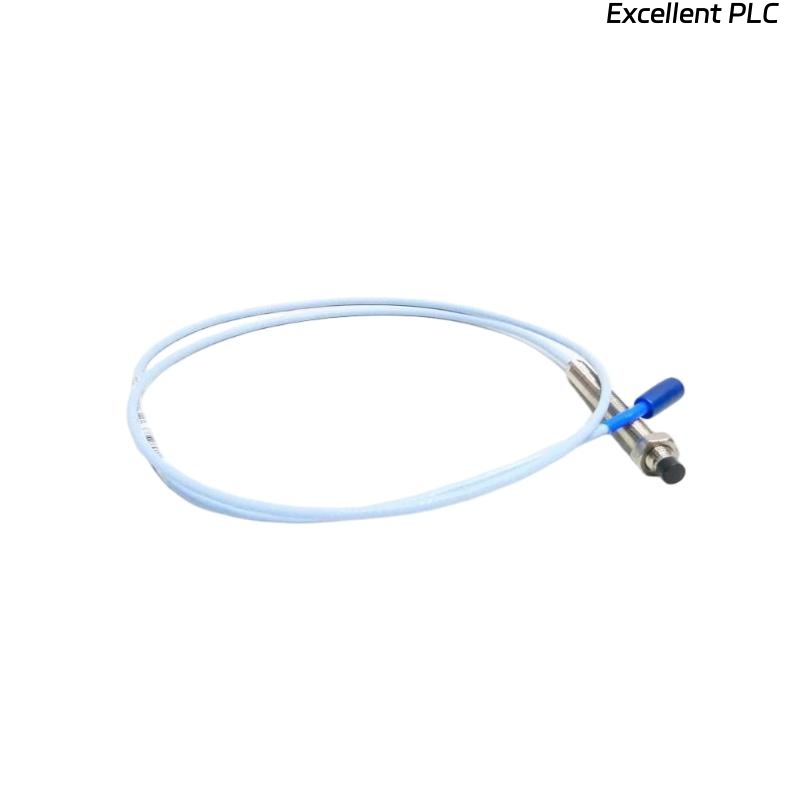

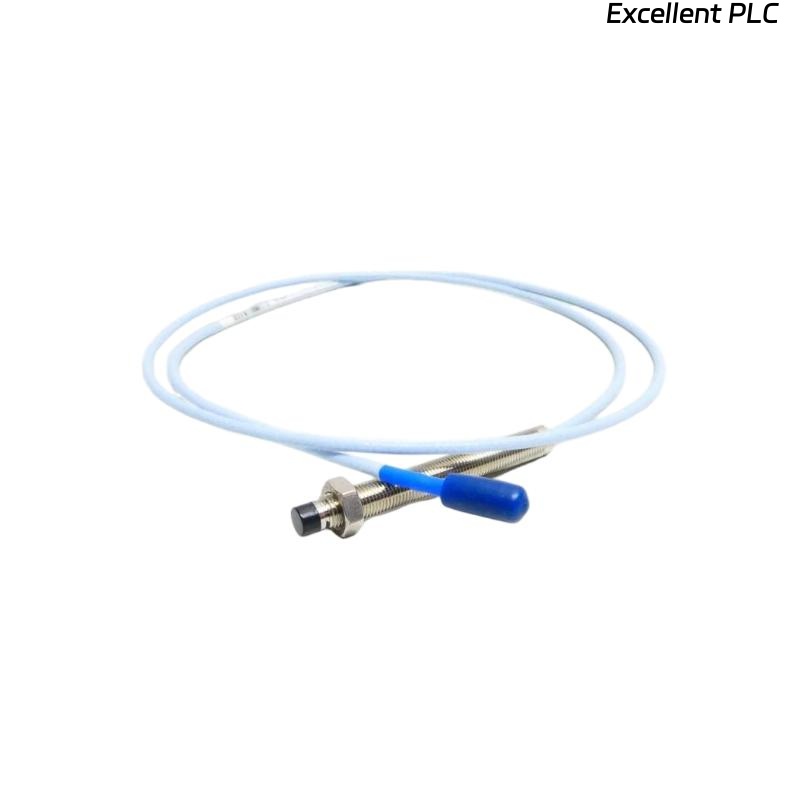

The Bently Nevada 330101-00-45-15-02-05 3300 XL 8 mm Proximity Probe is a high-precision measurement tool designed for monitoring the displacement and vibration of rotating machinery. It helps detect mechanical problems such as misalignment, imbalance, and bearing failure before they cause significant damage. This probe is commonly used in industries like oil and gas, power generation, and manufacturing where machine uptime is critical. The 3300 XL series offers outstanding durability, even in harsh industrial environments, ensuring long-lasting performance and reliable data collection.
With its robust design and high accuracy, this proximity probe is ideal for applications requiring continuous monitoring of machinery conditions to prevent downtime and optimize maintenance schedules.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.5 meters |
| Weight | 0.485 kg |
| Sensing Range | 8 mm |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Operating Temperature | -40 to +85°C |
Applications
The 3300 XL 8 mm Proximity Probe is widely used in industries that rely on precise measurement of machinery health. Key applications include:
-
Shaft Vibration Monitoring: Identifies imbalance, misalignment, and wear in rotating machinery.
-
Rotor Position Monitoring: Measures rotor displacement, crucial for turbines and compressors.
-
Bearing Condition Monitoring: Detects early signs of bearing wear and potential failures.
-
Turbine and Compressor Monitoring: Measures displacement and vibration to ensure optimal performance.
This probe is commonly found in industries like power generation, chemical processing, and oil & gas.
Advantages
-
High Accuracy: The probe offers an accuracy of ±0.001 mm, ensuring precise measurement of displacement and vibration.
-
Durable Design: Built with stainless steel, it can withstand harsh industrial environments and extended exposure to high-vibration settings.
-
Real-Time Data: Provides continuous monitoring, enabling quick detection of mechanical issues and preventing costly failures.
-
Wide Temperature Range: Operates in extreme temperatures from -40°C to +85°C, making it suitable for various industrial environments.
-
Easy Integration: The probe can be integrated into other Bently Nevada monitoring systems, offering a complete solution for machinery health management.
-
High Sensitivity: The probe detects even the smallest changes in displacement, allowing early detection of issues like misalignment.
FAQ
1. What is the sensing range of the 3300 XL 8 mm Proximity Probe?
The sensing range is 8 mm, designed to accurately measure small displacements and vibrations.
2. What type of output does the probe provide?
The probe provides a 4-20 mA differential output, which is compatible with industrial monitoring systems.
3. How accurate is the 3300 XL 8 mm Proximity Probe?
The probe has an accuracy of ±0.001 mm, ensuring precise measurements of shaft displacement.
4. Can the 3300 XL 8 mm Proximity Probe operate in extreme temperatures?
Yes, the probe can function in temperatures ranging from -40°C to +85°C, making it suitable for a wide variety of industrial settings.
5. Is the 3300 XL 8 mm Proximity Probe suitable for high-vibration environments?
Yes, it is designed to perform reliably in high-vibration environments without compromising measurement accuracy.
6. What is the construction material of the 3300 XL 8 mm Proximity Probe?
The probe is made of stainless steel, offering excellent durability and resistance to corrosion.
7. Can the 3300 XL 8 mm Proximity Probe be used for turbine monitoring?
Yes, it is ideal for turbine and compressor monitoring, providing accurate displacement and vibration data.
8. How sensitive is the 3300 XL 8 mm Proximity Probe?
The probe is highly sensitive, capable of detecting even small changes in shaft displacement, helping to identify early signs of mechanical issues.
9. Can the 3300 XL 8 mm Proximity Probe integrate with other Bently Nevada systems?
Yes, the probe can be seamlessly integrated with other Bently Nevada systems like the 3500 Series to create a complete machinery monitoring solution.
10. How is the 3300 XL 8 mm Proximity Probe installed?
The probe is typically mounted on the machinery and connected to the monitoring system. It can be customized with different cable lengths based on the machine’s configuration.
