Product Introduction

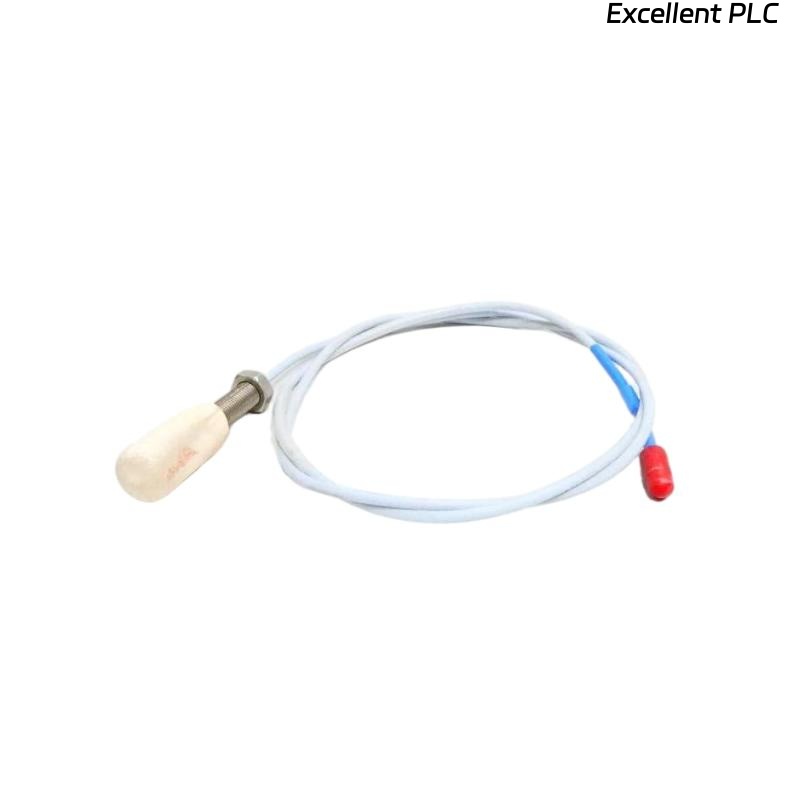

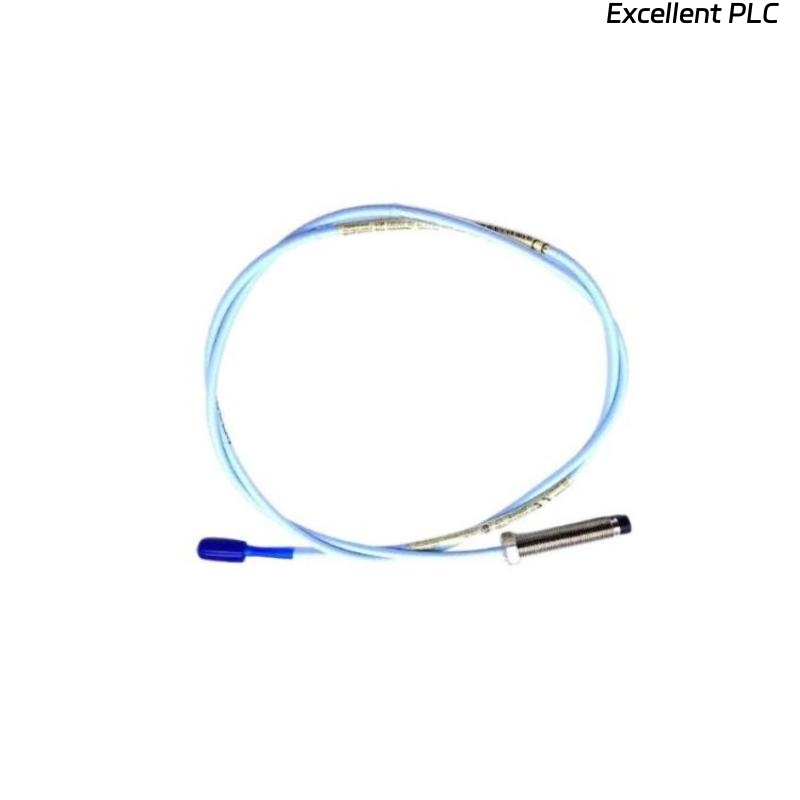

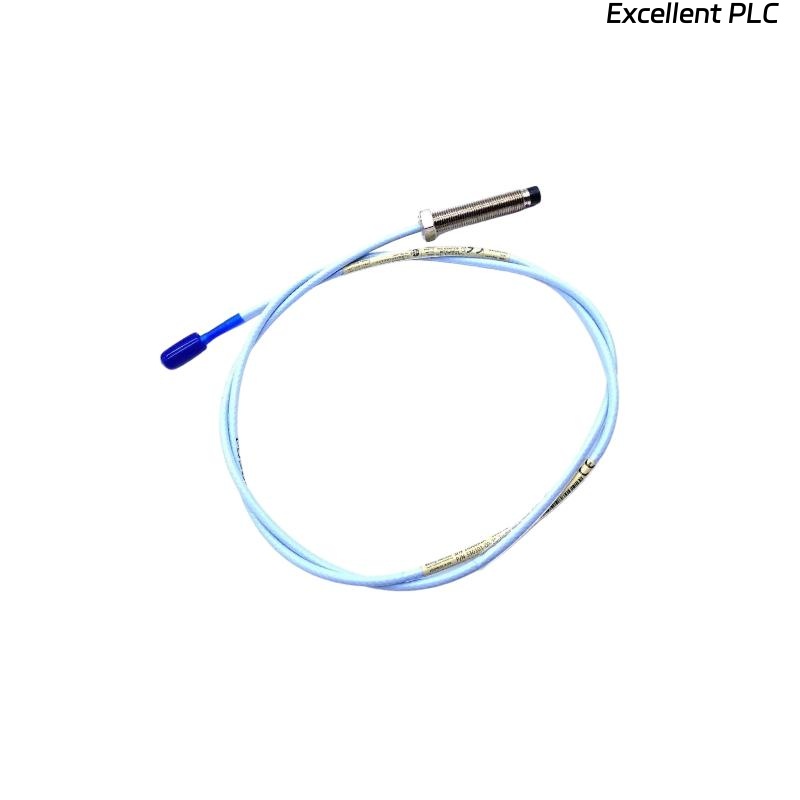

The Bently Nevada 330101-00-47-10-02-00 3300 XL 8 mm Proximity Probe is an essential tool for monitoring the condition of rotating machinery. It is used to measure the displacement and vibration of machine shafts, providing real-time data for predictive maintenance. This helps detect potential issues such as misalignment, imbalance, and bearing wear before they lead to costly machine failures. As part of the 3300 XL Series, it is known for its high precision, rugged design, and ability to withstand harsh operating environments, making it ideal for industries such as oil & gas, power generation, and manufacturing.
This proximity probe offers exceptional durability, precise measurement, and ease of integration with other Bently Nevada systems, ensuring it provides accurate and reliable data in the most demanding industrial settings.
Product Parameters
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensing Range | 8 mm |
| Material | Stainless Steel |
| Output | 4-20 mA, Differential |
| Accuracy | ±0.001 mm |
| Operating Temperature | -40 to +85°C |
Applications
The 3300 XL 8 mm Proximity Probe is used in a variety of industrial applications where precise measurement of shaft displacement and vibration is required. Some common applications include:
-
Shaft Vibration Monitoring: Detecting issues such as imbalance, misalignment, and wear in rotating machinery.
-
Rotor Position Monitoring: Ensuring accurate rotor displacement measurement for turbines and compressors.
-
Bearing Condition Monitoring: Identifying early signs of bearing wear to prevent failure.
-
Turbine and Compressor Monitoring: Providing data to optimize the performance and reliability of turbines and compressors.
It is widely used in critical industries like oil and gas, chemical processing, and power generation, where equipment downtime must be minimized.
Advantages
-
High Accuracy: With an accuracy of ±0.001 mm, this probe offers highly precise measurements, ensuring accurate machinery monitoring.
-
Rugged Design: Made from stainless steel, it is built to withstand harsh industrial environments and vibration.
-
Real-Time Monitoring: Provides continuous data for immediate detection of mechanical faults, preventing unplanned downtime.
-
Wide Operating Temperature: It functions in extreme temperatures from -40°C to +85°C, making it versatile for various industrial conditions.
-
Easy Integration: The probe can be seamlessly integrated with Bently Nevada monitoring systems, offering a complete machinery health solution.
-
Sensitive Detection: The probe detects even the smallest changes in displacement, allowing early detection of mechanical problems.
FAQ
1. What is the sensing range of the 3300 XL 8 mm Proximity Probe?
The sensing range is 8 mm, ideal for accurate measurement of shaft displacement and vibration.
2. What output does the 3300 XL 8 mm Proximity Probe provide?
It provides a 4-20 mA differential output, compatible with various monitoring systems.
3. How accurate is the 3300 XL 8 mm Proximity Probe?
The probe provides an accuracy of ±0.001 mm, ensuring highly precise measurements.
4. Can the 3300 XL 8 mm Proximity Probe operate in extreme temperatures?
Yes, it can function in temperatures ranging from -40°C to +85°C, suitable for diverse industrial environments.
5. Is the 3300 XL 8 mm Proximity Probe suitable for high-vibration environments?
Yes, the probe is designed to provide reliable performance in high-vibration conditions.
6. What material is the 3300 XL 8 mm Proximity Probe made from?
The probe is made from durable stainless steel, offering resistance to wear and corrosion.
7. Can the 3300 XL 8 mm Proximity Probe be used for turbine monitoring?
Yes, it is widely used for monitoring turbines and compressors to measure rotor displacement and vibration.
8. How sensitive is the 3300 XL 8 mm Proximity Probe?
The probe is highly sensitive, capable of detecting even minor changes in displacement, which helps in early fault detection.
9. Can the 3300 XL 8 mm Proximity Probe integrate with other Bently Nevada systems?
Yes, it integrates smoothly with other Bently Nevada systems, such as the 3500 Series, providing comprehensive monitoring solutions.
10. How is the 3300 XL 8 mm Proximity Probe installed?
The probe is mounted on the machinery and connected to a monitoring system. It can be customized with different cable lengths depending on the setup.
