Product Introduction

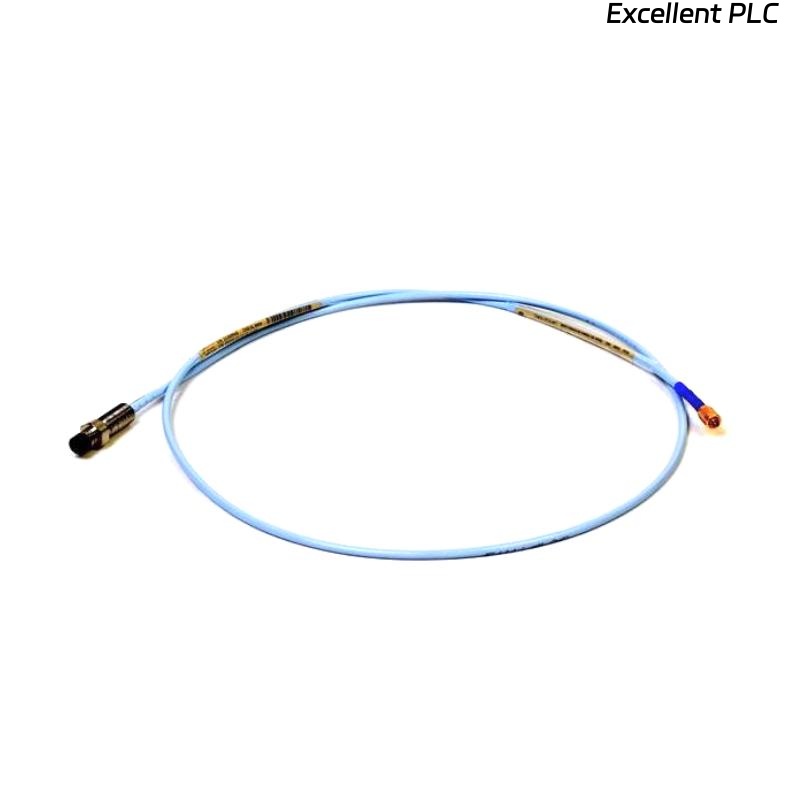

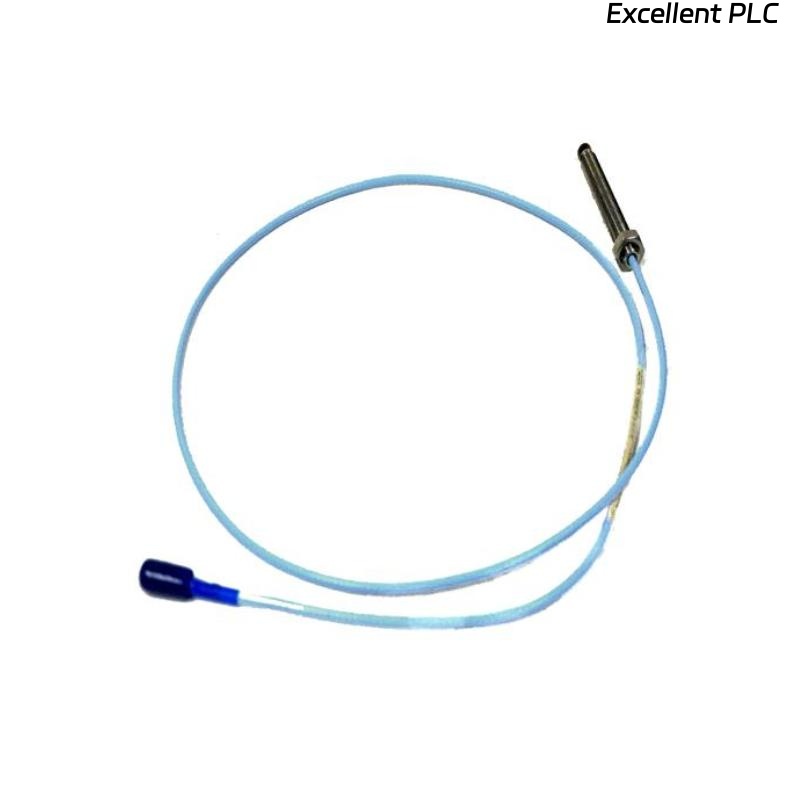

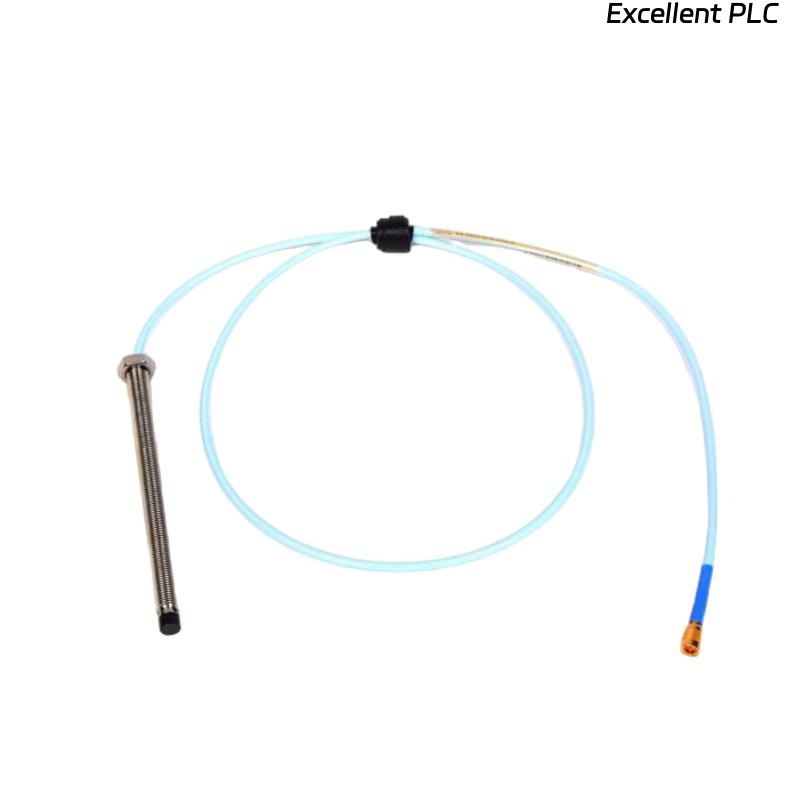

The Bently Nevada 330101-00-48-05-02-00 3300 XL 8mm Proximity Probe is a high-precision sensing device designed to measure shaft vibration and displacement in rotating machinery. As part of the 3300 XL series, it offers exceptional accuracy, stability, and durability for applications in demanding industrial environments.
Utilizing the eddy current principle, this probe provides non-contact measurement of shaft position relative to the probe tip, delivering reliable data critical for machinery protection systems and predictive maintenance. Its robust stainless steel housing and PEEK probe tip construction ensure long-lasting performance in harsh conditions such as high temperatures, oil contamination, and corrosive environments.
The probe is compliant with API 670 standards, making it suitable for integration into advanced machine protection systems. Combined with Bently Nevada Proximitor® sensors and extension cables, it forms a complete and highly dependable proximity measurement system.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 330101-00-48-05-02-00 |
| Series | 3300 XL 8mm |
| Total Length | 0.5 m |
| Weight | 0.161 kg |
| Measurement Range | 2.0 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1.0 |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -50°C to +200°C |
| Insulation Resistance | >10 MΩ |
| Material | Stainless Steel housing with PEEK tip |
| Connector Type | ClickLoc™ secure connection |
| Ingress Protection | IP68 |
| Compliance | API 670 standard |
Applications
-
Turbomachinery Monitoring
Ensures precise vibration and displacement measurement in turbines and compressors to maintain operational reliability. -
Condition Monitoring
Provides real-time data for predictive maintenance, reducing unplanned downtime and extending machinery life. -
Machine Protection Systems
Integrated into systems that prevent catastrophic failures by detecting deviations from safe operating conditions. -
Industrial Equipment
Performs in harsh environments such as refineries, petrochemical plants, and power stations with exposure to oil and high temperatures. -
Critical Asset Monitoring
Ideal for pumps, gearboxes, and motors to ensure continuous and safe operation.
Product Advantages
-
High Accuracy and Stability
Delivers precise and consistent measurements under varying environmental conditions. -
Durable Construction
Made from stainless steel and PEEK, ensuring resistance to corrosion and contamination. -
Wide Operating Range
Performs reliably in a broad temperature range and in oil-laden environments. -
API 670 Compliance
Meets global standards for machine protection and reliability. -
Secure Connectivity
ClickLoc™ connector design ensures a robust, vibration-proof connection. -
Full System Compatibility
Works seamlessly with Bently Nevada Proximitor® sensors and extension cables for a complete monitoring solution.
FAQ
1. What is the sensitivity of the 330101-00-48-05-02-00 probe?
It has a sensitivity of 7.87 V/mm (200 mV/mil) ±5%.
2. What frequency response does this probe support?
The frequency response is 0 to 10 kHz, suitable for dynamic shaft vibration monitoring.
3. Does this probe comply with API 670 standards?
Yes, it is fully compliant with API 670 specifications.
4. What type of connection system does the probe use?
It uses a ClickLoc™ secure connection system to prevent accidental disconnection.
5. Can this probe operate in extreme temperature environments?
Yes, it operates from -35°C to +180°C and can be stored at -50°C to +200°C.
6. Is the probe resistant to oil and contaminants?
Yes, the IP68 rating ensures protection against oil, dust, and moisture.
7. What technology does the probe use for measurements?
It uses eddy current technology to measure shaft position and vibration.
8. Can it be used in submerged conditions?
Yes, the IP68 ingress protection allows use in oil-immersed or submerged environments.
9. Is this probe compatible with Bently Nevada Proximitor® sensors?
Yes, it is fully compatible with 3300 XL Proximitor® sensors and extension cables.
10. Can the cable length be customized for different installations?
Yes, custom cable lengths are available for specific installation needs.
Related Models (Same Series or Similar Function)
| Model | Description | Cable Length |
|---|---|---|
| 330101-00-40-05-02 | 3300 XL 8mm Probe for standard vibration monitoring | 0.5 m |
| 330101-00-40-05-01 | 3300 XL 8mm Probe with short cable | 1 m |
| 330101-00-40-05-05 | 3300 XL 8mm Probe with extended cable | 5 m |
| 330102-00-20-05-02 | 3300 XL 11mm Probe for large shaft clearances | 5 m |
| 330103-00-20-05-02 | 3300 XL 5mm Probe for compact spaces | 5 m |
| 330104-00-20-05-02 | 3300 XL Reverse Mount Probe | 5 m |
Popular Bently Nevada Models
| Model | Description | Application |
|---|---|---|
| 3300 XL 5mm Probe | Compact probe for installations with limited space | Pumps, Compressors |
| 3300 XL 8mm Probe | General-purpose probe for shaft vibration monitoring | Turbines, Gearboxes |
| 3300 XL 11mm Probe | For large clearances and high-displacement monitoring | Steam Turbines |
| 330104 Reverse Mount | Reverse mount probe for restricted access areas | Special Machinery |
| 330130 Extension | Extension cable for proximity probe systems | Flexible Installations |
| 3500 Monitoring Sys | Advanced vibration monitoring and protection system | Machinery Protection |
