Product Introduction

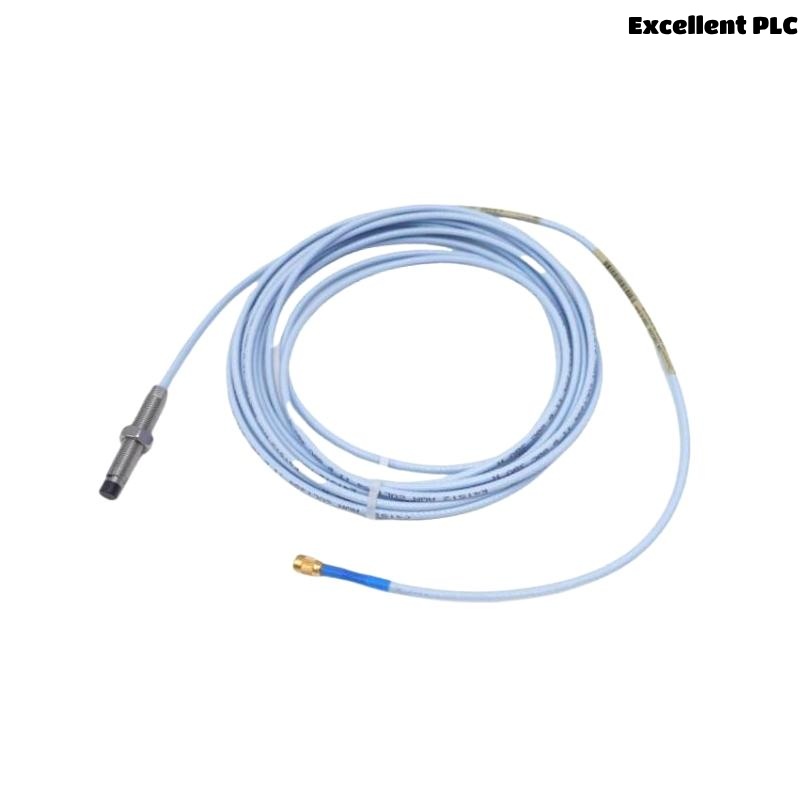

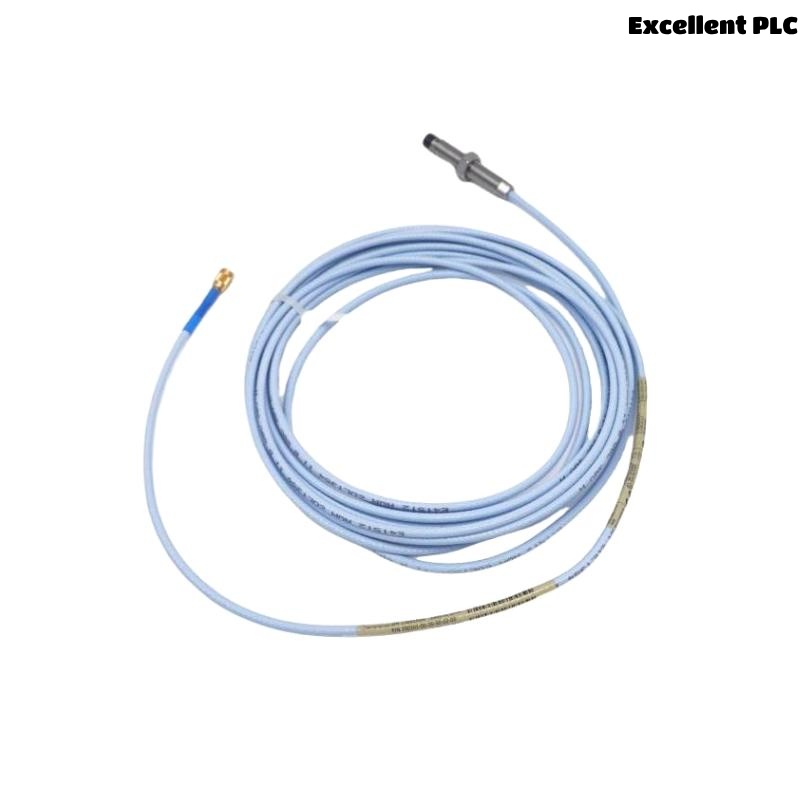

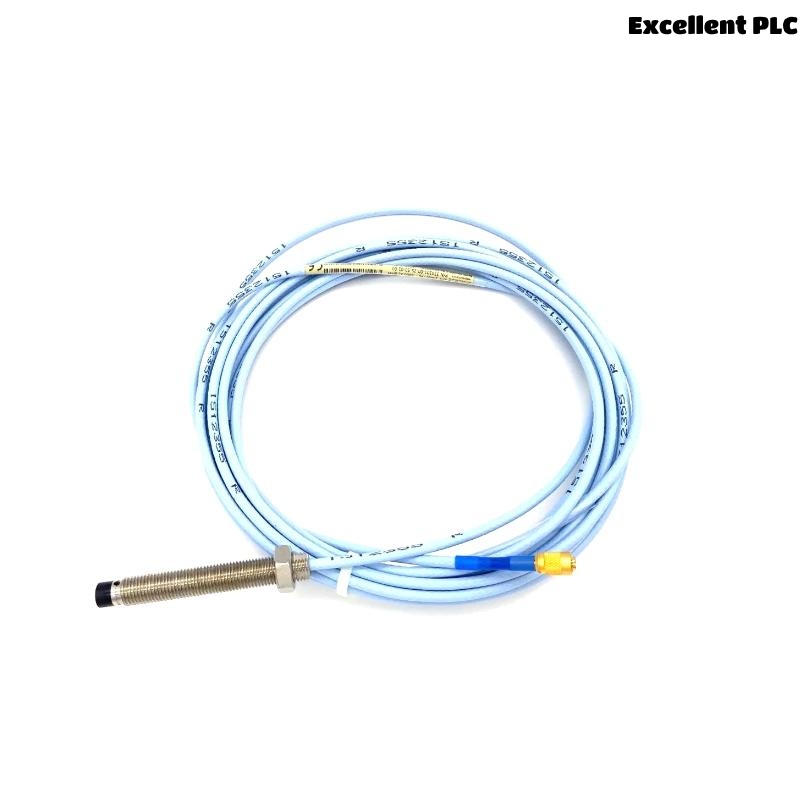

The Bently Nevada 330101-00-52-10-02-00 3300 XL 8mm Proximity Probe is part of the industry-leading 3300 XL 8mm series designed for high-precision, non-contact vibration and displacement measurements of rotating machinery.
Built to deliver consistent, reliable performance under extreme conditions, this probe is an essential component of modern condition monitoring and machinery protection systems. It is optimized for use with Bently Nevada’s advanced 3500 Series Monitoring System and offers unmatched accuracy, durability, and environmental protection.
With proven performance across industries such as power generation, oil & gas, petrochemical, marine, and manufacturing, the 330101-00-52-10-02-00 Proximity Probe ensures early fault detection, reducing costly downtime and improving equipment reliability.
Product Specifications
Parameter | Details |
---|---|
Model Number | 330101-00-52-10-02-00 |
Product Series | 3300 XL 8mm Proximity Probe |
Probe Tip Diameter | 8 mm |
Probe Tip Material | PPS (Glass-reinforced Polyphenylene Sulfide) |
Probe Thread Size | 3/8-24 UNF |
Probe Body Length | 52 inches (1320.8 mm) |
Total Length | 1 meter |
Sensitivity | 200 mV/mil (7.87 mV/μm) |
Linear Measurement Range | 80 mils (2.0 mm) |
Output Voltage Range | -24 VDC to +24 VDC |
Linearity | ±0.25% of full-scale |
Frequency Response | 0 Hz to 10 kHz (-3 dB) |
Operating Temperature Range | -51 °C to +177 °C (-60 °F to +350 °F) |
Maximum Vibration Limit | 50 g peak |
Maximum Shock Limit | 5000 g peak |
Environmental Protection Rating | IP68 |
Electrical Interference Immunity | High EMI / RFI immunity |
Housing Material | Stainless Steel |
Certifications | CE, ATEX, CSA, RoHS Compliant |
Weight | 0.323 kg |
Applications
The Bently Nevada 330101-00-52-10-02-00 Proximity Probe is engineered for versatile applications across a wide range of industries:
-
Gas & Steam Turbines
Monitoring radial and axial vibration to safeguard critical assets. -
Compressors
Detecting shaft movement, imbalance, and bearing conditions. -
Electric Motors & Generators
Real-time shaft monitoring for efficiency and reliability. -
Industrial Pumps
Monitoring for early detection of cavitation and bearing wear. -
Gearboxes
Tracking shaft misalignment and vibration for predictive maintenance. -
Marine Propulsion Systems
Protecting large ship engines and generators. -
Pulp & Paper Mills
Continuous monitoring of rotating machinery in harsh environments. -
Oil & Gas Refineries
Asset protection and performance optimization of rotating equipment.
Advantages
-
Extended Reach for Deep Installations
The 1 meter total length accommodates complex or deep mounting requirements. -
Precision and Accuracy
Delivers ±0.25% linearity across the entire measurement range. -
Engineered for Harsh Conditions
IP68-rated with outstanding shock and vibration resistance. -
Wide Operating Temperature Range
Functions reliably from -51 °C to +177 °C. -
Robust EMI/RFI Shielding
Ensures signal integrity in noisy electrical environments. -
Seamless System Integration
Fully compatible with Bently Nevada 3500 Series Monitoring Systems. -
Durable Construction
Stainless steel housing and PPS tip for long service life. -
Minimizes Downtime
Supports proactive maintenance to prevent costly unplanned outages. -
Certified for Global Use
CE, ATEX, CSA, and RoHS compliant for worldwide deployment. -
Reliable Performance
Trusted by operators of critical machinery in multiple industries.
FAQ
1. What types of rotating equipment are most suitable for using the 330101-00-52-10-02-00 probe?
This probe is ideal for high-speed rotating machinery such as gas turbines, steam turbines, compressors, industrial pumps, motors, and gearboxes.
2. How does this proximity probe help improve machine reliability?
It provides continuous, real-time monitoring of shaft vibration and displacement, allowing early detection of developing mechanical issues and supporting predictive maintenance programs.
3. What kind of mounting configuration is recommended for this 52-inch probe?
It is typically used in applications requiring deep penetration or installations where longer probe lengths are needed to access shaft surfaces, such as in large machines with extended housings.
4. Does the probe maintain linearity at elevated temperatures?
Yes. Its performance remains linear and stable even at temperatures up to +177 °C, ensuring accurate readings in thermally demanding environments.
5. Can the probe withstand environments with high electromagnetic interference?
Absolutely. The 3300 XL series is designed with excellent EMI/RFI immunity, ensuring signal reliability even in electrically noisy industrial settings.
6. How does the IP68 rating benefit installations in outdoor or submerged locations?
The IP68 rating ensures that the probe is completely protected against dust ingress and capable of withstanding continuous immersion in water—making it suitable for challenging outdoor or offshore environments.
7. Is there any special consideration when routing the armored extension cable?
Yes. It is recommended to follow standard cable management practices: avoid tight bends, secure cables at intervals, and route them away from high-voltage power lines to prevent signal degradation.
8. What is the maximum shaft surface velocity that this probe can accurately monitor?
The probe’s design allows for precise measurements even on shafts operating at high surface speeds—suitable for machines running at thousands of RPMs.
9. How does this probe contribute to safety in critical rotating equipment?
By providing early warning of excessive shaft vibration or misalignment, the probe helps prevent catastrophic failures, protecting both equipment and personnel.
10. What are the maintenance requirements for this proximity probe?
These probes are largely maintenance-free but should be visually inspected during shutdowns to ensure cable integrity and clean probe tips for optimal measurement accuracy.
