Description

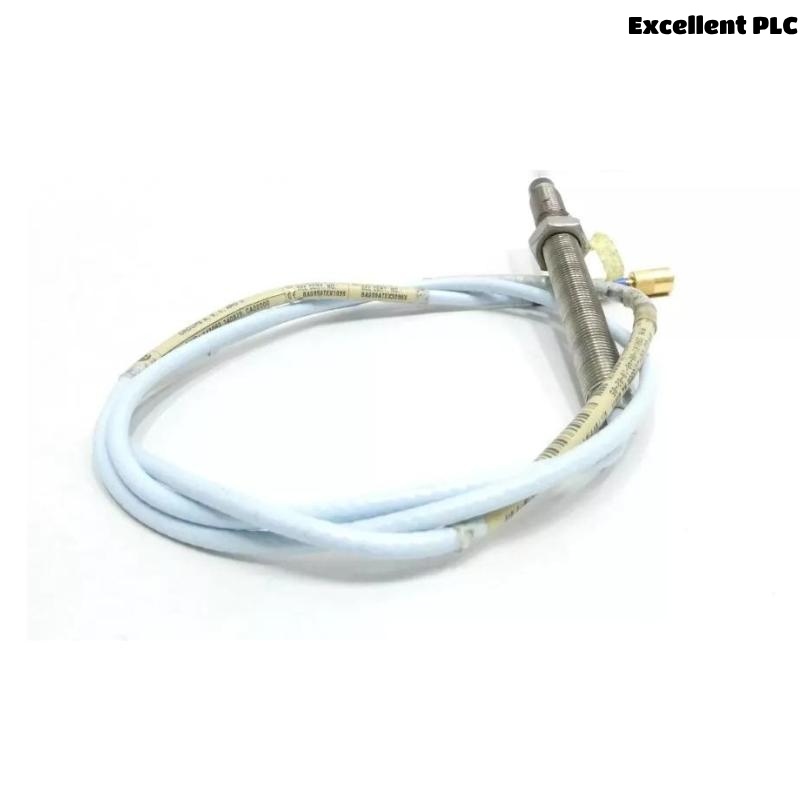

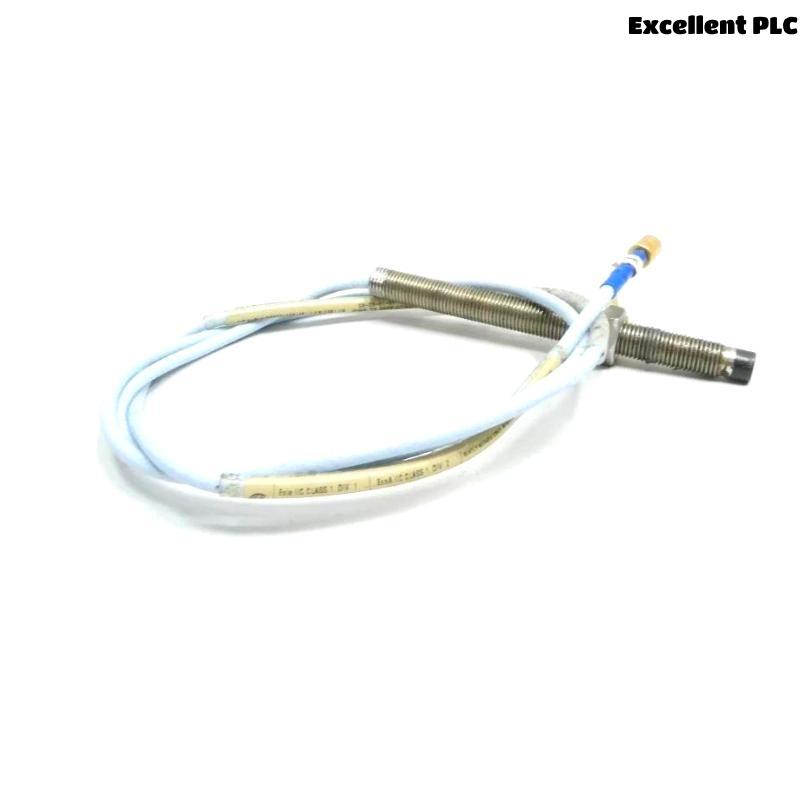

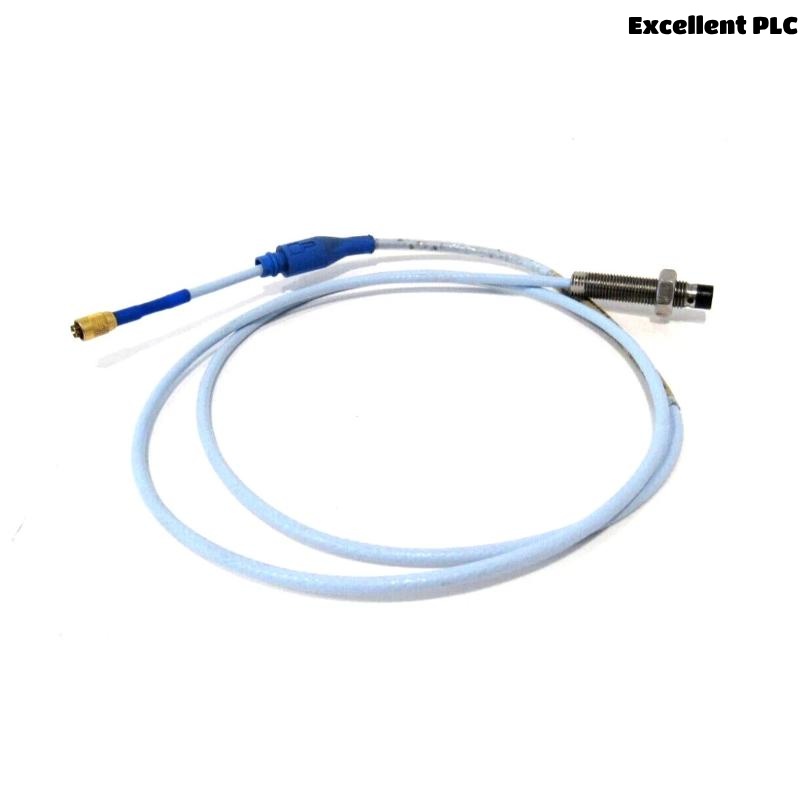

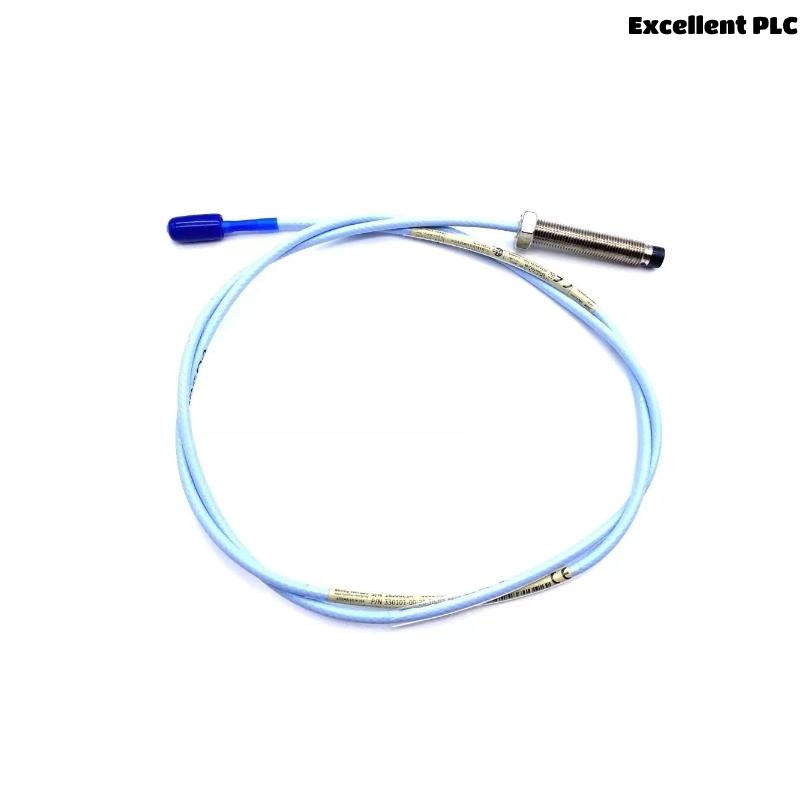

The Bently Nevada 330101-00-52-10-02-CN is part of the 3300 XL 8 mm Proximity Transducer System. It delivers accurate, reliable static and dynamic measurements for machinery condition monitoring. It includes a non-contact proximity probe designed to interface with a Proximitor sensor and extension cable to measure shaft vibration, position, and speed.
Features
-
Complies with API 670 standards
-
Fully interchangeable components
-
ClickLoc corrosion-resistant gold connectors
-
TipLoc and CableLoc for improved mechanical strength
-
Optional FluidLoc for oil ingress prevention
Applications
-
Vibration monitoring of rotating machinery
-
Shaft position detection
-
Keyphasor and speed measurement
-
Monitoring of fluid-film bearing machines
Advantages
-
Robust design for harsh environments
-
High temperature tolerance up to 218°C
-
Quick installation with SpringLoc terminals
-
RFI/EMI immunity reduces installation cost
-
Finger-tight “click” connectors—no tools needed
Technical Specifications
| Parameter | Value |
|---|---|
| System Type | Non-contact eddy current transducer system |
| Probe Diameter | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Operating Temperature (ETR) | Up to 218°C (probe), 260°C (cable) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Recommended Gap | 1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm (2 in), Recommended: ≥76.2 mm (3 in) |
| Pressure Sealing | Viton® O-ring seal |
| Humidity Resistance | <3% deviation @ 93% RH for 56 days |
| Compliance | FCC, CE, RoHS, ATEX, IECEx, SIL 2/3 compliant |
FAQ
Q1: What is the function of the 330101-00-52-10-02-CN probe?
A1: It measures shaft vibration and position using non-contact eddy current technology.
Q2: Is the probe compatible with older 3300 systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Does this model support high-temperature environments?
A3: Yes, with ETR options, it supports up to 218°C (probe) and 260°C (cable).
Q4: What kind of machinery is this probe best used for?
A4: It is designed for fluid-film bearing machines and rotating equipment.
Q5: How is the probe connected?
A5: It uses ClickLoc miniature coaxial connectors with a finger-tight mechanism.
Q6: Is the probe suitable for hazardous areas?
A6: Yes, it is certified for ATEX, IECEx, and North American hazardous areas.
Q7: How accurate is the proximity measurement?
A7: It maintains ±0.025 mm (1 mil) DSL accuracy over the 80 mil linear range.
Q8: Does it require calibration before installation?
A8: No bench calibration is needed due to component interchangeability.
Q9: Is the probe affected by electromagnetic interference?
A9: No, it has improved RFI/EMI immunity and meets CE requirements.
Q10: What maintenance does this system require?
A10: It is low maintenance due to robust mechanical design and sealed connectors.
Related Models (Same Series)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm probe, unarmored | 1.0 m | 0.323 kg |
| 330101-00-12-10-02-00 | 8 mm probe, unarmored | 1.2 m | ~0.38 kg |
| 330102-00-08-10-02-00 | 8 mm probe, armored | 1.0 m | ~0.45 kg |
| 330103-00-04-10-02-00 | Metric M10x1 thread, unarmored | 1.0 m | ~0.32 kg |
| 330104-00-06-10-02-00 | Metric M10x1 thread, armored | 1.0 m | ~0.43 kg |
| 330105-02-12-10-02-00 | Reverse mount, UNF thread, unarmored | 1.0 m | ~0.34 kg |
