Product Introduction

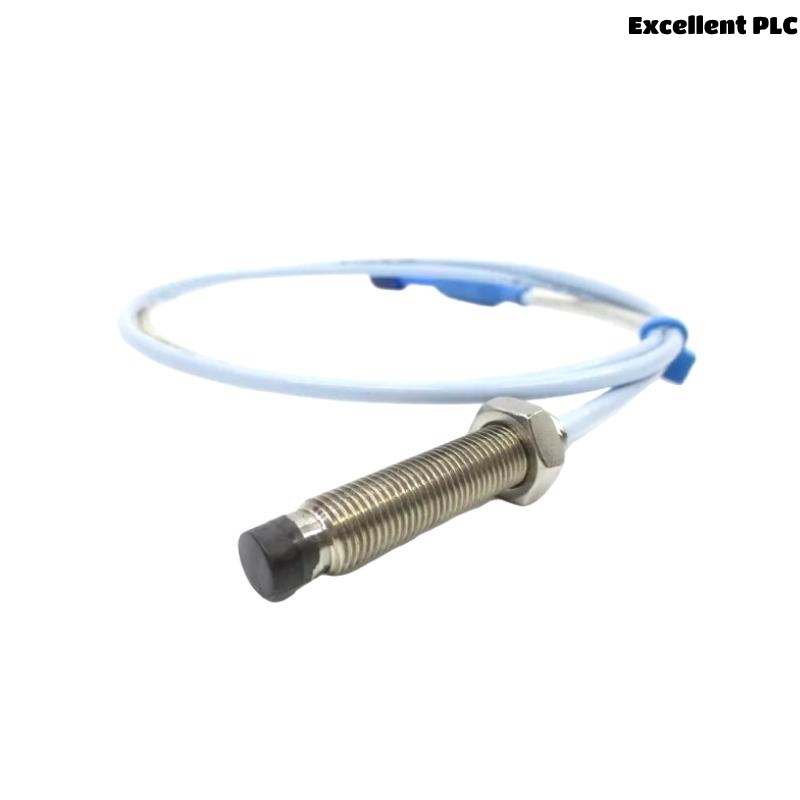

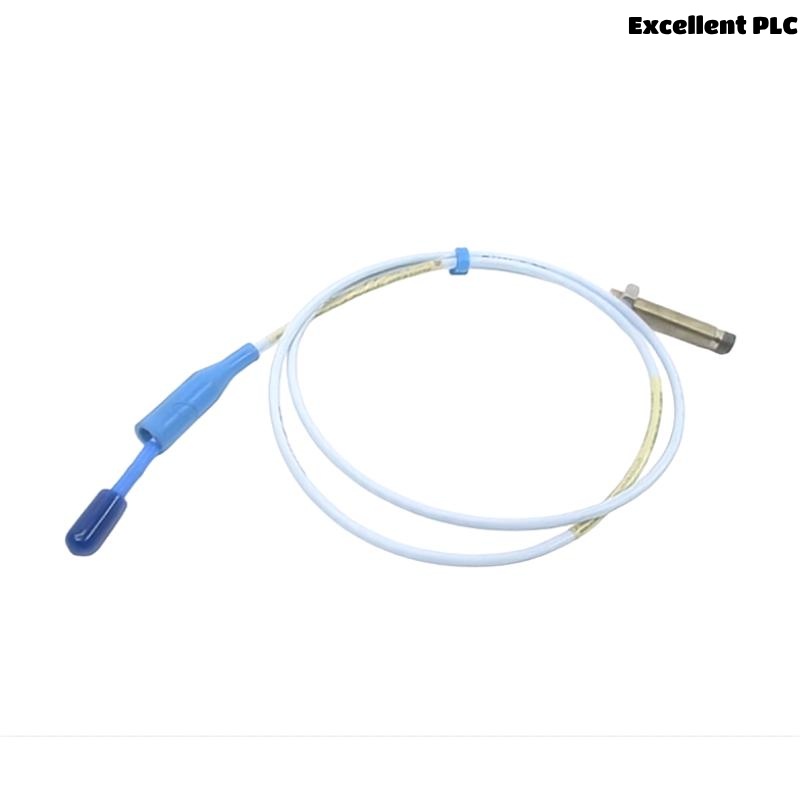

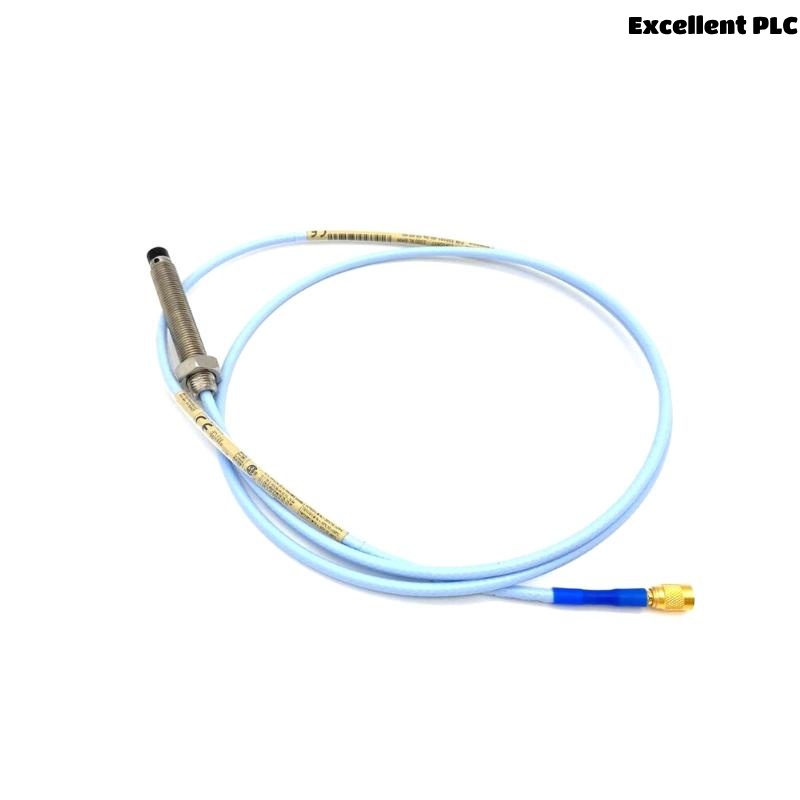

The Bently Nevada 330101-00-55-05-02-05 3300 XL 8mm Proximity Probe is a key component in vibration and proximity measurement systems, designed for use in critical industrial machinery applications. Bently Nevada, a leading brand in asset protection and condition monitoring solutions, has engineered the 3300 XL proximity probe series for high-precision, reliable performance.
The 3300 XL 8mm proximity probe is specifically designed to measure the displacement or vibration of rotating machinery components, including shafts, bearings, and other critical parts. This probe offers high accuracy and is highly effective in detecting early signs of mechanical wear, misalignment, or imbalance within industrial machines. The probe’s small 8mm diameter allows for easy integration into machinery where space is limited, making it ideal for use in compact systems.
The 3300 XL 8mm Proximity Probe is compatible with the Bently Nevada 3300 series monitoring systems, providing real-time data to ensure operational efficiency, minimize downtime, and enhance the longevity of industrial assets.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-55-05-02-05 |
| Type | 3300 XL 8mm Proximity Probe |
| Measurement Type | Shaft displacement or vibration |
| Probe Diameter | 8mm |
| Total Length | 0.5 meter |
| Output Signal | Linear 4-20 mA or 0-10 V DC |
| Temperature Range | -40°C to +120°C (Operating) |
| Weight | 0.161 kg |
| Mounting | 1/2-20 UNF thread mount |
| Maximum Vibration Velocity | 10 ips (254 mm/s) |
| Sensitivity | 1.0 mm/mV (typical) |
| Insulation Resistance | 100 MΩ @ 500 V DC |
| Environmental Protection | IP65 (Water-resistant) |
| Connection Type | 2-wire, 3-wire (depending on model) |
| Certification | CE, UL, RoHS |
| Compatibility | Compatible with Bently Nevada 3300 series monitoring systems |
Product Applications
The Bently Nevada 330101-00-55-05-02-05 3300 XL 8mm Proximity Probe is widely used across various industries where vibration monitoring and shaft displacement measurements are critical to ensuring operational efficiency and preventing equipment failure. Its primary applications include:
-
Rotating Machinery Monitoring: Used to monitor rotating components such as shafts, motors, and turbines, the probe detects displacement, vibration, and misalignment.
-
Condition Monitoring: Ideal for integrating into machinery monitoring systems to track the health of equipment, detect early signs of damage, and optimize maintenance schedules.
-
Power Generation: Used to monitor turbine and generator components in power plants, ensuring that critical machinery operates within safe parameters.
-
Oil & Gas: Utilized in drilling rigs, compressors, and pumps to measure the health of rotating machinery and avoid unplanned downtime.
-
Compressor and Pump Systems: Provides accurate displacement readings to detect wear, misalignment, or imbalance, which can help in predicting failures.
-
Industrial Manufacturing: Used in high-precision machinery in manufacturing plants, detecting changes in vibration that might signal mechanical failures.
-
Transportation: Applied in trains, ships, and aviation engines for ensuring the accurate tracking of engine performance, vibration levels, and displacement.
Product Advantages
-
High Accuracy and Precision: The 3300 XL 8mm probe provides precise measurements of shaft displacement and vibration, helping detect subtle mechanical issues before they cause damage.
-
Compact Design: The 8mm probe diameter allows for easy integration into tight spaces within machinery, making it a versatile solution for compact industrial systems.
-
Durability: Built to withstand harsh environments, this proximity probe is capable of operating in high-temperature and high-vibration conditions, ensuring consistent performance over time.
-
Wide Temperature Range: With a temperature range of -40°C to +120°C, the probe is suitable for use in both extreme cold and high heat, making it ideal for diverse industrial settings.
-
High Sensitivity: The probe offers excellent sensitivity of 1.0 mm/mV, allowing it to detect even the smallest mechanical misalignments or imbalance in rotating machinery.
-
Easy Integration: Compatible with the Bently Nevada 3300 series monitoring systems, the probe can be seamlessly integrated into existing monitoring setups.
-
Environmental Protection: With an IP65 rating, the probe is resistant to dust and water, ensuring reliable operation even in challenging environmental conditions.
-
Long Lifespan: Designed for long-term performance, the probe is constructed with durable materials that ensure a long service life, reducing the need for frequent replacements.
-
Real-time Monitoring: The 3300 XL proximity probe provides real-time measurements of vibration and displacement, allowing for immediate action to prevent system failures.
-
Cost-Effective: The probe helps reduce maintenance costs by identifying problems early, preventing expensive repairs, and reducing system downtime.
Frequently Asked Questions (FAQ)
-
Q: What is the operating temperature range of the 3300 XL 8mm Proximity Probe?
A: The operating temperature range is -40°C to +120°C, making it suitable for a variety of industrial environments. -
Q: What is the output signal from the probe?
A: The probe provides a linear 4-20 mA or 0-10 V DC output signal, depending on the model. -
Q: How long is the total length of the 3300 XL 8mm probe?
A: The total length is 0.5 meter. -
Q: What is the diameter of the 3300 XL 8mm probe?
A: The probe has a diameter of 8mm, making it suitable for tight installations. -
Q: Is the 3300 XL probe resistant to harsh environments?
A: Yes, it has an IP65 rating, which makes it resistant to dust and water. -
Q: What type of mounting does the probe use?
A: The probe uses a 1/2-20 UNF thread mount for secure installation. -
Q: What is the weight of the 3300 XL 8mm proximity probe?
A: The probe weighs 0.161 kg. -
Q: What is the sensitivity of the probe?
A: The probe has a sensitivity of 1.0 mm/mV (typical). -
Q: Can the 3300 XL 8mm probe be used in power generation systems?
A: Yes, it is widely used in power generation plants to monitor turbines and generator components. -
Q: Does the probe provide real-time data?
A: Yes, the 3300 XL proximity probe provides real-time displacement and vibration measurements, ensuring immediate detection of any issues.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| 330101-00-55-05-02-06 | 3300 XL 8mm Proximity Probe (Extended Cable) | Extended cable length for larger installations |
| 330101-00-55-10-02-05 | 3300 XL 5mm Proximity Probe | Smaller diameter probe for tighter installations |
| 330101-00-55-05-02-07 | 3300 XL 8mm Proximity Probe (High Sensitivity) | Higher sensitivity for more precise measurements |
| 330101-00-55-05-02-08 | 3300 XL 8mm Proximity Probe (Low Temperature) | Designed for low temperature environments |
| 330101-00-55-05-02-09 | 3300 XL 8mm Proximity Probe (Heavy Duty) | Reinforced construction for extreme conditions |
| 330101-00-55-05-02-10 | 3300 XL 8mm Proximity Probe (With Digital Output) | Provides digital signal output for modern systems |
Popular Bently Nevada Brand Models
| Model Number | Description | Application Focus |
|---|---|---|
| 3500/42M | Machinery Monitoring System | Condition monitoring for turbines, compressors, and pumps |
| 3300 XL 5mm | Proximity Probe | Vibration and shaft displacement measurement |
| 3500/72 | Vibration Monitor | For monitoring vibration in rotating machinery |
| 3300 XL 11mm | Proximity Probe | Shaft displacement monitoring with higher clearance |
| 3500/53 | Proximity Proximity System | Used for accurate displacement monitoring in high-speed applications |
| 3500/22M | Accelerometer | Vibration sensor for machinery monitoring |
