Product Introduction

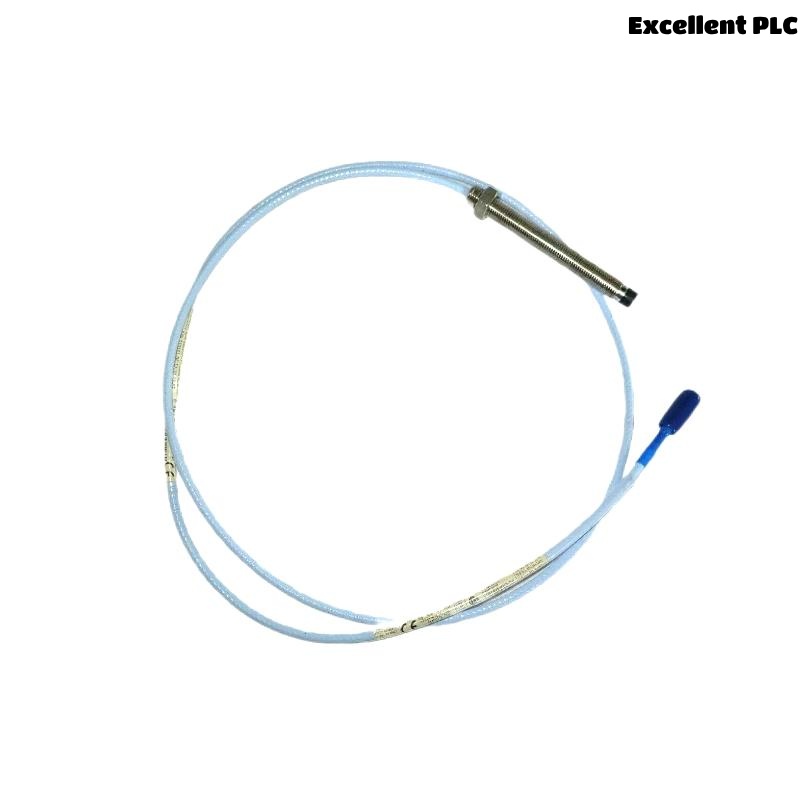

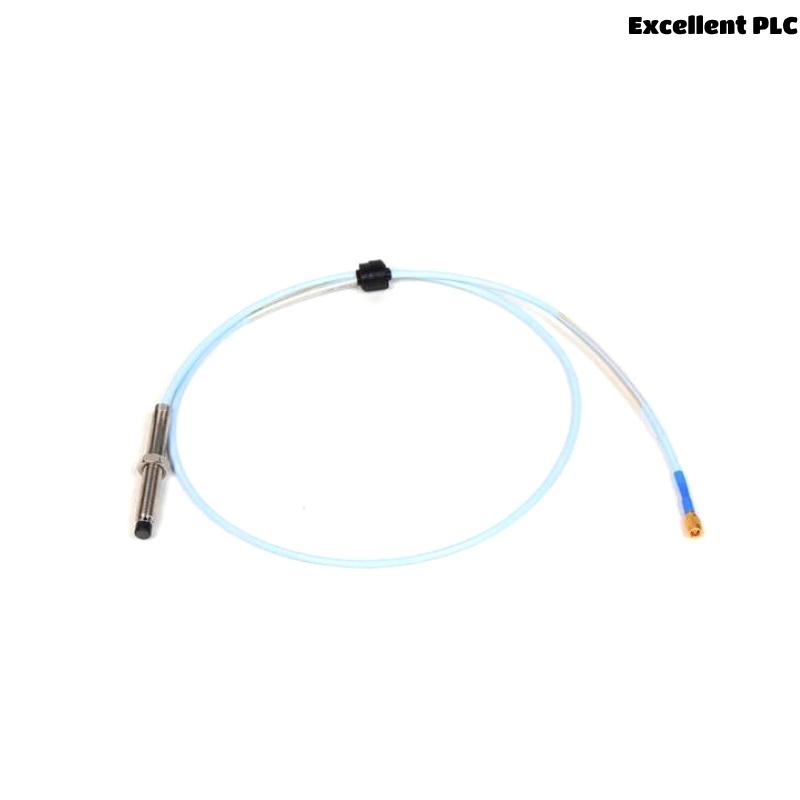

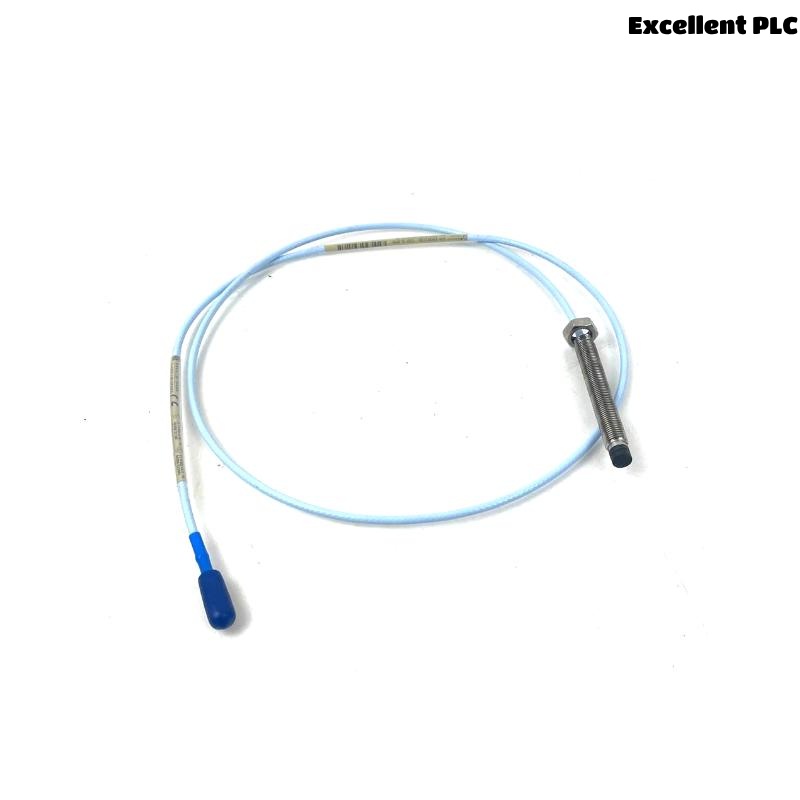

The Bently Nevada 330101-00-60-10-02-00 is part of the widely trusted 3300 XL 8mm Proximity Transducer System manufactured by Bently Nevada, a GE company renowned for condition monitoring and protection of rotating machinery. This particular probe is engineered to provide highly reliable, accurate non-contact vibration and position measurements in harsh industrial environments.
As a key component of the 3300 XL system, the 330101-00-60-10-02-00 probe utilizes eddy current technology to detect changes in the position of a conductive target relative to the probe tip. It is optimized for machinery such as turbines, compressors, pumps, and gearboxes.
Designed with rugged construction, an 8 mm tip, and superior shielding, it offers high immunity to electrical interference and long-term stability, making it ideal for mission-critical applications.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | 330101-00-60-10-02-00 |
| Series | 3300 XL 8mm |
| Tip Diameter | 8 mm (0.315 in) |
| Tip Style | Flush-mounted |
| Sensing Principle | Eddy current |
| Measurement Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 mils to 80 mils) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) ±5% |
| System Accuracy | ±0.07 mm (±2.8 mils) or 2% of full scale, whichever is greater |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Total Length | 1.0 meter |
| Connector Type | ClickLoc® coaxial connector |
| Mounting Thread | 3/8-24 UNF-2A |
| Weight | 0.323 kg |
| Probe Material | AISI 303 stainless steel |
| Insulation Resistance | >10 GΩ at 500 VDC |
| Compliance | CE, RoHS, ATEX, CSA, IECEx certified |
Applications
The Bently Nevada 330101-00-60-10-02-00 proximity probe is widely used in industrial environments that demand precise and reliable shaft vibration and position monitoring. Typical applications include:
-
Steam turbines – to monitor shaft displacement and radial vibration.
-
Gas turbines – for rotor position tracking.
-
Centrifugal compressors – to ensure operational integrity.
-
Electric motors and generators – for end-to-end vibration surveillance.
-
Pumps and fans – where cavitation or imbalance can be detected early.
-
Gearboxes – for misalignment and gear wear monitoring.
This probe is particularly valuable in predictive maintenance programs, reducing unplanned shutdowns and extending machine life.
Advantages
-
Robust Construction: Engineered with stainless steel housing and superior cable insulation to withstand demanding industrial conditions.
-
Precision Measurement: Delivers highly accurate and repeatable displacement readings, even under high-speed and high-temperature environments.
-
Reliable Connectivity: Features a ClickLoc® connector system that provides positive engagement and resists loosening due to vibration.
-
Long-Term Stability: Proven long-term calibration stability reduces the need for frequent recalibration.
-
Electromagnetic Immunity: Enhanced shielding design ensures accurate readings in electrically noisy environments.
-
Modular System Compatibility: Seamlessly integrates with 3300 XL extension cables and Proximitor® sensors for customized setups.
Frequently Asked Questions (FAQ)
-
What is the main function of the 330101-00-60-10-02-00 probe?
It measures the proximity (displacement) of a conductive target such as a rotating shaft, commonly used in vibration monitoring. -
Can this probe be used in high-temperature applications?
Yes, it supports operations up to +177°C (350°F), suitable for many high-temperature industrial environments. -
Is the probe compatible with all Bently Nevada Proximitor sensors?
It is designed for compatibility with 3300 XL Proximitor® sensors specifically. -
What is the difference between this model and a 5 mm probe?
The 8 mm probe provides a wider linear range and higher durability in certain applications compared to the 5 mm version. -
Does the probe come with a cable attached?
Yes, this variant includes a 1.0 meter Total Length with a ClickLoc® connector. -
How is the probe mounted to the equipment?
It is typically mounted using the 3/8-24 UNF-2A thread, often into a probe holder or bracket. -
Is this probe suitable for hazardous locations?
Yes, it meets various hazardous location certifications such as ATEX and IECEx. -
Can the probe cable be extended or replaced?
Cable extensions can be achieved using 3300 XL extension cables, but original Bently Nevada parts are recommended. -
How often should the system be recalibrated?
The 3300 XL system is known for long-term stability, though annual verification is a good maintenance practice. -
What happens if the probe is exposed to oil or water?
The probe is sealed and resistant to oil and moisture intrusion, suitable for use in such environments.
