Product Overview

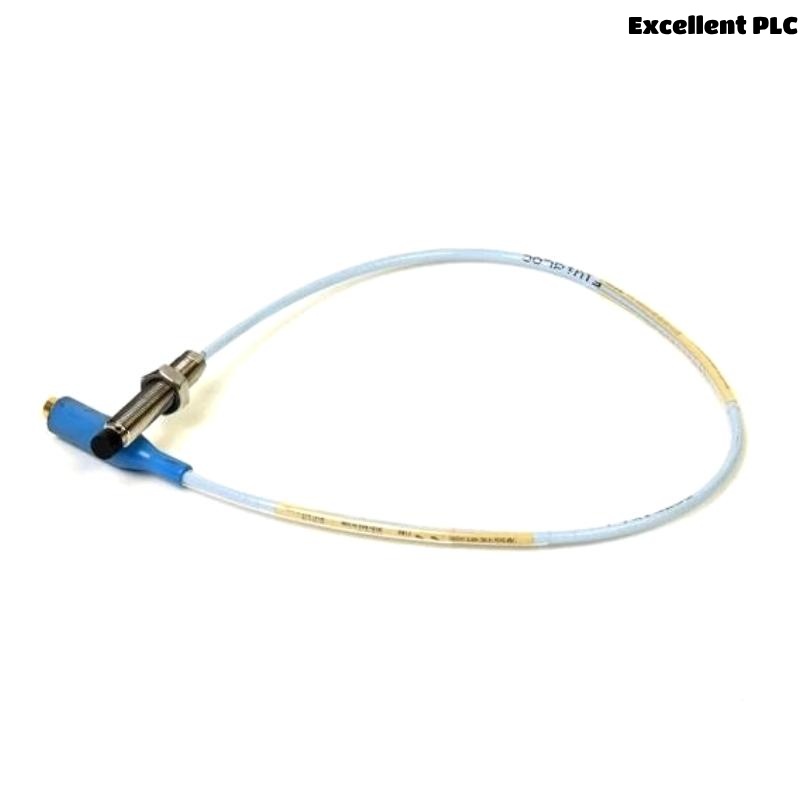

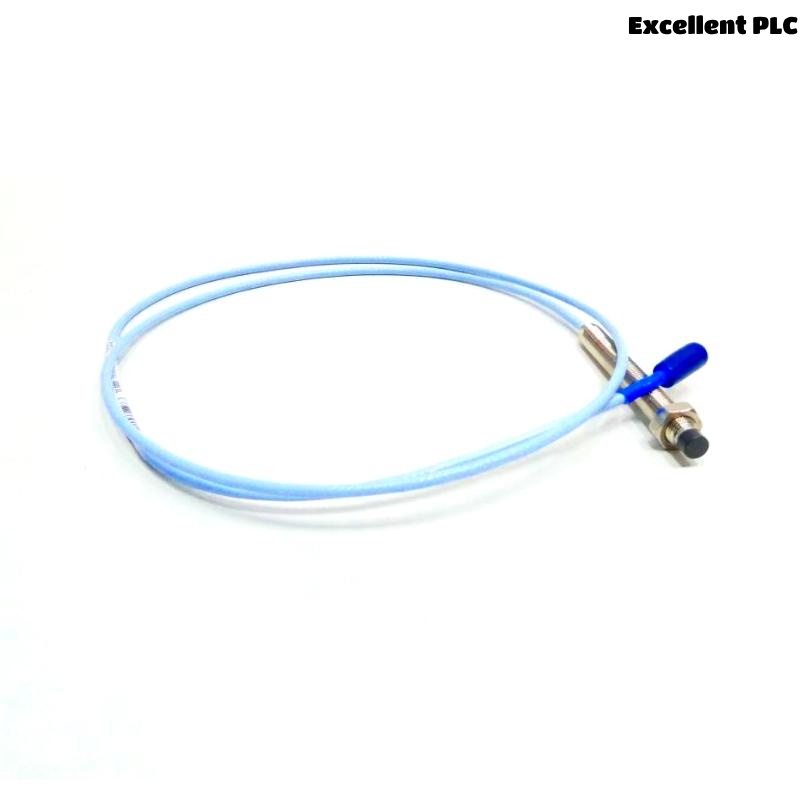

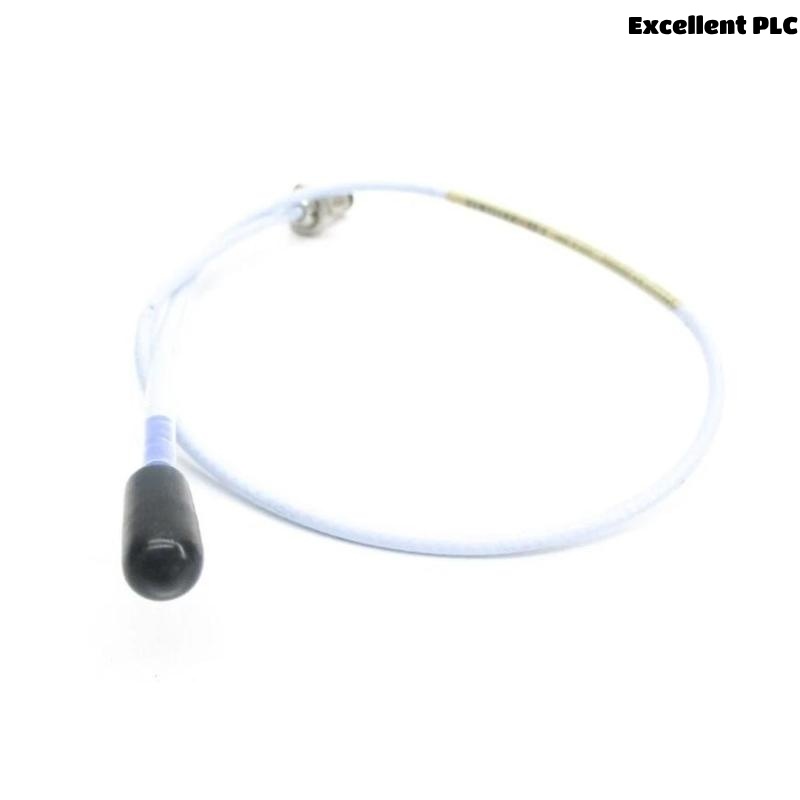

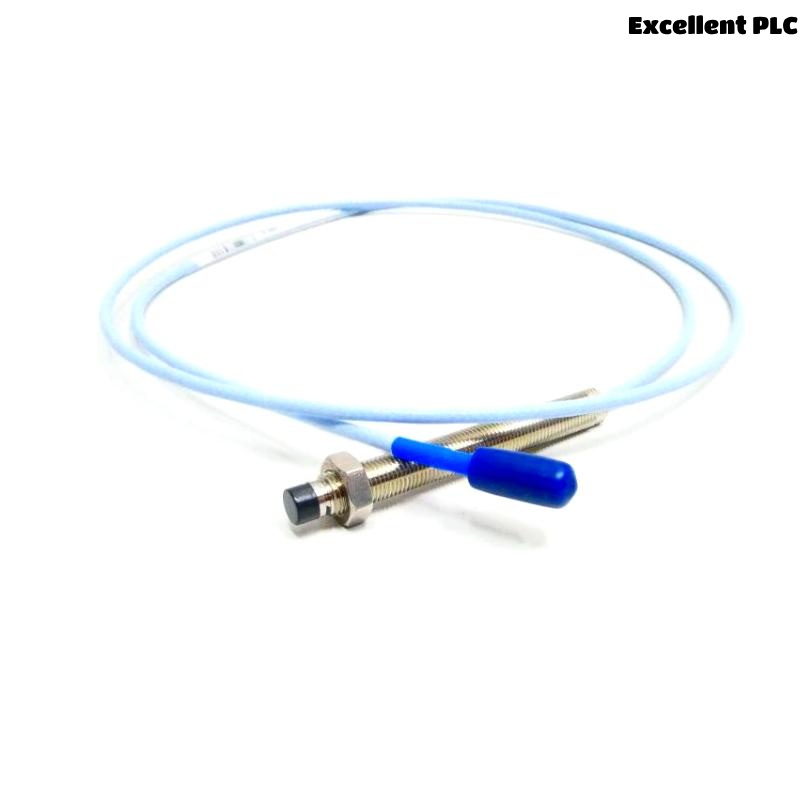

The Bently Nevada 330101-00-68-10-12-05 is an 8 mm 3300 XL Proximity Probe designed for accurate vibration measurement in rotating machinery. Known for its reliability and durability, it delivers precise proximity and shaft vibration monitoring, supporting predictive maintenance and machinery protection.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-68-10-12-05 |
| Probe Type | 8 mm Proximity Probe |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Sensor Diameter | 8 mm |
| Cable Length | Standard 1.0 meter |
| Operating Temperature | -40°C to 120°C |
| Output Signal | AC Voltage Proximity Signal |
| Connector Type | 2-pin connector |
Applications
-
Monitoring vibration on turbines, compressors, pumps, and generators
-
Shaft displacement and position measurement
-
Detecting early signs of machinery failure
-
Used in industries such as power generation, oil & gas, and manufacturing
Advantages
-
High accuracy with stable readings
-
Rugged design for harsh environments
-
Easy installation with standard connectors
-
Long cable options available for flexibility
-
Compatible with Bently Nevada 3300 XL systems for seamless integration
Frequently Asked Questions (FAQ)
1. What is the sensing distance of this probe?
It is designed for a standard sensing gap suitable for 8 mm probes, typically around 0.5 to 2 mm depending on the application.
2. Can this probe be used in high-temperature environments?
Yes, it operates reliably up to 120°C.
3. Is the cable length customizable?
Yes, custom cable lengths can be ordered based on installation needs.
4. What kind of output signal does this probe produce?
It provides an AC voltage proximity signal compatible with Bently Nevada monitoring systems.
5. How do I install the probe correctly?
Installation requires mounting the probe close to the shaft with proper gap spacing and securing the cable to avoid movement.
6. Is this probe compatible with all 3300 XL systems?
Yes, it is fully compatible with the 3300 XL series monitoring systems.
7. What maintenance is required?
Regular visual inspections and cleaning are recommended to ensure sensor accuracy.
8. How do I identify if the probe is faulty?
Abnormal readings or signal loss indicate potential probe failure requiring inspection or replacement.
9. Can this probe measure axial movement?
It is mainly designed for radial proximity measurement, not axial movement.
10. Are there accessories available for this probe?
Yes, mounting brackets and cable extensions are available for ease of installation.
