Product Introduction

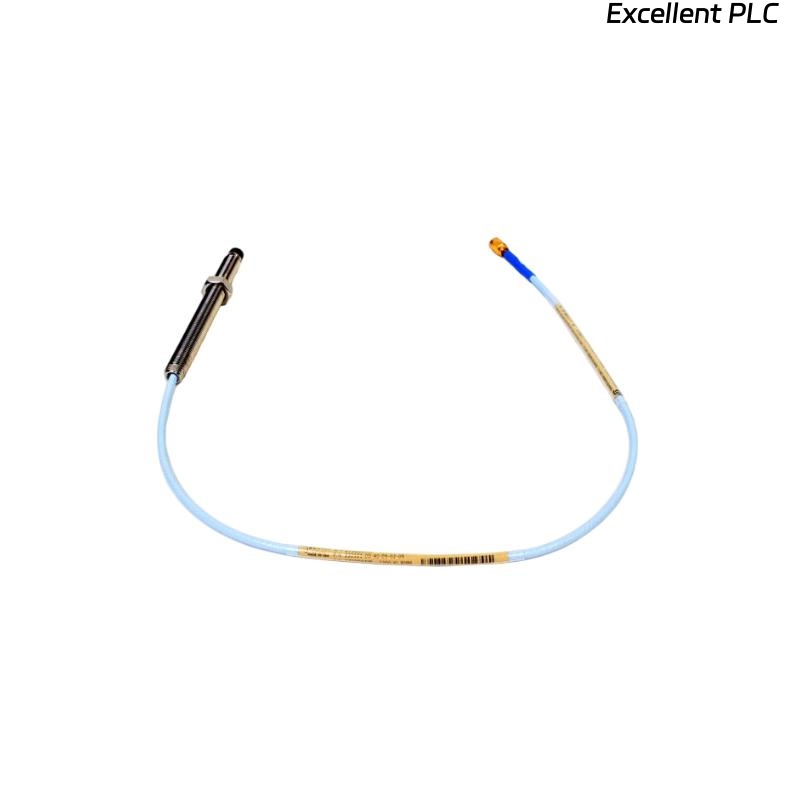

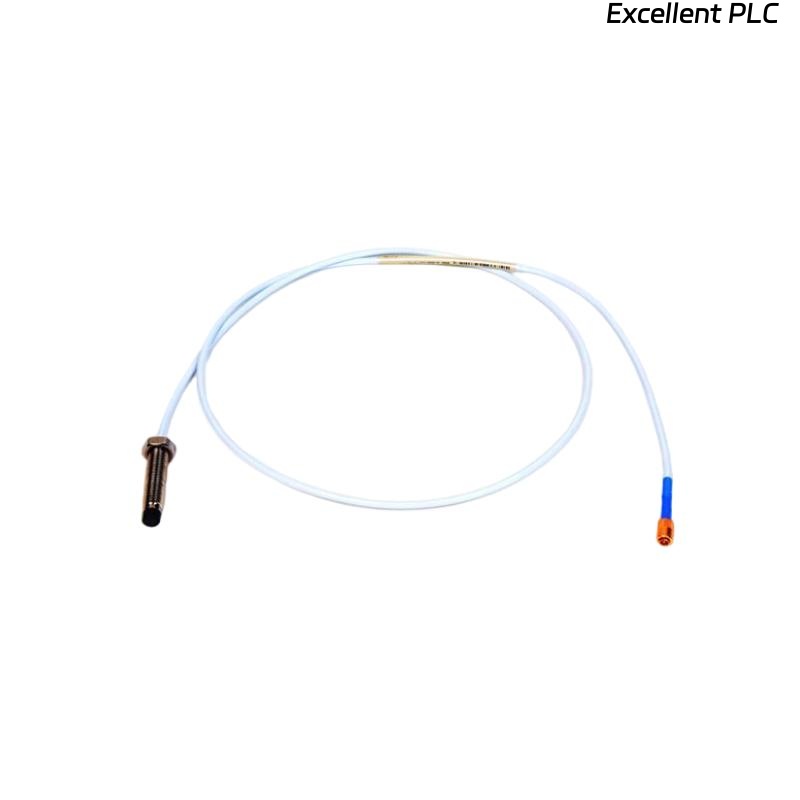

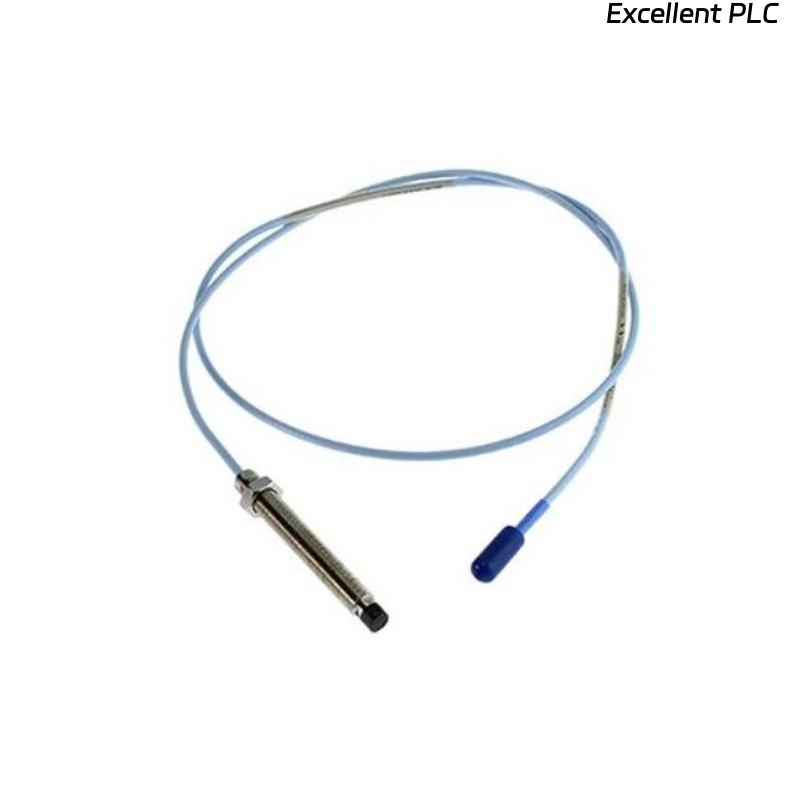

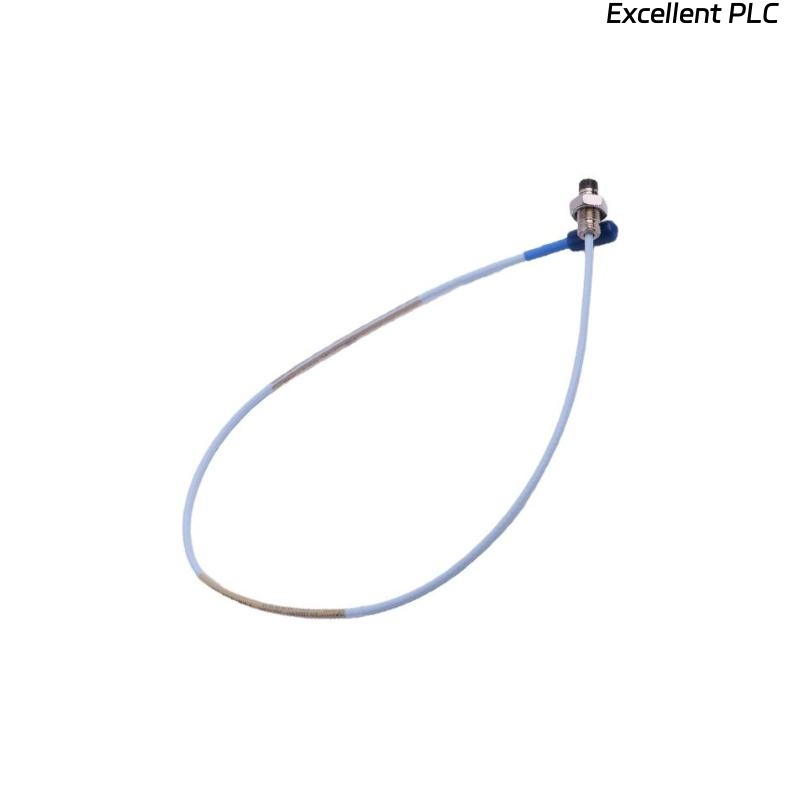

The Bently Nevada 330101-01-13-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed to monitor the condition of rotating machinery. Part of the 3300 XL Series, this probe uses eddy-current displacement sensing to provide accurate measurements of shaft displacement and vibration.
It is widely used in turbines, generators, compressors, and pumps. The probe’s rugged construction ensures reliable performance even in harsh industrial environments. Its compact design allows flexible integration with existing monitoring systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330101-01-13-05-01-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Sensor |
| Measurement Range | ±1.5 mm typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5 μm/V |
| Temperature Range | –20°C to +120°C |
| Material | Stainless steel probe tip and housing |
| Cable Length | Total Length: 0.5 meter |
| Weight | 0.162 kg |
| Output | AC displacement signal |
| Mounting Type | Threaded or clamp mounting |
Applications
-
Rotating Machinery Monitoring: Turbines, generators, compressors, and pumps.
-
Vibration Analysis: Detects small vibration patterns for predictive maintenance.
-
Shaft Position Measurement: Measures displacement and shaft runout.
-
Condition-Based Maintenance: Enables maintenance planning based on real-time data.
-
Industrial Automation: Integration with SCADA and DCS systems for continuous monitoring.
-
Critical Equipment Safety: Early detection of abnormal behavior to prevent damage.
Product Advantages
-
High Precision: Detects minute displacement and vibration changes accurately.
-
Reliable in Harsh Conditions: Resistant to high temperature, vibration, and industrial contaminants.
-
Wide Frequency Response: Supports a broad range of rotational speeds.
-
Easy Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Durable Construction: Stainless steel housing and robust cabling ensure long-term reliability.
-
Supports Predictive Maintenance: Enables early fault detection and reduces downtime.
FAQ
-
Q: What is the sensing principle of this probe?
A: It uses eddy-current displacement sensing. -
Q: Can it be used with 3300 XL monitoring systems?
A: Yes, it is fully compatible with 3300 XL series. -
Q: What is the nominal measurement range?
A: ±1.5 mm typical displacement. -
Q: What is the frequency response of the probe?
A: DC to 10 kHz. -
Q: Can it operate in high-temperature environments?
A: Yes, from –20°C to +120°C. -
Q: What type of output signal does it provide?
A: AC displacement signal. -
Q: How is the probe mounted?
A: Threaded or clamp mounting is supported. -
Q: Can it monitor both vibration and shaft position?
A: Yes, it measures both for predictive maintenance. -
Q: Which industries commonly use this probe?
A: Power generation, petrochemical, oil & gas, and heavy industrial machinery. -
Q: Is it resistant to industrial contaminants?
A: Yes, stainless steel housing and cabling protect against dust, oil, and moisture.
