Product Introduction

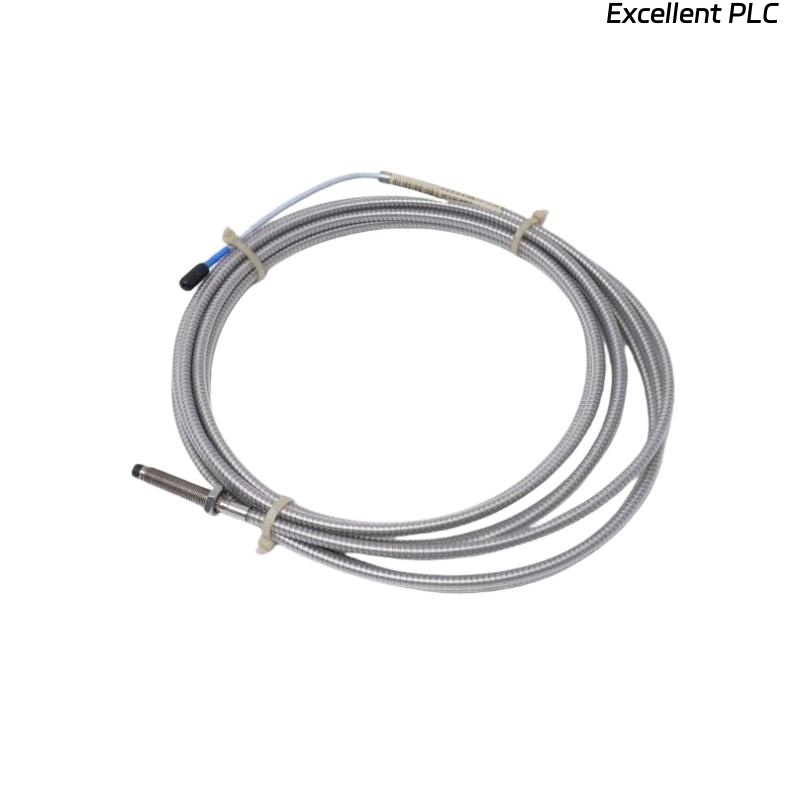

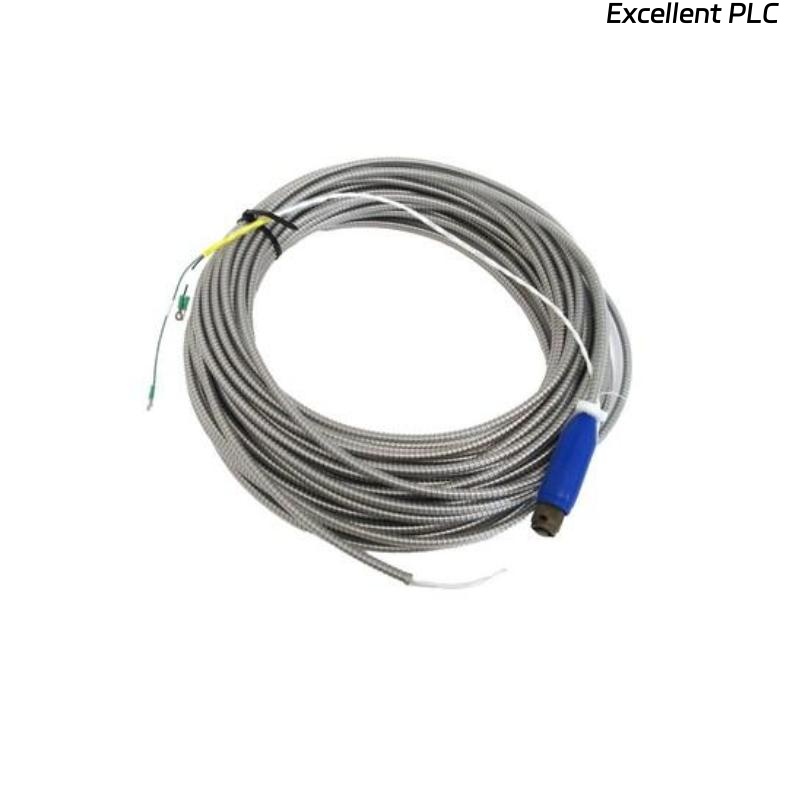

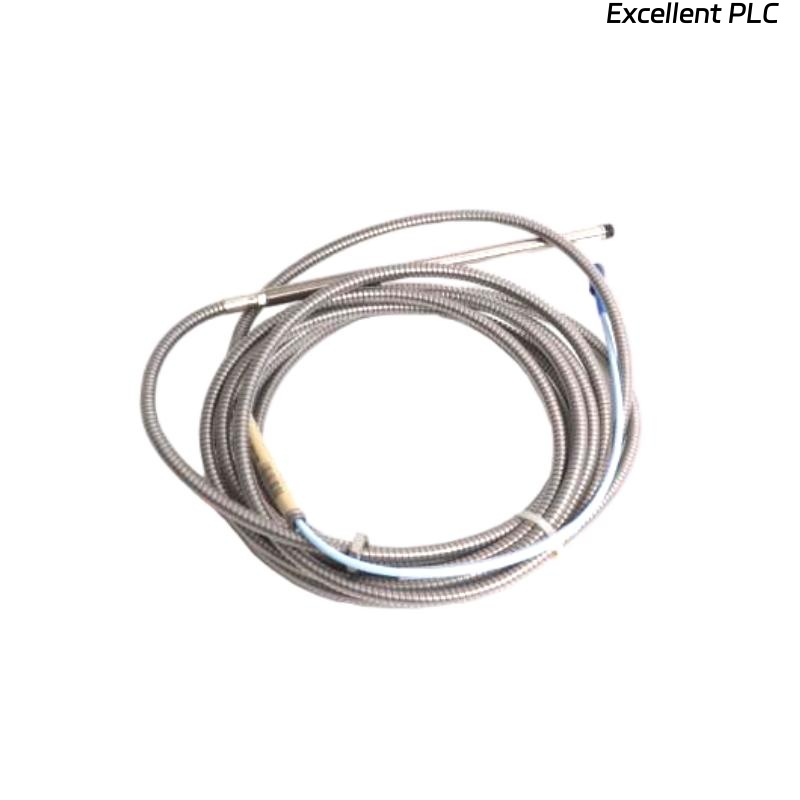

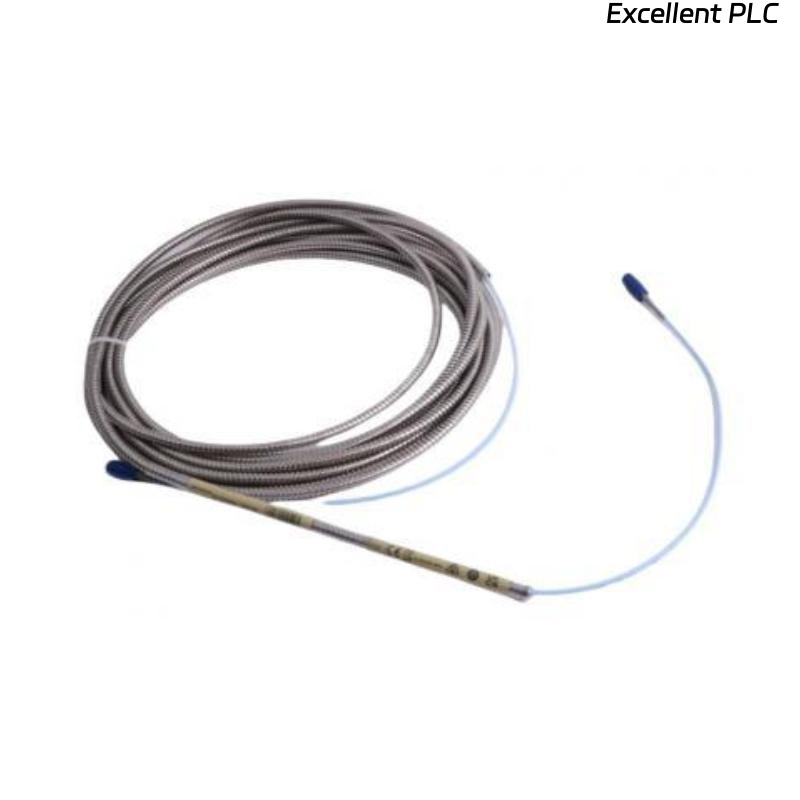

The Bently Nevada 330101-01-06-50-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for continuous monitoring of rotating machinery. Part of the 3300 XL Series, this probe utilizes eddy-current displacement technology to measure shaft position and vibration with exceptional accuracy.
Its robust design ensures reliable operation in industrial environments such as power plants, refineries, and heavy machinery facilities. The probe is ideal for applications requiring long cable lengths while maintaining measurement integrity and signal stability.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330101-01-06-50-02-05 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Sensor |
| Measurement Range | ±1.5 mm typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5 μm/V |
| Temperature Range | –20°C to +120°C |
| Material | Stainless steel probe tip and housing |
| Cable Length | Total Length: 5.0 meter |
| Weight | 1.615 kg |
| Output | AC displacement signal |
| Mounting Type | Threaded or clamp mounting |
Applications
-
Rotating Machinery Monitoring: Turbines, generators, compressors, and pumps.
-
Vibration Analysis: Detects subtle vibration patterns for predictive maintenance.
-
Shaft Position Measurement: Measures displacement and shaft runout.
-
Condition-Based Maintenance: Enables real-time monitoring for maintenance planning.
-
Industrial Automation: Integrates with SCADA or DCS systems for continuous monitoring.
-
Critical Equipment Safety: Provides early detection of abnormal shaft behavior to prevent damage.
Product Advantages
-
High Precision: Detects minute shaft displacement accurately.
-
Reliable in Harsh Environments: Resistant to heat, vibration, and industrial contaminants.
-
Wide Frequency Response: Supports a broad range of rotational speeds.
-
Long Cable Support: Maintains signal integrity over extended cable lengths.
-
Easy Integration: Fully compatible with 3300 XL Series monitoring systems.
-
Durable Construction: Stainless steel housing and reinforced cabling ensure long-term reliability.
FAQ
-
Q: What is the sensing principle of this probe?
A: It uses eddy-current displacement sensing. -
Q: Can it be used with 3300 XL vibration monitoring systems?
A: Yes, it is fully compatible with the 3300 XL series. -
Q: What is the nominal measurement range?
A: ±1.5 mm typical displacement. -
Q: What is the frequency response of the probe?
A: DC to 10 kHz. -
Q: Can it operate in high-temperature environments?
A: Yes, from –20°C to +120°C. -
Q: What type of output signal does it provide?
A: AC displacement signal. -
Q: How is the probe mounted?
A: Threaded or clamp mounting is supported. -
Q: Can it monitor both vibration and shaft position?
A: Yes, it measures both for predictive maintenance. -
Q: Which industries commonly use this probe?
A: Power generation, petrochemical, oil & gas, and heavy industrial machinery. -
Q: Is it resistant to industrial contaminants?
A: Yes, stainless steel housing and reinforced cabling protect against dust, oil, and moisture.
