Product Introduction

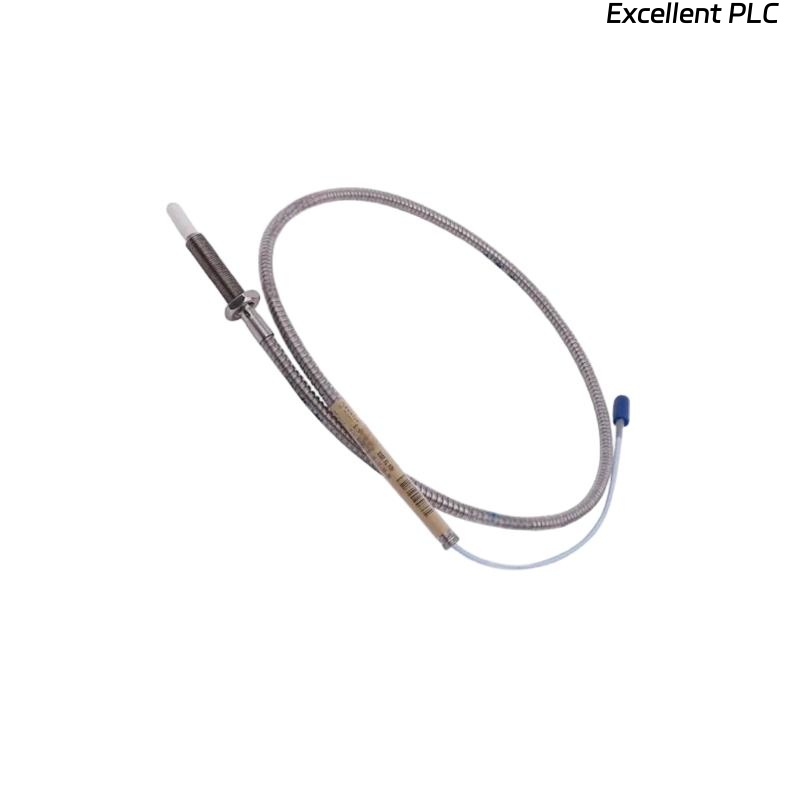

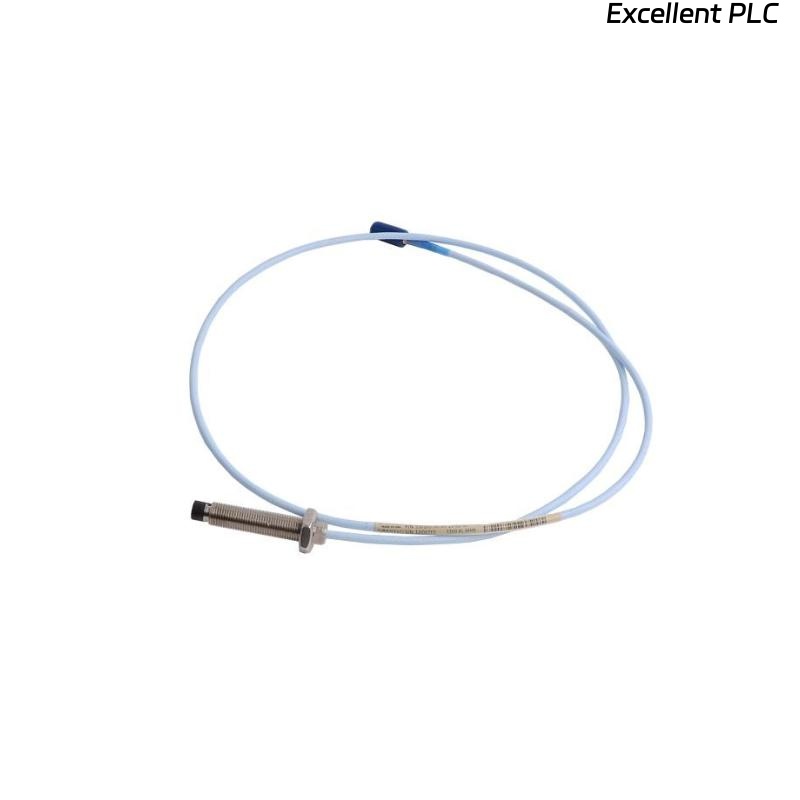

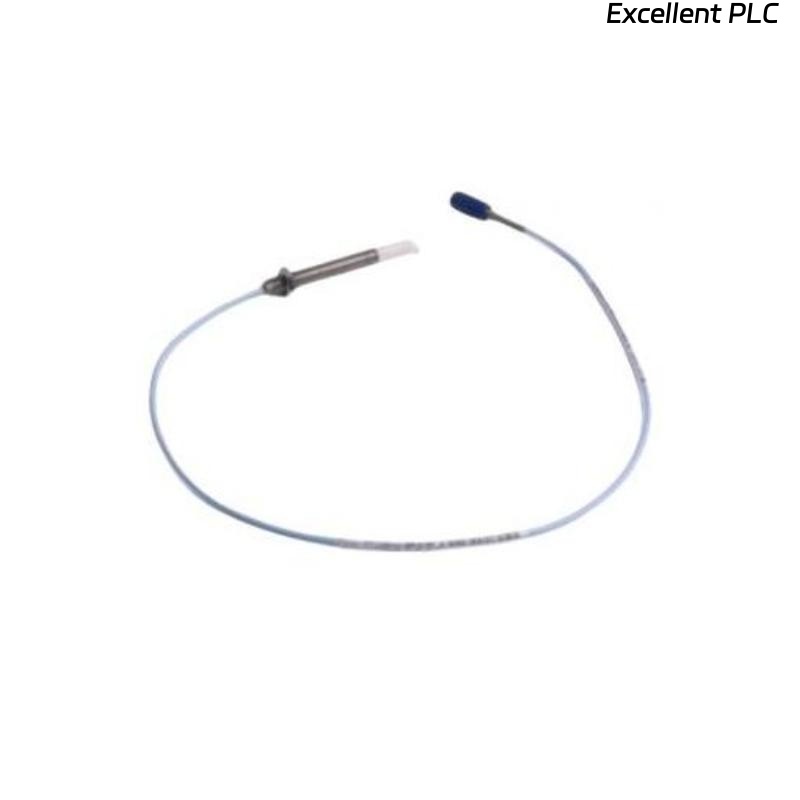

The Bently Nevada 330101-02-12-10-02-00 is an 8 mm proximity probe designed for the 3300 XL series, providing precise shaft position and vibration measurements in rotating machinery.
It utilizes eddy-current displacement technology to deliver accurate and reliable data essential for predictive maintenance and condition monitoring.
This probe is part of the 3300 XL Proximity Transducer System, which includes the probe, extension cable, and Proximitor® Sensor, ensuring seamless integration and compliance with API 670 standards.
The system ensures proper mechanical configuration, linear range, accuracy, and temperature stability across industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330101-02-12-10-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Sensor |
| Measurement Range | ±1.5 mm typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5 μm/V |
| Temperature Range | –20°C to +120°C |
| Cable Length | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Output | AC displacement signal |
| Mounting Type | Non-threaded, ClickLoc™ mini coax connector |
Applications
-
Rotating Machinery Monitoring: Ideal for turbines, generators, compressors, and pumps.
-
Vibration Analysis: Detects subtle vibration patterns for predictive maintenance.
-
Shaft Position Measurement: Measures displacement and shaft runout.
-
Condition-Based Maintenance: Enables real-time monitoring for maintenance planning.
-
Industrial Automation: Integrates with SCADA or DCS systems for continuous monitoring.
-
Critical Equipment Safety: Provides early detection of abnormal shaft behavior to prevent damage.
Product Advantages
-
High Precision: Detects minute shaft displacement accurately.
-
Reliable in Harsh Environments: Resistant to heat, vibration, and industrial contaminants.
-
Wide Frequency Response: Supports a broad range of rotational speeds.
-
Long Cable Support: Maintains signal integrity over extended cable lengths.
-
Easy Integration: Fully compatible with 3300 XL Series monitoring systems.
-
Durable Construction: Stainless steel housing and reinforced cabling ensure long-term reliability.
FAQ
-
Q: What is the sensing principle of this probe?
A: It uses eddy-current displacement sensing. -
Q: Can it be used with 3300 XL vibration monitoring systems?
A: Yes, it is fully compatible with the 3300 XL series. -
Q: What is the nominal measurement range?
A: ±1.5 mm typical displacement. -
Q: What is the frequency response of the probe?
A: DC to 10 kHz. -
Q: Can it operate in high-temperature environments?
A: Yes, from –20°C to +120°C. -
Q: What type of output signal does it provide?
A: AC displacement signal. -
Q: How is the probe mounted?
A: Non-threaded mounting with ClickLoc™ mini coax connector. -
Q: Can it monitor both vibration and shaft position?
A: Yes, it measures both for predictive maintenance. -
Q: Which industries commonly use this probe?
A: Power generation, petrochemical, oil & gas, and heavy industrial machinery. -
Q: Is it resistant to industrial contaminants?
A: Yes, the stainless steel housing and reinforced cabling protect against dust, oil, and moisture.
