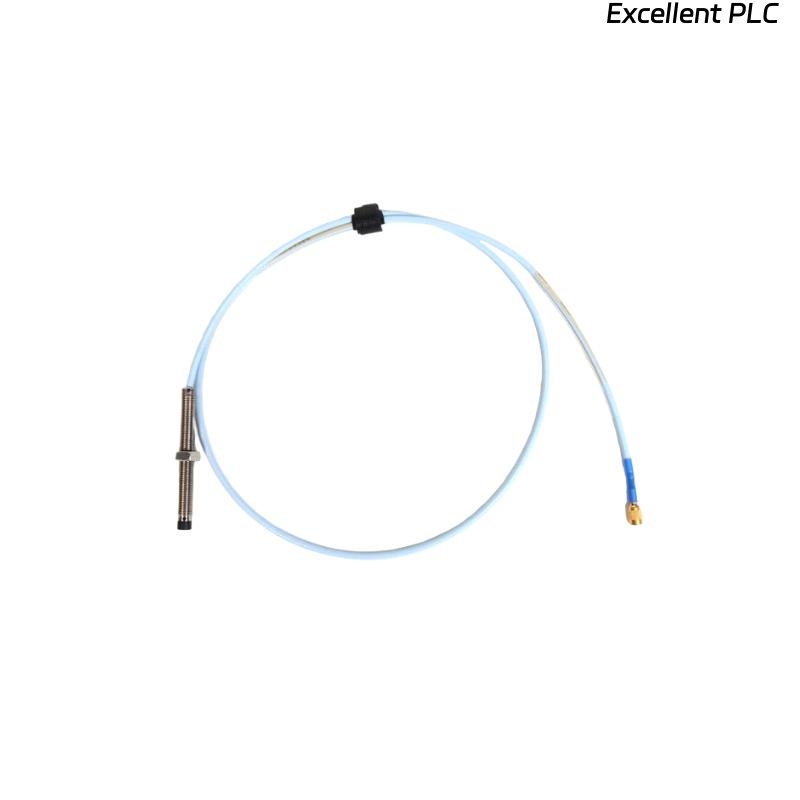

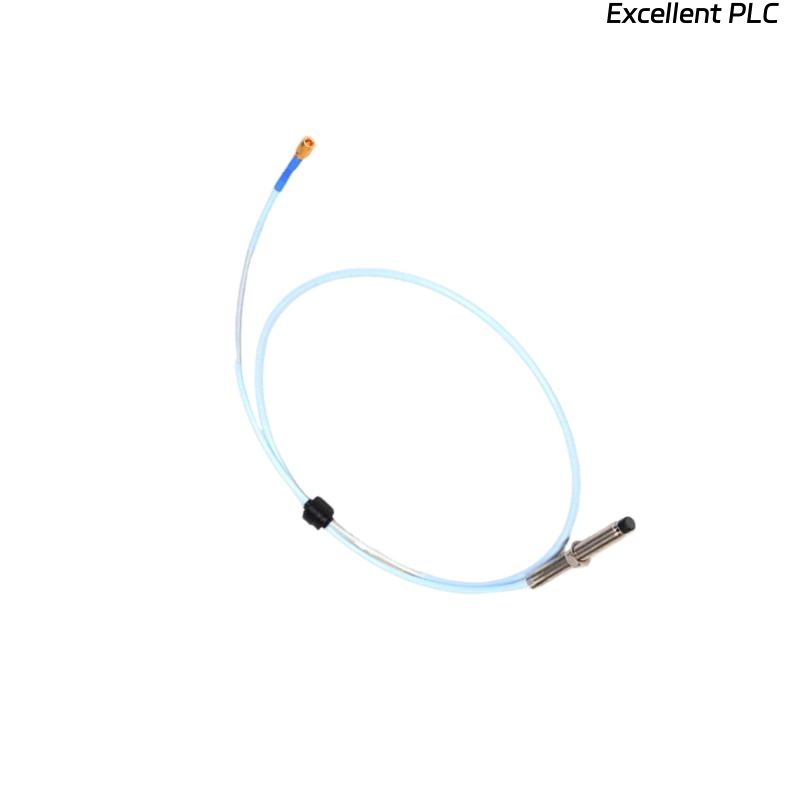

Bently Nevada 330101-02-21-10-01-00 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 3300 XL 8 mm proximity probe is a critical component in monitoring rotating machinery, providing real-time measurements of shaft displacement to ensure machinery health and prevent failures. With an 8 mm diameter, it is designed for high-speed applications, offering exceptional accuracy and reliability in demanding environments.

Technical Specifications

Applications

The Bently Nevada 3300 XL 8 mm proximity probe is used in a range of critical industrial applications:

• Turbines and Compressors: Ensures precise shaft monitoring to prevent costly failures.

• Motors and Pumps: Detects shaft movement to prevent damage from misalignment or imbalance.

• Generators: Monitors shaft conditions for early fault detection and safe operation.

• Fan Systems: Detects shaft position and movement, helping prevent wear and damage.

Advantages

1. High Accuracy and Precision: With a resolution of 0.1 µm, the probe provides extremely precise measurements, ideal for high-speed machinery.

2. Durable Construction: The probe is made from stainless steel, offering long-lasting performance even in harsh environments.

3. Wide Operating Range: With temperatures from -40°C to +100°C, the 3300 XL probe can be used in various industrial conditions.

4. Minimal Maintenance: Designed for easy installation and low maintenance, reducing operational downtime.

5. Reliable Output: The 4-20 mA output ensures reliable signal transmission for integration into industrial monitoring systems.

6. IP67 Protection: Fully sealed against dust and water, ensuring reliable performance in challenging environments.

FAQ

1. How does the 3300 XL 8 mm proximity probe measure shaft displacement?
   The probe uses an eddy current sensor to detect the proximity of a metallic shaft. As the shaft moves closer or farther from the sensor, the electromagnetic field changes, and this is measured to calculate the displacement.

2. Can this proximity probe be used in high-temperature environments?
   Yes, the 3300 XL probe operates effectively in temperatures ranging from -40°C to +100°C, making it suitable for extreme conditions.

3. What is the output signal of the Bently Nevada 3300 XL proximity probe?
   The probe provides a 4-20 mA output signal, which is compatible with most industrial monitoring systems.

4. Can the 3300 XL 8 mm proximity probe be used for monitoring non-rotating machinery?
   While designed for rotating machinery, the probe can also be used in some non-rotating applications where shaft displacement is measurable.

5. How is the 3300 XL probe calibrated?
   Calibration is done by using a test shaft with known dimensions. The probe’s readings are compared to the standard measurements to ensure accurate readings.

6. What is the linear range of the 3300 XL probe?
   The 3300 XL probe has a linear range of 4-20 mA, providing accurate measurement data over the typical operating range of the system.

7. What makes the Bently Nevada 3300 XL series reliable?
   The 3300 XL series is designed with robust construction and high-quality materials, reducing the risk of mechanical wear and environmental interference.

8. How does the probe’s signal output work with vibration monitoring systems?
   The 4-20 mA signal output is sent to the vibration monitoring system, where it is used to detect shaft displacement, which can indicate issues like misalignment or imbalance.

9. What is the protection rating of the Bently Nevada 3300 XL probe?
   The probe has an IP67 protection rating, making it resistant to dust and water, ensuring reliable performance in harsh industrial environments.

10. What materials are used to construct the 3300 XL proximity probe?
    The probe is made of stainless steel, providing durability and resistance to corrosion in harsh environments.
