Product Introduction

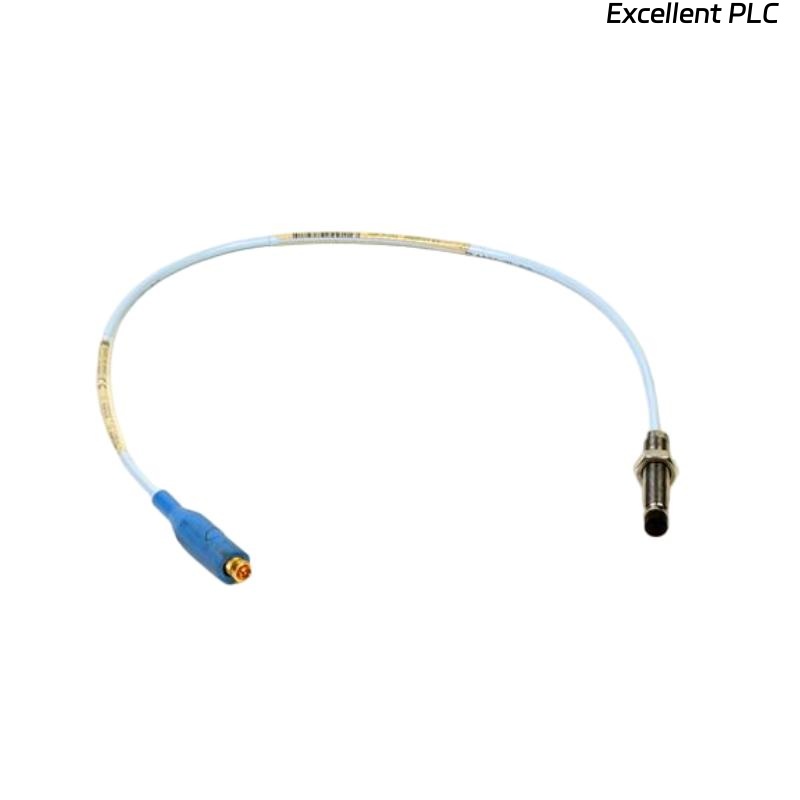

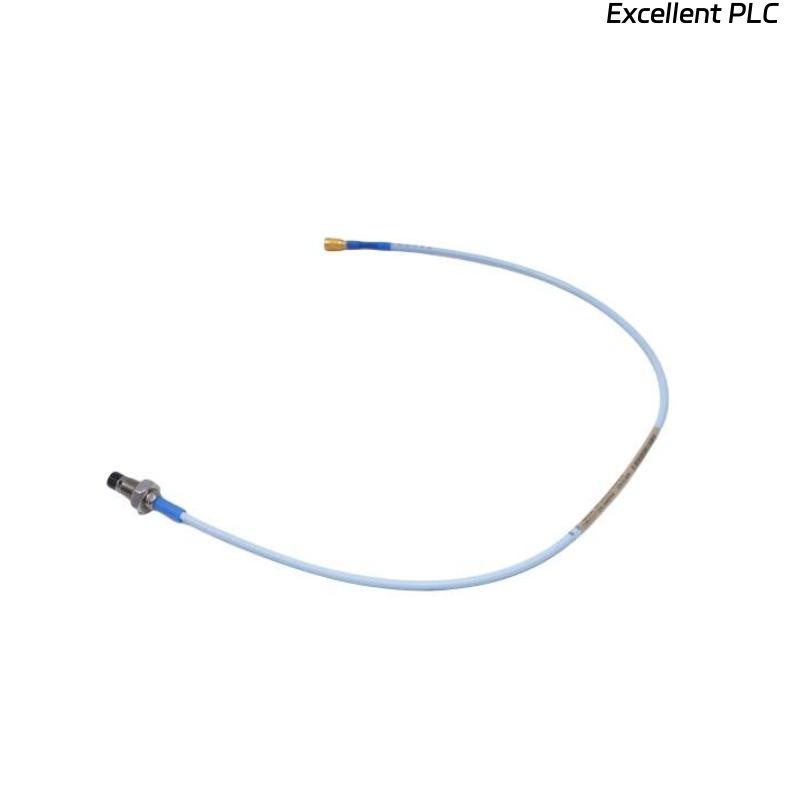

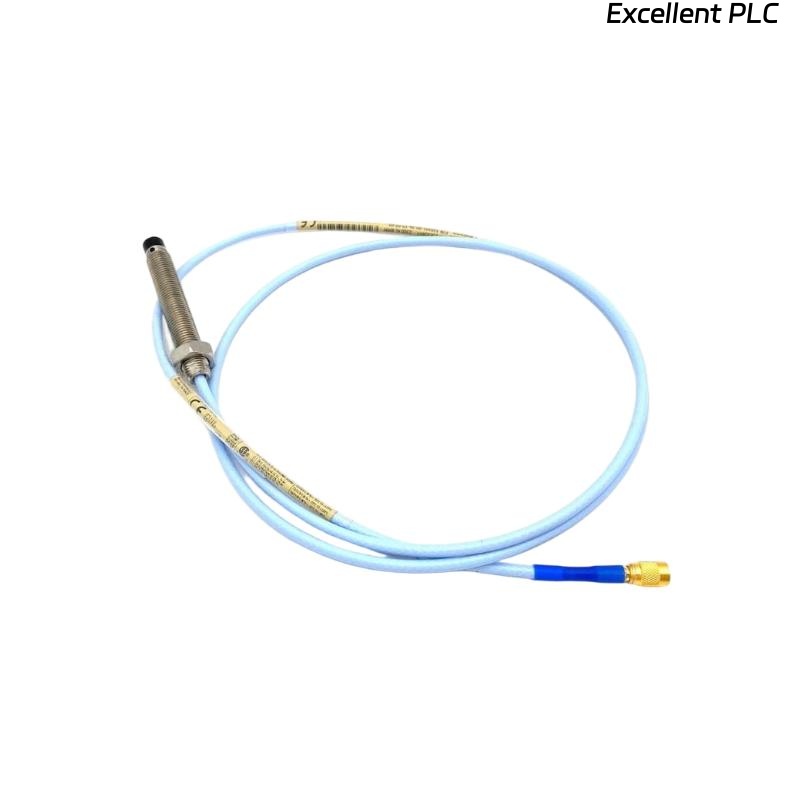

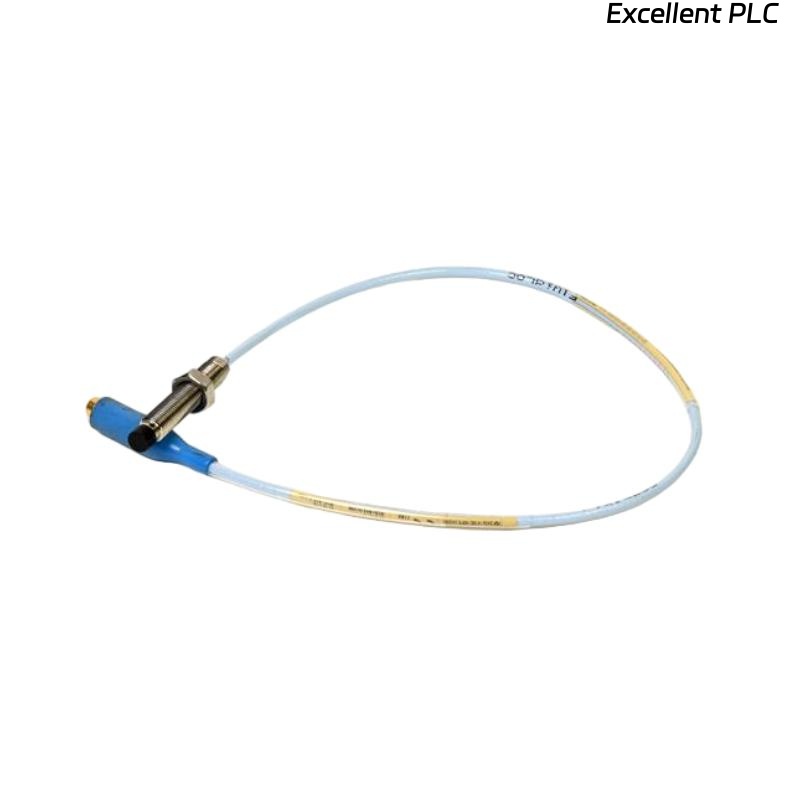

The Bently Nevada 330101-02-24-10-02-00 is an 8 mm proximity probe in the 3300 XL series, using eddy-current displacement technology for precise shaft position and vibration monitoring in rotating machinery.
It provides high measurement accuracy, wide frequency response, and excellent temperature stability.
The probe integrates seamlessly with 3300 XL monitoring systems, widely used in power, petrochemical, oil & gas, and heavy industrial equipment for real-time condition monitoring and predictive maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330101-02-24-10-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Sensor |
| Measurement Range | ±1.5 mm typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5 μm/V |
| Temperature Range | –20°C to +120°C |
| Cable Length | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Output | AC displacement signal |
| Mounting Type | Non-threaded, ClickLoc™ mini coax connector |
Applications
-
Rotating machinery monitoring: turbines, generators, compressors, pumps
-
Vibration analysis: detect subtle vibration patterns for predictive maintenance
-
Shaft position measurement: displacement and runout detection
-
Condition-based maintenance: real-time monitoring for optimized maintenance
-
Industrial automation: integration with SCADA/DCS systems
-
Critical equipment safety: early detection of abnormal shaft behavior
Product Advantages
-
High precision: detects minute shaft displacement
-
Robust: resistant to heat, vibration, and industrial contaminants
-
Wide frequency response: supports various rotational speeds
-
Long cable support: maintains signal integrity
-
Easy integration: compatible with 3300 XL series systems
-
Durable construction: stainless steel housing and reinforced cable
FAQ
-
Q: What is the sensing principle?
A: Eddy-current displacement sensing. -
Q: Can it work with 3300 XL vibration monitoring systems?
A: Yes, fully compatible. -
Q: Nominal measurement range?
A: ±1.5 mm typical. -
Q: Frequency response?
A: DC to 10 kHz. -
Q: Suitable for high temperatures?
A: Yes, –20°C to +120°C. -
Q: Output signal type?
A: AC displacement signal. -
Q: How is it mounted?
A: Non-threaded with ClickLoc™ mini coax connector. -
Q: Can it measure vibration and shaft position simultaneously?
A: Yes. -
Q: Typical industries?
A: Power, petrochemical, oil & gas, heavy industry. -
Q: Resistant to industrial contaminants?
A: Yes, stainless steel housing and reinforced cable.
