Product Introduction

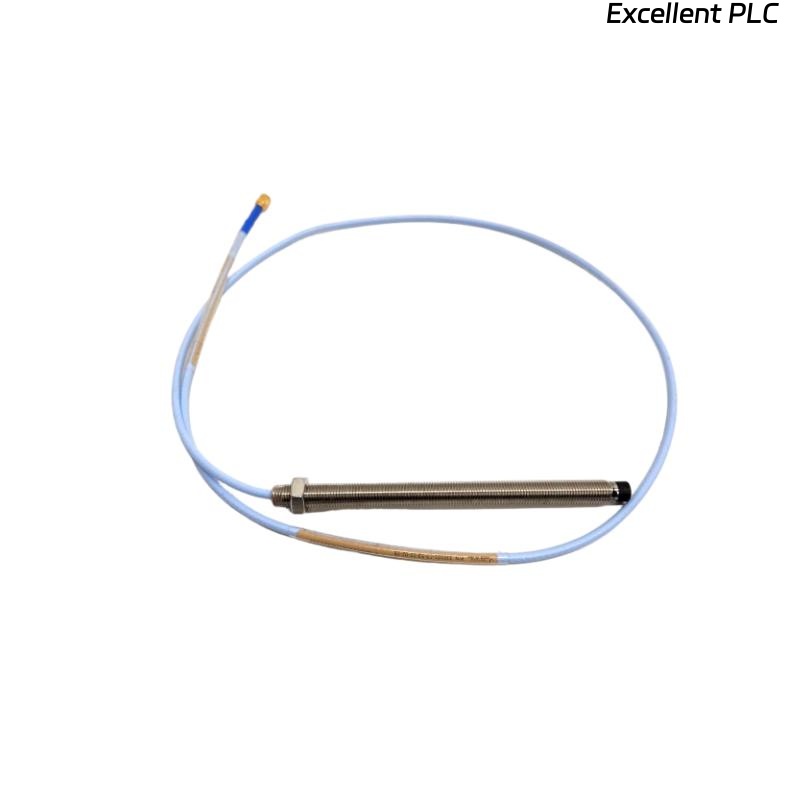

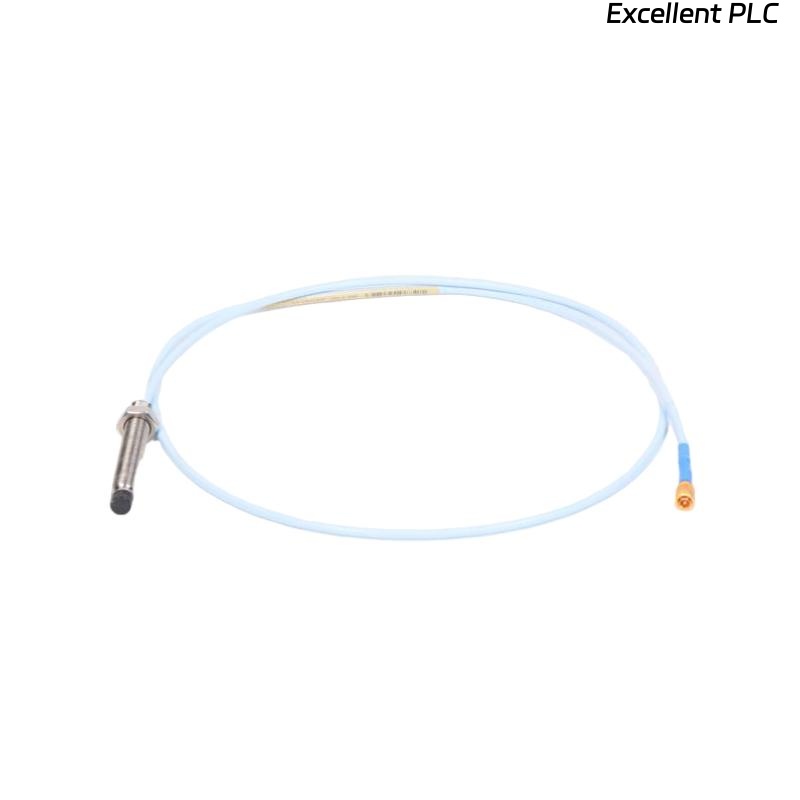

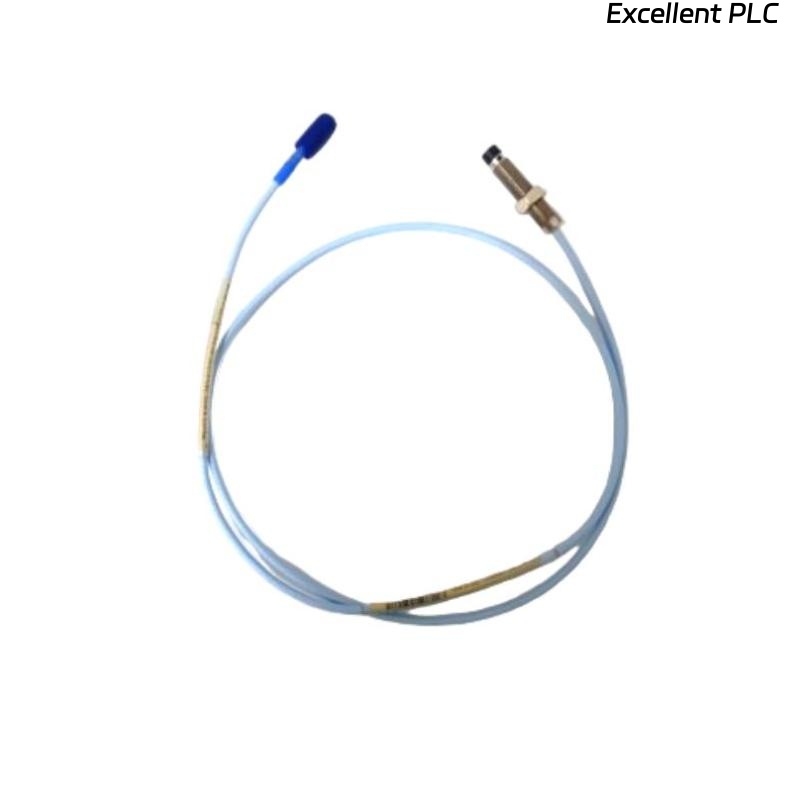

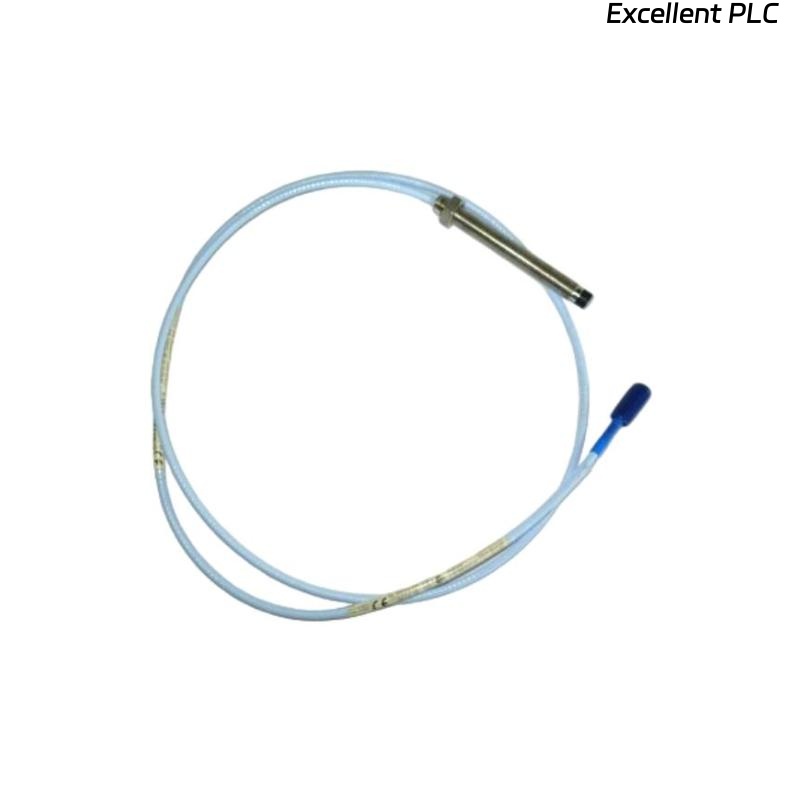

The Bently Nevada 330101-05-20-10-02-00 is a high-precision 8 mm proximity probe from the 3300 XL series, designed for accurate vibration and position measurements in rotating machinery. Utilizing eddy-current technology, this probe offers exceptional stability and linearity over a wide temperature range, making it ideal for applications in fluid-film bearing machines, speed measurements, and Keyphasor® reference systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 330101-05-20-10-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity |
| Measurement Range | ±1.5 mm typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5 µm/V |
| Temperature Range | –20°C to +120°C |
| Cable Length | Total Length: 1.0 meter |
| Weight | 0.323 kg |
| Output Signal | AC displacement |
| Mounting Type | Non-threaded, ClickLoc™ mini coax connector |
Applications
The 3300 XL 8 mm proximity probe is widely used in various industries for:
-
Rotating Machinery Monitoring: Turbines, compressors, pumps, and generators.
-
Vibration Analysis: Detecting subtle vibration patterns for predictive maintenance.
-
Shaft Position Measurement: Monitoring shaft displacement and runout.
-
Condition-Based Monitoring: Real-time monitoring to optimize maintenance schedules.
-
Speed Measurement: Keyphasor® applications for rotational speed detection.
Product Advantages
-
High Precision: Provides accurate measurements with a sensitivity of 5 µm/V.
-
Wide Frequency Response: Suitable for a range of applications with frequencies up to 10 kHz.
-
Robust Construction: Designed to withstand harsh industrial environments.
-
Easy Integration: Compatible with 3300 XL series monitoring systems.
-
Interchangeability: Components are interchangeable without the need for individual calibration.
-
Temperature Stability: Operates effectively across a wide temperature range.
FAQ
-
Q: What is the sensing technology used in the 3300 XL 8 mm probe?
A: The probe utilizes eddy-current displacement sensing technology. -
Q: Can the probe be used with existing 3300 series systems?
A: Yes, the 3300 XL series components are backward compatible with previous 3300 series systems. -
Q: What is the typical measurement range of the probe?
A: The typical measurement range is ±1.5 mm. -
Q: Is the probe suitable for high-temperature environments?
A: Yes, the probe operates effectively within a temperature range of –20°C to +120°C. -
Q: What type of output signal does the probe provide?
A: The probe provides an AC displacement signal. -
Q: How is the probe mounted?
A: The probe is mounted using a non-threaded ClickLoc™ mini coax connector. -
Q: Can the probe measure both static and dynamic values?
A: Yes, the system provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, capable of measuring both static (position) and dynamic (vibration) values. -
Q: Is the probe resistant to industrial contaminants?
A: Yes, the probe’s construction is designed to withstand harsh industrial environments. -
Q: Can the probe be used for Keyphasor® applications?
A: Yes, the probe is suitable for Keyphasor® reference systems. -
Q: Is the probe compatible with fluid-film bearing machines?
A: Yes, the probe is ideal for applications in fluid-film bearing machines.
