Product Introduction

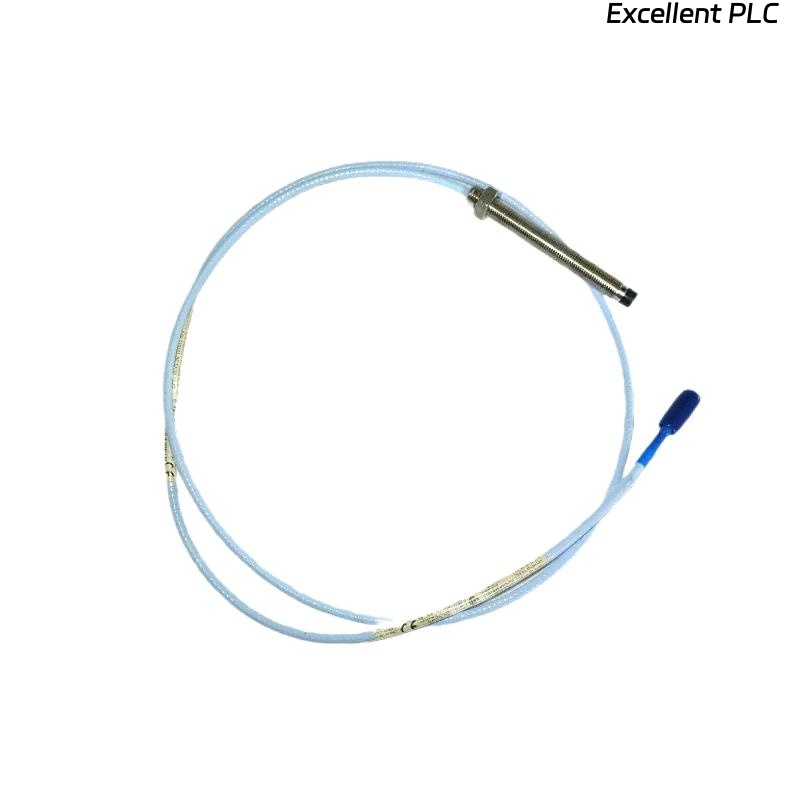

The Bently Nevada 330101-10-40-10-02-05 is a premium proximity probe from the 3300 XL 8mm Proximity Transducer System, engineered for precise measurement of shaft vibration and position in critical rotating equipment. Designed to meet API 670 standards, this probe ensures maximum reliability for machinery protection and condition monitoring systems.
It provides accurate displacement measurements for turbines, compressors, pumps, and generators, reducing unplanned downtime and optimizing machine performance. The probe is designed to withstand extreme industrial environments, offering exceptional durability, stability, and consistent performance.
Product Specifications
Parameter | Details |
---|---|
Model Number | 330101-10-40-10-02-05 |
Series | 3300 XL 8mm Proximity Transducer System |
Probe Tip Diameter | 8 mm |
Total Length | 1.0 m (Total Length) |
Connector Type | Microdot |
Operating Temperature | -35°C to +177°C |
Housing Material | Stainless Steel |
Nominal Gap | 2.0 mm (80 mils) |
Linear Range | 2.0 mm to 4.0 mm |
Output Sensitivity | 7.87 V/mm (200 mV/mil) |
Frequency Response | 0 to 10 kHz |
Insulation Resistance | > 100 MΩ at 500 VDC |
Compliance | API 670 |
Weight | 0.323 kg |
Product Applications
The Bently Nevada 330101-10-40-10-02-05 is widely deployed in machinery protection systems for monitoring critical assets, including:
-
Steam Turbines: Measuring shaft displacement and vibration for safe operation.
-
Gas Compressors: Detecting rotor dynamics to avoid catastrophic failures.
-
Centrifugal and Reciprocating Pumps: Preventing imbalance and misalignment.
-
Electric Generators: Ensuring operational stability and preventing outages.
-
Industrial Fans and Blowers: Monitoring shaft runout and vibration.
-
Oil & Gas Equipment: Continuous monitoring in hazardous and high-temperature environments.
Product Advantages
-
API 670 Compliance – Guarantees global standard adherence for critical monitoring.
-
Wide Operating Range – Handles temperatures from -35°C to +177°C.
-
High Durability – Stainless steel housing resists corrosion in harsh environments.
-
Reliable Signal Performance – Superior noise immunity ensures accurate readings.
-
Flexible System Integration – Fully compatible with Bently Nevada monitoring systems.
-
Field-Proven Design – Trusted globally for machinery protection and predictive maintenance.
-
Extended Service Life – Built for high reliability in demanding environments.
FAQ
-
What is the output sensitivity of the 330101-10-40-10-02-05 probe?
The output sensitivity is 7.87 V/mm (200 mV/mil). -
What is the nominal gap for this probe?
The nominal gap is 2.0 mm (80 mils). -
What is the linear range of this probe?
The linear range is from 2.0 mm to 4.0 mm. -
What is the frequency response capability of the probe?
The frequency response range is 0 to 10 kHz. -
Can this probe be used in hazardous industrial environments?
Yes, it is designed for hazardous and critical environments, meeting API 670 standards. -
What type of connector does this probe use?
It uses a Microdot connector for secure and stable connection. -
Is the probe compatible with the 3300 XL Proximitor Sensor?
Yes, it is fully compatible with Bently Nevada Proximitor sensors. -
What is the insulation resistance of the probe?
The insulation resistance exceeds 100 MΩ at 500 VDC. -
What is the maximum operating temperature for this probe?
The probe can operate at temperatures up to +177°C. -
Does the 330101-10-40-10-02-05 comply with API 670 standards?
Yes, this model and the entire 3300 XL series meet API 670 compliance requirements.
Related Models (Same Series or Similar Functionality)
Model | Description |
---|---|
330101-05-30-05-02-00 | 3300 XL 8mm Proximity Probe, 0.5 m cable |
330101-08-12-10-02-05 | 3300 XL 8mm Proximity Probe, 1.0 m cable |
330101-085-00-00 | 3300 XL 8mm Proximity Probe, optional length |
330102-00-20-10-02-05 | 3300 XL 11mm Proximity Probe |
330103-00-05-10-02-00 | 3300 XL 5mm Proximity Probe |
330130-040-00 | Extension Cable for 3300 XL Proximity System |
