Product Description

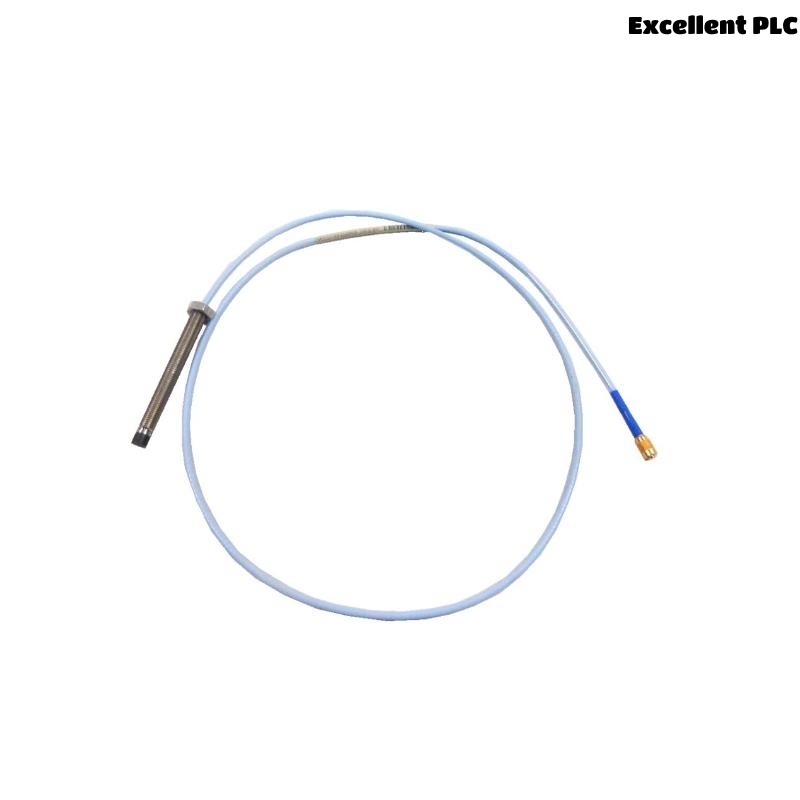

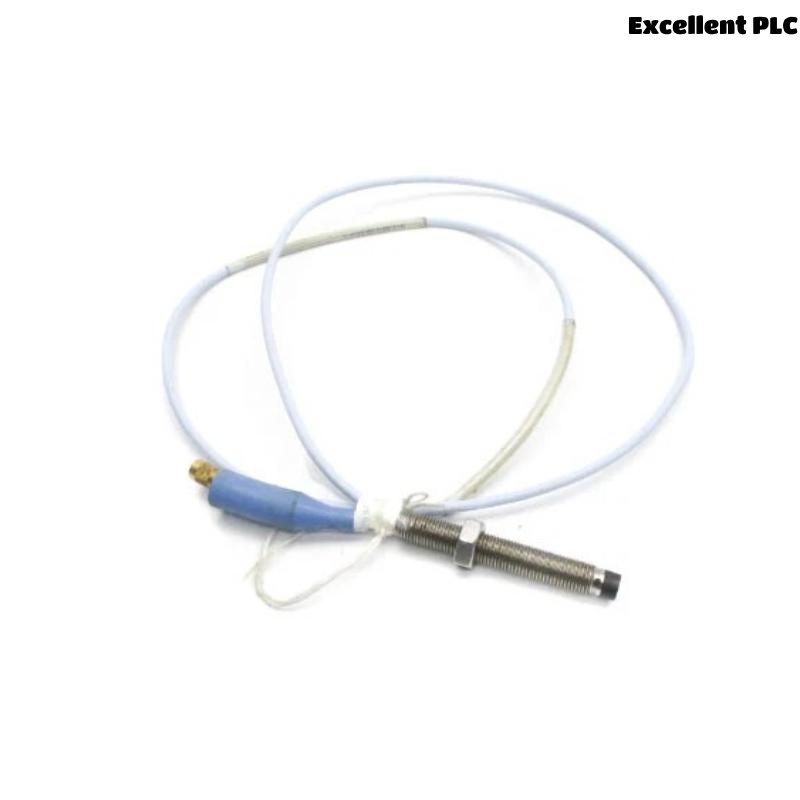

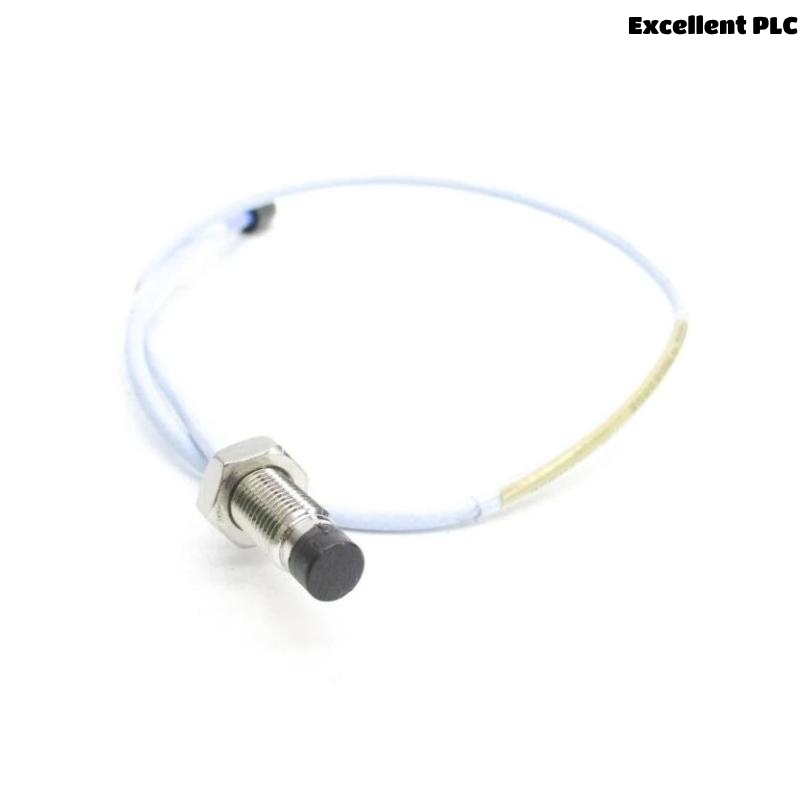

The Bently Nevada 330101-12-30-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, designed for vibration and position measurements in fluid-film bearing machines. It delivers linear output proportional to the shaft position or vibration amplitude and complies with API 670 standards. The probe, with a robust 8 mm tip, provides durability and superior measurement accuracy in demanding industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Cable Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, –3 dB) |
| Operating Temperature | –52°C to +177°C (standard probe) |
| Probe Case Material | Stainless Steel 303/304 |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Connector Type | Miniature coaxial ClickLoc |
Applications
-
Shaft vibration monitoring on turbines, compressors, pumps
-
Shaft position measurement
-
Keyphasor reference and speed detection
-
Overspeed protection systems
-
High-density DIN rail or panel-mounted installations
Advantages
-
Fully API 670 compliant
-
Backward compatible with non-XL 3300 series components
-
Robust design with patented TipLoc and CableLoc for durability
-
High immunity to RFI/EMI without additional shielding
-
SpringLoc terminal strips for fast installation
-
FluidLoc option for liquid ingress prevention
FAQ
Q1: What is the main application of this probe?
A1: It is used for measuring shaft vibration and position in rotating machinery with fluid-film bearings.
Q2: Does this model comply with API 670?
A2: Yes, it fully meets API 670 standards for linearity, accuracy, and mechanical design.
Q3: Can I use this probe in high-temperature environments?
A3: Yes, the standard version handles up to 177°C; extended temperature versions are available.
Q4: Is the probe compatible with older 3300 series systems?
A4: Yes, it is backward compatible with 3300 5 mm and 8 mm series.
Q5: What is the recommended shaft diameter for installation?
A5: A minimum shaft diameter of 50.8 mm is recommended.
Q6: Does it require special tools for installation?
A6: No, ClickLoc and SpringLoc connectors eliminate the need for special tools.
Q7: How does it handle electromagnetic interference?
A7: It has excellent RFI/EMI immunity and meets CE mark requirements.
Q8: Is the connector protected against environmental exposure?
A8: Yes, connector protectors are recommended and available.
Q9: What is the typical output sensitivity?
A9: It provides 7.87 V/mm (200 mV/mil) output sensitivity.
Q10: Can the probe be used in hazardous areas?
A10: Yes, it has CSA, ATEX, and IECEx approvals for hazardous areas.
