Bently Nevada 330101-13-37-10-12-05 3300 XL 8mm Proximity Probes

Product Introduction

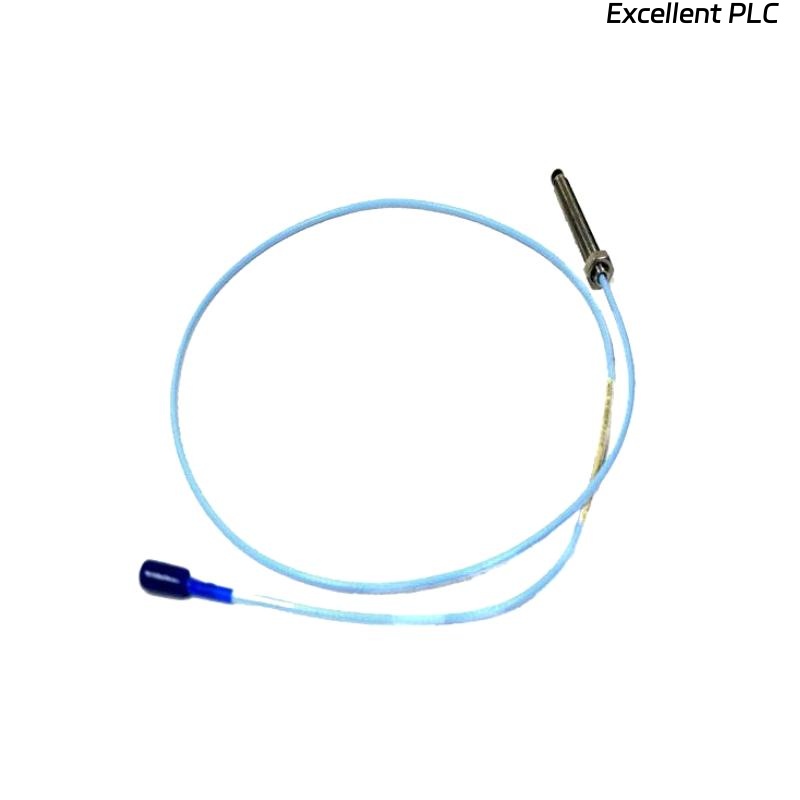

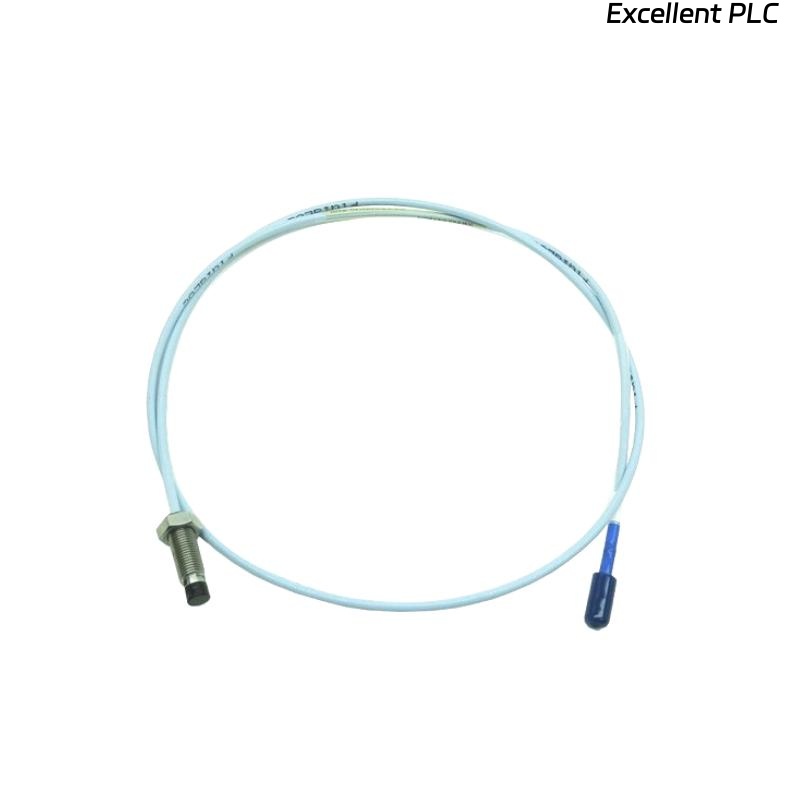

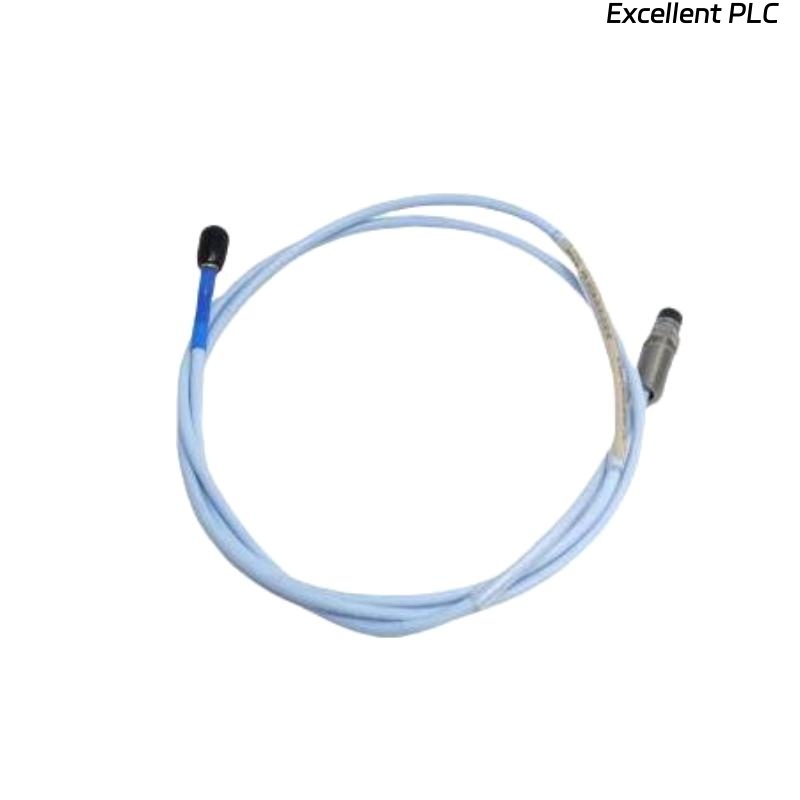

The Bently Nevada 330101-13-37-10-12-05 is a high-precision proximity probe from the 3300 XL 8mm Proximity Transducer System. Designed for accurate measurement of shaft vibration and axial displacement, this probe is essential for machinery protection and condition monitoring in critical rotating equipment.

It is widely used in industries such as power generation, petrochemical, oil & gas, and heavy manufacturing, where reliability, precision, and early fault detection are paramount. Compliant with API 670 standards, the 3300 XL series ensures dependable performance under extreme operating conditions, including high temperatures, vibrations, and harsh industrial environments.

Product Specifications

Product Applications

The 330101-13-37-10-12-05 probe is designed for use in critical rotating machinery monitoring systems, including:

• Steam and Gas Turbines: Shaft vibration and axial displacement monitoring to ensure safe operation.

• Compressors: Detecting rotor dynamics, misalignment, and imbalance.

• Pumps: Monitoring shaft position and vibration to prevent failures.

• Generators: Maintaining operational stability and preventing rotor faults.

• Industrial Fans and Blowers: Measuring runout and vibration for process reliability.

• Oil & Gas and Petrochemical Equipment: Continuous monitoring in hazardous and high-temperature environments.

Product Advantages

• API 670 Compliance: Ensures adherence to global standards for machinery protection.

• Durable Construction: Stainless steel housing resists corrosion and wear.

• Extended Temperature Range: Operates from -35°C to +177°C.

• High Signal Accuracy: Low noise ensures precise and reliable measurements.

• Easy System Integration: Compatible with Bently Nevada Proximitor sensors and 3300 XL monitoring systems.

• Proven Reliability: Trusted worldwide for predictive maintenance and industrial monitoring.

• Versatility: Suitable for turbines, compressors, pumps, generators, and industrial fans.

FAQ

1. What is the output sensitivity of this probe?
   The output sensitivity of the 330101-13-37-10-12-05 probe is 7.87 V/mm (200 mV/mil), which allows for highly precise measurement of shaft displacement and vibration in high-speed rotating machinery.

2. What is the nominal gap for this probe?
   The nominal gap is 2.0 mm (80 mils). This gap defines the optimal distance between the probe tip and the target surface to maintain linear measurement and signal accuracy.

3. What is the linear measurement range?
   The linear range of this probe is from 2.0 mm to 4.0 mm, providing a reliable window for accurate shaft vibration and displacement detection without signal distortion.

4. What is the frequency response of the probe?
   The frequency response is 0 to 10 kHz, which is sufficient to capture high-speed rotor dynamics and vibration signals for real-time condition monitoring.

5. Is this probe suitable for hazardous environments?
   Yes, it is designed to meet API 670 standards and can safely operate in hazardous and high-temperature industrial environments, including petrochemical and oil & gas facilities.

6. What type of connector does this probe use?
   This probe utilizes a Microdot connector, which ensures secure electrical connections and minimizes signal noise in demanding industrial applications.

7. Is the probe compatible with 3300 XL Proximitor sensors?
   Yes, it is fully compatible with 3300 XL Proximitor sensors, allowing seamless integration into existing monitoring and protection systems without the need for additional adaptors.

8. What is the insulation resistance of the probe?
   The insulation resistance is greater than 100 MΩ at 500 VDC, providing reliable electrical isolation and stable operation under varying environmental conditions.

9. What is the maximum operating temperature for this probe?
   The probe can operate at temperatures up to +177°C, making it suitable for high-heat applications in turbines, compressors, and other critical machinery.

10. Does this probe comply with API 670 standards?
    Yes, the 330101-13-37-10-12-05 probe, along with the 3300 XL series, fully complies with API 670 standards, ensuring high reliability and safety for machinery protection and condition monitoring systems.
