Product Description

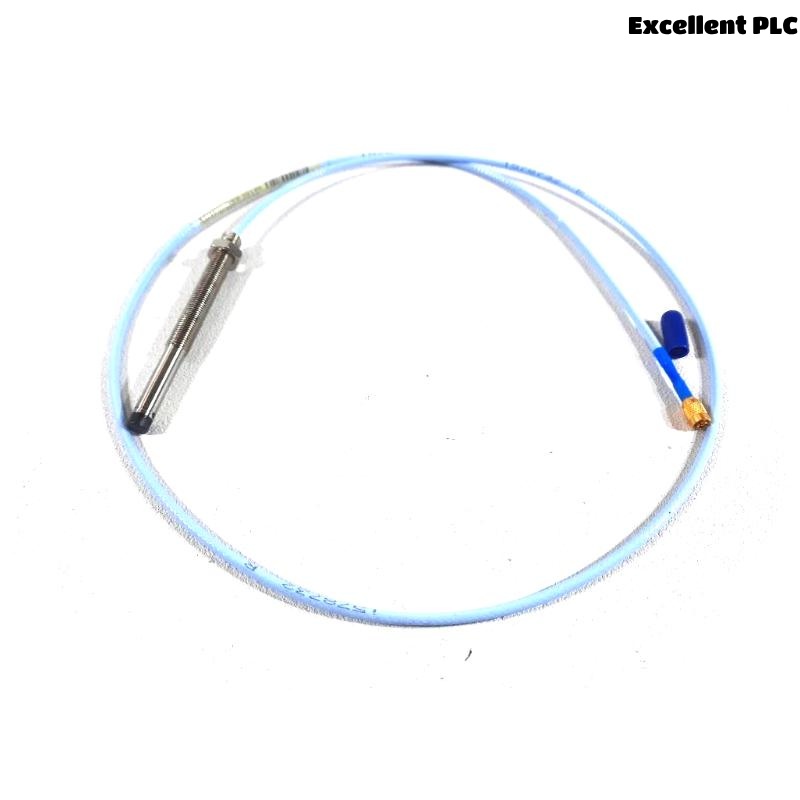

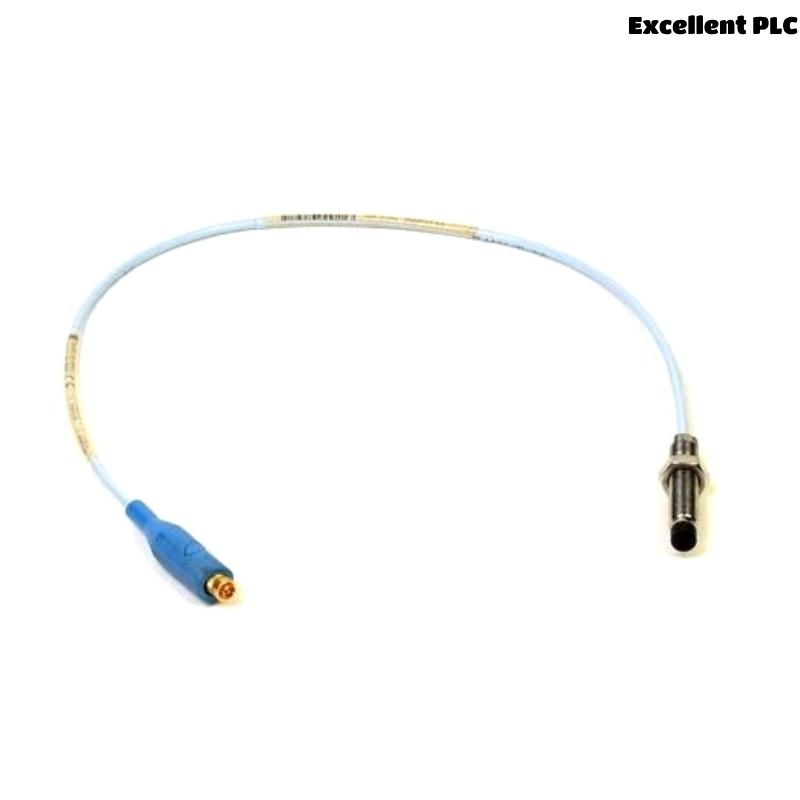

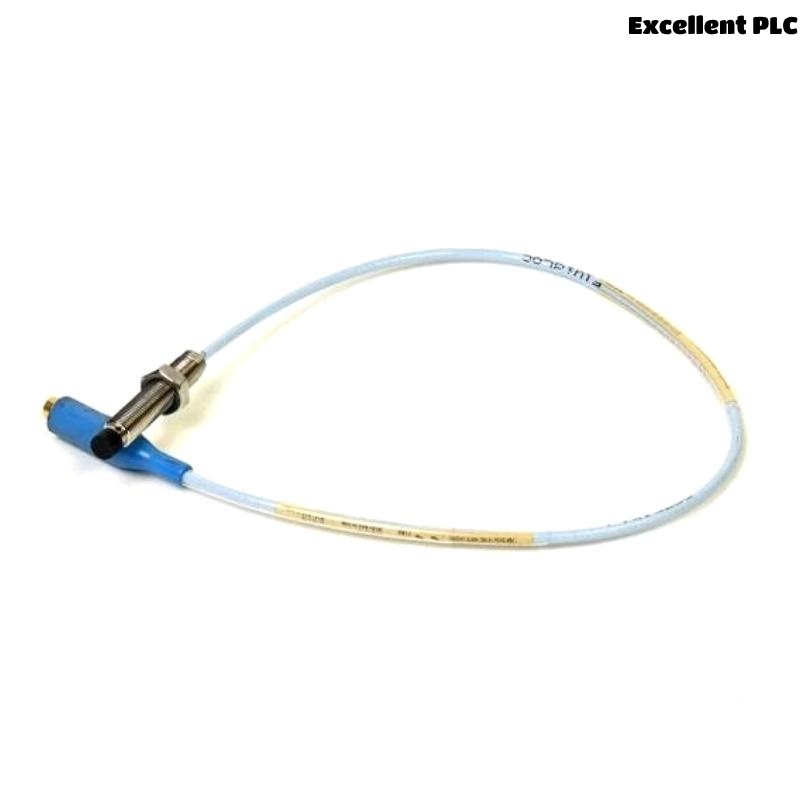

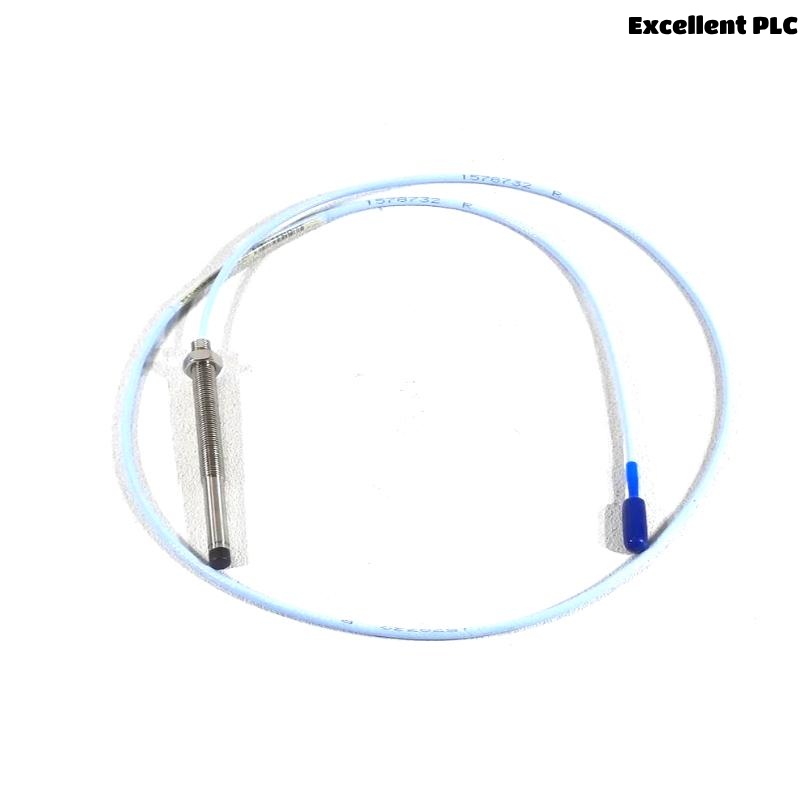

The Bently Nevada 330101-16-28-10-12-05 is part of the 3300 XL 8 mm Proximity Transducer System. It measures the distance between the probe tip and a conductive surface, delivering accurate static (position) and dynamic (vibration) measurements. It is designed for fluid-film bearing machines, keyphasor reference, and speed measurement applications. The 3300 XL series ensures high accuracy, robustness, and compliance with API 670 standards, with components fully interchangeable for ease of maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Operating Temperature (Probe) | -52°C to +177°C |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connectors | Gold-plated ClickLoc, finger-tightened |
| Tensile Strength (Probe to Cable) | 330 N (75 lbf) |
Applications
-
Vibration and position monitoring on rotating machinery
-
Keyphasor reference signal generation
-
Overspeed protection systems
-
Monitoring of fluid-film bearing machines
-
Installation in harsh industrial environments with high EMI immunity
Advantages
-
Complies with API 670 for mechanical and performance standards
-
Fully interchangeable components for easy replacement
-
Excellent temperature and EMI immunity
-
Robust, reliable ClickLoc connectors
-
Oil-resistant FluidLoc cable option
-
High pull strength and durable probe design
FAQ
Q1: What is the linear measurement range of this probe?
A1: It has a linear range of 2 mm (80 mils).
Q2: Can this probe be used in high-temperature environments?
A2: Yes, it supports up to +177°C for standard probes.
Q3: Is the probe tip material suitable for harsh conditions?
A3: Yes, the PPS material ensures durability and chemical resistance.
Q4: Do I need to calibrate individual components?
A4: No, all components are interchangeable without individual calibration.
Q5: What is the recommended shaft diameter for accurate measurement?
A5: Minimum recommended shaft diameter is 76.2 mm.
Q6: Does it meet API 670 standards?
A6: Yes, the system fully complies with API 670 specifications.
Q7: Are special tools required to connect the cables?
A7: No, the ClickLoc connectors only require finger-tightening.
Q8: Can it be used for both position and vibration monitoring?
A8: Yes, it provides accurate static and dynamic measurements.
Q9: What is the maximum pull strength of the probe-to-cable connection?
A9: The connection withstands up to 330 N (75 lbf).
Q10: Are the cables oil-resistant?
A10: Yes, the FluidLoc option prevents oil leakage through cables.
Recommended Similar or Related Models
| Model | Total Length | Weight | Features |
|---|---|---|---|
| 330101-00-08-10-02-05 | 1.0 m | 0.323 kg | Standard unarmored |
| 330102-00-20-10-02-00 | 2.0 m | 0.346 kg | Armored version |
| 330105-02-12-10-02-00 | 1.0 m | 0.330 kg | Reverse mount |
| 330191-00-12-10-02-00 | 1.0 m | 0.335 kg | Extended Temperature Range |
| 330140-00-20-10-02-00 | 2.0 m | 0.340 kg | Smooth case, unarmored |
| 330103-00-04-10-02-00 | 1.0 m | 0.323 kg | Metric thread M10 x 1 |
Popular Bently Nevada Models
| Model | Total Length | Weight | Features |
|---|---|---|---|
| 3300/42M-01-00 | – | 0.6 kg | Proximitor Seismic Monitor |
| 3500/42M-01-00 | – | 0.7 kg | 3500 Series Seismic Monitor |
| 330180-91-CN | 1.0 m | 0.246 kg | Proximitor Sensor |
| 330104-00-06-10-02-00 | 1.0 m | 0.323 kg | 8mm Metric Threaded Probe |
| 3500/44M | – | 0.65 kg | Aeroderivitive Vibration Monitor |
| 3300 XL 5mm Proximity Probe | 1.0 m | 0.320 kg | For tight installation spaces |
